EXSYS EX-62020 5-Port Industrial Ethernet Switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mini 5-Port Industrial Gigabit Switch unmanaged...
- 10/100/1000T gigabit Ethernet
- Supports auto negotiation
- Supports Jumbo frames up to 9Kbytes
- Plug and Play, no configuration or installation
- Robust, very compact metal housing, IP40
Technical specifications
- Product group: Industrial Networking
- Product type: Network switch
- Colour, black
- Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000
- Total number of ports: 5
- Gigabit Ethernet ports RJ-45: 5
- Design: Top hat rail
- Protection type (IP code): IP40
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Height: 30 mm
- Width 68 mm
- Depth: 95 mm
- Weight: 370 g
- Packaging height 70 mm
- Package width 140 mm
- Packaging depth 200 mm
- Package weight: 0,334 kg
- Gross weight: 0.334
- Product type
Network switch
- Weight
0.334
- Type
EXSYS - EX-62020 5-Port Indust. Ethernet Switch - Switch - 0,1 Gbps
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796964 EXSYS EX-62020 5-Port Industrial Ethernet Switch
User & Safety Instructions
User & Safety Instructions 3796964 EXSYS EX-62020 5-Port Industrial Ethernet Switch
Description

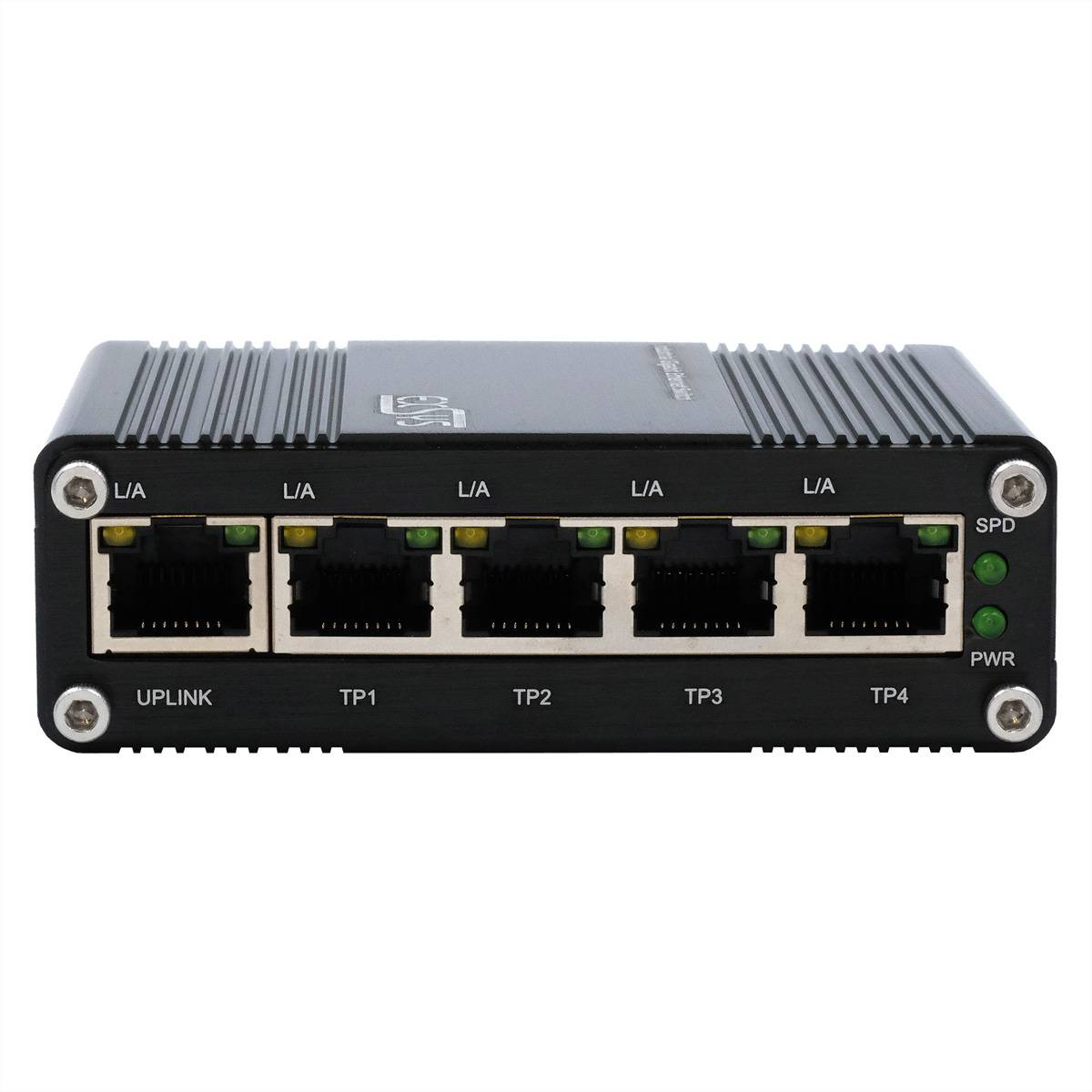

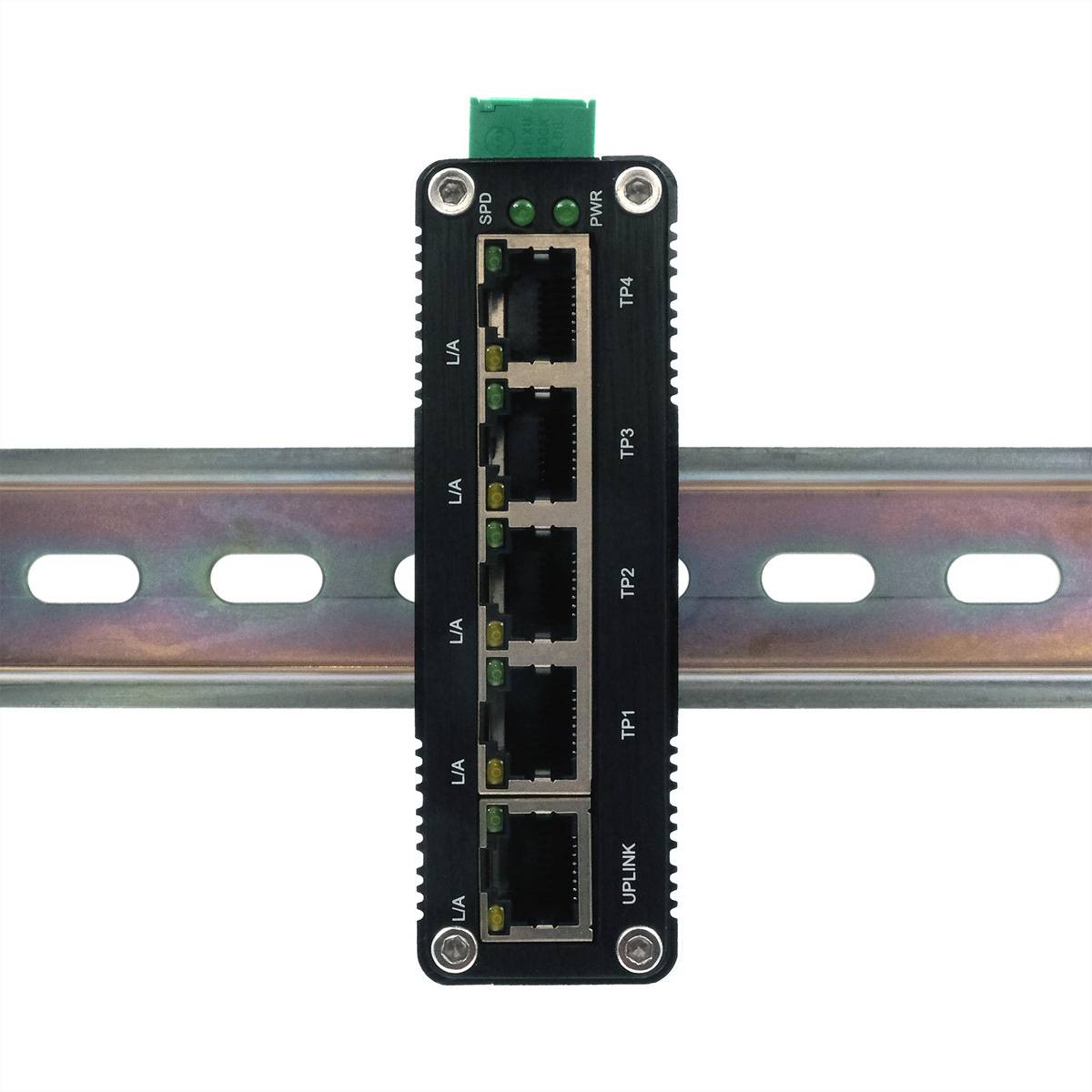

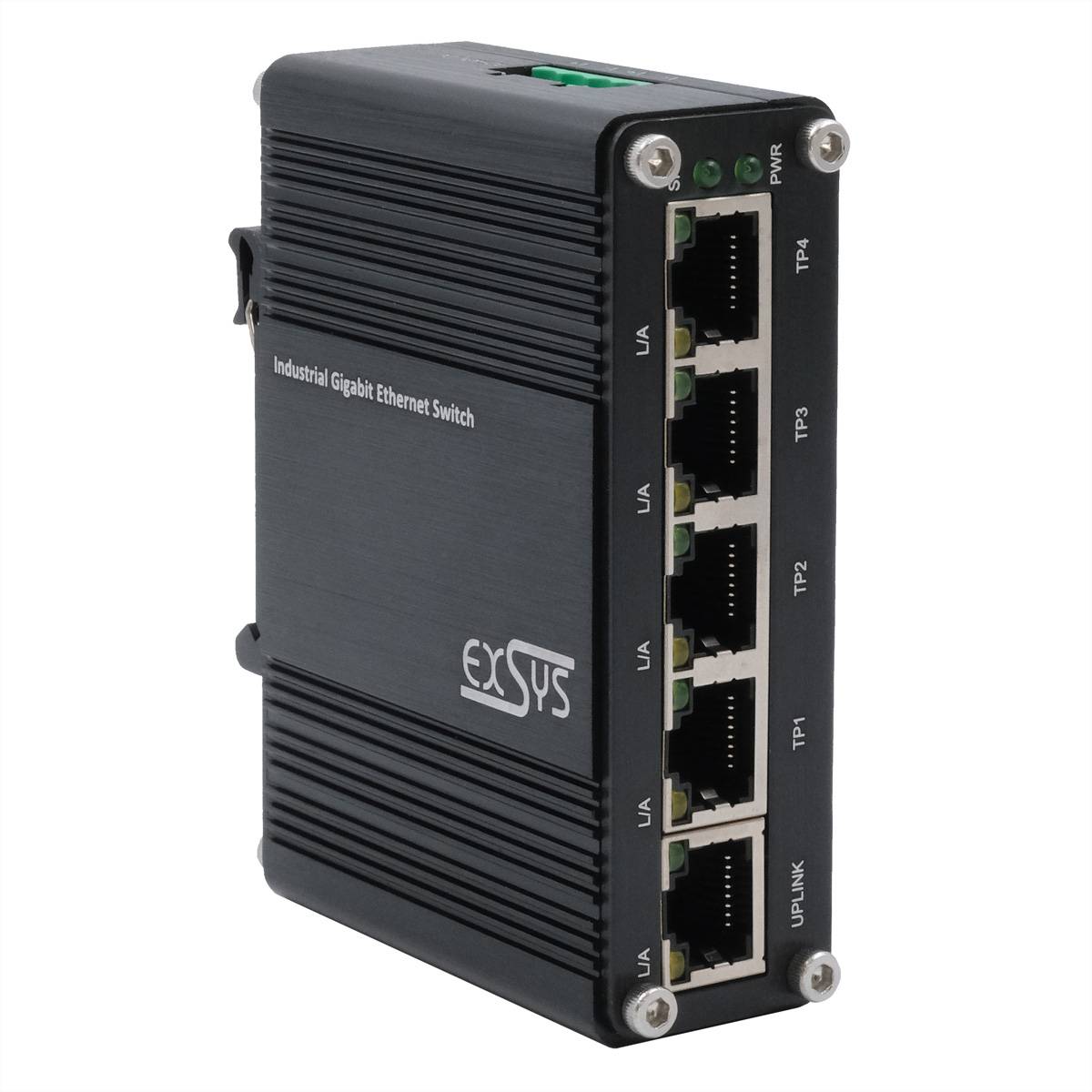

Mini 5-Port Industrial Gigabit Switch unmanaged Despite its low dimensions, the extremely compact 5-port gigabit switch EX-62020 offers full gigabit performance at all ports. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in rough environments. Power is supplied via terminal Block (12~48VDC) and can also be operated redundantly to reduce operational failures. The EX-62020 supports auto MDI/MDI-X and auto-negotiation. The delivery package includes a DIN rack kit (pre-assembled) and a wall mounting bracket.
This text is machine translated.
Scope of delivery

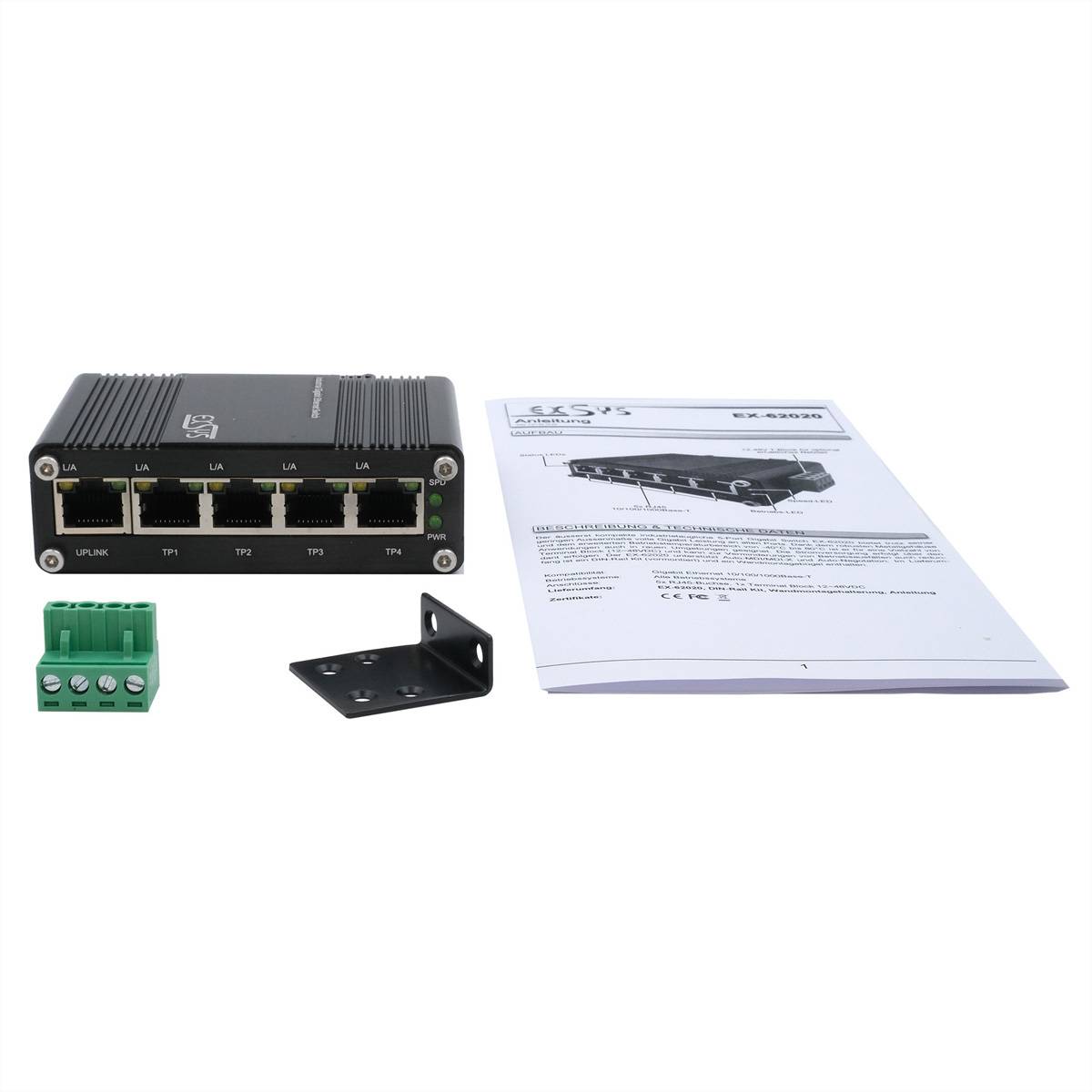

- EX-62020, DIN rail kit (pre-assembled), wall mounting kit, manual
