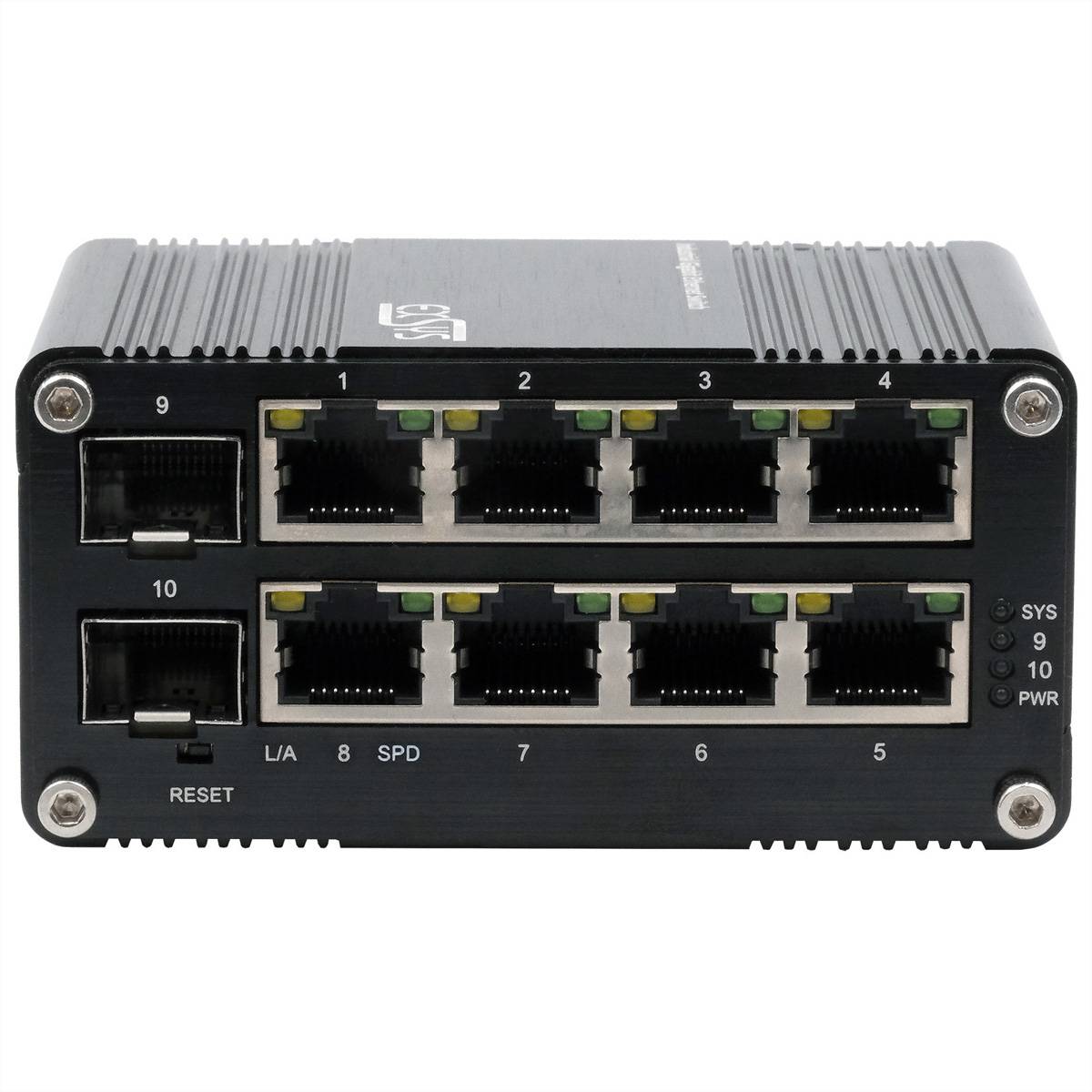

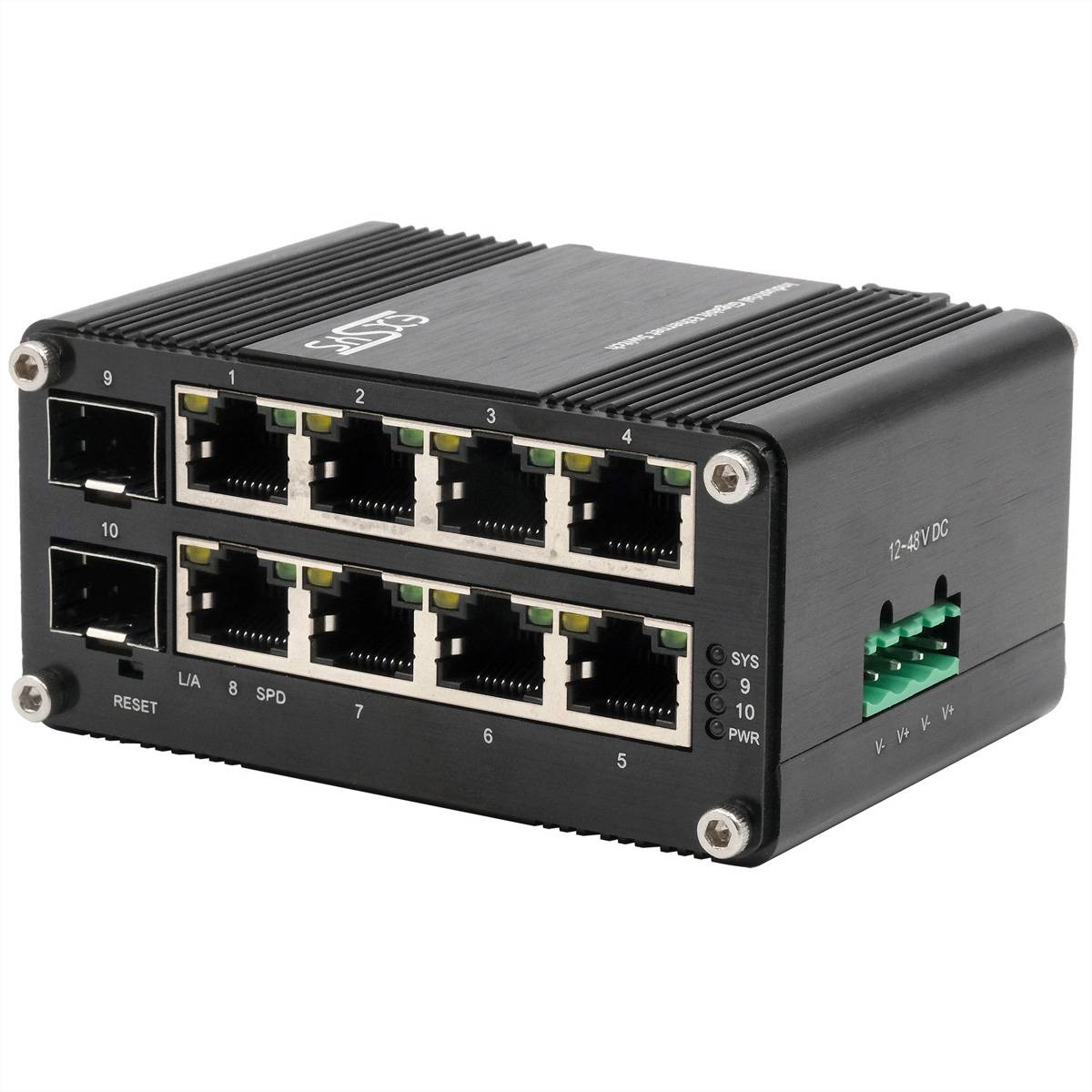

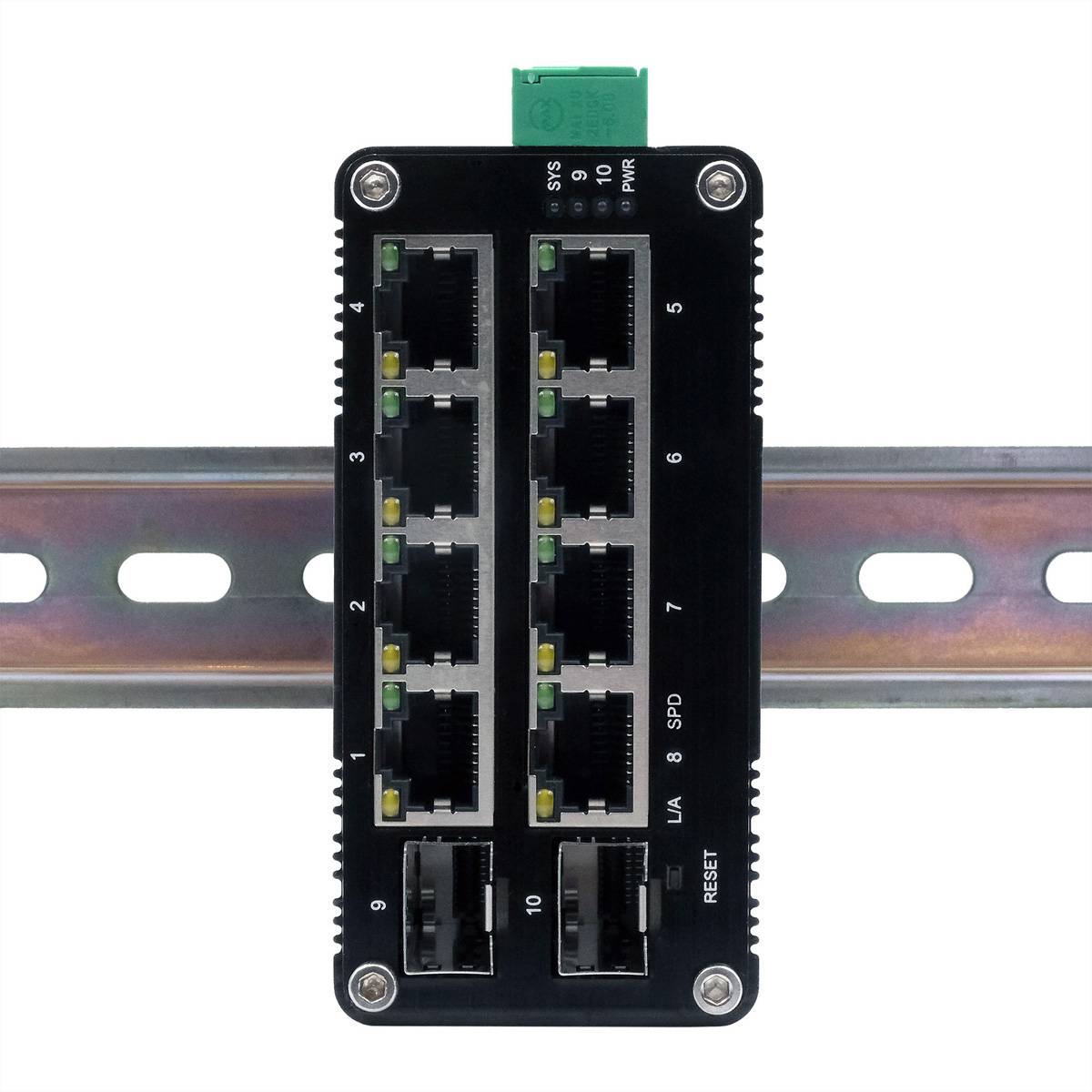

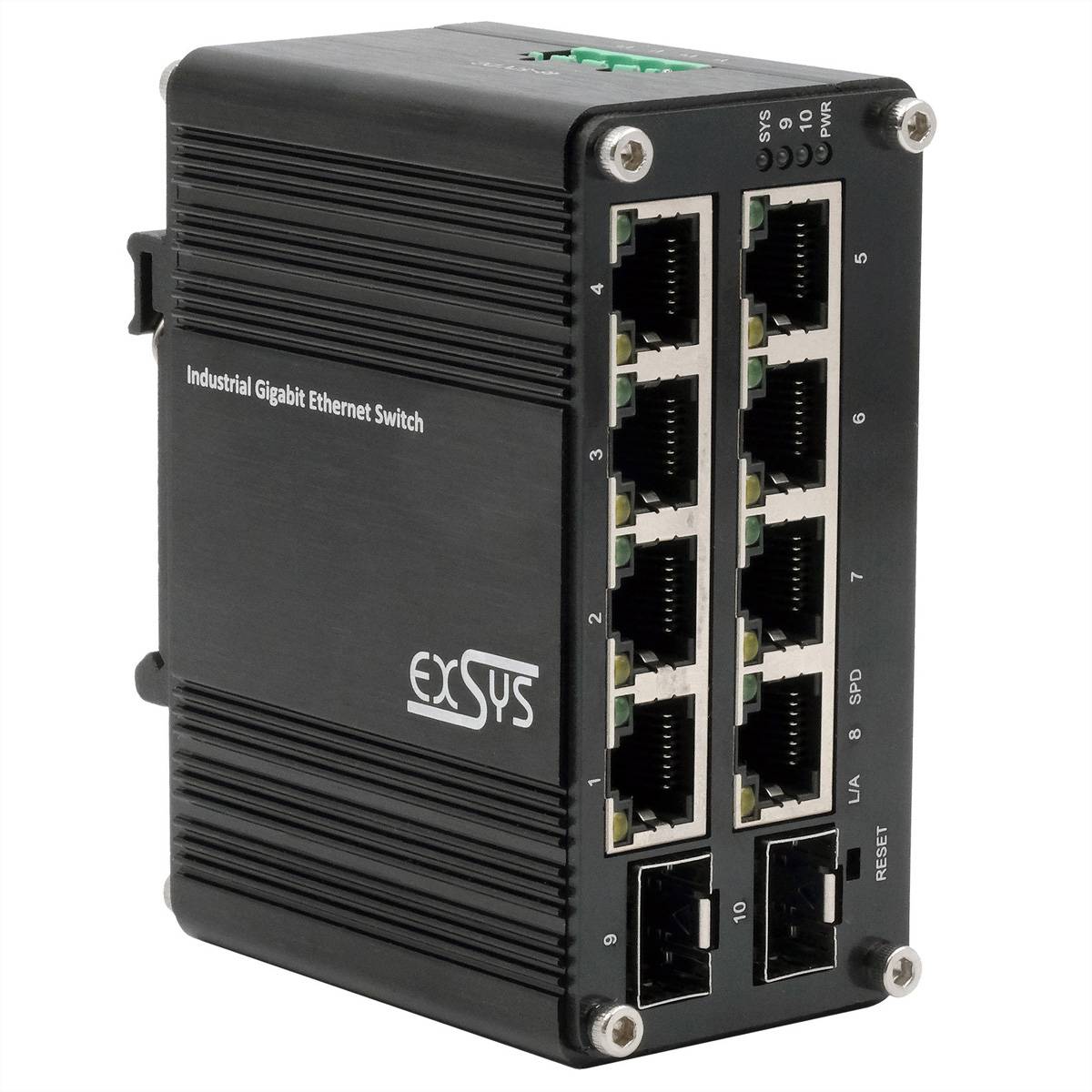

EXSYS EX-62035M-SFP 10-Port Industrial Gigabit Mini Switch, Web Managed
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Small industrial-grade 8+2-port Gigabit switch managed...
- 8x 10/100/1000TX RJ45 port, 2x 100/1000FX SFP
- Web Managed
- Supports Jumbo frames up to 9Kbytes
- Supports auto negotiation
- Robust, very compact metal housing, IP40
Technical specifications
- Product group: Industrial Networking
- Product type: Network switch
- Colour, black
- Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000
- Total number of ports: 10
- Gigabit Ethernet ports RJ-45: 8
- Free slots for SFPs: 2
- Other connections: 1x terminal Block +12V to +48V
- Design: Top hat rail
- Protection type (IP code): IP40
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Height: 46 mm
- Width 95 mm
- Depth: 79 mm
- Weight 340 g
- Packaging height 70 mm
- Package width 150 mm
- Packaging depth 190 mm
- Package weight: 0,409 kg
- Gross weight: 0.409
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
10
- SFP ports
2 x
- 10/100/1000 Mbps ports
8 x
- Fibre-optic ports
2
- Weight
0.409
- Width
95 mm
- Height
46 mm
- Depth
79 mm
- Type
EX-62035M-SFP
- Interfaces
RJ45
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796996 EXSYS EX-62035M-SFP 10-Port Industrial Gigabit Mini Switch, Web Managed
User & Safety Instructions
User & Safety Instructions 3796996 EXSYS EX-62035M-SFP 10-Port Industrial Gigabit Mini Switch, Web Managed
Description
Small industrial-grade 8+2-port Gigabit switch managed The smallest industrial-grade 10-port Gigabit Web-Managed Switch EX-62035M-SFP offers full gigabit performance at all ports despite its low outer dimensions. The two SFP slots enable integration into a fiber optic network. Suitable SFP transceivers are available as accessories. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a wide range of applications even in harsh environments. The power is supplied via the terminal Block (12-48VDC) and can also be used redundantly to reduce operating failures. The delivery also includes a DIN-rail kit (pre-mounted).
This text is machine translated.
Scope of delivery
- EX-62035M-SFP DIN-Rail Kit (pre-mounted), manual
