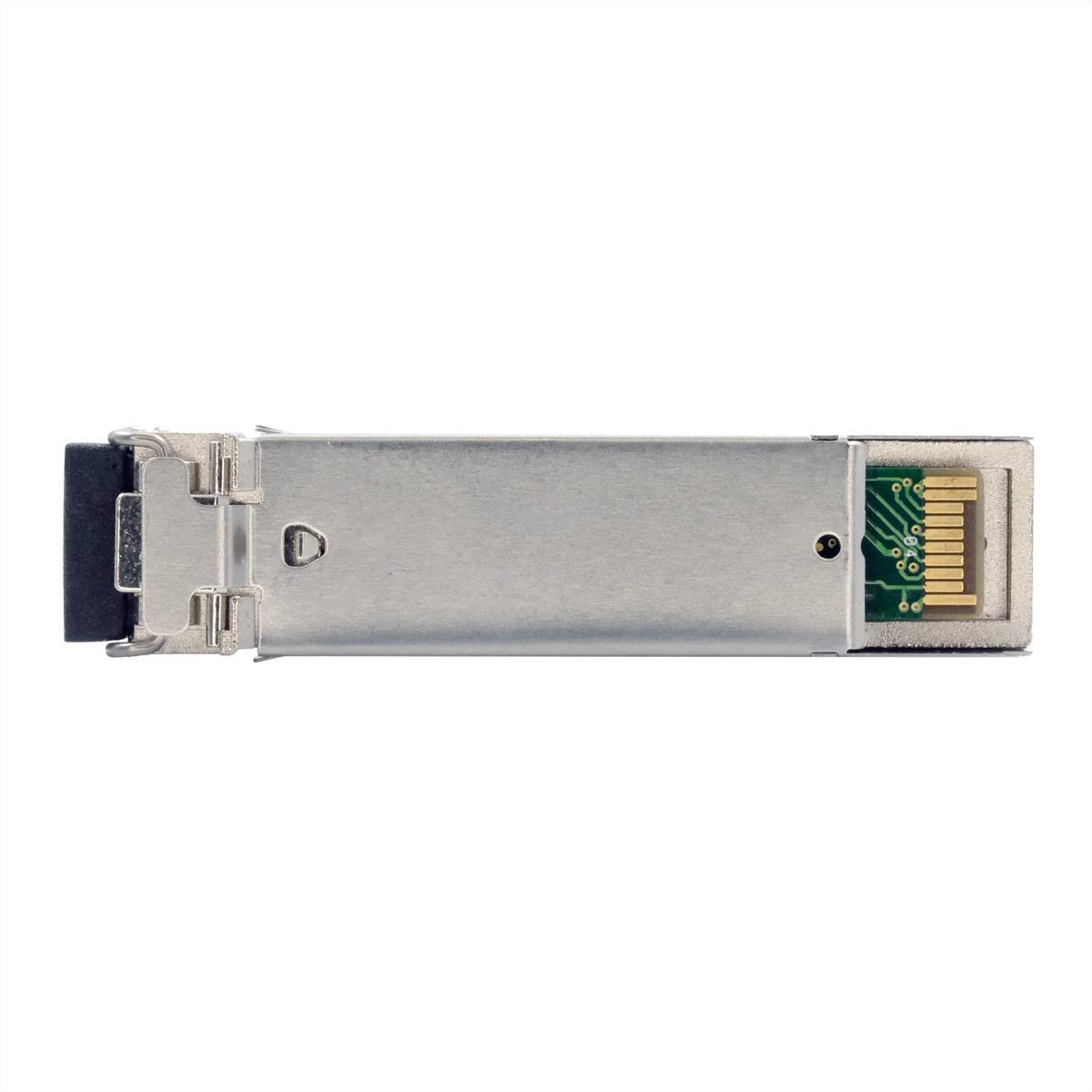

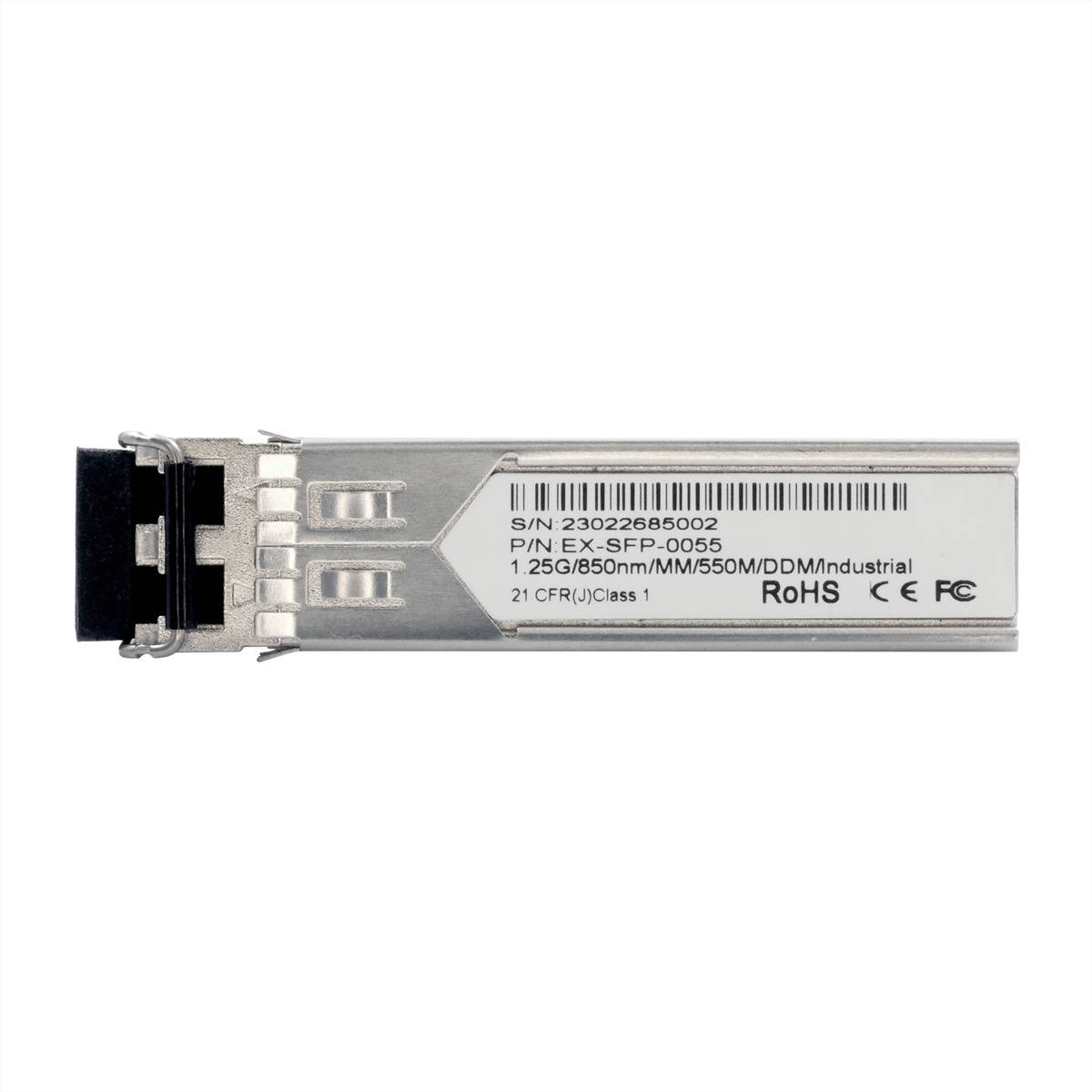

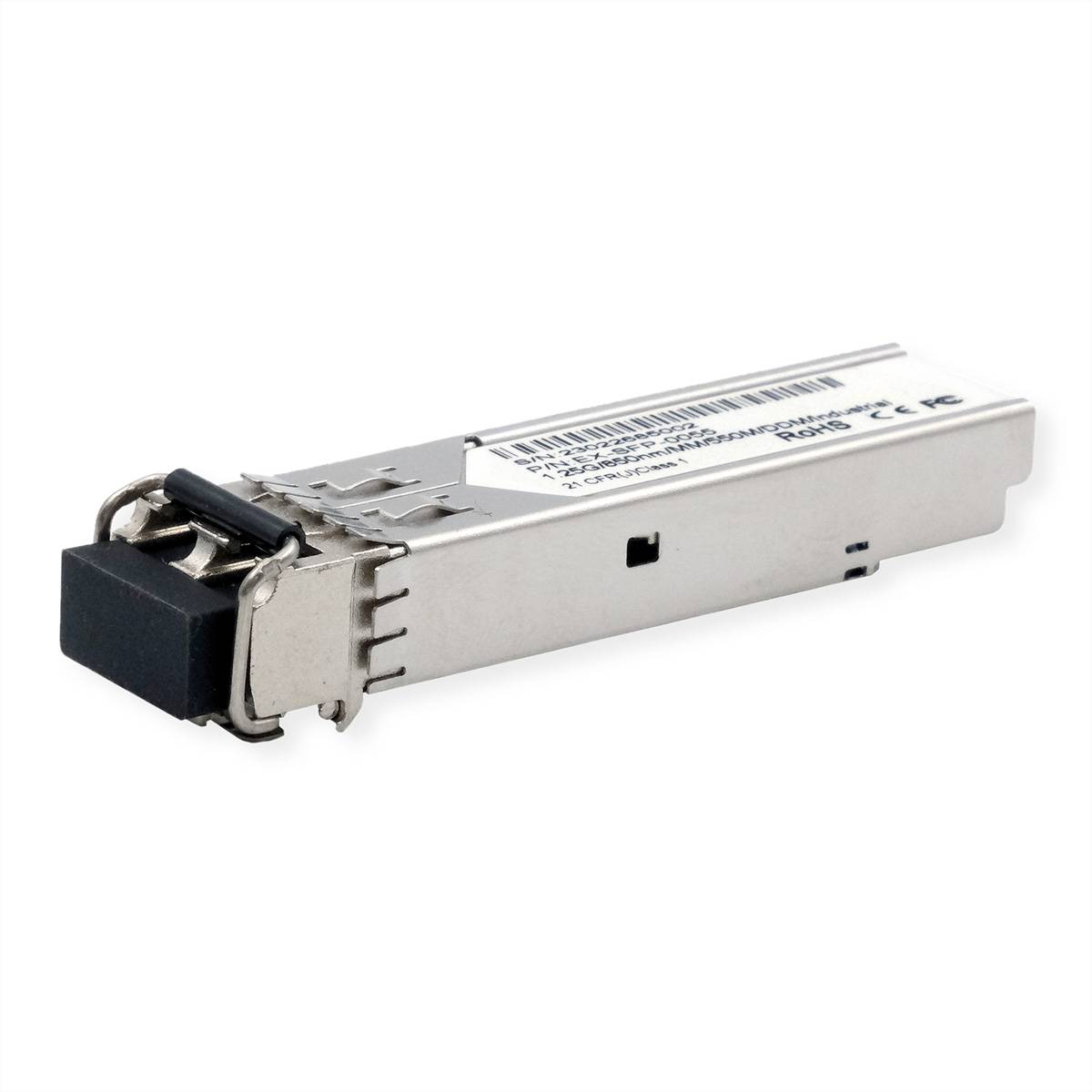

Exsys EX-SFP-0055 EX-SFP-0055 Transceiver board
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-SFP-0055 Network Transceiver Module Fibre Optic 1250 Mbit/s 850 nm
- SFP fiber optics 1250 Mbit/s
- Wavelength 850 nm.
- Input voltage: 3.3 V
- Power consumption (standard mode) 1 W.
Technical specifications
- Maximum data transfer rate of 1250 Mbit/s.
- SFP interface
- Product type
Transceiver board
- Factory colour
Stainless steel
- Depth
57 mm
- Height
10.5 mm
- Width
13.7 mm
LC
- Power consumption (ON)
1 W
- Input voltage
3.3 V
- Weight
17 g
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Quantity per pack
1 Stück(e)
- Digital Diagnostics Monitoring (DDM)
yes
- Wavelength
850 nm
- Multi-mode fiber (MMF) supported
yes
- Operating relative humidity (H-H)
5 - 85 %
- Storage temperature (T-T)
-40 - 85 °C
- Maximum transfer distance
550 m
Documents & Downloads
Datasheet
Datasheet 3796985 Exsys EX-SFP-0055 EX-SFP-0055 Transceiver board
User & Safety Instructions
User & Safety Instructions 3796985 Exsys EX-SFP-0055 EX-SFP-0055 Transceiver board
Description
High-performance, cost -effective module The EX-SFP-0055 SFP transceiver is a high-performance, cost-effective module with a data rate of 1.25 Gbps and a transmission distance of up to 550 m with multimode fiber. . The transceiver consists of three parts: A VCSEL laser transmitter, a PIN photodiode integrated with a Transimpedance preamplifier (TIA), and an MCU control unit. All modules meet the requirements of laser safety class I. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
This text is machine translated.
Scope of delivery
- EX-SFP-0055
