Highlights & Details

EXSYS EX-11042 interface card / adapter Built-in USB 3.2 1st Gen 1 (3.1 Gen 1)

built-in
Host Interface: PCIe
Output interface USB 3.2 1st Gen 1 (3.1 Gen 1)
Purpose: PC
5 Gbit/s
Green, silver

Technical specifications

Data transfer rate 12 Mbit/s.
Data transfer rate 5 Gbps

Product type: PCI card

Factory colour: Green
Silver

Type A: PCI Express

Height: 45 mm

Width: 75 mm

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

4-pin Molex: 1

Weight: 108 g

UKCA: yes

PCI Express slots quantity: 16

Data transfer rate (max): 5 Gbit/s

Operating temperature (T-T): 0 - 55 °C

Operating temperature (T-T): 32 - 131 °F

Quantity per pack: 2 Stück(e)

Quantity per box: 2 Stück(e)

Low power mode: yes

Internal: yes

Hot-Plug support: yes

Manual: yes

Easy to install: yes

Hot-swap: yes

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -20 - 85 °C

Plug and Play: yes

Mounting brackets included: yes

Documents & Downloads

Datasheet

Datasheet 3796943 Exsys EXSYS EX-11042 2-Port USB 3.2 Gen 1 PCIe PCI card

User & Safety Instructions

User & Safety Instructions 3796943 Exsys EXSYS EX-11042 2-Port USB 3.2 Gen 1 PCIe PCI card

Description

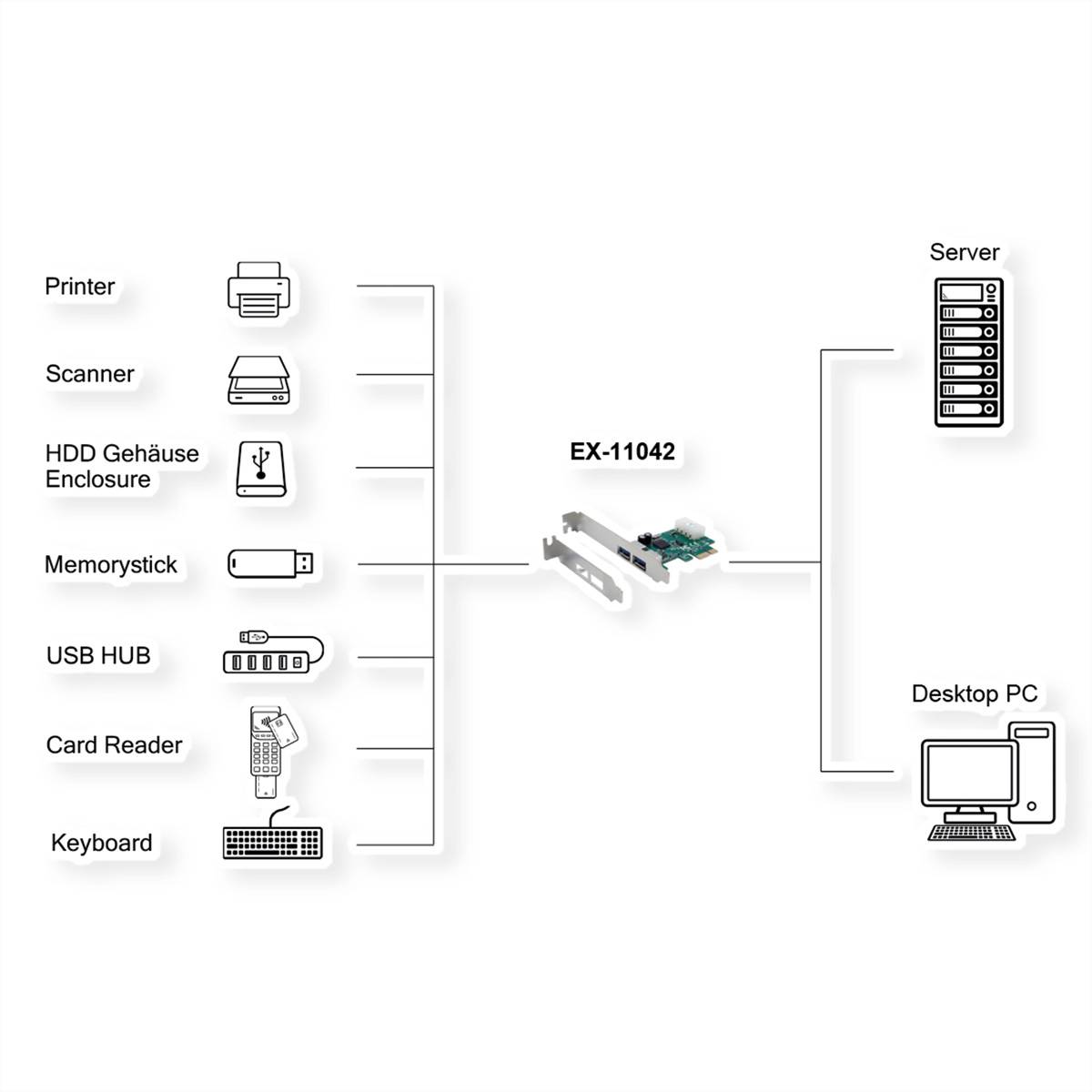

The EX-11042 USB 3.2 Gen 1 PCIe card provides two external super-speed USB 3.2 1st Gen 1 ports. It was developed to connect several USB 1.1, 2.0 or 3.2 Gen 1 terminals to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mbps), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). It is the perfect technology for external memory casing, digital cameras, webcam, scanner and more. The card requires the power connection from the PC power supply unit for perfect function and to make 900mA available on the USB ports.
