Exsys EXSYS EX-11092-2 USB 3.2 Gen1 PCIe Karte PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-11092-2 interface card / adapter Built-in USB 3.2 1st Gen 1 (3.1 Gen 1)
- built-in
- Host Interface: PCIe
- Output interface USB 3.2 1st Gen 1 (3.1 Gen 1)
- Purpose: PC
- 5 Gbit/s
- silver
Technical specifications
- Product type
PCI Express card
- Factory colour
Silver
- Type A
PCI Express
- Depth
65 mm
- Height
61 mm
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Connector version
threaded
- Connection type
PCI Express
- 4-pin Molex
1
- Range of use
PC
- Weight
400 g
- UKCA
yes
- Data transfer rate (max)
5 Gbit/s
- Operating temperature (T-T)
0 - 50 °C
- Internal
yes
- Hot-Plug support
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Plug and Play
yes
- User guide
yes
Documents & Downloads
Datasheet
Datasheet 3796834 Exsys EXSYS EX-11092-2 USB 3.2 Gen1 PCIe Karte PCI Express card
User & Safety Instructions
User & Safety Instructions 3796834 Exsys EXSYS EX-11092-2 USB 3.2 Gen1 PCIe Karte PCI Express card
Description

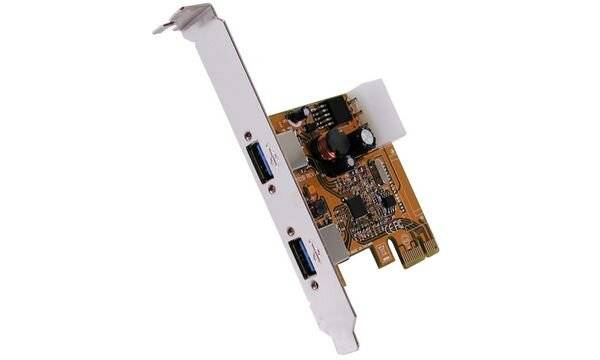

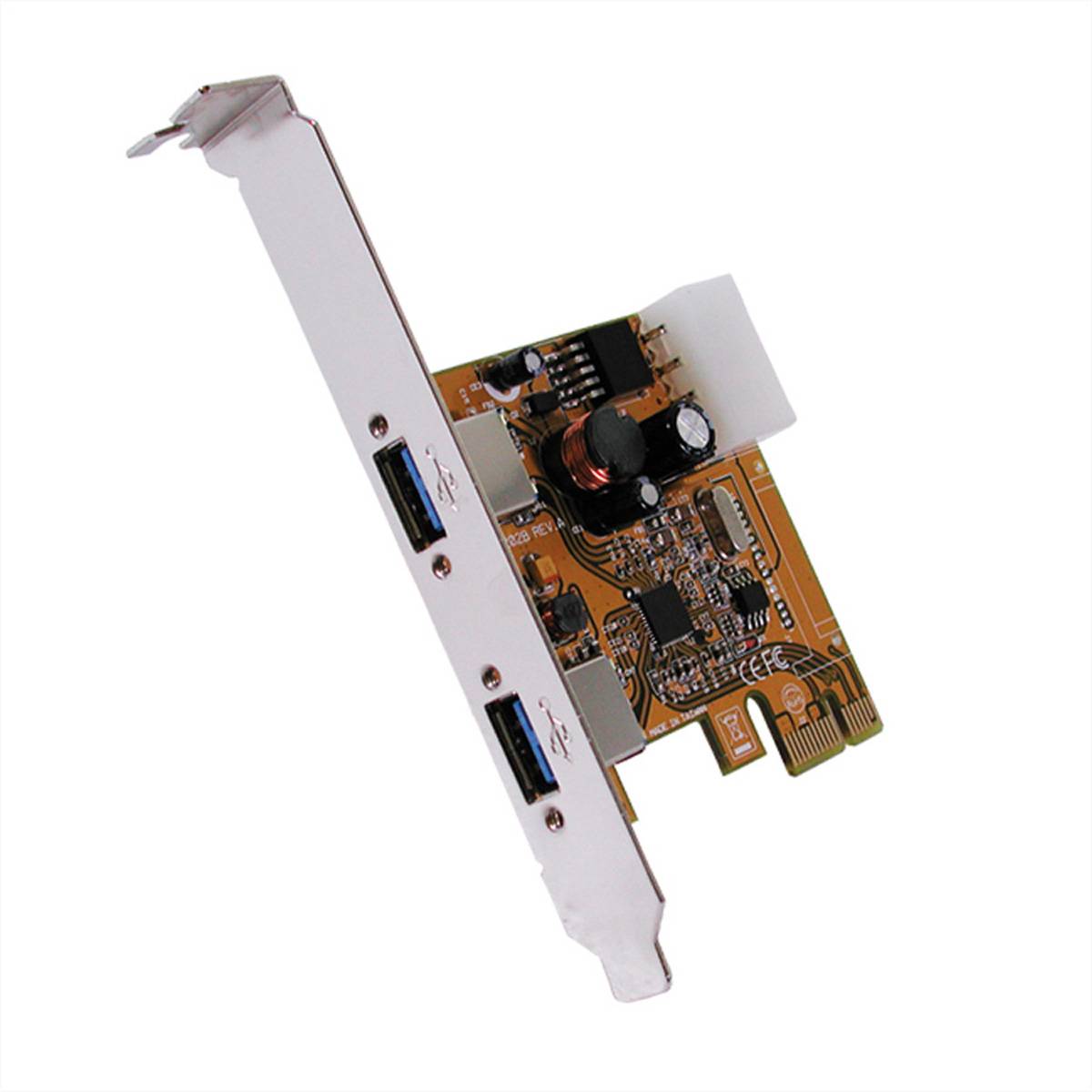

The EX-11092-2 USB 3.0 PCI Express card provides two screw-in SuperSpeed USB 3.0 ports. It was developed to connect two more USB 1.1, 2.0 or 3.0 terminals at your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mbps), USB 2.0 high-speed (480Mbps) and USB 3.0 super-speed (5Gbps). It is the perfect technology for external memory casing, digital cameras, webcam, scanner and more. To support the 900mA current on the external USB 3.0 ports, you do not need an additional power connection from the PC power supply.
- Compatible with USB 3.0 and Intel xHCI specifications.
- Supports all USB compatible data transfer types such as Control/Bulk/Interrupt/Isochronous.
- Supports up to 123 devices.
- Compatible with PCI Express Gen2 specifications.
- Supports hot swapping and plug-and-play.
This text is machine translated.
- Compatible with USB 3.0 and Intel xHCI specifications.
- Supports all USB compatible data transfer types such as Control/Bulk/Interrupt/Isochronous.
- Supports up to 123 devices.
- Compatible with PCI Express Gen2 specifications.
- Supports hot swapping and plug-and-play.
This text is machine translated.
Scope of delivery
- EX-11092-2, low profile bracket, driver CD, manual
