Exsys EXSYS - EX-11214HMVS 4 Port USB 2.0 Metall Hub Netzteil DIN-Rail-Kit Genesys USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4 ports USB 2.0 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting...
- USB 2.0 metal HUB with four downstream USB ports
- 15KV ESD surge protection
- Power supply +9V to +36V DC via terminal Block
- Compact industrial design
- 1x LED voltage display
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connection 1x USB type B
- Connections devices: 4x USB type A 1x +9V to +36V DC connection (terminal Block)
- Transmission quality USB 2.0 hi-speed 480 Mbit/s
- Page 1 Type of connector: USB 2.0 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 2.0 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Power supply included: Yes
- Technical features: Robust metal housing
- Height: 158 mm
- Width 80.7 mm
- Depth: 32.2 mm
- Weight: 547 g.
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0.63 kg
- Gross weight: 0.63
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.63
- Width
80.7 mm
- Height
158 mm
- Depth
32.2 mm
- Cable length
0 mm
- Keyboard layout
German, QWERTZ
- Cable specs
USB 2.0
- Transfer rate (max.)
480 MBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796932 Exsys EXSYS - EX-11214HMVS 4 Port USB 2.0 Metall Hub Netzteil DIN-Rail-Kit Genesys USB hub Black
User & Safety Instructions
User & Safety Instructions 3796932 Exsys EXSYS - EX-11214HMVS 4 Port USB 2.0 Metall Hub Netzteil DIN-Rail-Kit Genesys USB hub Black
Description

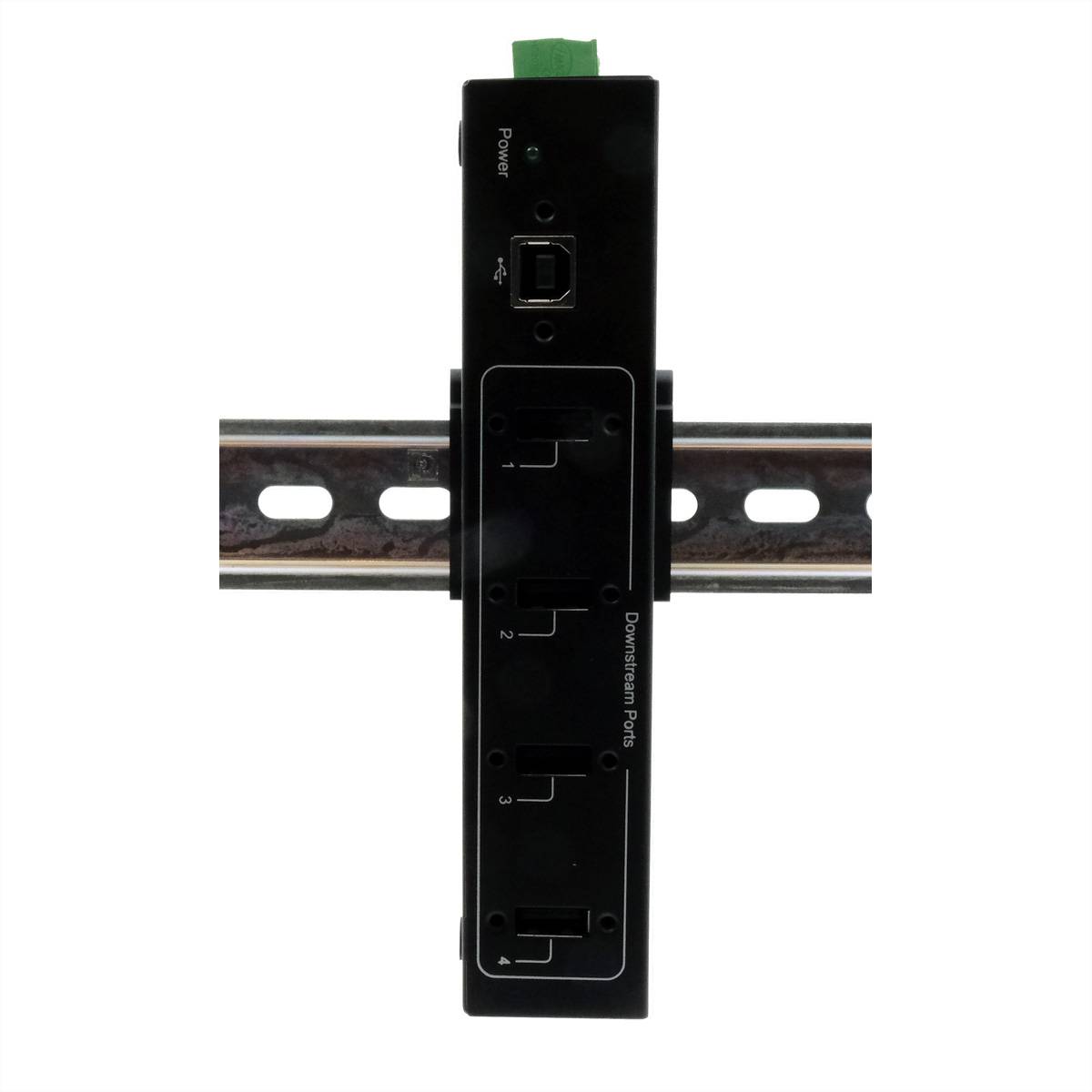

4 ports USB 2.0 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting The robust, industry-compatible EX-11214HMVS USB-hub with four screw-able USB 2.0 outputs is suitable for consumers and industrial applications. . It can be installed on the wall or on a carrier rail and is connected to computer, notebook or server with the provided USB 2.0 cable. It supports hi-speed USB 2.0 data transfer rate of up to 480 Mbit/s and is backward compatible with USB 1.1. . The power is supplied via the accompanying plug power supply or an optionally available DIN-rail power supply. Bus Power is not supported.
This text is machine translated.

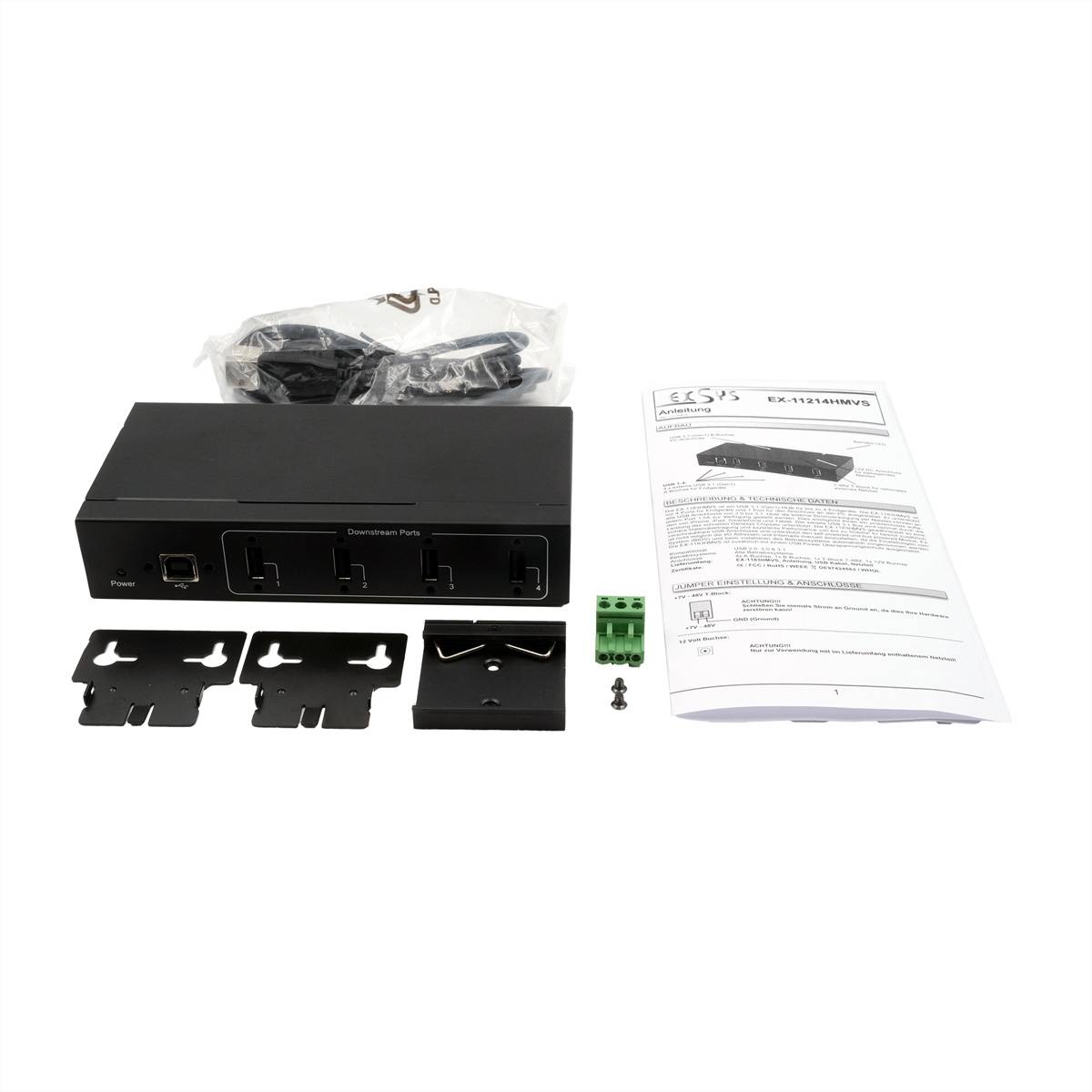

Scope of delivery
- EX-11214HMVS, USB 2.0 cable 2.0 meter plug power supply 5V/2A, DIN-rail kit,
- Wall mounting kit, manual
