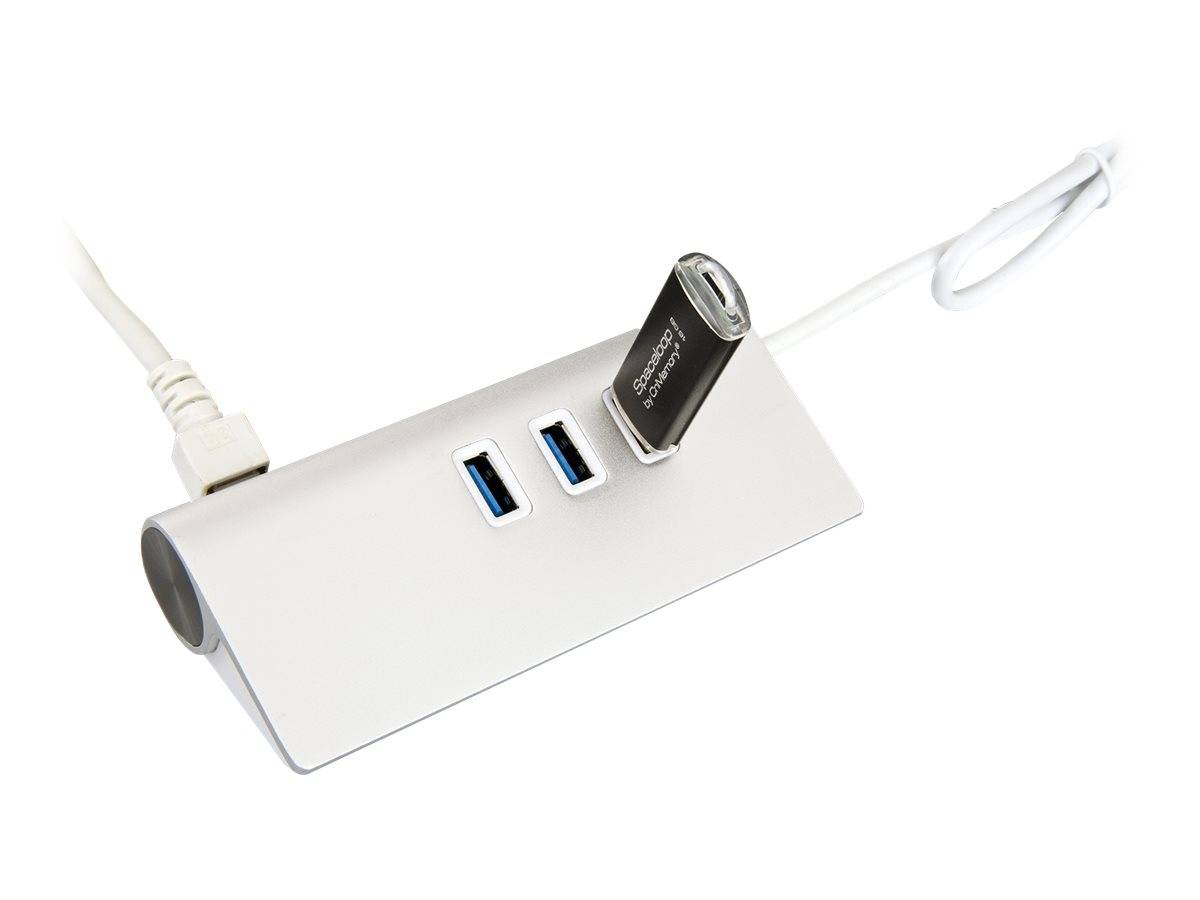

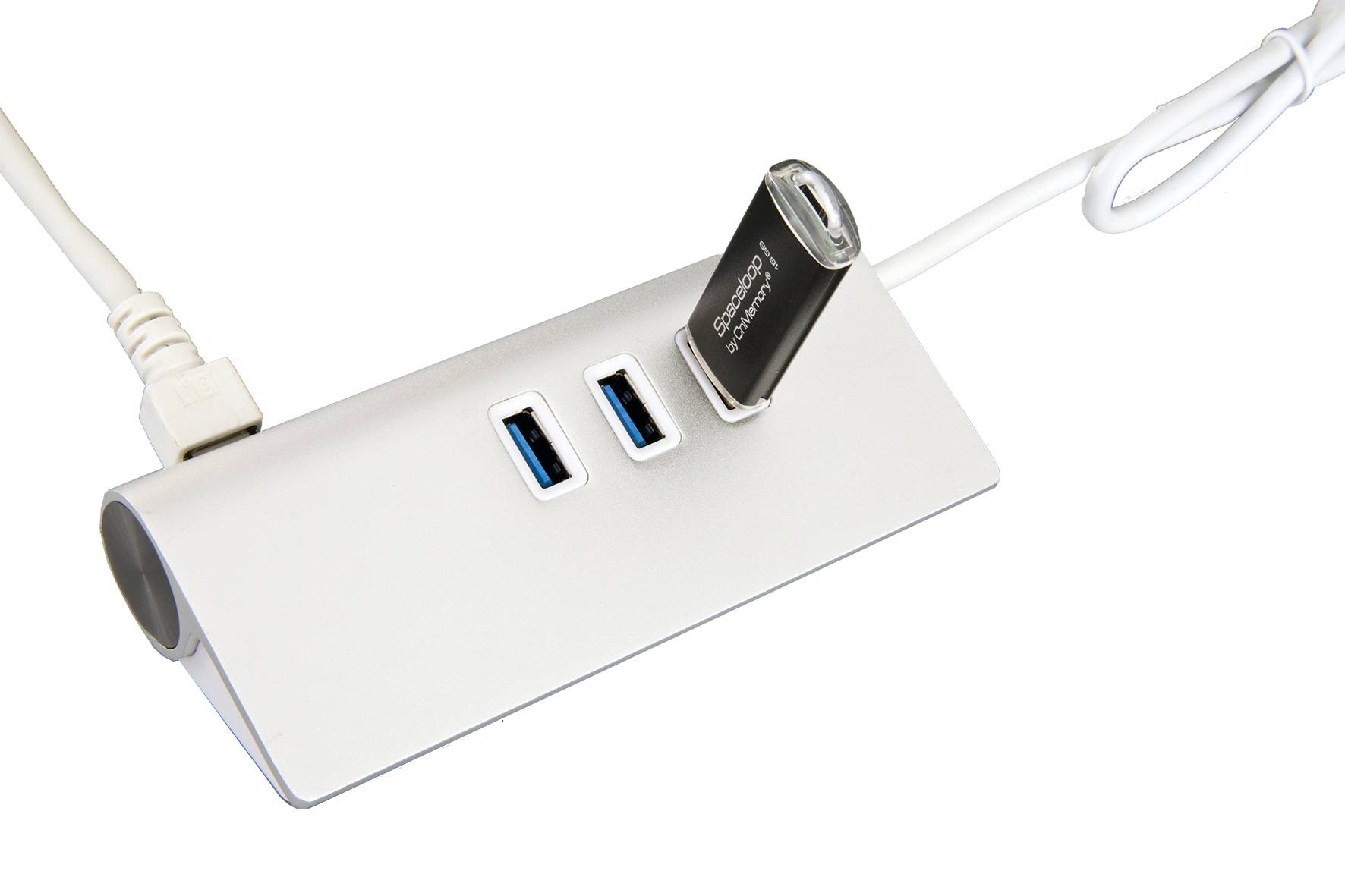

Exsys Exsys EX-1132-N - Hub - 3 x USB 3.2 Gen 1 + 1 x 10/100/1000 USB hub Silver (metallic)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1132-N interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type C 5000 Mbit/s white
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 3
- 5000 Mbit/s
- White
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Silver (metallic)
- Weight
300 g
- Width
122 mm
- Height
28 mm
- Depth
55 mm
- Cable length
0.31 m
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
3
- Operating temperature (T-T)
32 - 131 °F
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796852 Exsys Exsys EX-1132-N - Hub - 3 x USB 3.2 Gen 1 + 1 x 10/100/1000 USB hub Silver (metallic)
User & Safety Instructions
User & Safety Instructions 3796852 Exsys Exsys EX-1132-N - Hub - 3 x USB 3.2 Gen 1 + 1 x 10/100/1000 USB hub Silver (metallic)
Description
With the EX-1132-N you can expand a USB 3.0 with C-socket output of laptop or desktop computer on 3 more USB 3.0 ports as well as an Ethernet 1 Gigabit LAN connection. It is thus possible to connect up to three external USB 2.0 or 3.0 peripheral devices to a USB 2.0 or 3.0 port of laptops or desktop computers. With the EX-1132-N you can integrate notebook or desktop computer via the USB 3.0 or 2.0 output in a 10/100 or 1000Mbps network. The EX-1132-N can be simultaneously installed into an existing network card and requires no additional power supply. The EX-1132-N is delivered in an elegant metal housing. With the EX-1132-N is supplied an adapter A-plug to C-socket, so that the EX-1132-N can also be connected to the normal USB A-socket.
This text is machine translated.
This text is machine translated.
Features
- USB 3.0
- USB 3.0 HUB with 3 ports
- Connections for up to three USB peripheral devices
- Compliant with USB 3.0 specification 1.0
- Supports all USB 2.0 to 3.0 compatible peripherals
- Chip-Set USB: Genesys GL-3520
- Ethernet Gigabit:
- It supports full duplex operation with IEEE 802.3x flow control and half duplex operation with return load flow control
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Supports crossover detection and auto-correction
- Supports Wake on LAN
- Chip set: Network: ASIX AX88179
Scope of delivery
- EX-1132-N, adapter A-plug to C-socket, driver CD, manual
