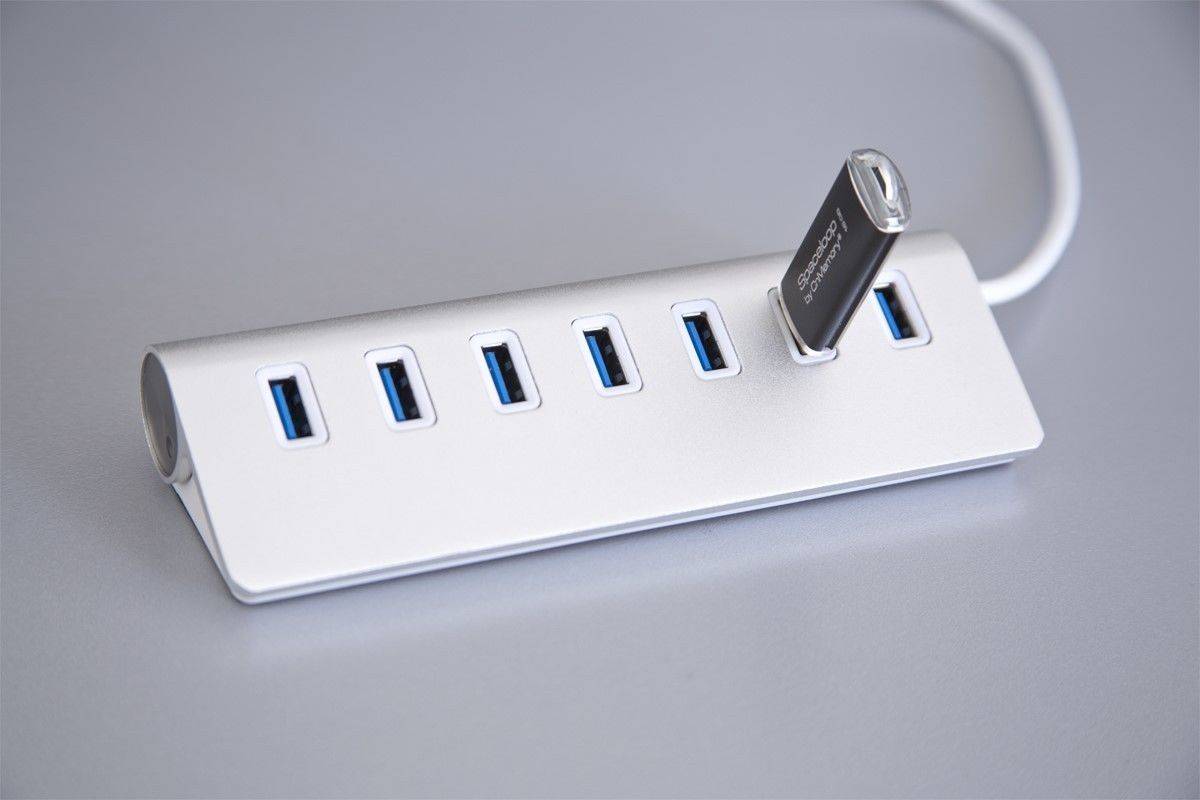

Exsys Exsys Ex 1137 - Hub - 7 x SuperSpeed USB 3.0 USB hub Silver (metallic)
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1137 interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type A 5000 Mbit/s white
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Hub interfaces: USB 2.0, USB 3.2 1st Gen 1 (3.1 1st Gen 1) Type A
- Number of connections: 7
- 5000 Mbit/s
- White
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Silver (metallic)
- Weight
300 g
- Width
55 mm
- Height
30 mm
- Depth
160 mm
- Cable length
0.3 m
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Max. output current
1 A
- Output voltage
5 V
- Used at
External
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
7
- DC-in jack
yes
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796851 Exsys Exsys Ex 1137 - Hub - 7 x SuperSpeed USB 3.0 USB hub Silver (metallic)
User & Safety Instructions
User & Safety Instructions 3796851 Exsys Exsys Ex 1137 - Hub - 7 x SuperSpeed USB 3.0 USB hub Silver (metallic)
Description
With the EX-1137 you can expand a USB 3.0 output from notebook or desktop computer
On 7 additional USB 3.0 ports. In this case, you can connect up to seven external USB 2.0 or 3.0
Peripheral devices to a USB 2.0 or 3.0 port of laptops or desktop computer
connection. It is very compact and elegant and all seven USB ports are always

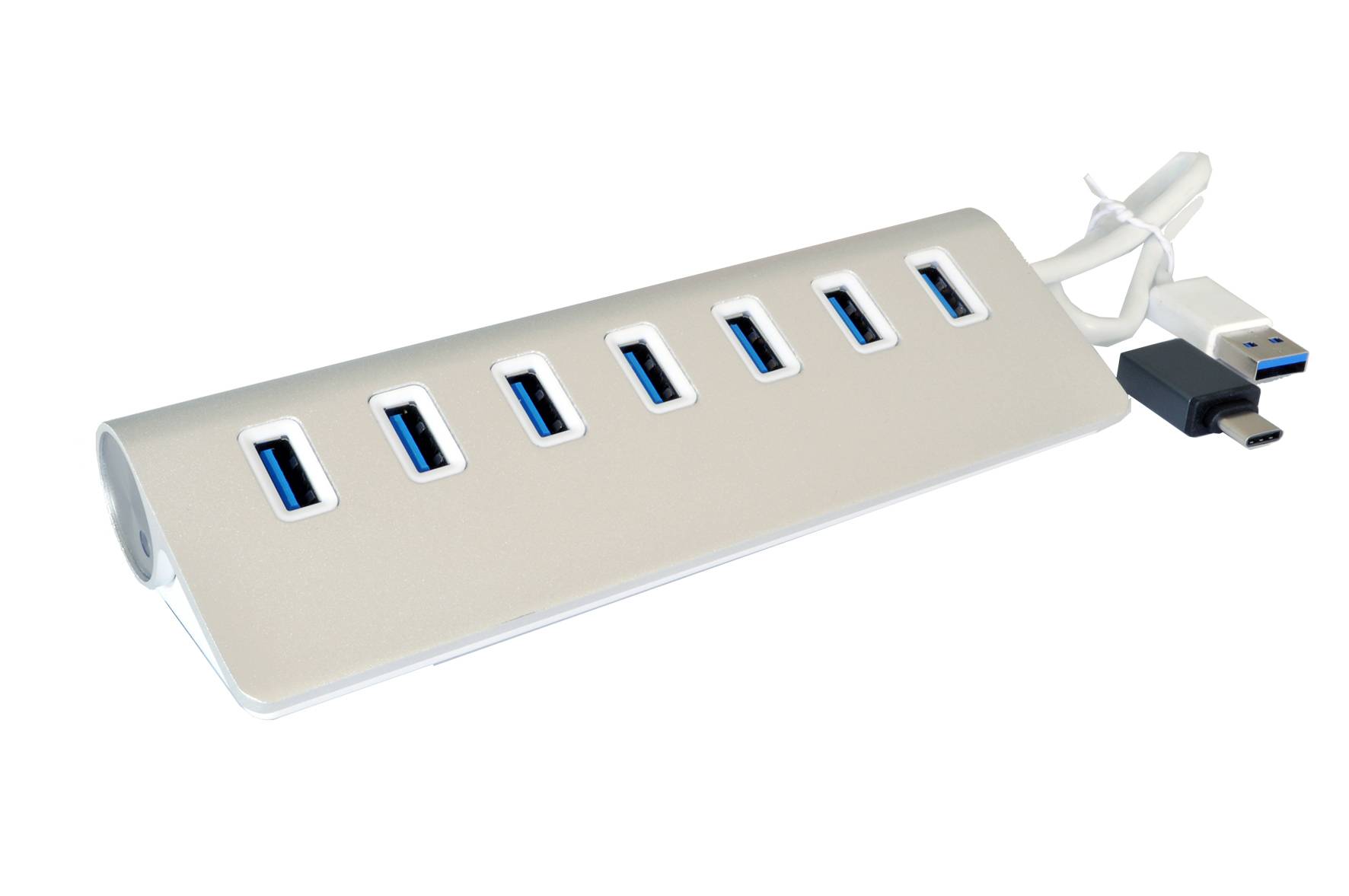

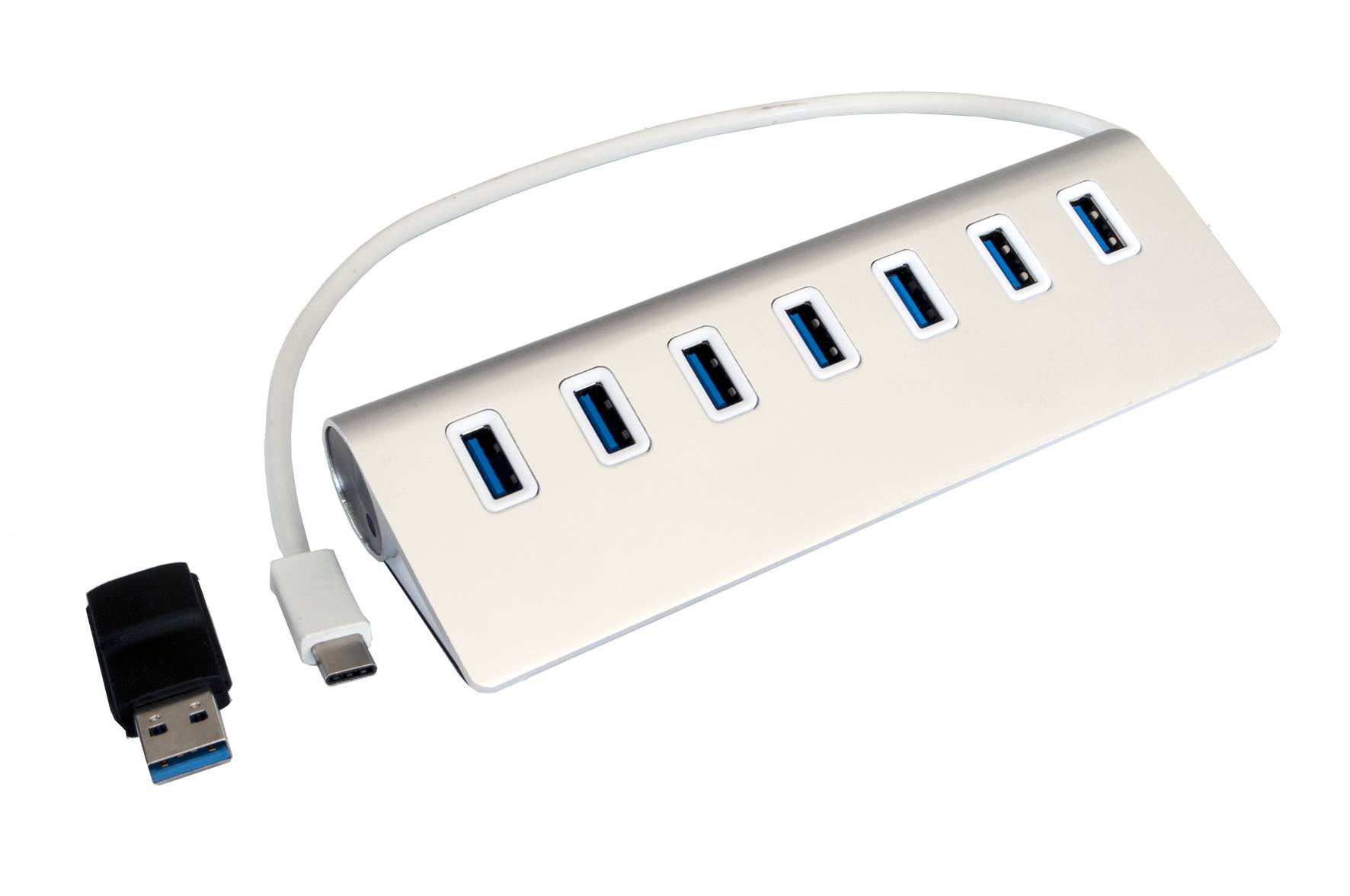

reachable. With the EX-1137 an adapter from C-plug to A-socket (EX-47990)
supplied. As such, the EX-1137 can also be connected to a computer with a C-socket.
The USB 3.0 cable is only 30cm long.
- USB 3.0 metal HUB with 7 ports
- Connections for up to seven USB peripheral devices
- Compliant with USB 3.0 specification 1.0
- Automatic detection of the data transfer rate for the
- Attached peripherals
- Supports all USB 2.0 to 3.0 compatible peripherals
- Power supply (bus Power) or with power supply 5V/1A
This text is machine translated.
On 7 additional USB 3.0 ports. In this case, you can connect up to seven external USB 2.0 or 3.0
Peripheral devices to a USB 2.0 or 3.0 port of laptops or desktop computer
connection. It is very compact and elegant and all seven USB ports are always
reachable. With the EX-1137 an adapter from C-plug to A-socket (EX-47990)
supplied. As such, the EX-1137 can also be connected to a computer with a C-socket.
The USB 3.0 cable is only 30cm long.
- USB 3.0 metal HUB with 7 ports
- Connections for up to seven USB peripheral devices
- Compliant with USB 3.0 specification 1.0
- Automatic detection of the data transfer rate for the
- Attached peripherals
- Supports all USB 2.0 to 3.0 compatible peripherals
- Power supply (bus Power) or with power supply 5V/1A
This text is machine translated.
Features
- Exsys Ex 1137 – Hub – 7 connections
- Device type: Hub - 7 connections
- Sub-type: USB
- Ports : 7 x SuperSpeed USB 3.0
- Features : Power supply via USB
- Product certifications : USB 2.0, USB 3.0
- Dimensions (width x depth x height): 16 cm x 5.5 cm x 3 cm
- Weight: 300 g
- System Requirements : Apple MacOS X 10.8 or higher, Microsoft Windows Vista / 7 / 8 / 10
Scope of delivery
- EX-1137, adapter A-plug to B-socket, manual
