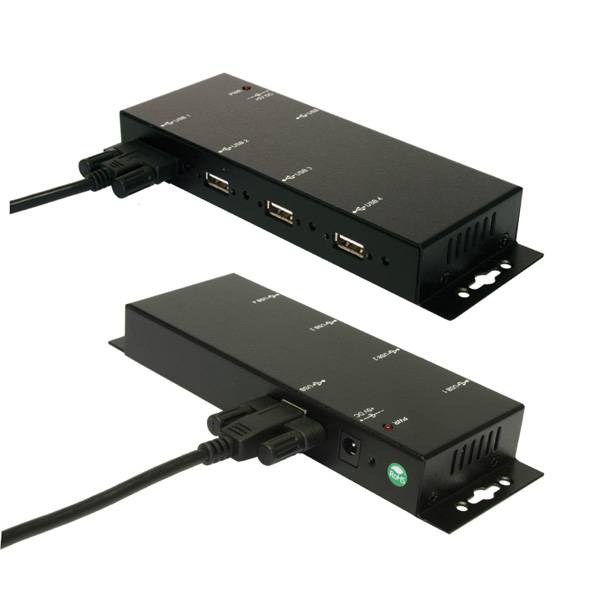

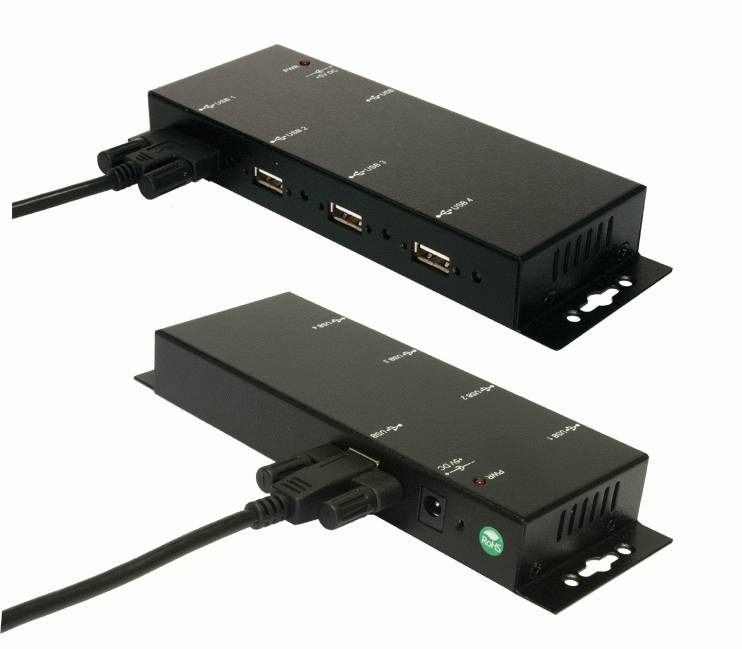

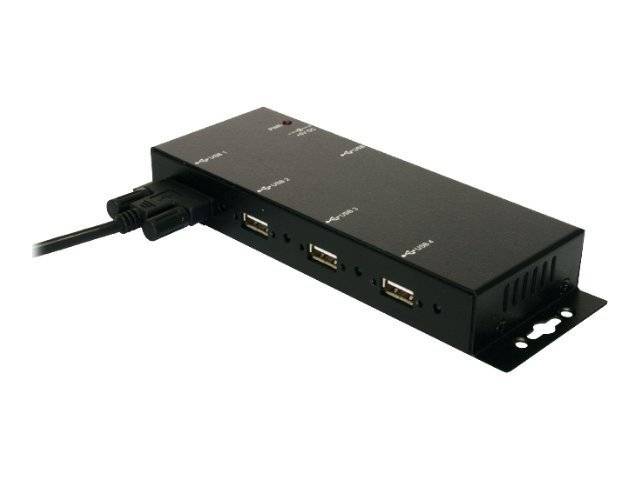

Exsys Exsys Ex 1166HMV - Hub - 4 x USB 2.0 - Desktop USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Black EXSYS External 4-port USB 2.0 HUB 480 Mbit/s.
- Number of connections: 4
- 480 Mbit/s
- Black Metal
Technical specifications
- Data transfer rate 480 Mbit/s.
- Interface: USB 2.0
- Product type
USB hub
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
250 g
- Width
15.2 cm
- Height
2.3 cm
- Depth
6 cm
- Cable length
1.8 m
- No. of USB A 2.0 ports
4 x
- Cable specs
USB 2.0
- Transfer rate (max.)
480 MBit/s
- Material (details)
Metal
- Used at
External
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
4
- Overload protection
yes
- USB powered
yes
- Dimensions (WxDxH)
150 x 70 x 30 mm
- Operating relative humidity (H-H)
5 - 95 %
- Mac compatibility
yes
Documents & Downloads
Datasheet
Datasheet 3796827 Exsys Exsys Ex 1166HMV - Hub - 4 x USB 2.0 - Desktop USB hub Black
User & Safety Instructions
User & Safety Instructions 3796827 Exsys Exsys Ex 1166HMV - Hub - 4 x USB 2.0 - Desktop USB hub Black
Description
With the EX-1166HMV you can expand a USB 2.0 output from laptop or desktop computer to four more USB 2.0 ports. It is thus possible to connect up to four external USB peripheral devices to a USB 2.0 port of laptops or desktop computers. It is very compact and robust. The supplied cable EX-K1552 (2 meter) A-plug on B-plug can be attached to the EX-1166HMV with knurled screws without using a screwdriver. The power adapter connection can also be screwed on. As a result, the cable can no longer come loose by itself. Optionally with the article EX-6099 (DIN-Rail-Kit) the EX-1166HMV can on a carrier rail in a 19" rack
system
- USB 2.0 HUB with four USB 2.0 ports
- Automatic detection of the data transfer rate for the attached peripherals
- Supports all USB 2.0 compatible peripherals
- Overvoltage protection for each USB port
- Power supply: From the USB bus (bus Power) or screw-in power supply
This text is machine translated.
system
- USB 2.0 HUB with four USB 2.0 ports
- Automatic detection of the data transfer rate for the attached peripherals
- Supports all USB 2.0 compatible peripherals
- Overvoltage protection for each USB port
- Power supply: From the USB bus (bus Power) or screw-in power supply
This text is machine translated.
Features
- Exsys Ex 1166HMV-Hub – 4 connections
- Device type: Hub - 4 connections
- Sub-type: USB
- Ports : 4 x USB 2.0
- Performance characteristics : screw locking
- Product Certifications : USB 2.0
- Dimensions (width x depth x height): 15.2 cm x 6 cm x 2.3 cm
- Weight: 300 g
- System requirements : Linux, Microsoft Windows 2000 server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows 98SE/2000/ME/XP, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008
Scope of delivery
- Hub, USB cable A-plug to B-plug, manual
