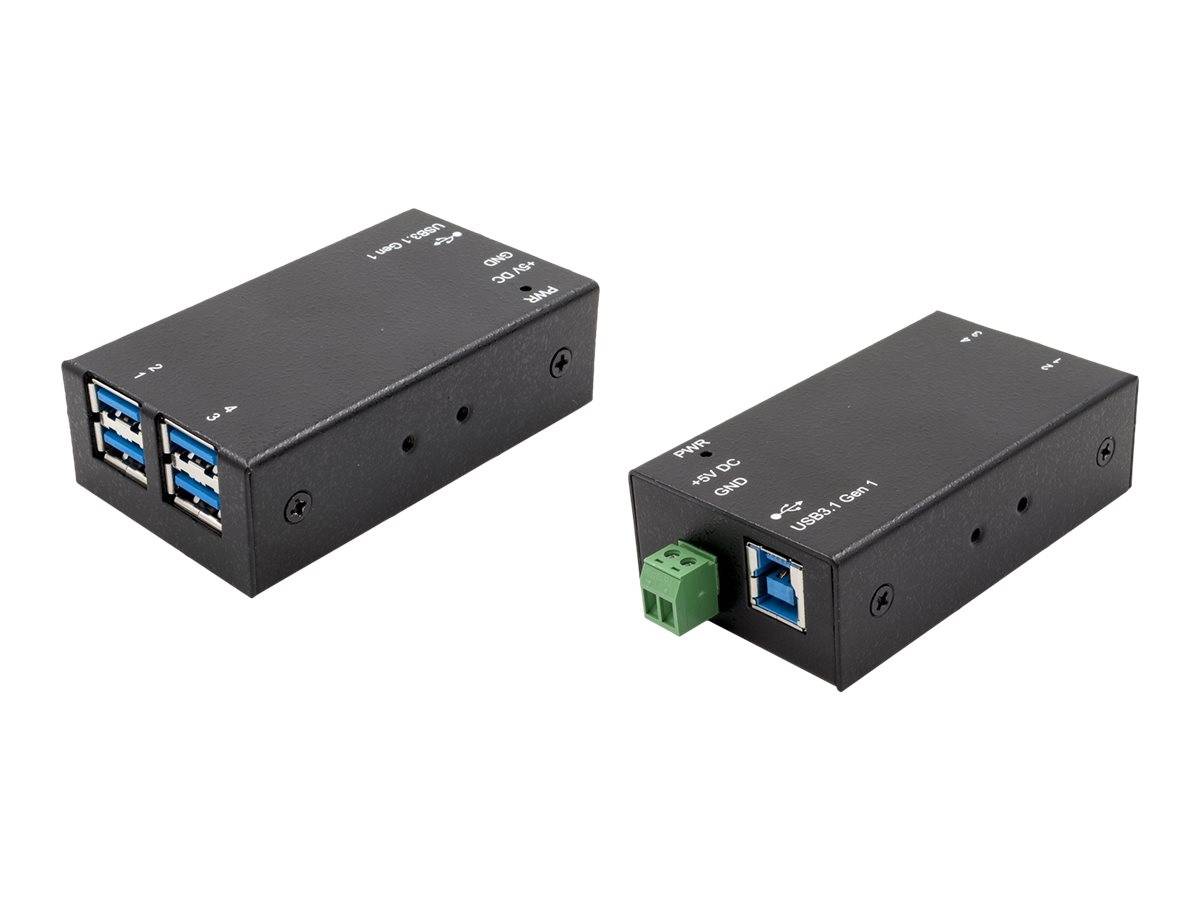

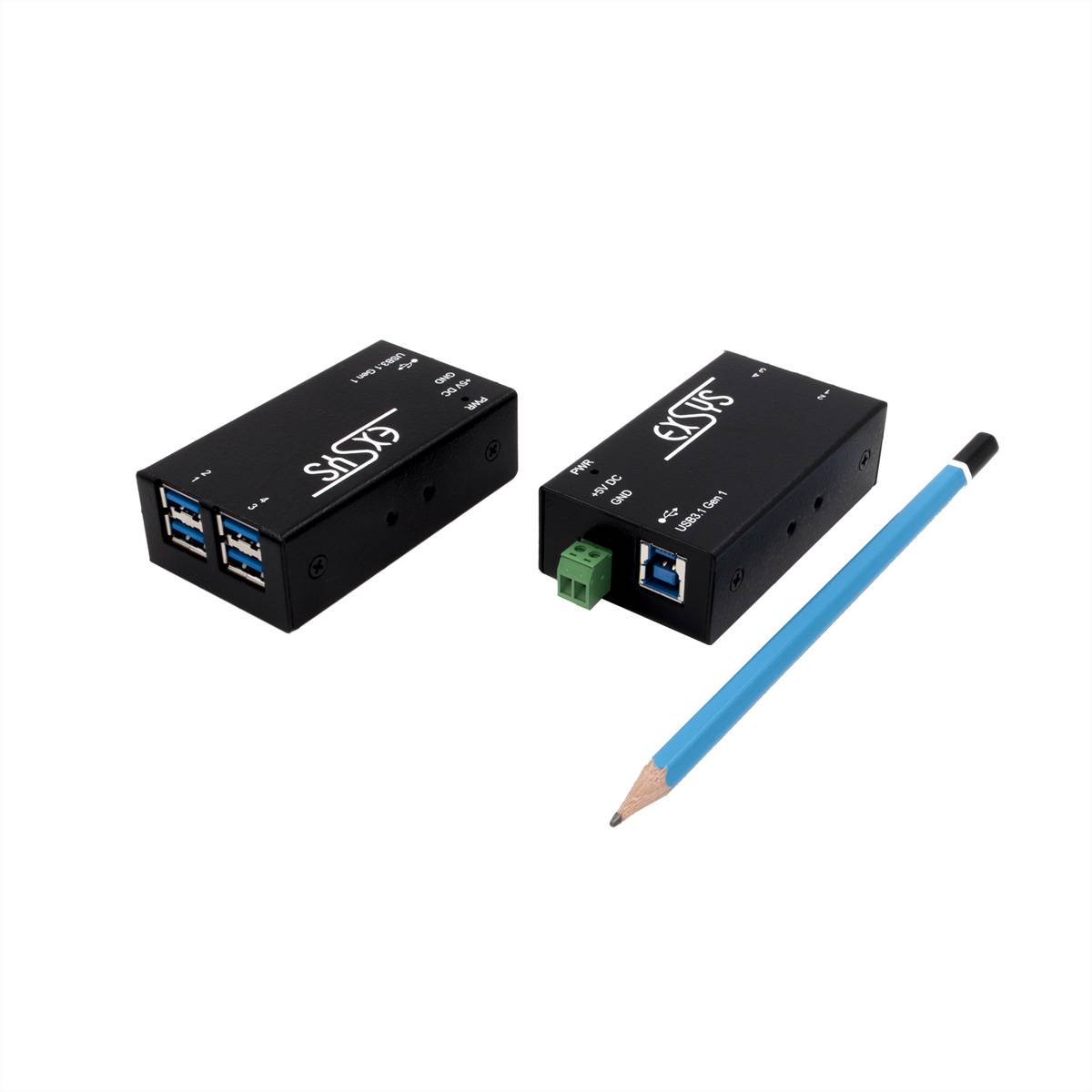

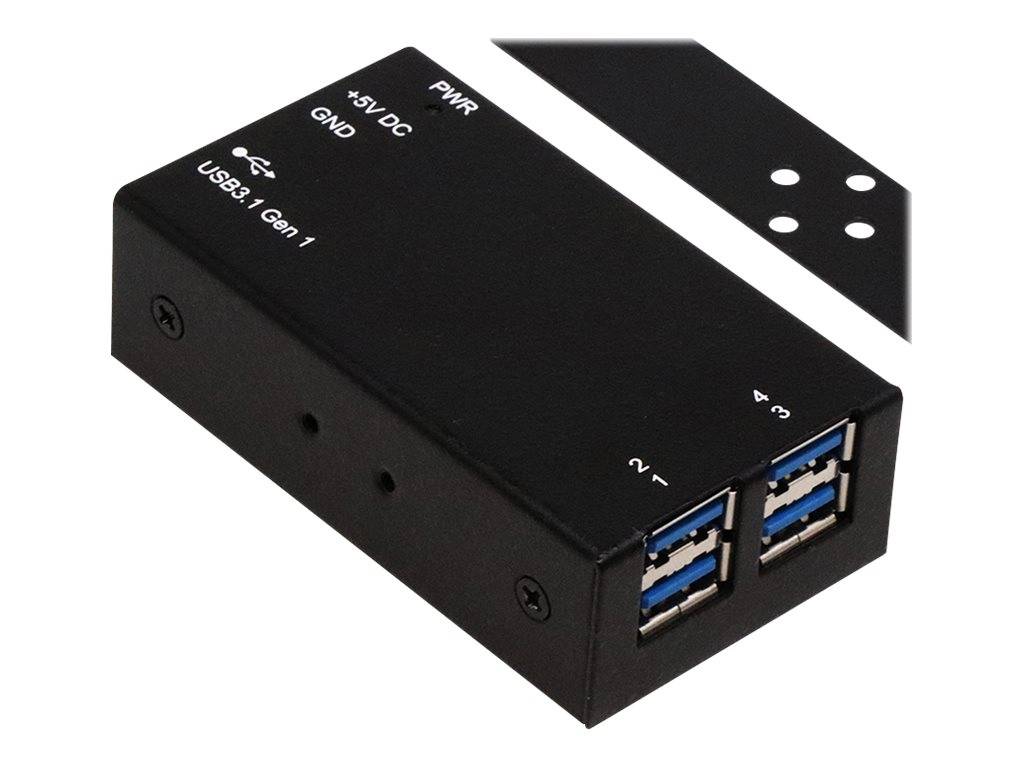

Exsys Exsys EX-1180HMS - Hub - 4 x SuperSpeed USB 3.0 USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1180HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
Highlights & Details

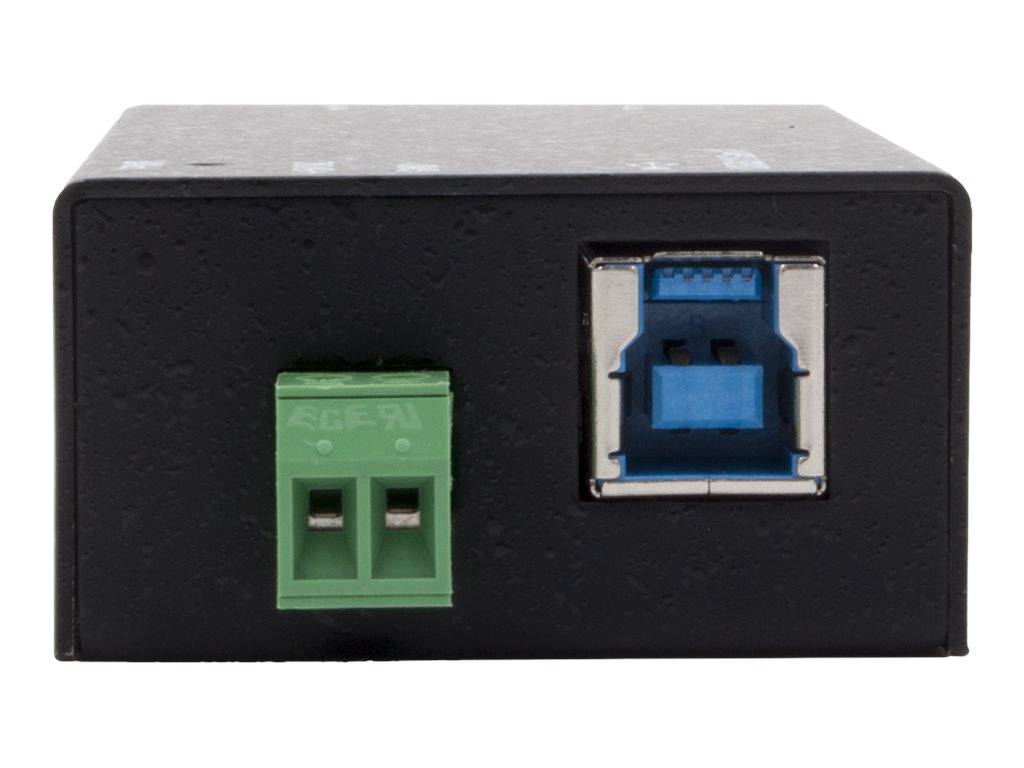

- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 5
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
478 g
- Width
81.7 mm
- Height
24.4 mm
- Depth
46.6 mm
- Cable length
0 mm
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable use
USB
- Connections
USB-A socket
- Cable features
Metal foil shield
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- Output voltage
5 V
- Power consumption (ON)
0.6 W
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
5
- Terminal block port
yes
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
1 Stück(e)
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796883 Exsys Exsys EX-1180HMS - Hub - 4 x SuperSpeed USB 3.0 USB hub Black
User & Safety Instructions
User & Safety Instructions 3796883 Exsys Exsys EX-1180HMS - Hub - 4 x SuperSpeed USB 3.0 USB hub Black
Description
The smallest EXSYS metal HUB provides four USB 3.0 downstream ports with 15 KV ESD surge protection of the devices. It is thus possible to connect up to four external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack or a special housing. It can be used in automation and office applications. The EX-1180HMS meets the special requirements of industrial applications. With the EX-1180HMS the cable EX-K1110 is supplied for connecting 5V DC plug-in power supplies.
This text is machine translated.
This text is machine translated.
Features

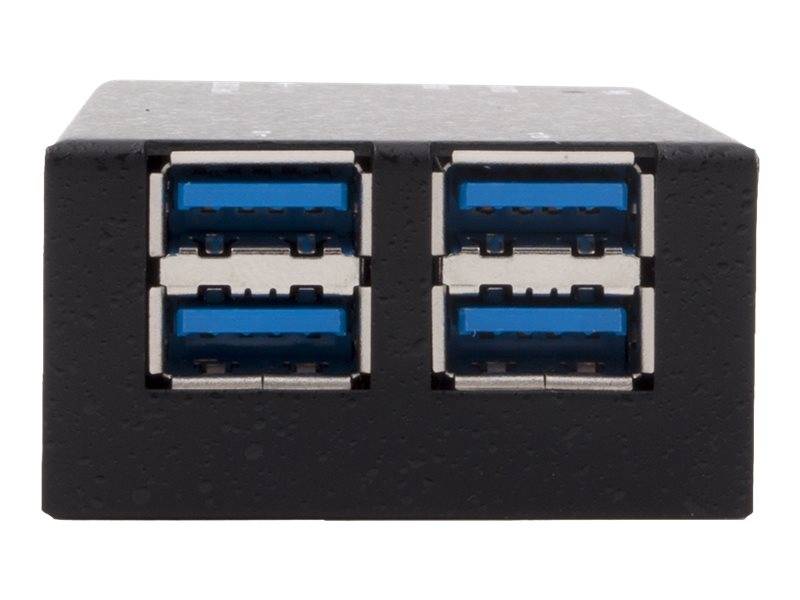

- USB 3.0 HUB with four ports and 15KV ESD surge protection
- Protection of the terminals against voltage fluctuations
- Simple installation with integrated mounting rail bracket (DIN-rail)
- Supports 900mA USB bus Power for each output
- Supports all USB 1.1 to 3.0 compatible peripherals
- Power supply optionally also from the USB-bus +5V (bus-Power) or with optional power supply EX-6991
- Chip set GL3520
Scope of delivery
- EX-1180HMS
- USB cable 1.8 meter
- Manual, metal plate for mounting
- EX-K1110
