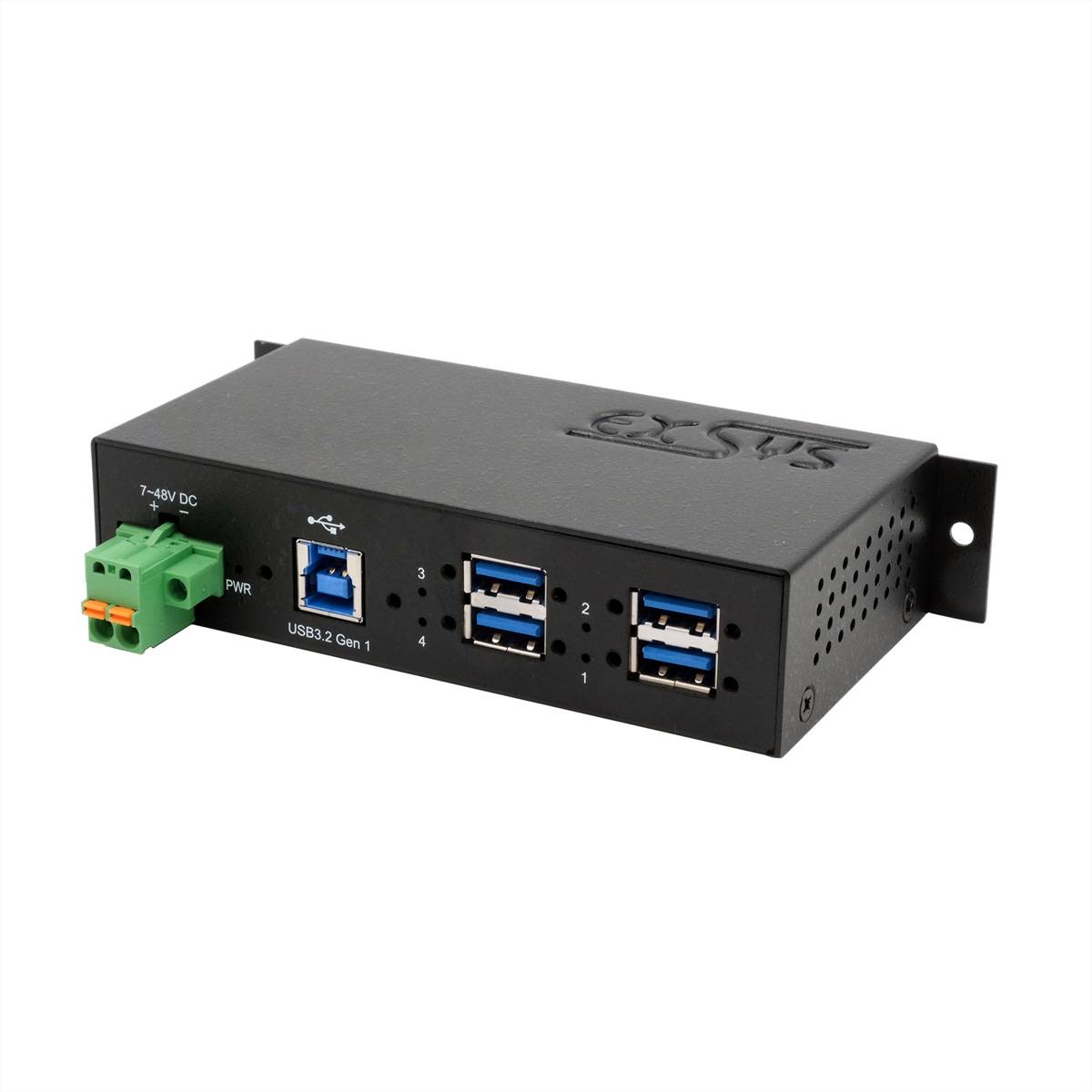

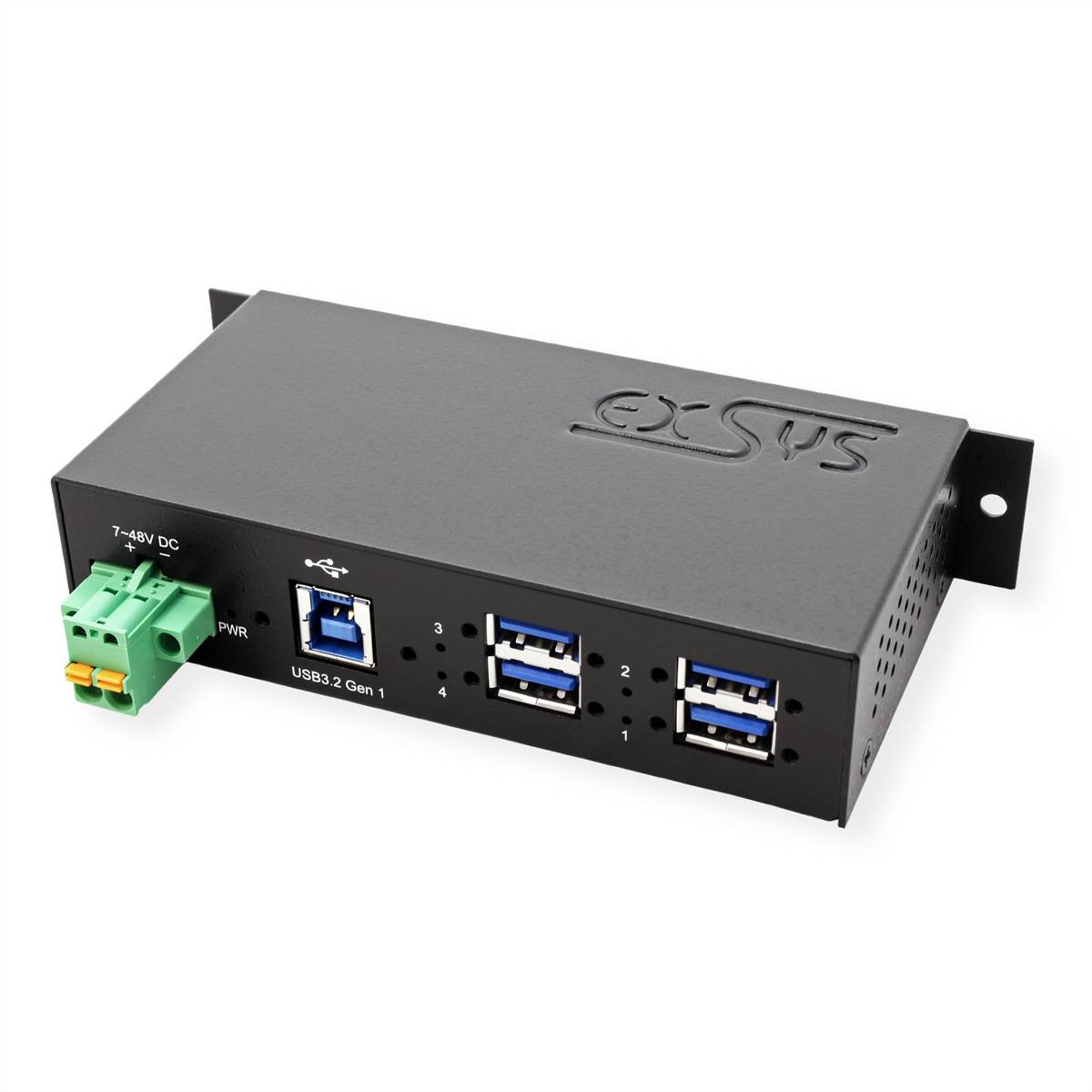

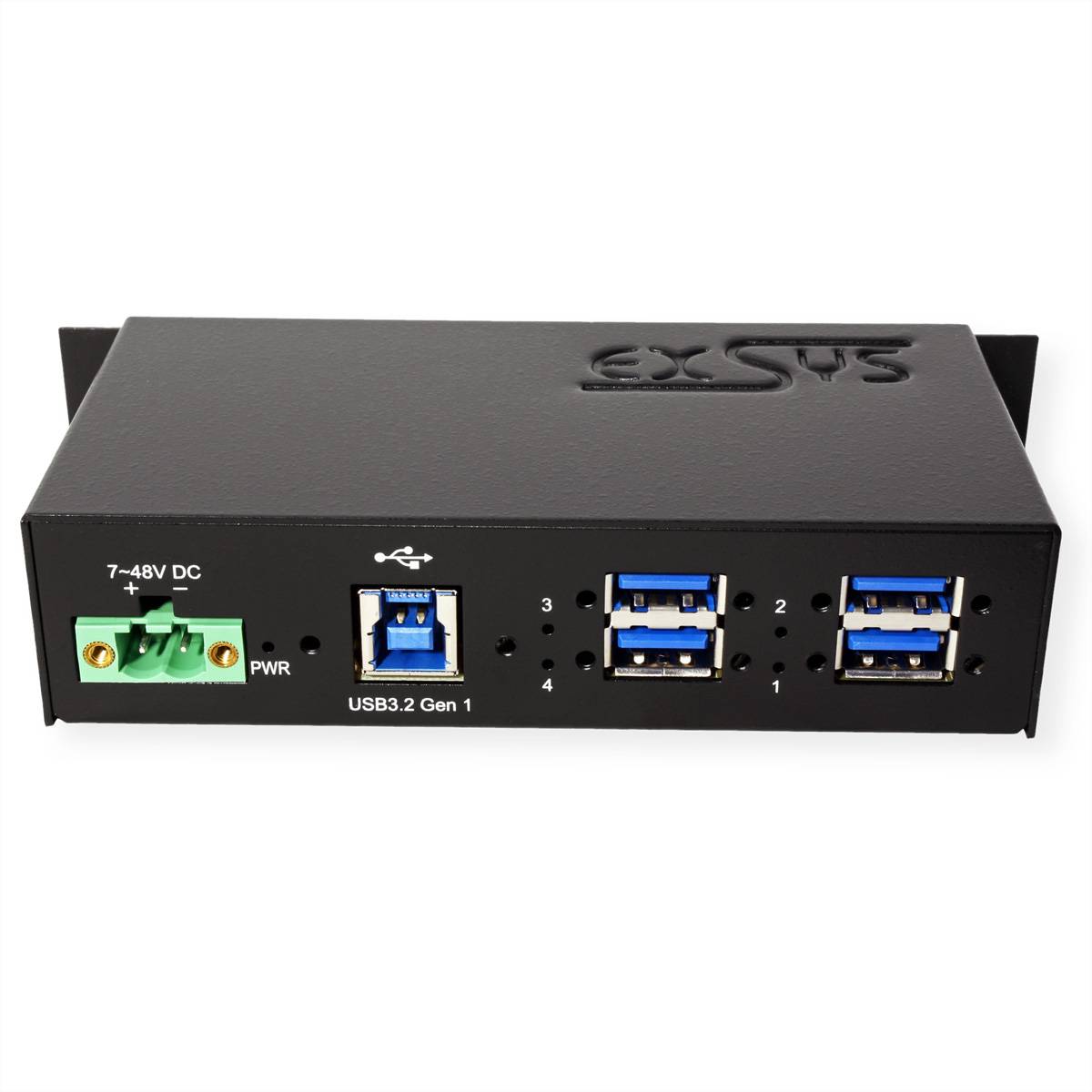

Exsys Exsys EX-1185HMVS-2 - Hub - 4 x USB 3.2 Gen 1 USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1185HMVS-2 port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
0.5
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Material (details)
Metal
- Input voltage
7 - 48 V
- UKCA
yes
- Ports quantity
4
- Terminal block port
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796910 Exsys Exsys EX-1185HMVS-2 - Hub - 4 x USB 3.2 Gen 1 USB hub Black
User & Safety Instructions
User & Safety Instructions 3796910 Exsys Exsys EX-1185HMVS-2 - Hub - 4 x USB 3.2 Gen 1 USB hub Black
Description

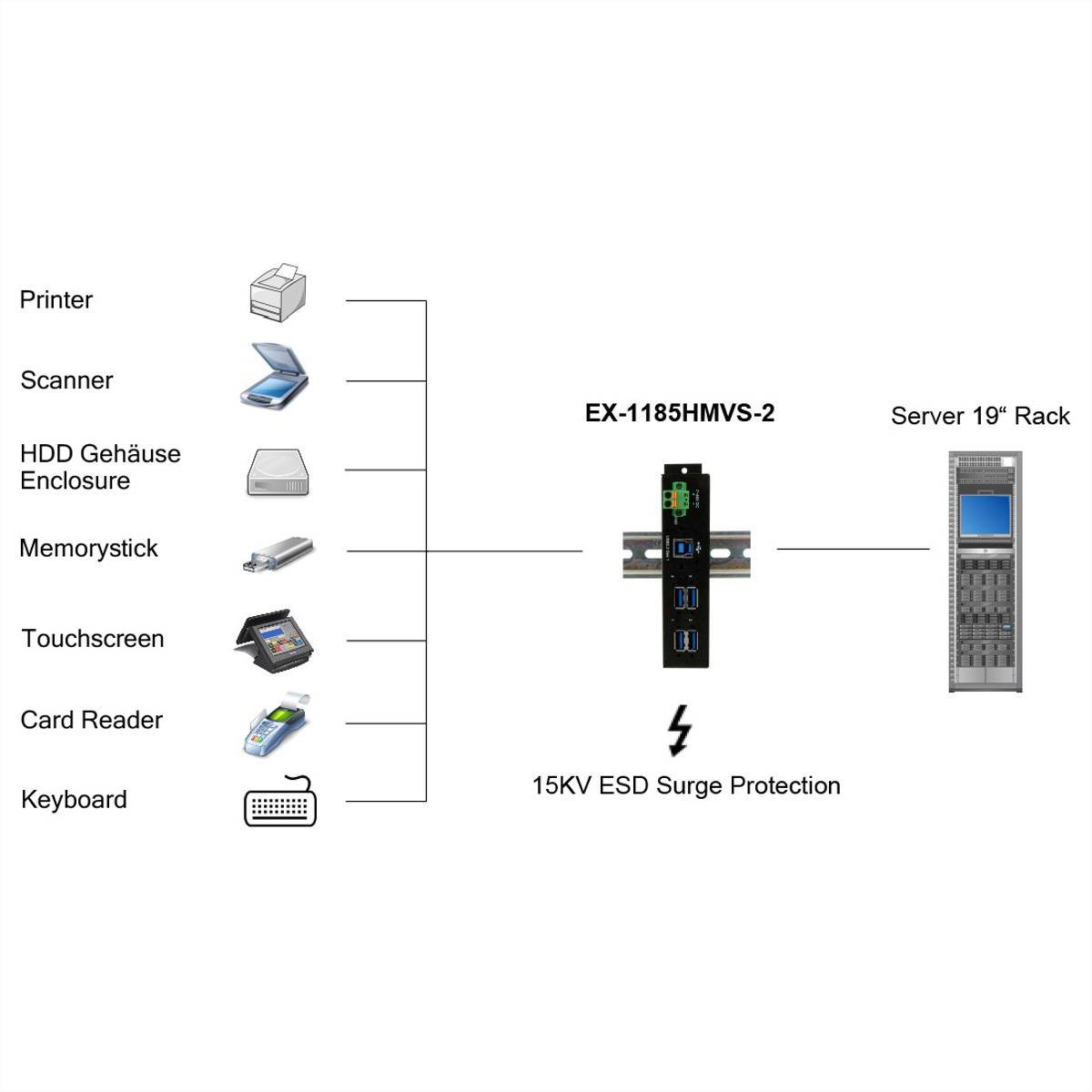

The sturdy, industrial-grade EX-1185HMVS-2 USB-hub with four USB 3.2 1st Gen (previously known as USB 3.0) outputs screw-able and 15KV ESD surge protection can be installed to the wall or on a carrier rail. It is connected to a computer or server using the supplied USB 3.2 Gen1 cable. It supports the hi-speed USB 3.2 Gen1 data transfer rate of up to 5 Gbit/s and is backward compatible up to USB 1.1. It can be powered with USB bus Power (7-48V) or via a two wire terminal strip, where the wires are only plugged in.
This text is machine translated.
Features
- Exsys EX-1185HMVS-2 - hub 4 connections
- Device type: Hub - 4 connections
- Sub-type: USB
- Ports : 4 x USB 3.2 1st Gen 1
- Features : Robust, 15KV ESD Protector
- Product certificates : USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1
- Power supply : 7-48 VDC
- Dimensions (width x depth x height): 14.25 cm x 7,436 cm x 2.63 cm
- Weight: 543 g
- System requirements : Microsoft Windows CE, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000, Apple MacOS X 10.x, Microsoft Windows 2000 Server or higher, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Windows 8.x (32/64 bits)
Scope of delivery

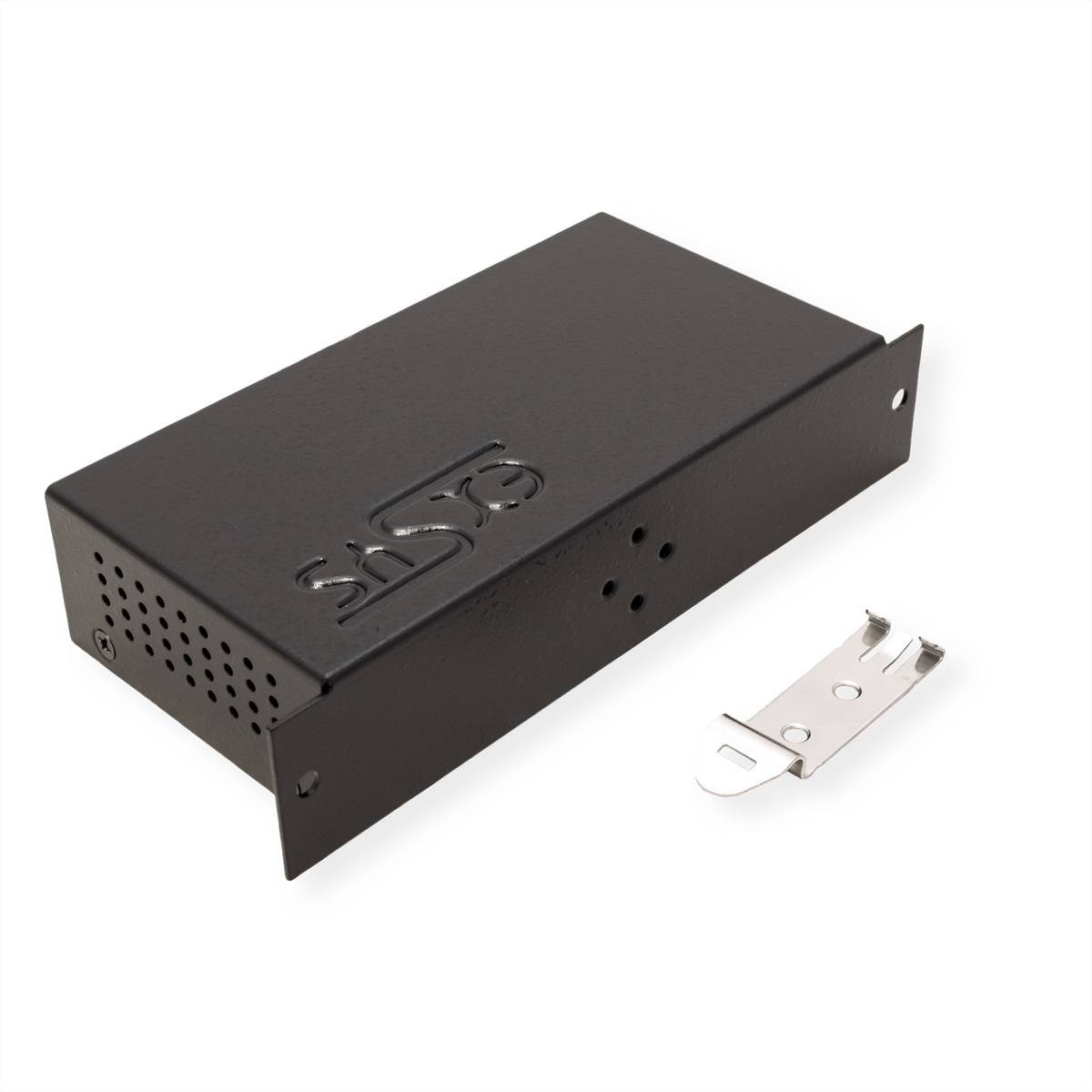

- EX-1185HMVS-2, USB 3.2 1st Gen cable (1.5 meters), DIN rail kit, manual
