Exsys Exsys Ex 1187HMVS - Hub - 7 x SuperSpeed USB 3.0 USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Black EXSYS EX-1187HMVS 5000 Mbit/s interface hub
Highlights & Details
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 7
- 5000 Mbit/s
- Black Metal
Technical specifications
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB type A
- Factory colour
Black
- Weight
645 g
- Width
122 mm
- Height
43 mm
- Depth
55 mm
- Cable length
0 mm
- No. of USB type A 3.1 / 3.2 1st Gen
7 x
- Cable specs
USB 3.2 1st Gen
- Material (details)
Metal
- Output voltage
40 V
- Used at
External
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Connection to PC
yes
- Ports quantity
7
- DC-in jack
yes
- Card reader integrated
no
- Hot-swap
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3796875 Exsys Exsys Ex 1187HMVS - Hub - 7 x SuperSpeed USB 3.0 USB hub Black
User & Safety Instructions
User & Safety Instructions 3796875 Exsys Exsys Ex 1187HMVS - Hub - 7 x SuperSpeed USB 3.0 USB hub Black
Description

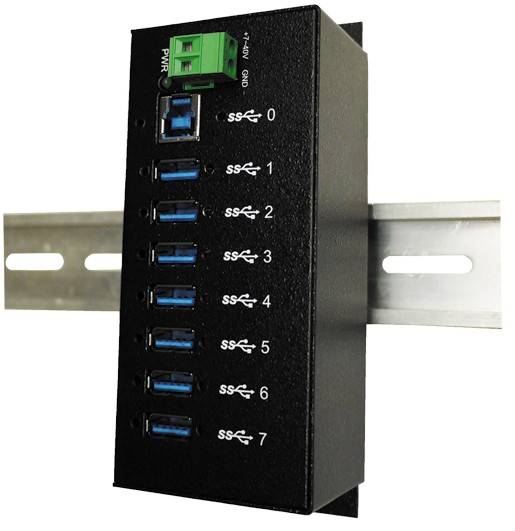

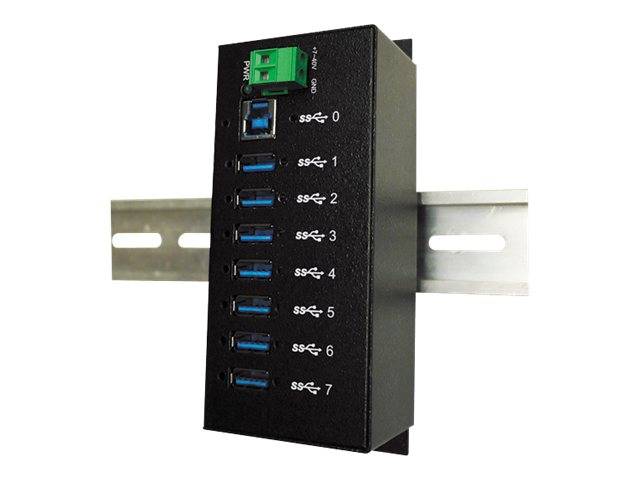

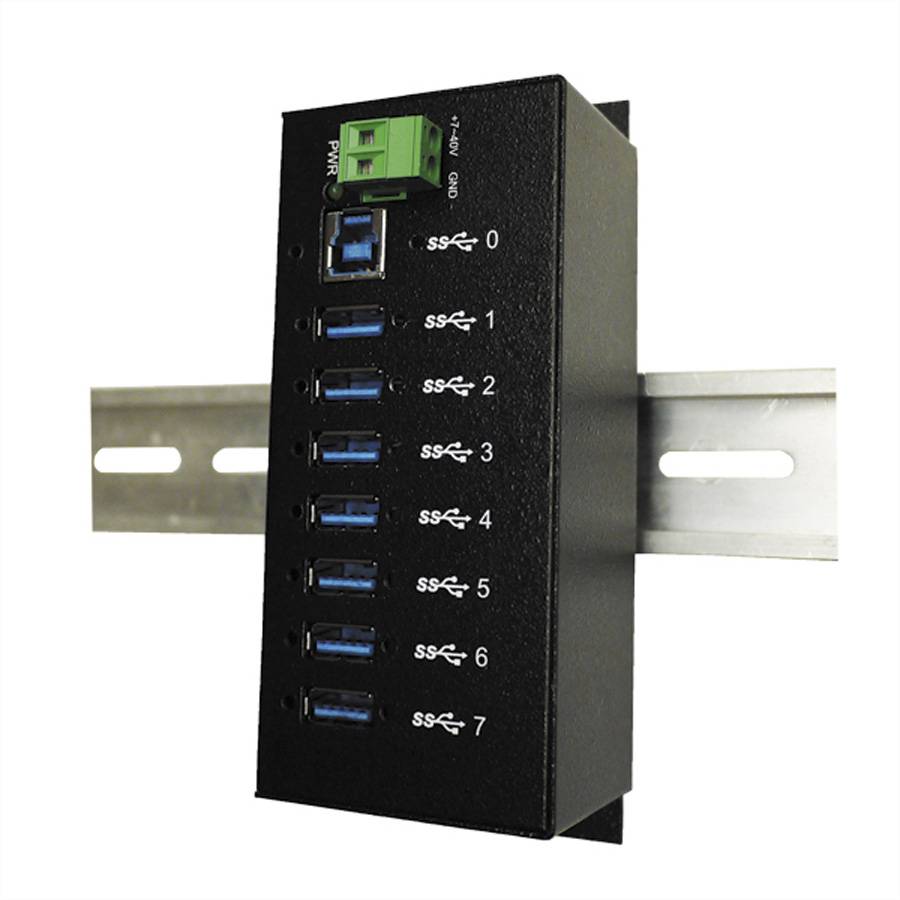

The EX-1187HMVS provides 7 screwable USB 3.0 downstream ports with a protection of the terminals against voltage fluctuations. It is thus possible to connect up to seven external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack. The supplied cable EX-K1572V (2 meter) A-plug to B-plug can be attached to the EX-1187HMVS with knurled screws without using a screwdriver. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications. It is very compact and robust.
- USB 3.0 HUB with seven ports.
- Protection of terminals against voltage fluctuation.
- Power supply +7 to 40V DC - The standard in industrial environments.
- Installation with integrated mounting rail bracket (DIN rail kit).
- Supports all USB 1.1 to 3.0 compatible peripherals.
- Overvoltage protection for each USB port.
- Supports 900mA USB bus Power for each output.
- Power supply: From the USB bus (bus Power) or power supply.
This text is machine translated.
- USB 3.0 HUB with seven ports.
- Protection of terminals against voltage fluctuation.
- Power supply +7 to 40V DC - The standard in industrial environments.
- Installation with integrated mounting rail bracket (DIN rail kit).
- Supports all USB 1.1 to 3.0 compatible peripherals.
- Overvoltage protection for each USB port.
- Supports 900mA USB bus Power for each output.
- Power supply: From the USB bus (bus Power) or power supply.
This text is machine translated.
Features
- Exsys Ex 1187HMVS - Hub - 7 connections
- Device type: Hub - 7 connections
- Sub-type: USB
- Ports : 7 x SuperSpeed USB 3.0
- Performance characteristics : Overvoltage protection, screw locking, overvoltage protection
- PRODUCT CERTIFICATIONS : USB 1.1, USB 2.0, USB 3.0
- Dimensions (width x depth x height): 12.2 cm x 5.5 cm x 4.3 cm
- Weight 645 g
- System requirements : Microsoft Windows CE, Linux, Microsoft Windows 2000, Microsoft Windows 2000 Server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)
Scope of delivery
- EX-1187HMVS, USB 3.0 screw-able cable, manual, DIN-Rail Kit (EX-6099)
