Exsys Exsys EX-1196HMS - Hub - 5 x USB 3.1 Gen 1 + 2 x USB-C USB hub White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1196HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type C 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 1 (3.1 1 1st Gen) Type-A, USB 3.2 1st Gen (1 Gen 1) Type-C
- Number of connections: 7
- 5000 Mbit/s
- Black
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5000 Mbit/s.
- Supports Windows operating systems: Windows 10 7 Education, Windows 10 Education x64, Windows 10 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 7 Home x64, Windows 2000 IOT Core, Windows 2000 Pro, Windows 10 Pro x64, Windows 10, Windows 10 Professional, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 10 Professional, Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 8 Ultimate x64,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 7 Pro,Windows 8.1 Pro x64,Windows 8.1 Windows 8.1,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows Vista Business,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Enterprise,Windows Vista Enterprise Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Supports Mac operating systems: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.8 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.5 Mountain Lion, Mac OS X 10.9 Mavericks
- Product type
USB hub
- Interfaces (output)
USB C®
- Distributor/switch features
Steel casing
- Factory colour
White
- Weight
500 g
- Width
113 mm
- Height
36.3 mm
- Depth
61.5 mm
- Cable length
0 mm
- No. of USB type A 3.1 / 3.2 1st Gen
5 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- Input voltage
7 - 48 V
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
7
- Terminal block port
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- USB powered
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796858 Exsys Exsys EX-1196HMS - Hub - 5 x USB 3.1 Gen 1 + 2 x USB-C USB hub White
User & Safety Instructions
User & Safety Instructions 3796858 Exsys Exsys EX-1196HMS - Hub - 5 x USB 3.1 Gen 1 + 2 x USB-C USB hub White
Description

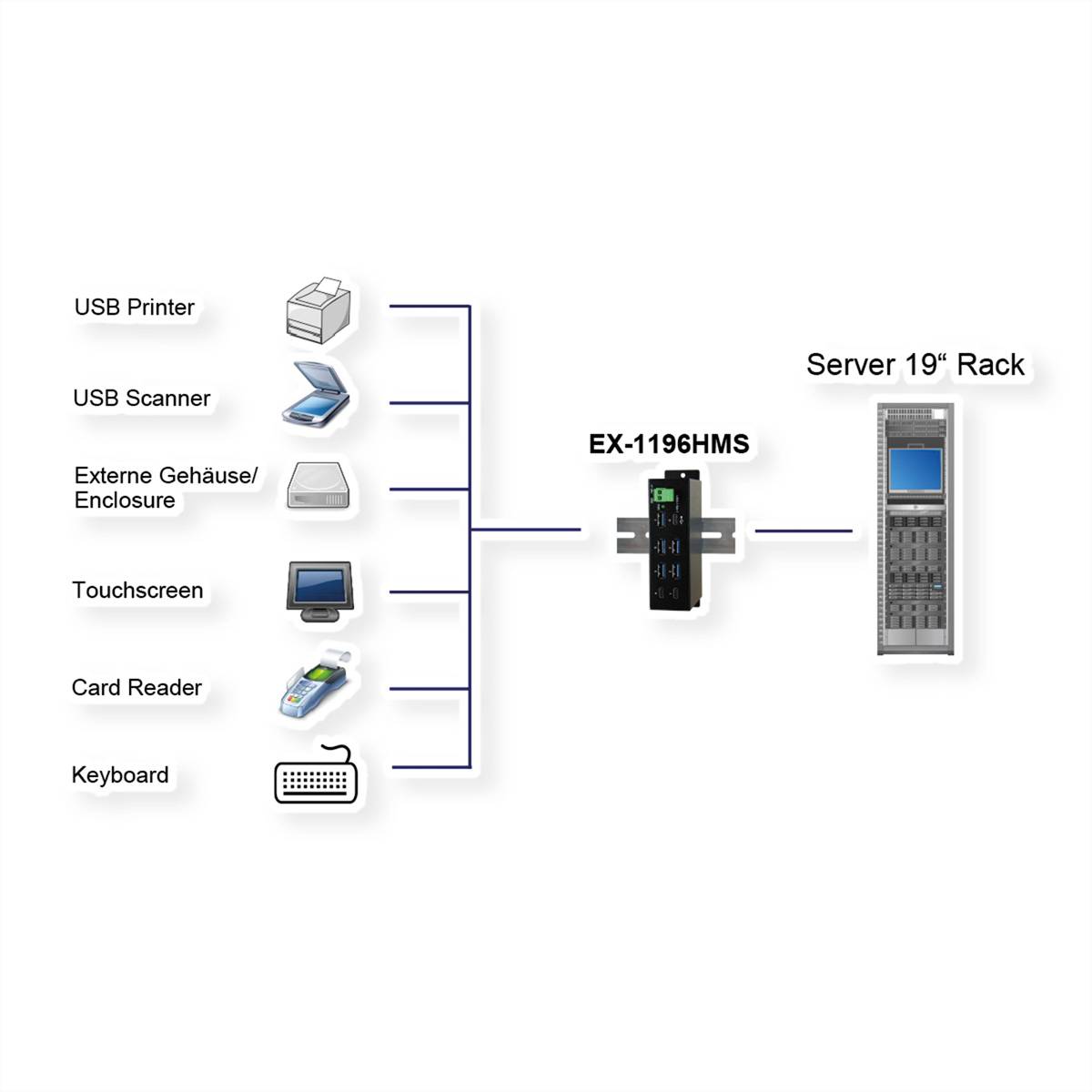

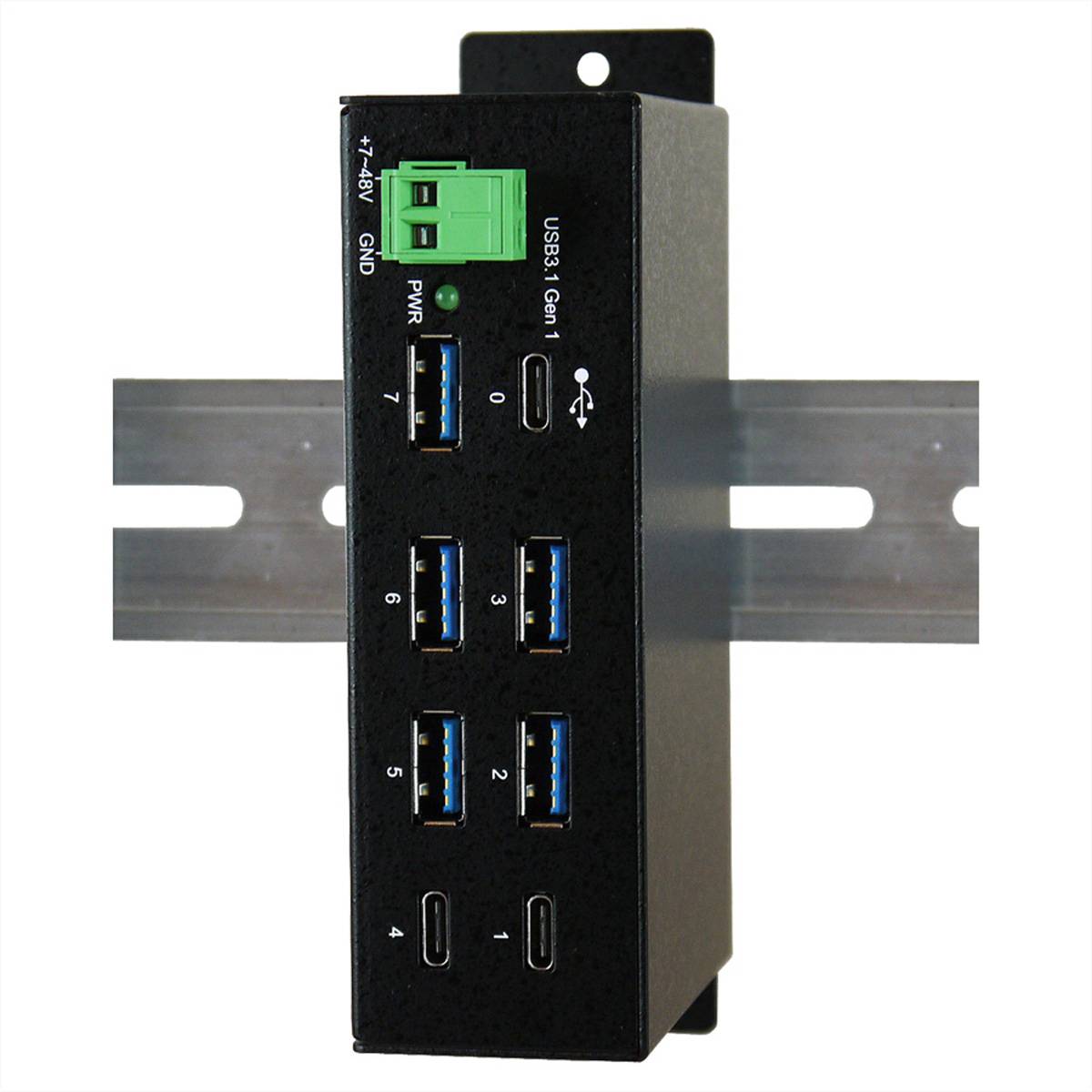

The EX-1196HMS is a USB 3.0/3.1(Gen1) metal HUB that meets the specifications of the Universal Serial Bus (USB) version 3.1(Gen1) and works at a data speed of up to 5 Gbps. It offers a USB-C upstream port and 7 downstream ports with 15KV ESD surge protection for each port. Ports 1+4 are equipped with a new C socket. It is thus possible to connect up to seven external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
This text is machine translated.
This text is machine translated.
Features
- Exsys EX-1196HMS- Hub 7 connections
- Device type: Hub - 7 connections
- Sub-type: USB
- Ports : 5 x USB 3.1 Gen 1 + 2 x USB-C.
- Features : Overvoltage protection, 15KV ESD Protector, metal housing
- PRODUCT CERTIFICATIONS : USB 1.1, USB 2.0, USB 3.0, USB 3.1
- Power supply: DC 7 - 48 V.
- Dimensions (width x depth x height): 11.3 cm x 6.15 cm x 3.63 cm
- Weight: 500 g
- System requirements : Linux, Microsoft Windows 2000, Microsoft Windows 2000 Server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2012, Windows 8 / 8.1 / 10
Scope of delivery
- EX-1196HMS, USB A-to-C cable manual, DIN Rail Kit (EX-6099)
