Exsys EXSYS EX-1197HMS 7 Port USB 3.2 Gen1 HUB USB hub White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1197HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 3.1 Gen 1 (3.1 1 1st Gen) Type-A, USB 3.2 1st Gen (1 Gen 1) Type-C
- Number of connections: 7
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
White
- Weight
500 g
- Width
113 mm
- Height
36.3 mm
- Depth
61.5 mm
- Cable length
2 m
- No. of USB type A 3.1 / 3.2 1st Gen
5 x
- Material (details)
Metal
- Input voltage
7 - 48 V
- UKCA
not relevant
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
7
- Operating temperature (T-T)
32 - 131 °F
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796859 Exsys EXSYS EX-1197HMS 7 Port USB 3.2 Gen1 HUB USB hub White
User & Safety Instructions
User & Safety Instructions 3796859 Exsys EXSYS EX-1197HMS 7 Port USB 3.2 Gen1 HUB USB hub White
Description
Details

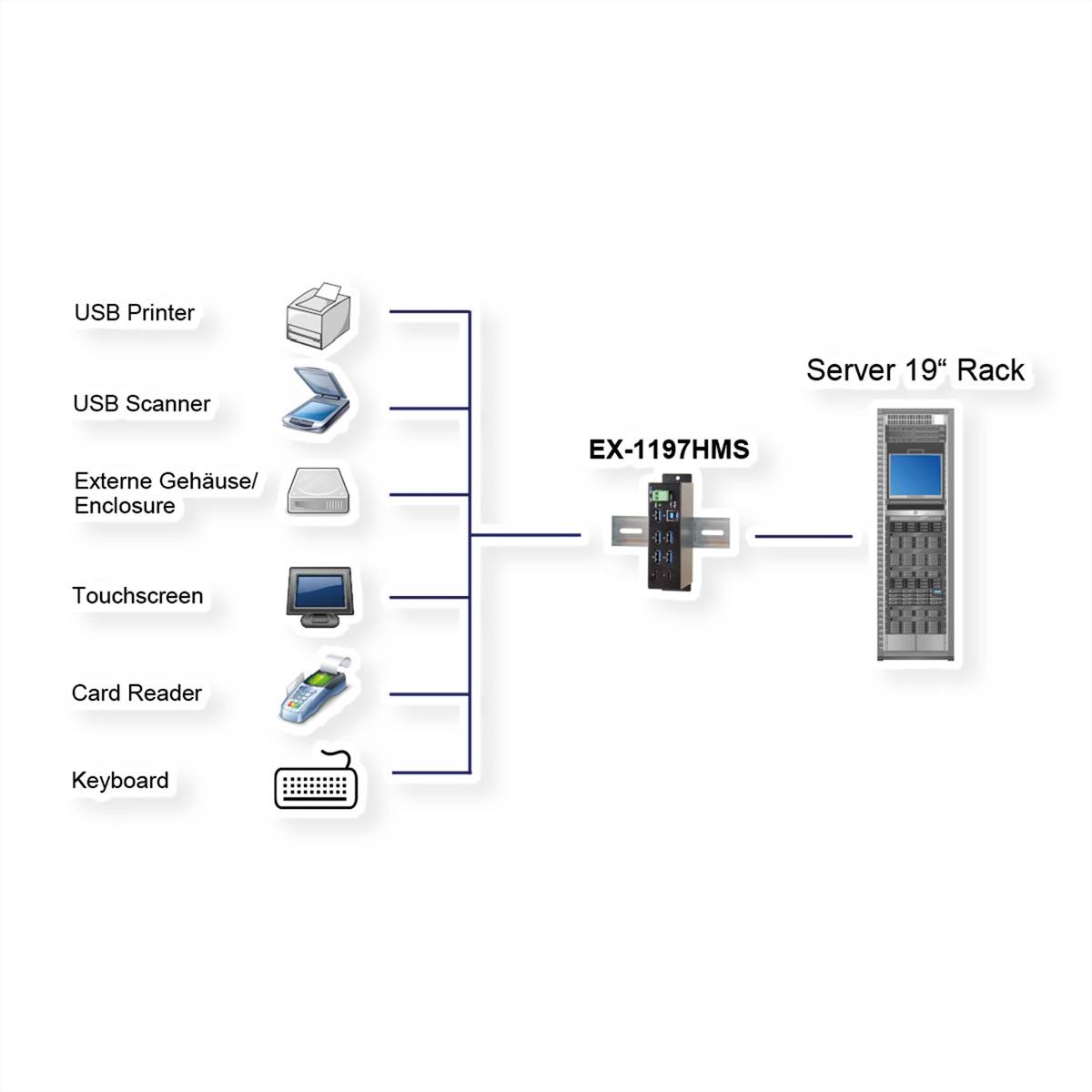

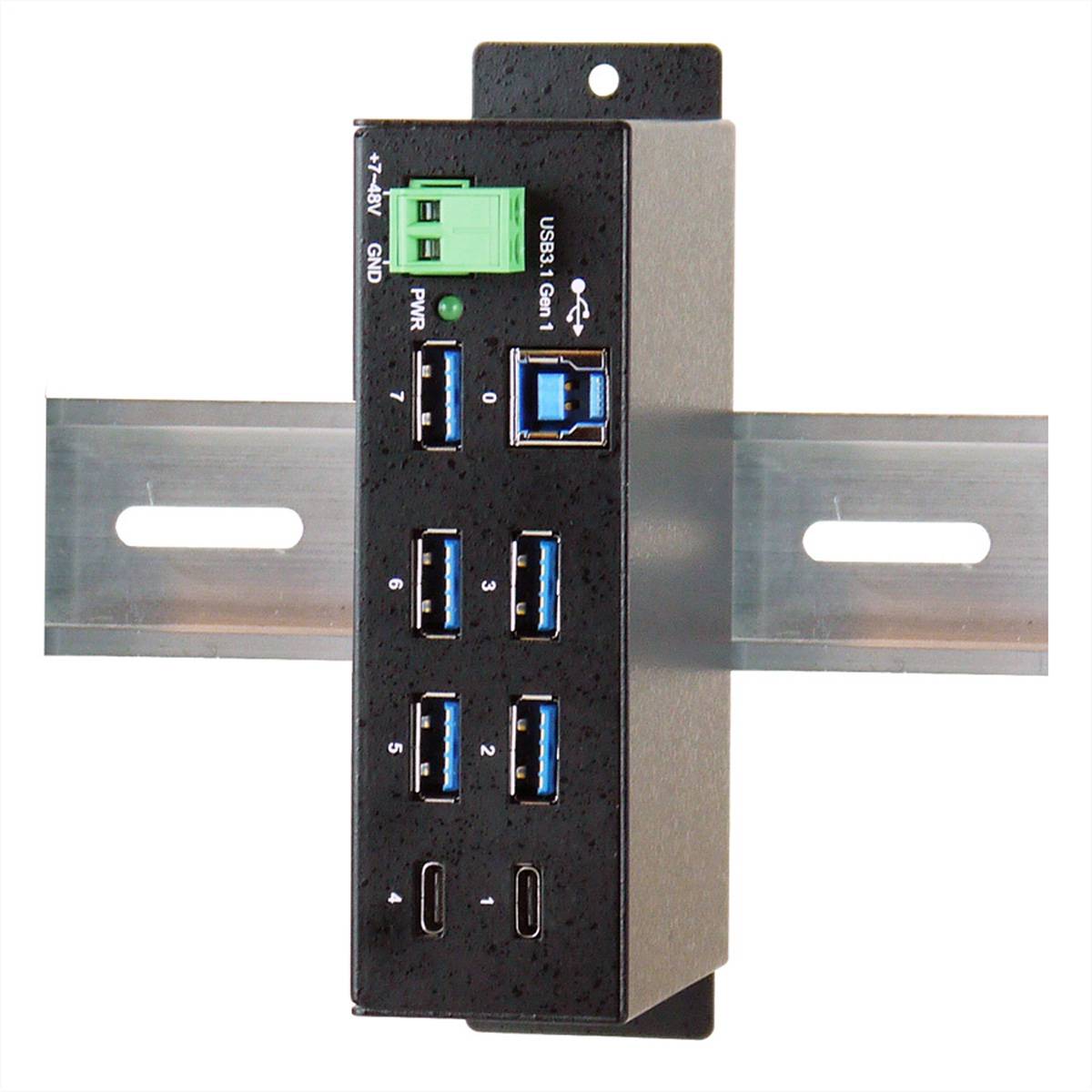

The EX-1197HMS is a USB 3.0/3.1(Gen1) metal HUB that meets the specifications of the Universal Serial Bus (USB) version 3.1(Gen1) and works at a data speed of up to 5 Gbps. It offers a USB-B-upstream port and 7 downstream ports with 15KV ESD surge protection for each port. Ports 1+4 are equipped with a new C socket. It is thus possible to connect up to seven external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
- USB 3.0/3.1(Gen1) HUB with two USB C ports and five A ports
- 15KV ESD surge protection for each port
- Protection of terminals against voltage fluctuations
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Supports 900mA USB bus Power for each output
- Supports the fast USB battery charging: CDP and DCP mode
- Supports all USB 1.1 to 3.0/3.1(Gen1) compatible peripherals
- Power supply optionally also from USB bus +5V (bus-Power)
- Fully equipped USB C port with active two-sided connector and cable orientation
This text is machine translated.
The EX-1197HMS is a USB 3.0/3.1(Gen1) metal HUB that meets the specifications of the Universal Serial Bus (USB) version 3.1(Gen1) and works at a data speed of up to 5 Gbps. It offers a USB-B-upstream port and 7 downstream ports with 15KV ESD surge protection for each port. Ports 1+4 are equipped with a new C socket. It is thus possible to connect up to seven external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
- USB 3.0/3.1(Gen1) HUB with two USB C ports and five A ports
- 15KV ESD surge protection for each port
- Protection of terminals against voltage fluctuations
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Supports 900mA USB bus Power for each output
- Supports the fast USB battery charging: CDP and DCP mode
- Supports all USB 1.1 to 3.0/3.1(Gen1) compatible peripherals
- Power supply optionally also from USB bus +5V (bus-Power)
- Fully equipped USB C port with active two-sided connector and cable orientation
This text is machine translated.
Scope of delivery
- EX-1197HMS, USB A-to-B cable manual, DIN-Rail Kit (EX-6099)
