Exsys EXSYS - EX-12270HMS USB 3.2 Gen 2 HUB 10x C-Anschlüsse USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Robust, industrial-grade metal hub for table, wall and DIN-rail mounting, including power supply 24V/4A...

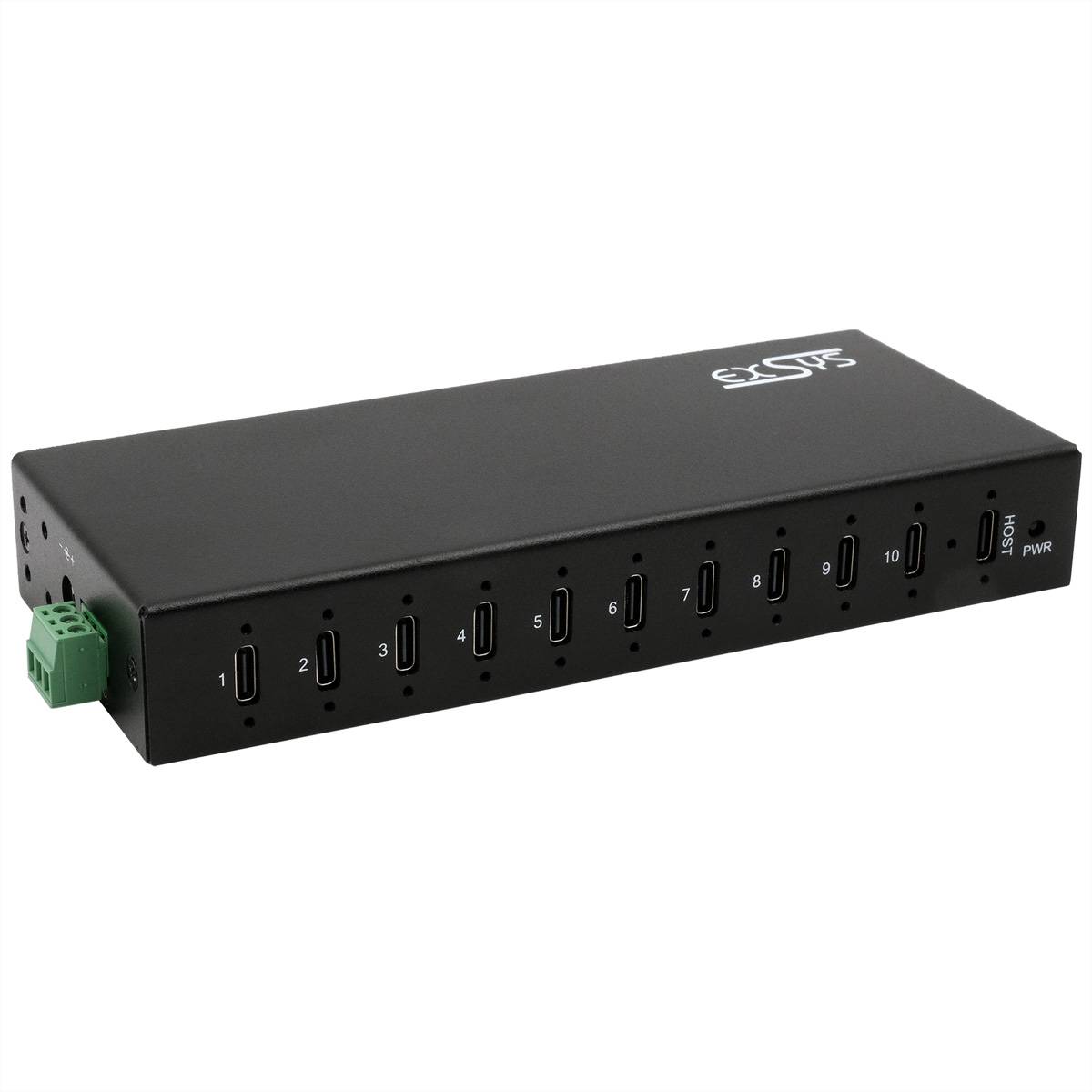

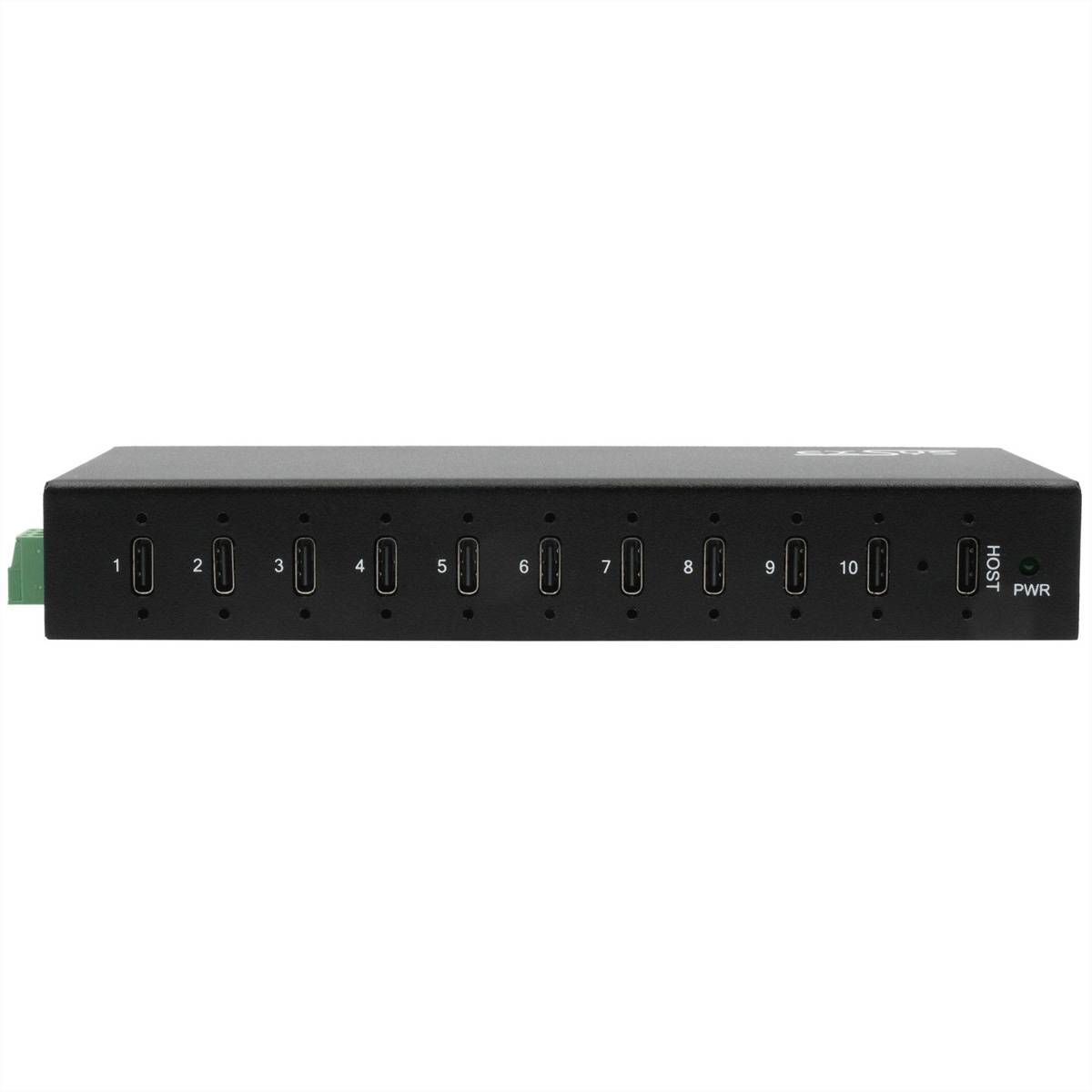

- USB 3.2 metal HUB with 10x USB-C Gen 2x1
- 15KV ESD surge protection for each output
- Up to 2.4A per port
- Automatic detection of the data transfer rate
- Metal casing for wall or rack mounting
Technical specifications
- Product group: Industrial Networking
- Product type USB Hub
- Colour, black
- Connections: 1x C-socket upstream 10x C-socket downstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 10
- Range of application: External
- Material (casing): Metal
- Power supply required: Yes
- Power supply included: Yes
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 25.1 mm
- Width 161.5 mm
- Depth: 68.2 mm
- Weight: 345 g
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,874 kg
- Gross weight: 0.874
- Product type
USB hub
- Factory colour
Black
- Weight
0.874
- Cable length
0 m
- Version
Cable
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797005 Exsys EXSYS - EX-12270HMS USB 3.2 Gen 2 HUB 10x C-Anschlüsse USB hub Black
User & Safety Instructions
User & Safety Instructions 3797005 Exsys EXSYS - EX-12270HMS USB 3.2 Gen 2 HUB 10x C-Anschlüsse USB hub Black
Description

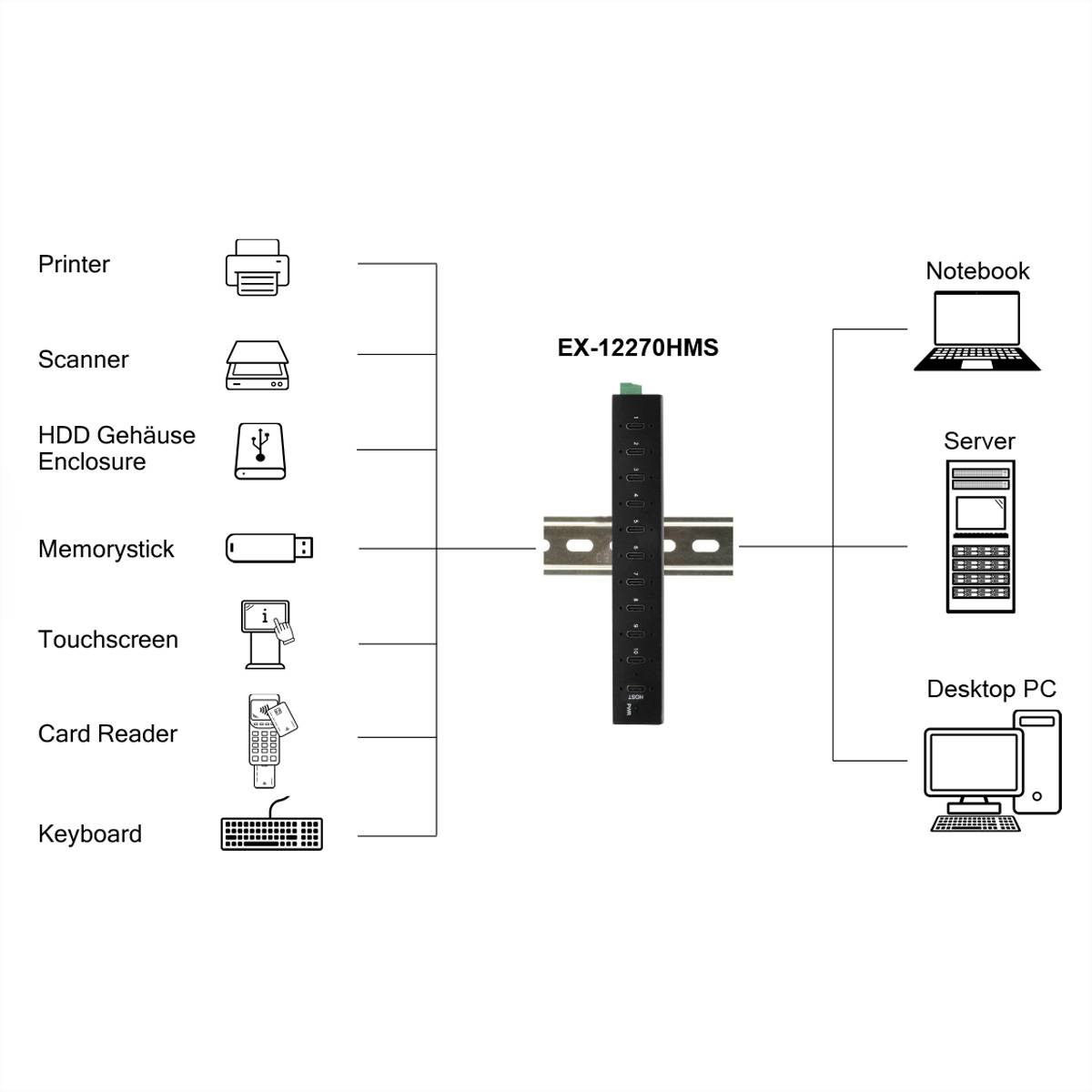

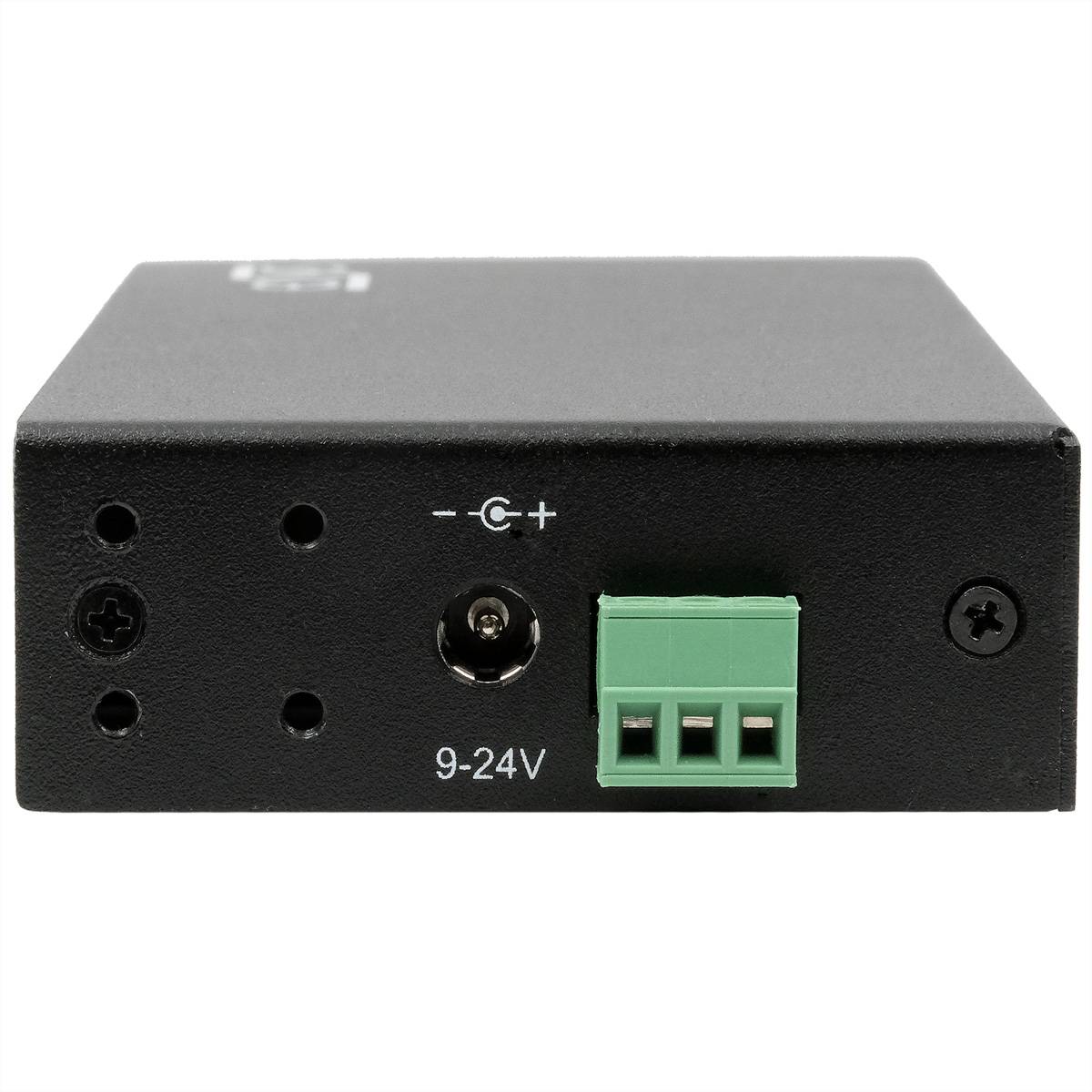

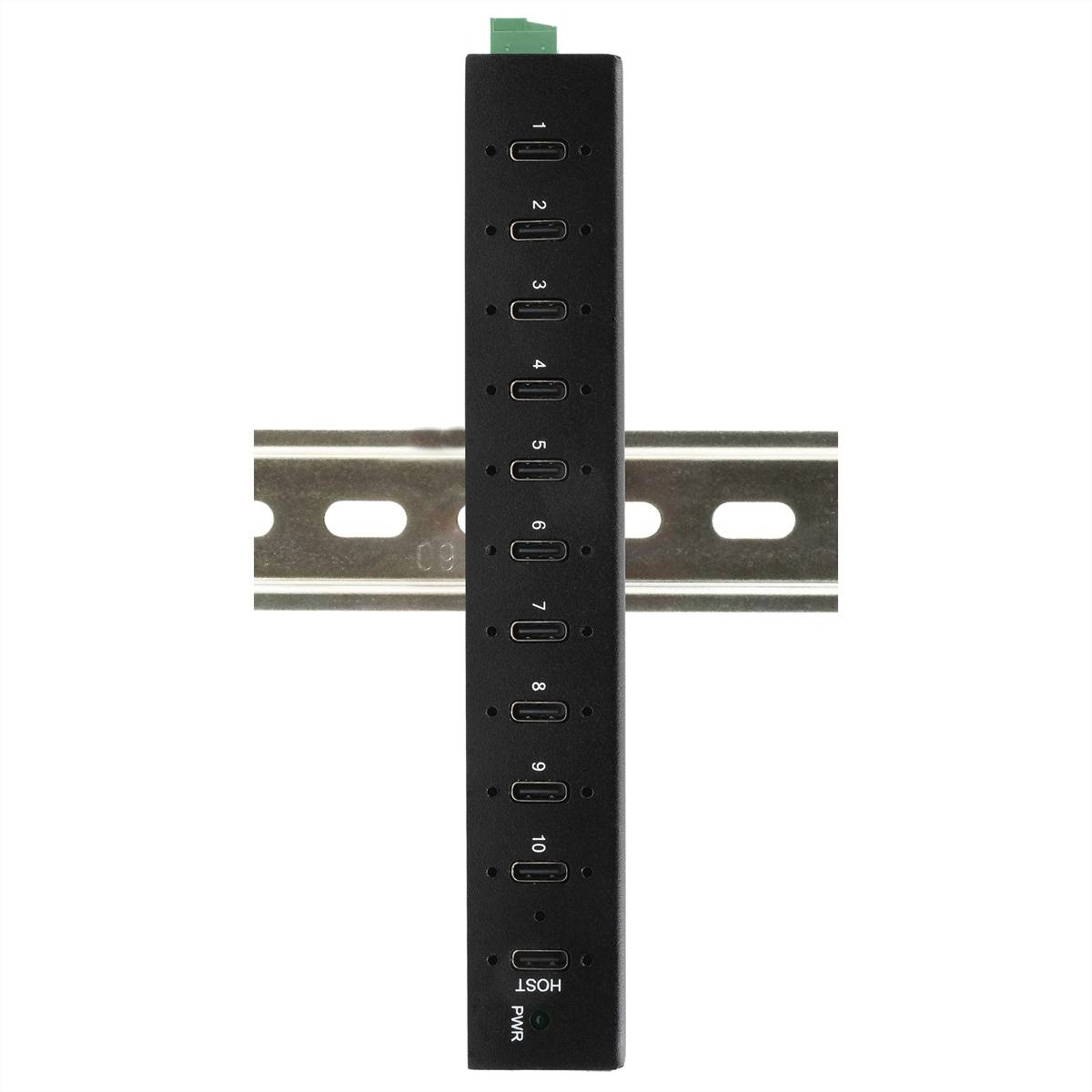

Robust, metal hub suitable for industry mounting for table, wall and DIN rail, incl. 24V/4A power supply . The robust, industrial-grade EX-12277HMS is a USB 3.2-Gen-2x1 metal hub for up to ten devices that can be mounted on the wall or on a DIN rail. The connection to the host PC is via a USB-C cable, with the hub having ten USB-C-3.2 Gen 2x1 ports for endpoints. The USB-C ports enable data transfer of up to 10 Gbps on all ports. An external power supply enables the provision of up to 2.4 ampere per port at a maximum power of 79.5 watt. The device allows the iPhone, iPad, smartphone and tablet to be charged easily. The power supply is via a DC-socket (5.5 mm/2.1 mm) for a plug power supply, which is included in the delivery, or via a terminal Block for connecting an optionally available DIN-rail power supply
This text is machine translated.
Scope of delivery
- EX-12270HMS, MAINS ADAPTER (24V/4A),
- USB 3.2 1st Gen cable (screwed on) 1m,
- DIN rail kit, wall mounting kit, manual
