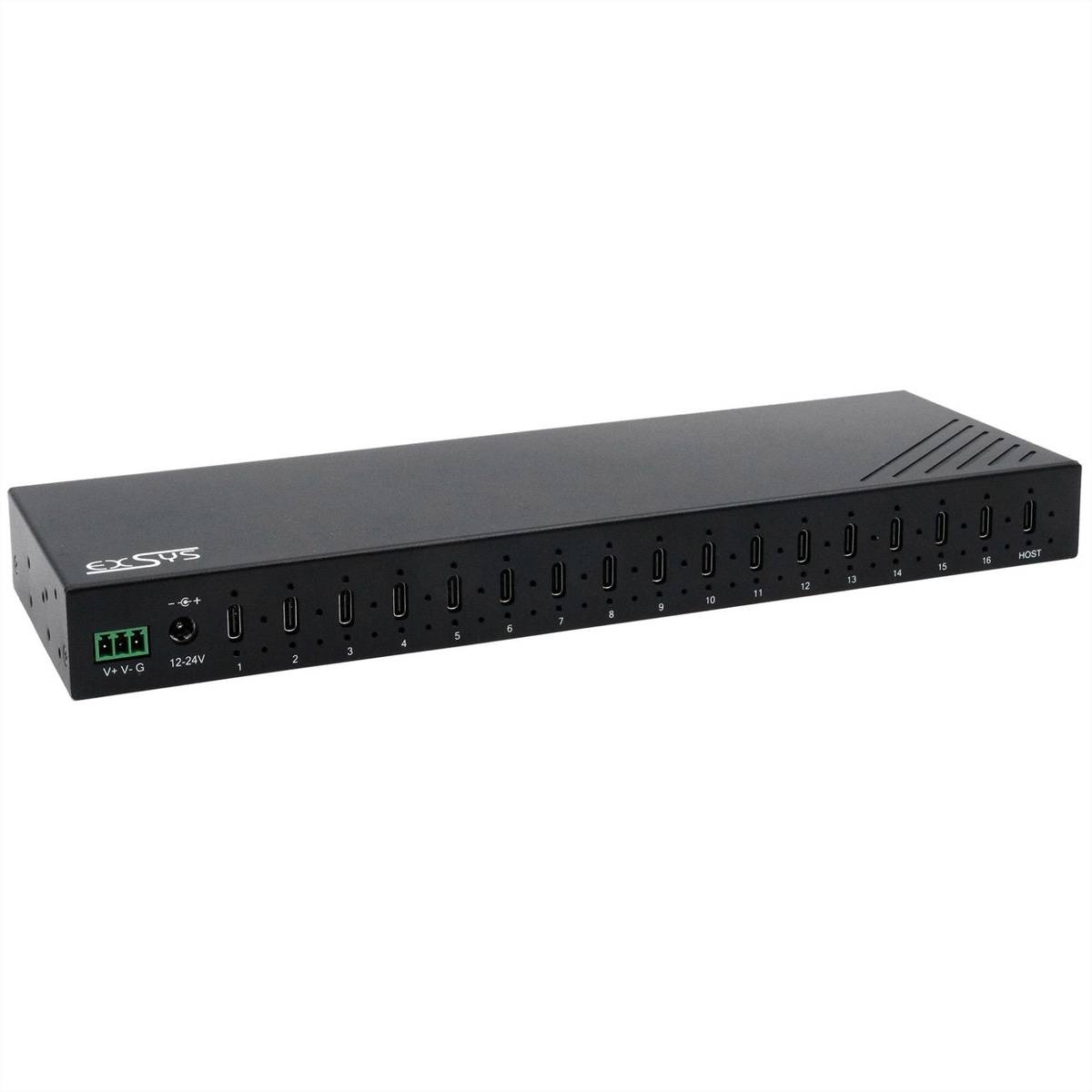

Exsys EXSYS - EX-12276HMS USB 3.2 Gen 2 Hub 16 x USB-C Anschlüsse 120W USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Robust, industrial-grade metal hub for table, wall and DIN-rail mounting, including power supply 24V/4A...
- USB 3.2 metal HUB with 16x USB-C Gen 2x1
- 15KV ESD surge protection for each output
- Up to 2.4A per port
- Automatic detection of the data transfer rate

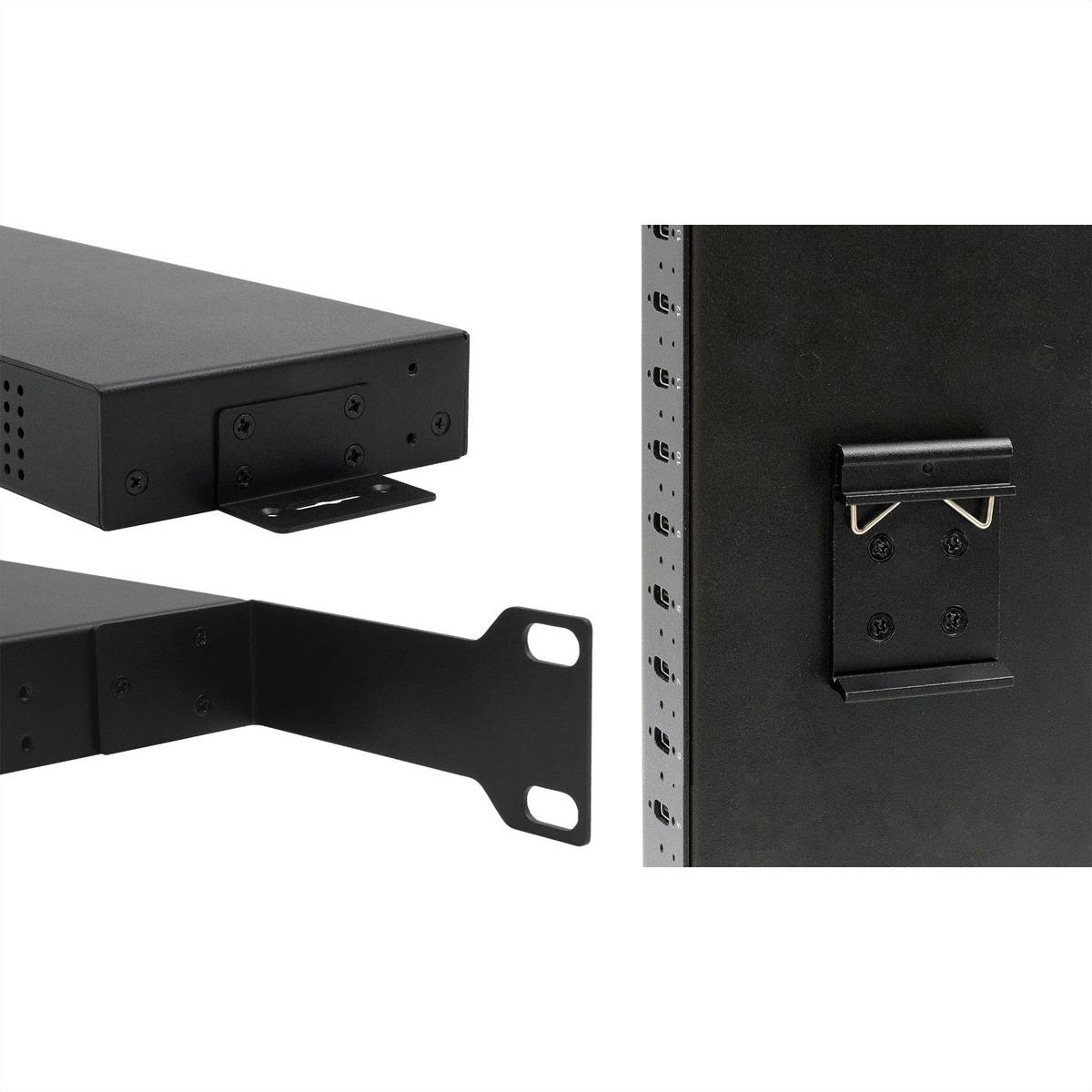

- Metal casing for wall or rack mounting
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black

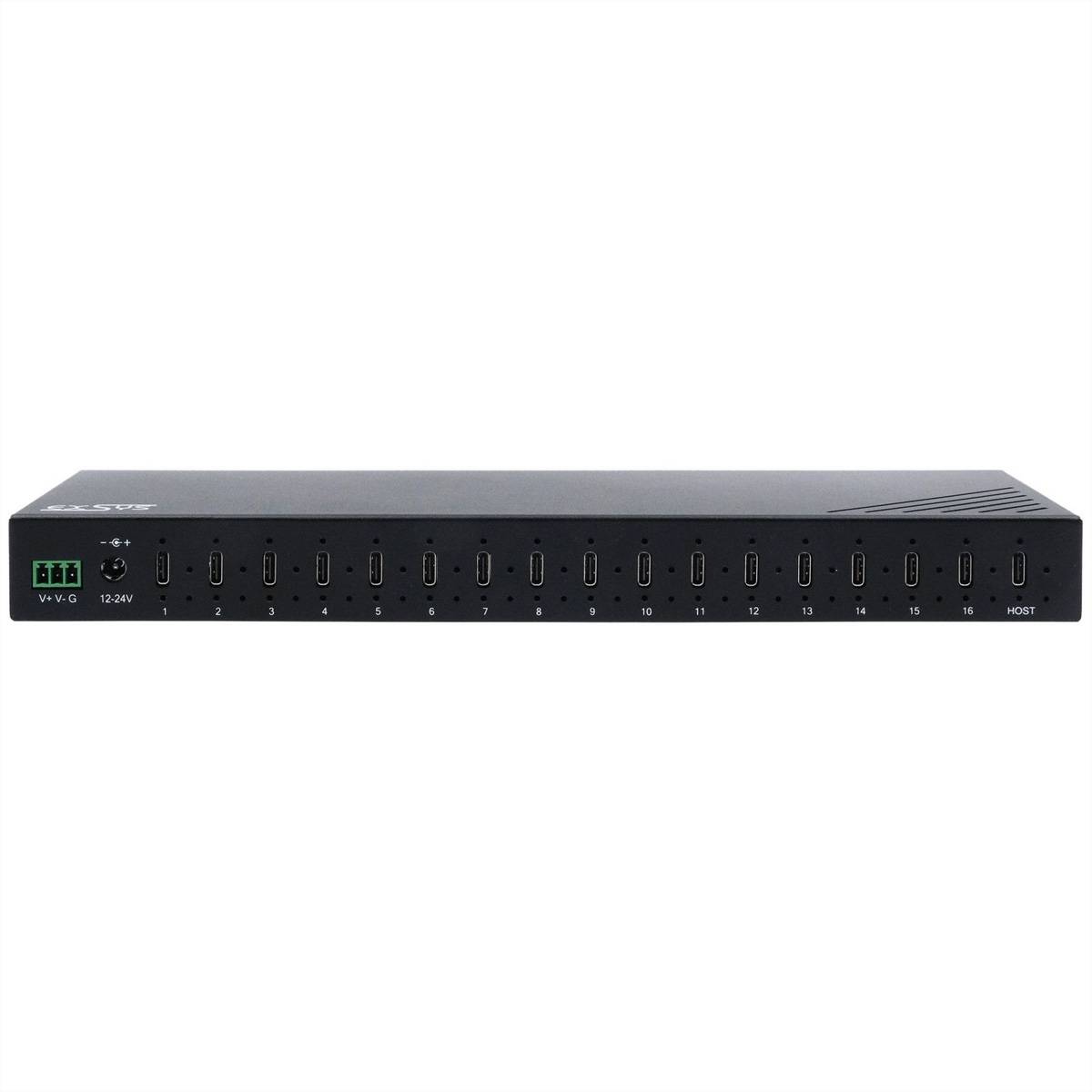

- Connections: 1x C-socket upstream 16x C-sockets downstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 16
- Range of application: External
- Material (casing): Metal
- Power supply required: Yes
- Power supply included: Yes
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 28.1 mm
- Width 280 mm
- Depth: 93 mm
- Weight: 713 g
- Packaging height 90 mm
- Package width 160 mm
- Packaging depth 320 mm
- Package weight: 1,606 kg
- Gross weight: 1.606
- Product type
USB hub
- Factory colour
Black
- Weight
1.606
- Cable length
0 m
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797003 Exsys EXSYS - EX-12276HMS USB 3.2 Gen 2 Hub 16 x USB-C Anschlüsse 120W USB hub Black
User & Safety Instructions
User & Safety Instructions 3797003 Exsys EXSYS - EX-12276HMS USB 3.2 Gen 2 Hub 16 x USB-C Anschlüsse 120W USB hub Black
Description

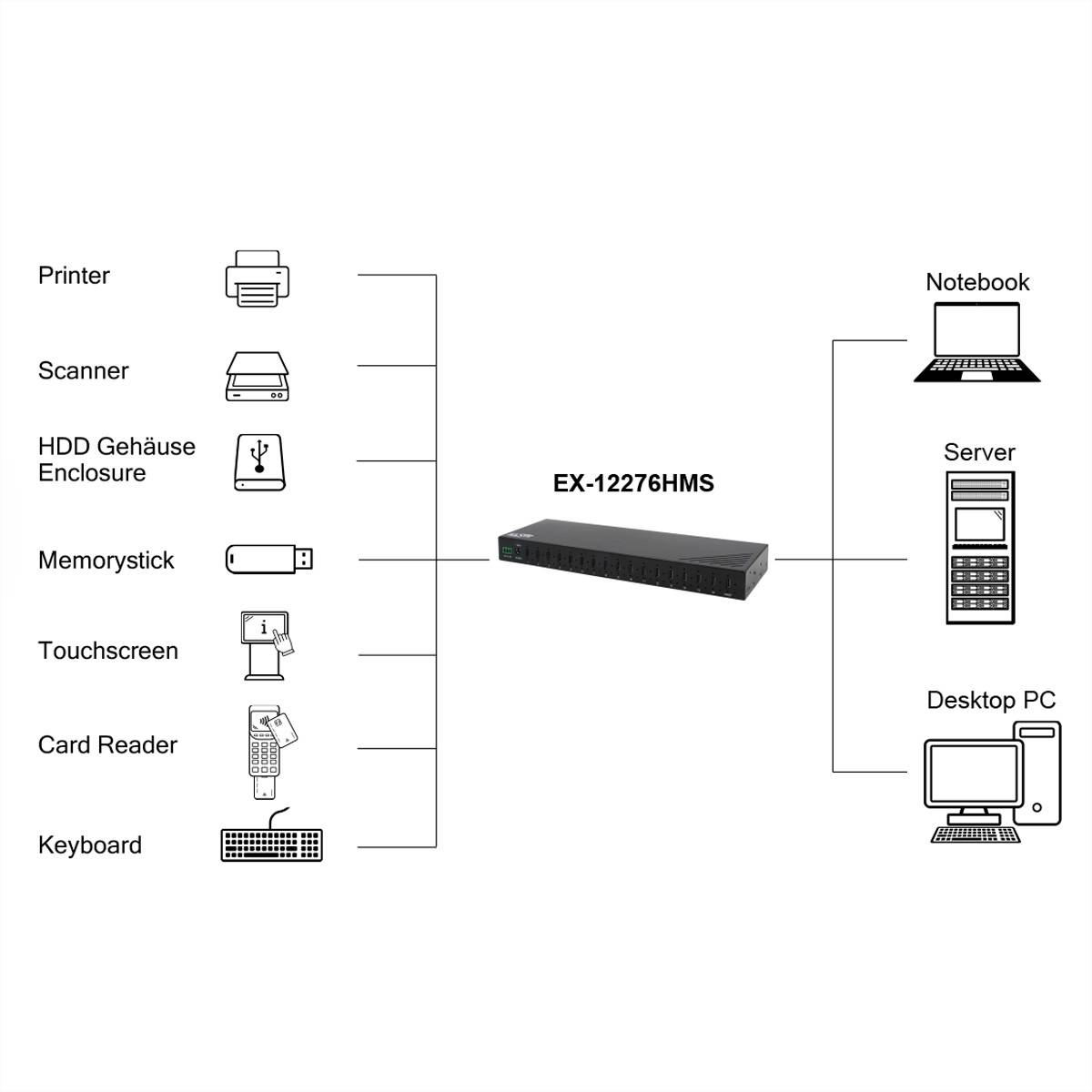

Robust, industrial-grade metal hub for table, wall and DIN-rail mounting, incl. 24V/4A power supply . The robust and industrial-grade EX-12276HMS is a USB 3.2 Gen 2x1 metal hub for up to sixteen devices, which can be mounted on the wall, in a 19" rack or on a DIN rail. . It is connected to the host PC via a USB-C cable and has sixteen USB-C 3.2 Gen 2x1 ports for devices with an excellent performance of up to 10 Gbit/s (SuperSpeed USB 10Gbps). . Via the external power supply, a maximum power of 120 watt is available up to 2.4 A per port. other. . This allows the iPhone, iPad, smartphone and tablet to be easily charged. The power is supplied via the included. Plug-in power supply or an optionally available DIN-rail power supply (Self-Power).
This text is machine translated.

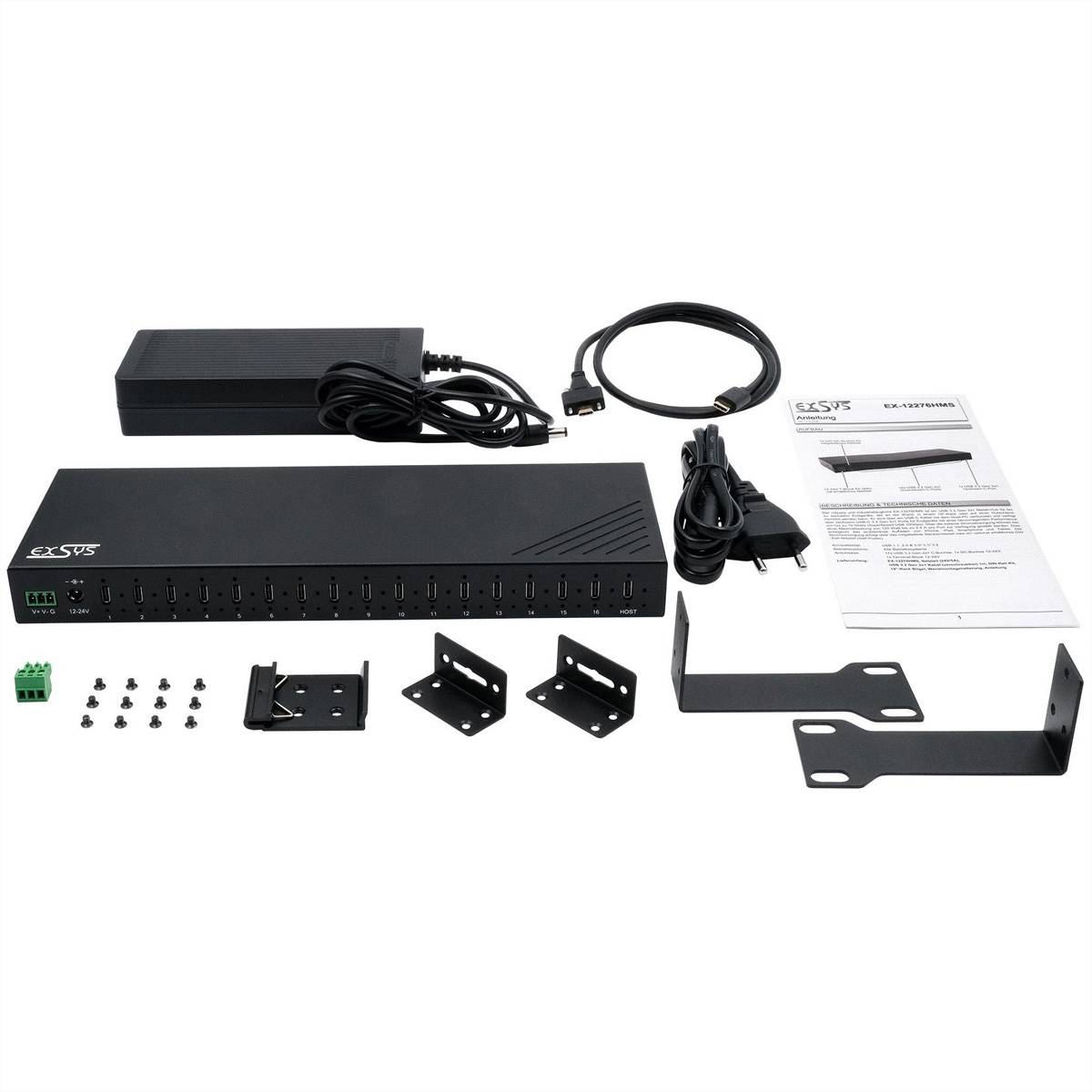

Scope of delivery
- EX-12276HMS, POWER SUPPLY UNIT (24V/5A),
- USB 3.2 1st Gen cable (screwed on) 1m,
- DIN rail kit, 19" rack kit, wall mounting kit,
- Manual
