Exsys EXSYS - EX-12293HMS 4 Port USB 3.2 Metall Hub 3x C- und 1x A - Digital/Daten USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Robust, industrial-grade metal hub...

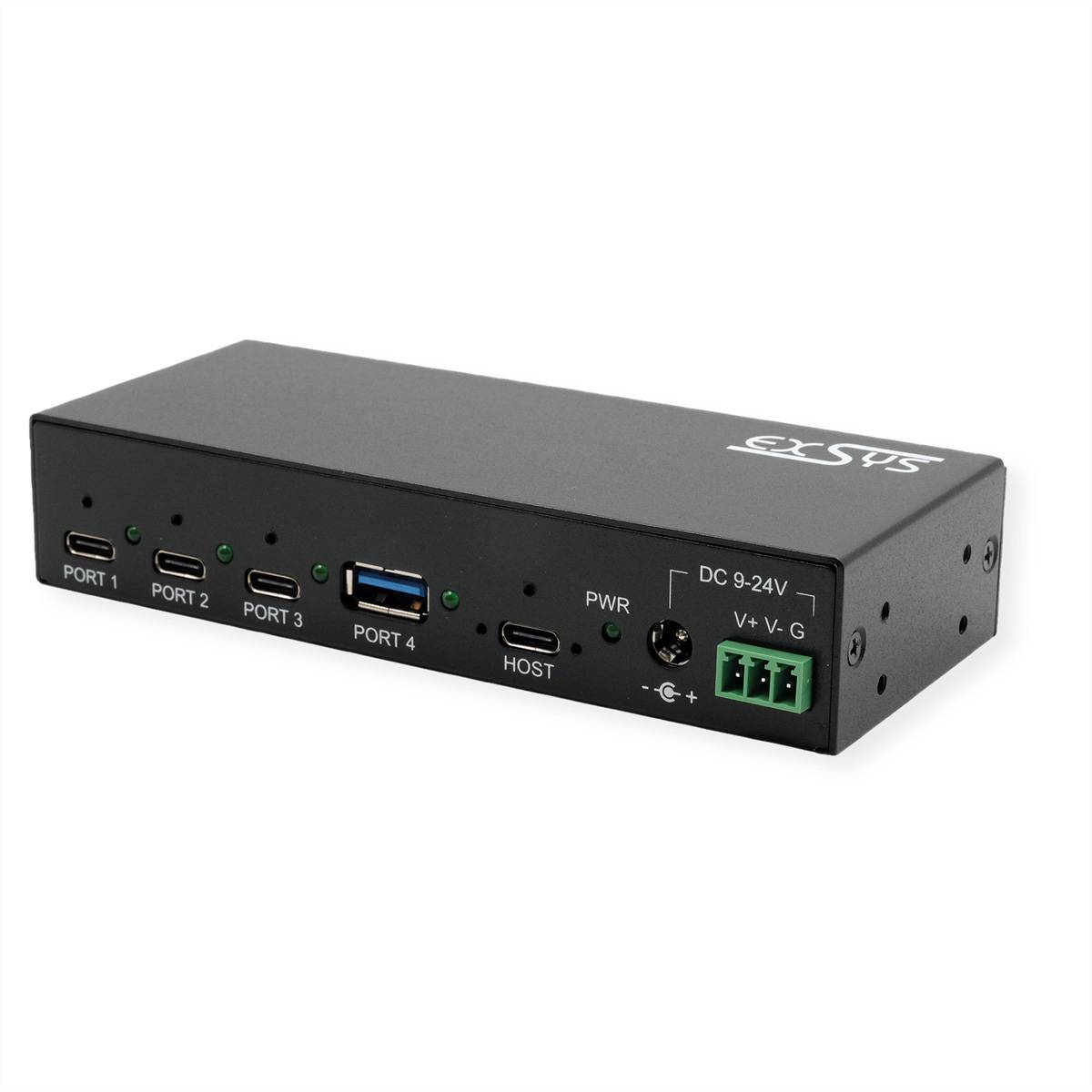

- USB 3.2 Gen 2x1 metal HUB with 3x USB-C and 1x USB-A
- 15KV ESD surge protection for each output
- Up to 3A per port
- Automatic detection of the data transfer rate

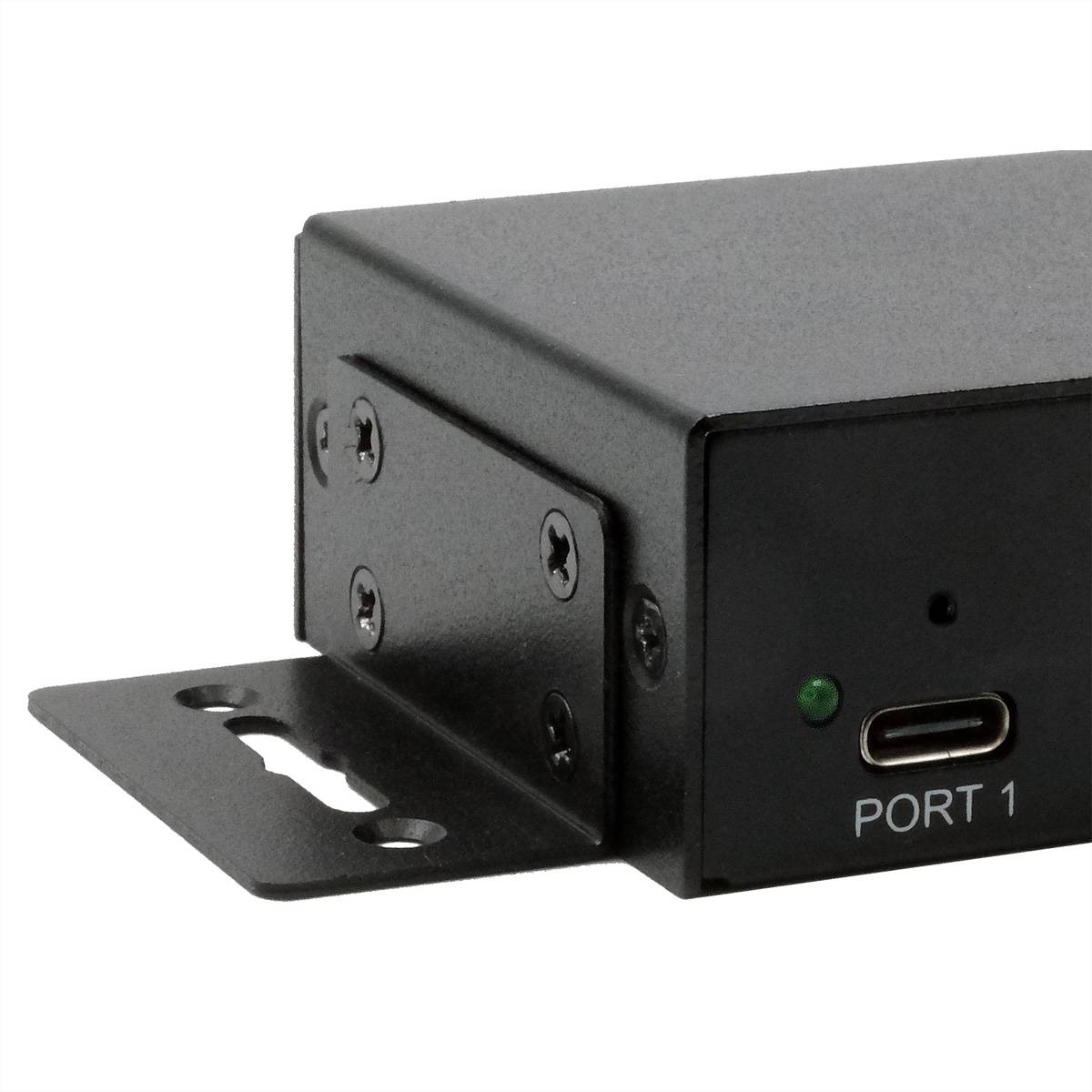

- Metal casing for wall or rack mounting
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black

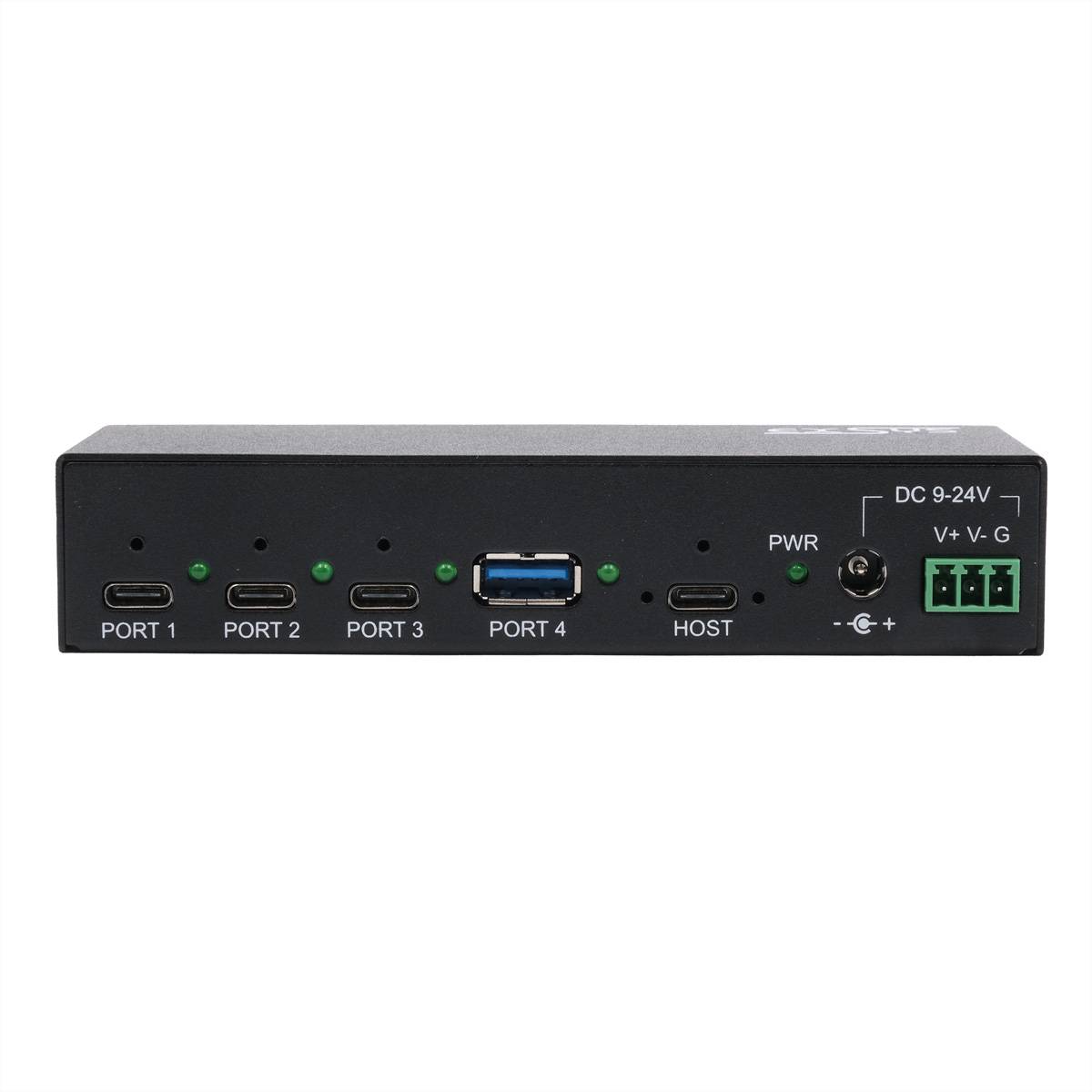

- Connections: 3x C-sockets downstream 1x A-socket downstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included: Yes
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 134 mm
- Width: 55.01 mm
- Depth: 20 mm
- Weight: 286 g
- Packaging height 70 mm
- Package width 180 mm
- Packaging depth 250 mm
- Package weight: 0,774 kg
- Gross weight: 0.774
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB C®
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.774
- Width
55.01 mm
- Height
134 mm
- Depth
20 mm
- Cable length
0 mm
- Version
Mains cable
- Type A
USB
- Type B
USB
- Cable use
USB 3.2 2nd Gen (USB 3.1 2nd Gen)
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796975 Exsys EXSYS - EX-12293HMS 4 Port USB 3.2 Metall Hub 3x C- und 1x A - Digital/Daten USB hub Black
User & Safety Instructions
User & Safety Instructions 3796975 Exsys EXSYS - EX-12293HMS 4 Port USB 3.2 Metall Hub 3x C- und 1x A - Digital/Daten USB hub Black
Description

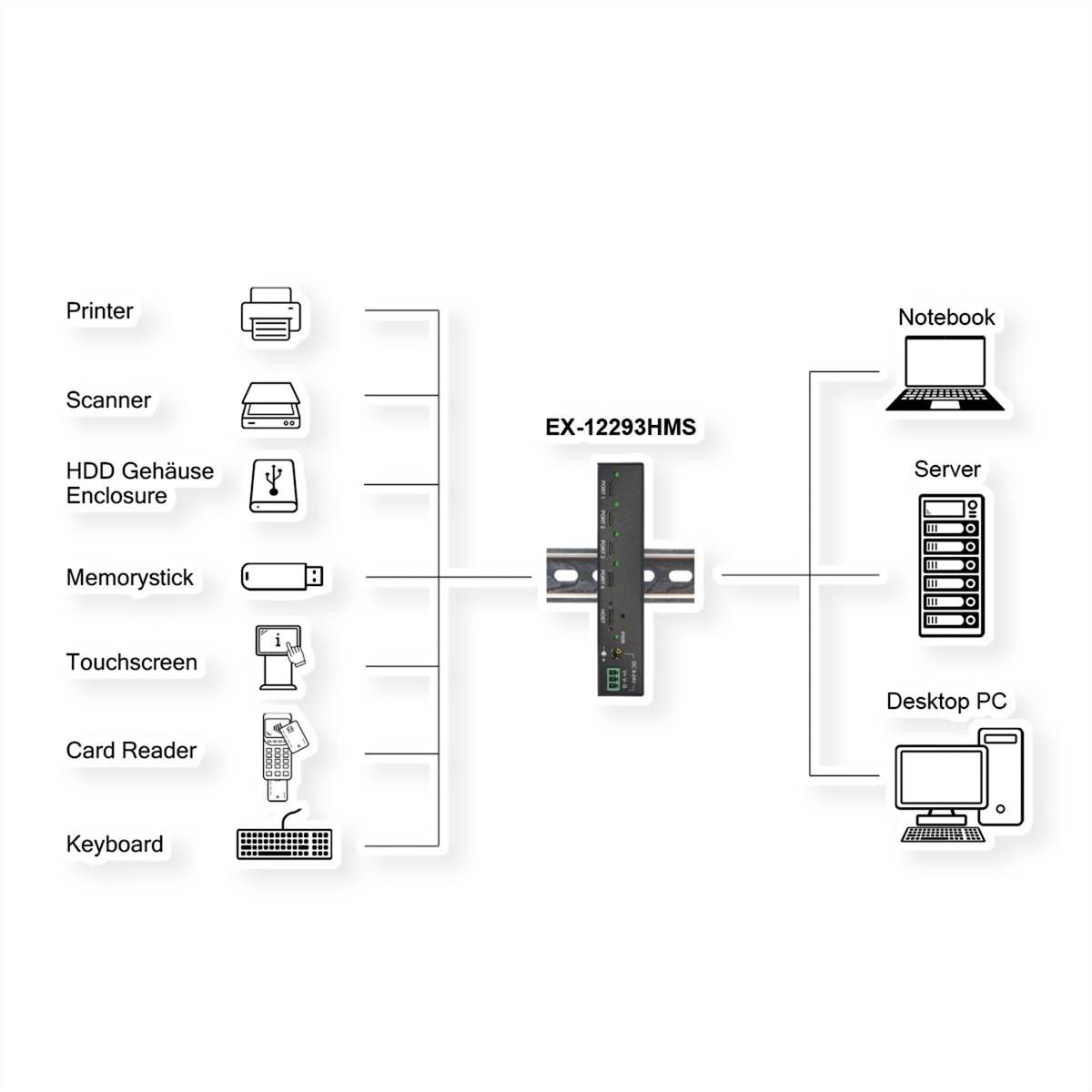

Robust, industrial-grade metal hub The robust, industrial-grade EX-12293HMS is a USB 3.2 Gen 2x1 metal hub for up to four terminals which can be mounted on the wall or on a DIN rail. It has a USB-A and three USB-C downstream ports and ensures safe data transfer and excellent performance of up to 10 Gbps (SuperSpeed USB 10 Gbps). In addition, the EX-12293HMS is equipped with a 15KV ESD surge protection. Via the external power supply up to 3A can be available to each USB-C port and 1.5A at the USB-A port. This allows the iPhone, iPad, smartphone and tablet to be easily charged. The power is supplied via the accompanying wall plug transformer or an optionally available DIN-rail power supply (Self-Power).
This text is machine translated.
Scope of delivery

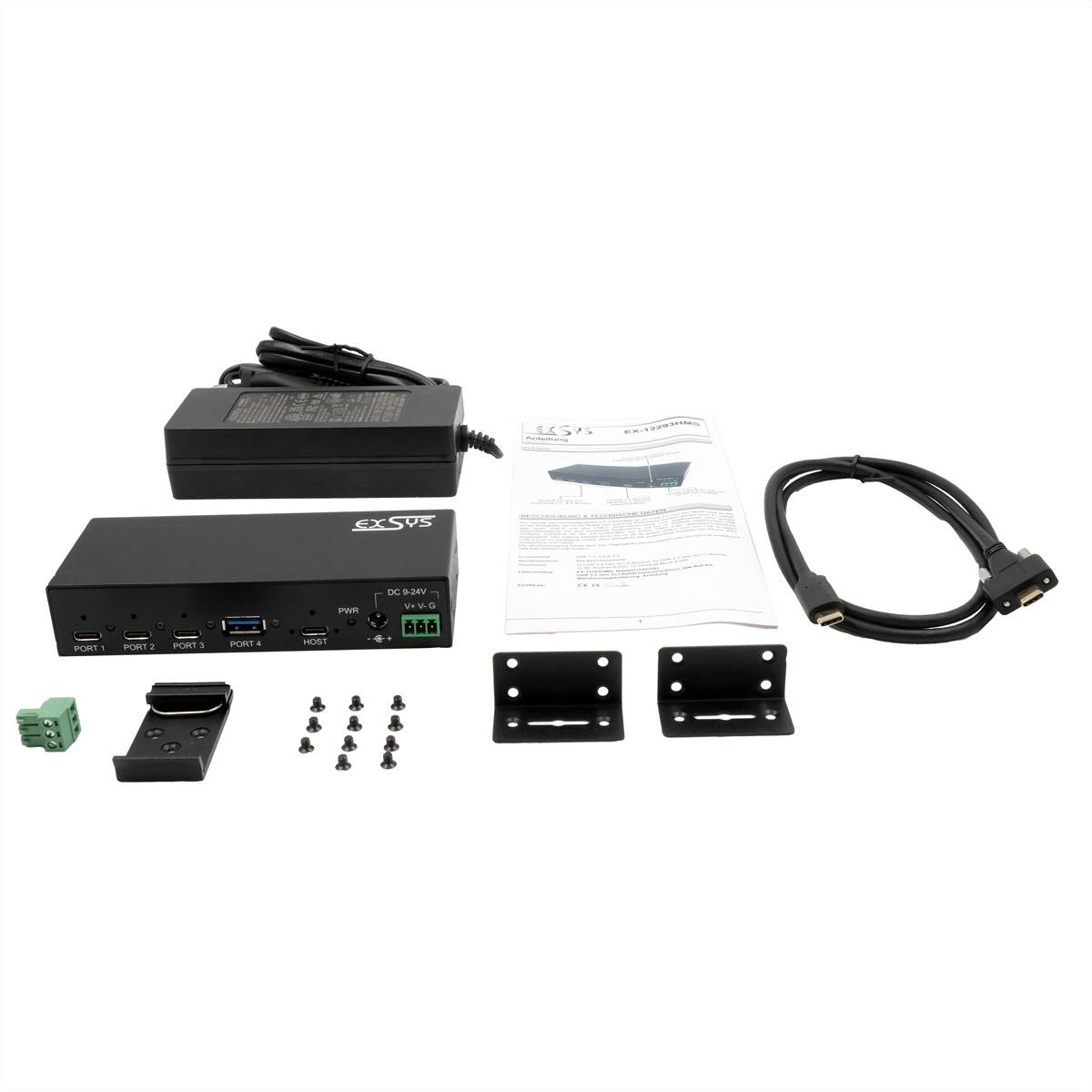

- EX-12293HMS, power supply unit 12V/5A, DIN rail kit, USB 3.2 2x 2nd Gen cable screw able 1.0 m, wall mounting kit, manual
