Exsys EXSYS EX-12294HMS 4 Port USB 3.2 Metall USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Robust, industrial-grade metal hub...
- USB 3.2 Gen 2x1 metal HUB with 4x USB-C
- 15KV ESD surge protection for each output
- Up to 3A per port
- Automatic detection of the data transfer rate
- Metal casing for wall or rack mounting
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- Connections: 4x C-sockets downstream 1x C-socket upstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included: Yes
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 134 mm
- Width 56.2 mm
- Depth: 27.2 mm
- Weight 260 g
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,729 kg
- Gross weight: 0.729
- Product type
USB hub
- Factory colour
Black
- Weight
0.729
- Cable length
0 mm
- Version
Cable
- Cable use
USB-C®
- Cable features
Metal foil shield
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796976 Exsys EXSYS EX-12294HMS 4 Port USB 3.2 Metall USB hub Black
User & Safety Instructions
User & Safety Instructions 3796976 Exsys EXSYS EX-12294HMS 4 Port USB 3.2 Metall USB hub Black
Description

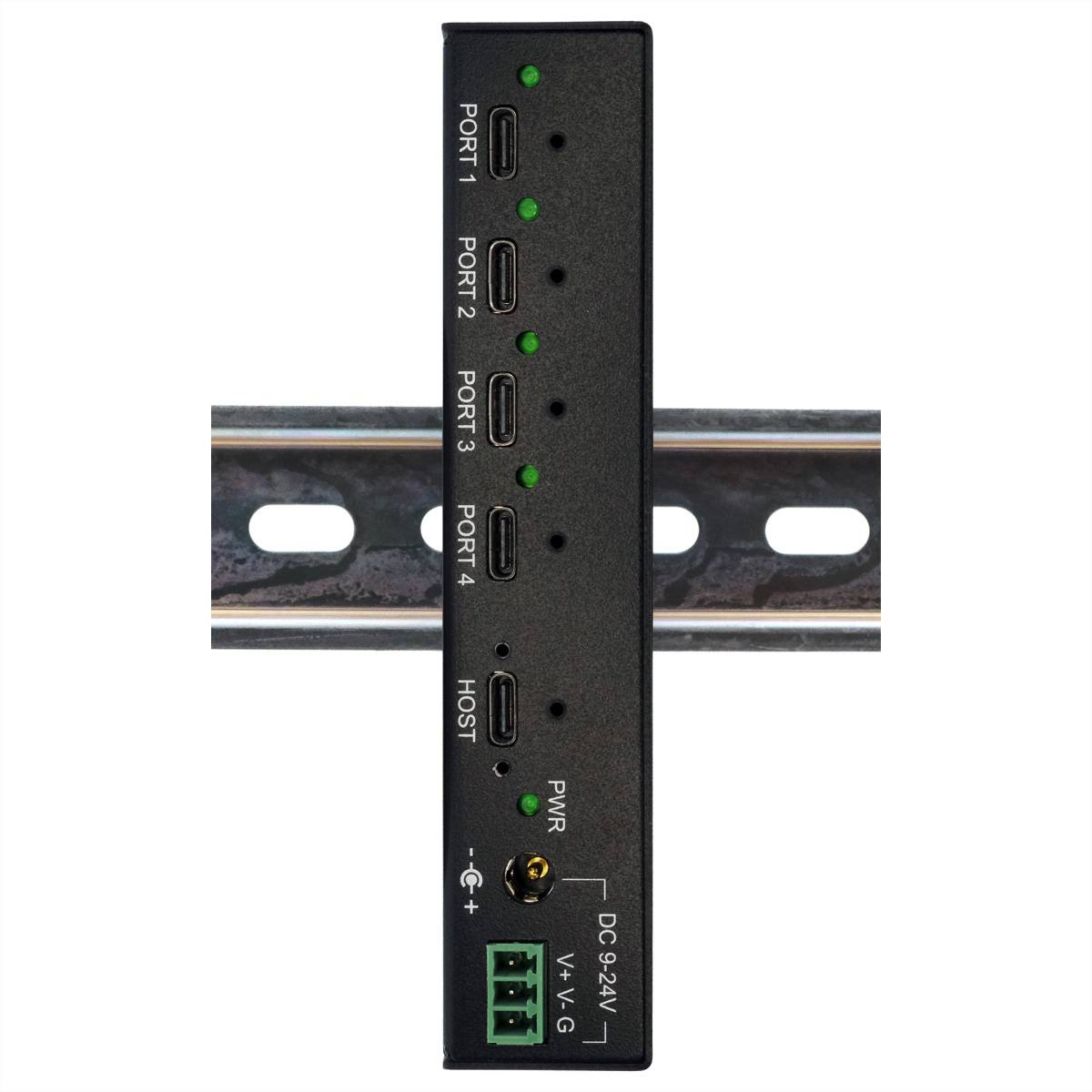

Robust, industry-standard metal hub The rugged and industrial-grade EX-12294HMS is a USB 3.2 Gen 2x1 metal HUB for up to four terminals which can be mounted on the wall or on a DIN rail. It is a pure USB-C HUB for four devices and ensures a secure data transfer and an excellent performance of up to 10 Gbit/s (SuperSpeed USB 10Gbps). . In addition, the EX-12294HMS is equipped with a 15KV ESD surge protection. Via the external power supply. Up to 3 A can be provided at each port. . This allows the iPhone, iPad, smartphone and tablet to be easily charged. The power is supplied via the accompanying wall plug transformer or an optionally available DIN-rail power supply (Self-Power).
This text is machine translated.

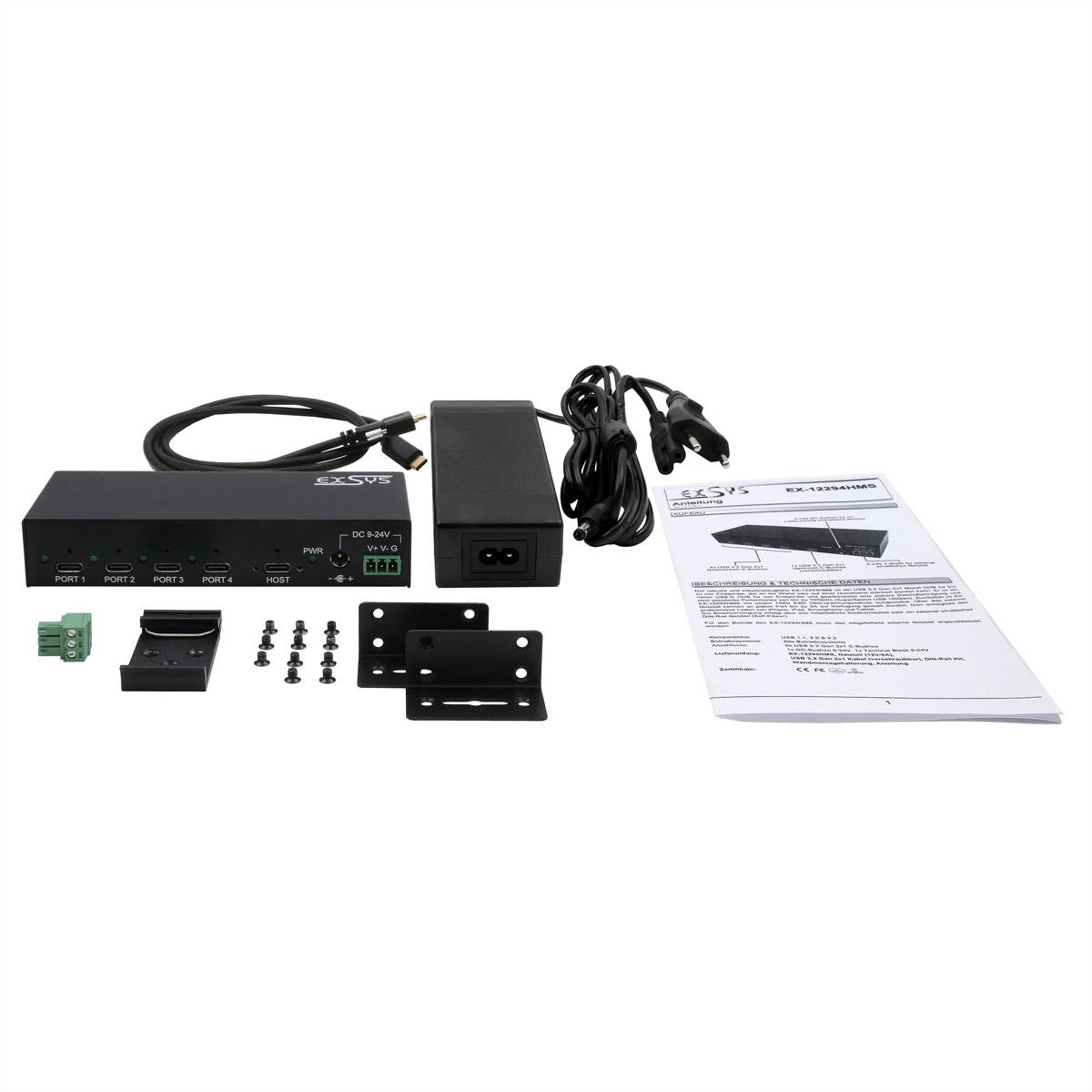

Scope of delivery
- EX-12294HMS, USB 3.2 2nd Gen cable screwable 1.0 m, power supply 24V/3A, DIN rail kit, wall mounting
- Kit, manual
