Exsys EXSYS EX-1274HMV USB 3.2 Gen2 Metall HUB USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1274HMV port hub USB 3.2 Gen 2 (3.1 Gen 2) Type C 10000 Mbit/s black
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 2 (3.1 2 1st Gen) Type-A, USB 3.2 1st Gen (2 Gen 2) Type-C
- Number of connections: 4
- 10000 Mbit/s
- Black
Technical specifications
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Data transfer rate 10000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
500 g
- Width
132.6 mm
- Height
35.9 mm
- Depth
65 mm
- Cable length
1 m
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- UKCA
not relevant
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
4
- Terminal block port
yes
- Operating temperature (T-T)
32 - 131 °F
- DC-in jack
yes
- DIN rail kit included
yes
- Manual
yes
- Storage temperature (T-T)
-20 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796884 Exsys EXSYS EX-1274HMV USB 3.2 Gen2 Metall HUB USB hub Black
User & Safety Instructions
User & Safety Instructions 3796884 Exsys EXSYS EX-1274HMV USB 3.2 Gen2 Metall HUB USB hub Black
Description

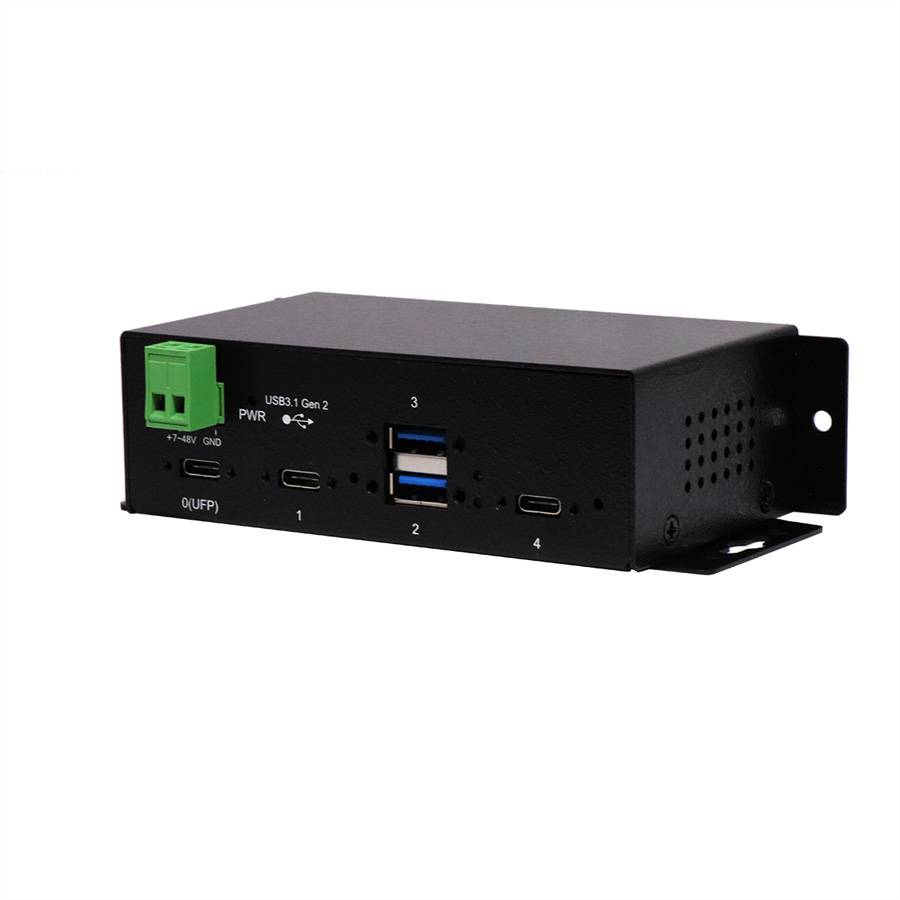

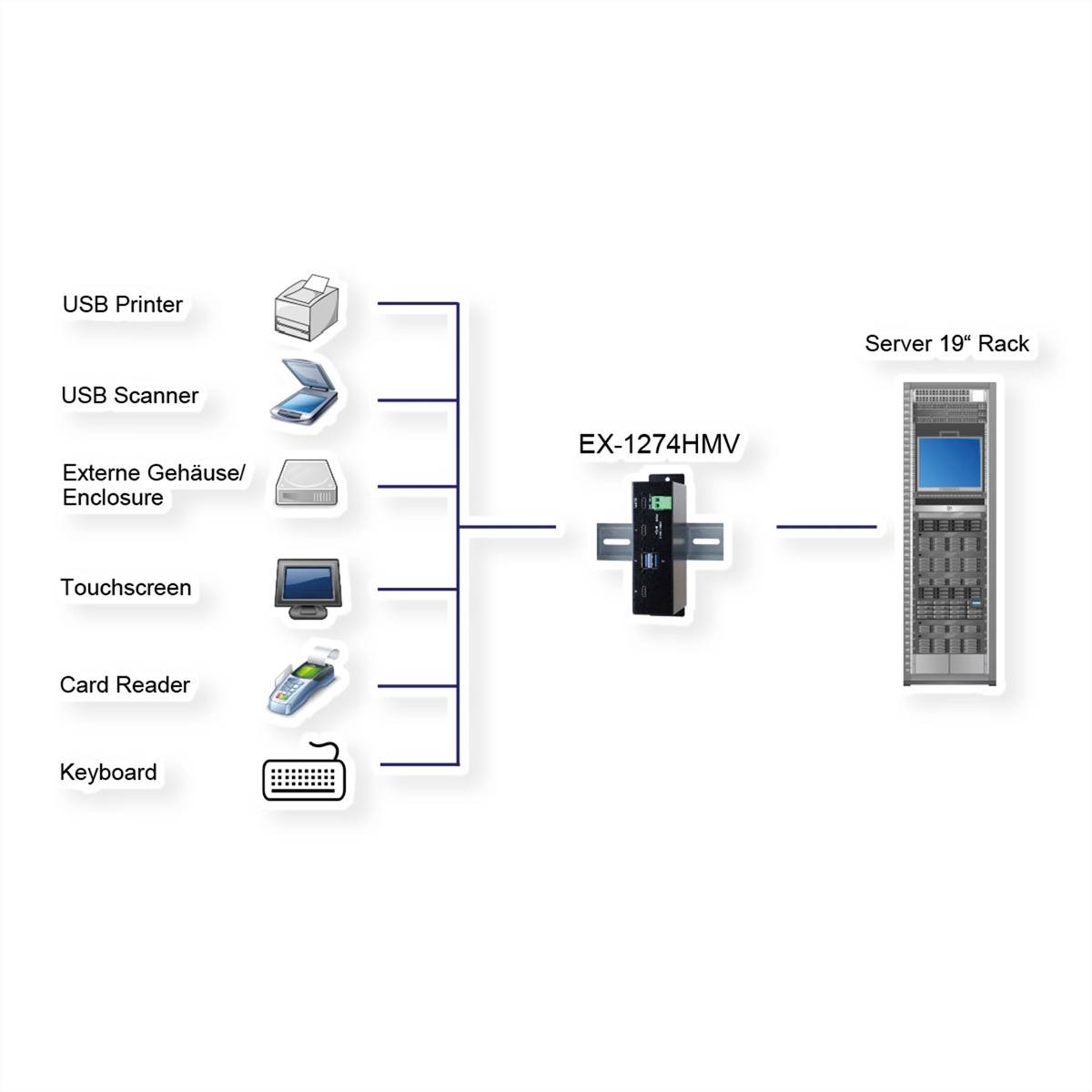

The EX-1274HMV is a USB 3.1 (Gen2) metal HUB and meets the specifications of the Universal Serial Bus (USB) revision 3.1 (Gen2) and works with a data speed of up to 10 Gbps. It offers a USB-C upstream port as well as 4 downstream ports with two USB-C and two USB-A ports for screw mounting. With the integrated RISC USB controller the EX-1274HMV supports a simultaneous operation of terminals with different speeds of SuperSpeed plus(SS+), SuperSpeed (SS), high speed (HS), full speed (FS) and low speed (LS). It can be used in automation and office applications. . 1x C-sockets upstream. 2x A-socket downstream. 2x C downstream sockets. 1x +7V to +24V DC-jack connection. 1x +7V to +24V terminal Block connection
This text is machine translated.
Scope of delivery

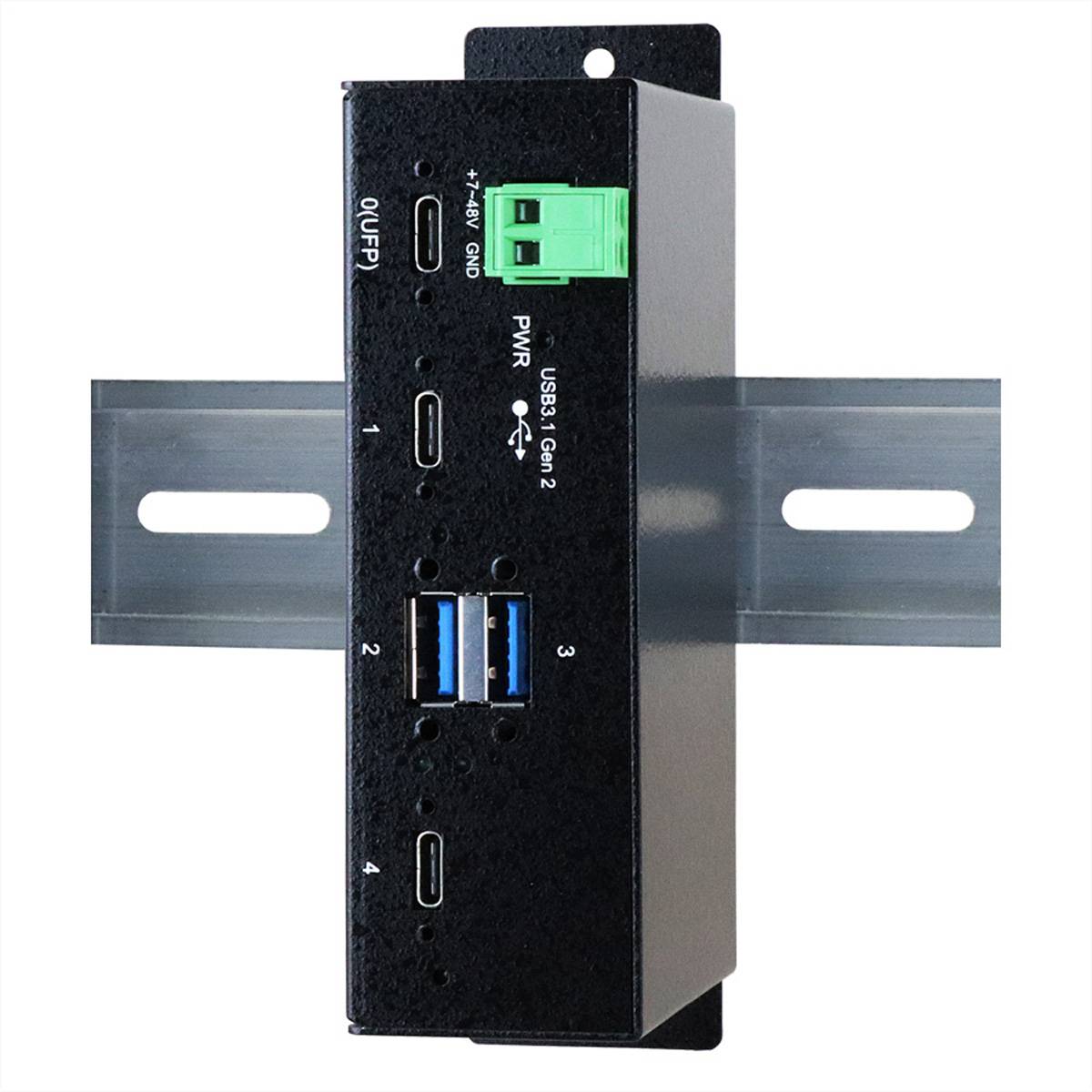

- EX-1274HMV, USB C-to-C cable, DIN rail kit, manual
