Exsys Exsys EX-1510HMVS - Hub - 10 x USB 3.2 Gen 1 USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1510HMVS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 11
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
630 g
- Width
198 mm
- Height
30.8 mm
- Depth
55 mm
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
10 x
- Material (details)
Metal
- Max. output current
2.4 A
- Type
DC
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
11
- Terminal block port
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796908 Exsys Exsys EX-1510HMVS - Hub - 10 x USB 3.2 Gen 1 USB hub Black
User & Safety Instructions
User & Safety Instructions 3796908 Exsys Exsys EX-1510HMVS - Hub - 10 x USB 3.2 Gen 1 USB hub Black
Description
The EX-1510HMVS is a Managed USB 3.2 Gen1 metal HUB (also commonly referred to as USB 3.0 or 3.1 Gen1), which was developed to provide comprehensive and unique functions for industrial applications. It offers you an immediate extension of ten USB 3.2 1st Gen screw-in ports and is compatible with all existing USB 3.1, USB 3.0, USB 2.0 and USB 1.1 devices. The EX-1510HMVS supports USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4A and Samsung.
The EX-1510HMVS has management software that allows you to switch on and off the USB bus voltage (ports) of the individual devices or to reset the entire USB hub to its original state. The EX-1510HMVS has a flash memory, where the desired start-up status can be saved. The next time you turn the unit on, the last settings will be used. Various utilities are supported for operating systems such as Windows, Intel x86-64, and ARM-based Linux. It contains several management software utilities, for the different platforms such as GUI software (graphical user interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for various versions of Linux. The utilities have been written to work with the application software that has been programmed with different languages such as C#, C++, VB, Python, or even PHP Server script language.
This text is machine translated.
The EX-1510HMVS has management software that allows you to switch on and off the USB bus voltage (ports) of the individual devices or to reset the entire USB hub to its original state. The EX-1510HMVS has a flash memory, where the desired start-up status can be saved. The next time you turn the unit on, the last settings will be used. Various utilities are supported for operating systems such as Windows, Intel x86-64, and ARM-based Linux. It contains several management software utilities, for the different platforms such as GUI software (graphical user interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for various versions of Linux. The utilities have been written to work with the application software that has been programmed with different languages such as C#, C++, VB, Python, or even PHP Server script language.
This text is machine translated.
Features

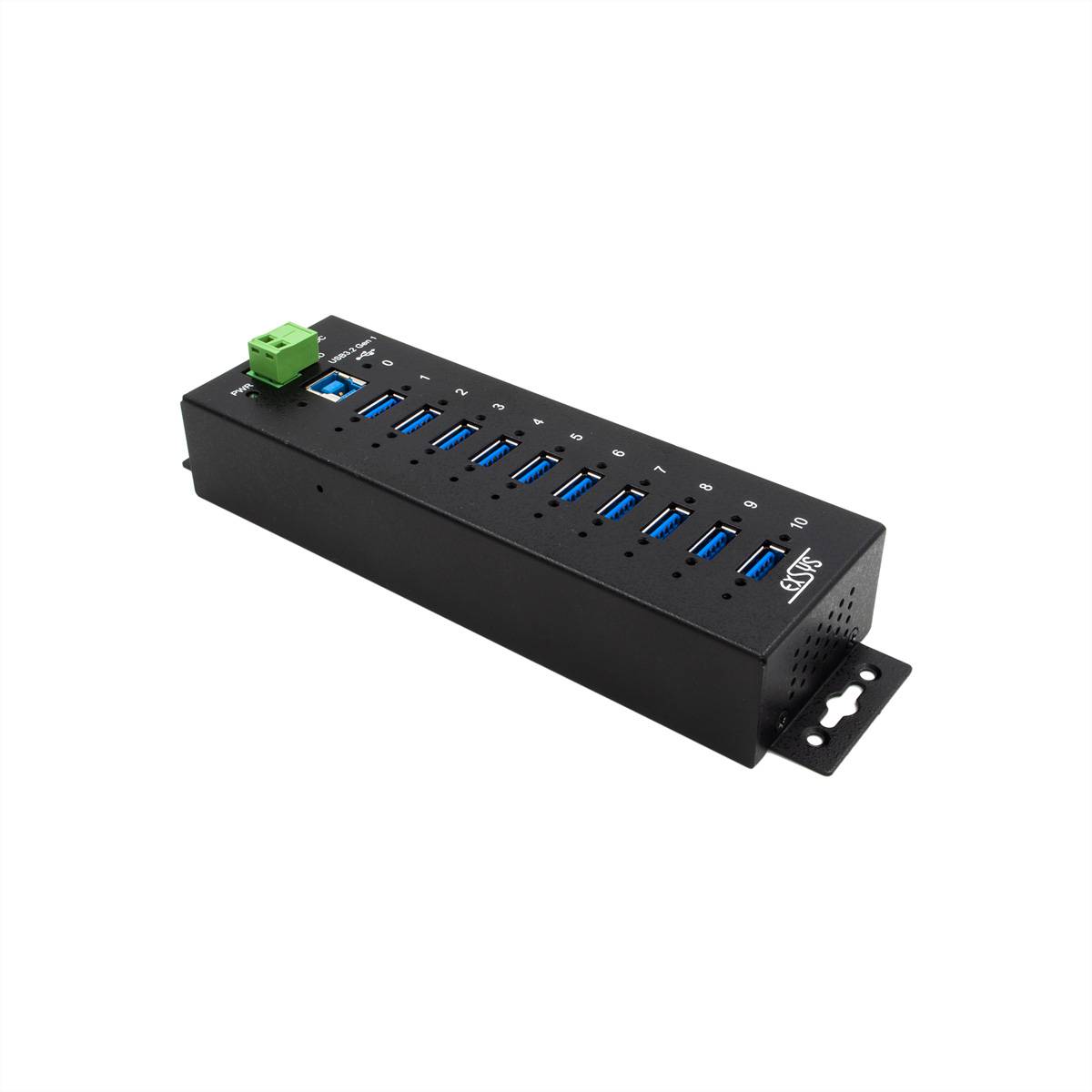

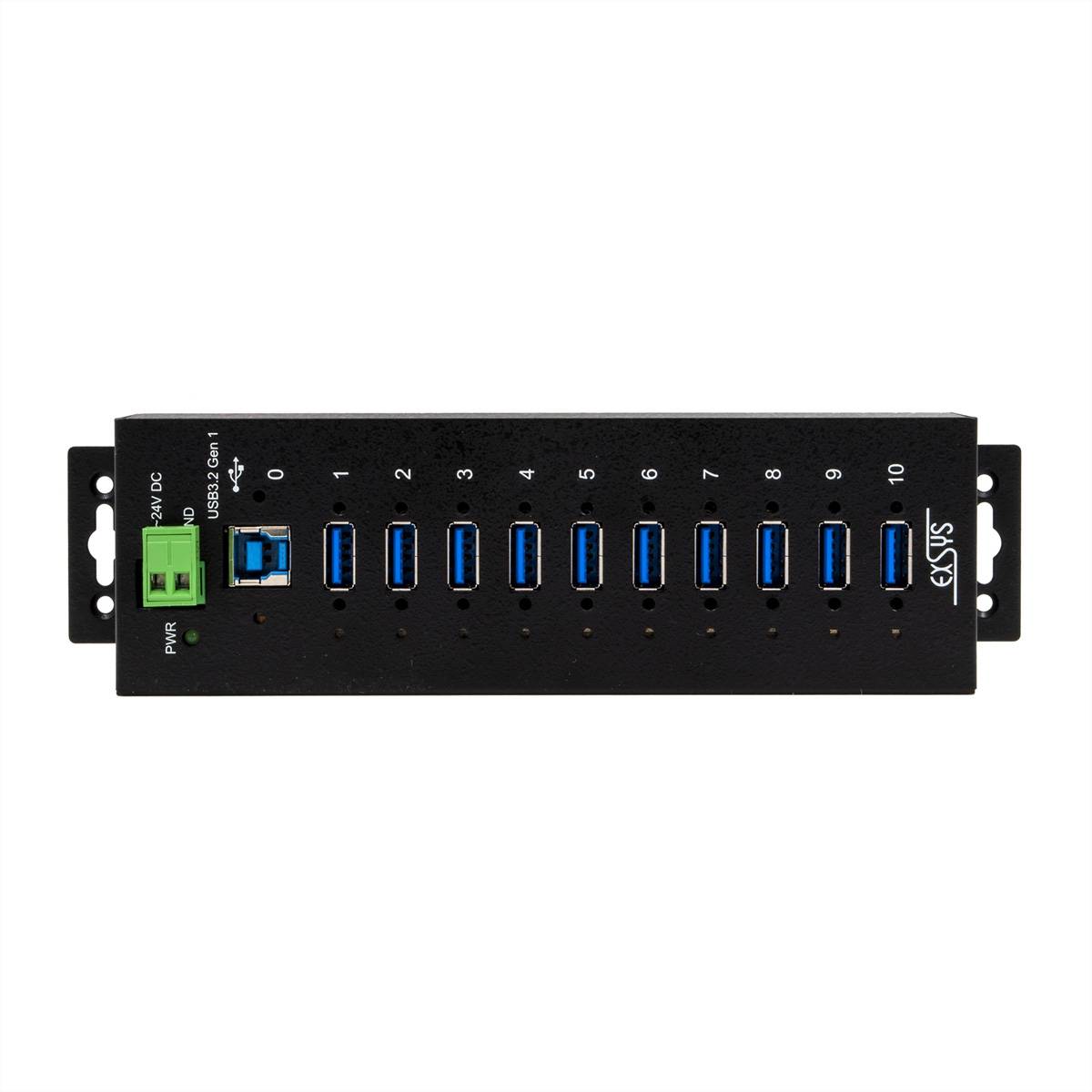

- USB 3.2 1st Gen metal HUB with ten downstream USB ports
- Supports software utilities for Windows and Linux

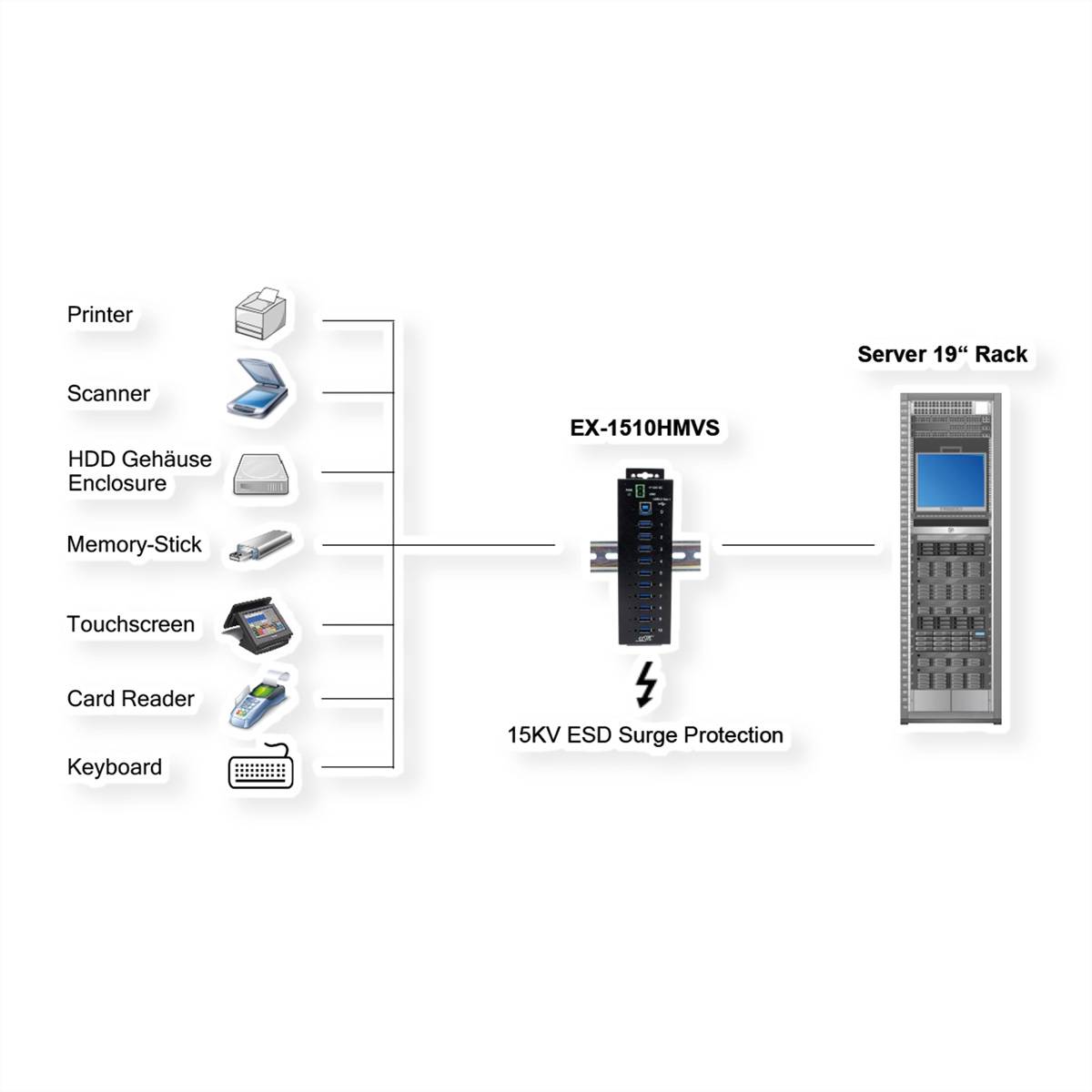

- 15KV ESD surge protection for each output
- +7V to +24V DC power supply via terminal Block

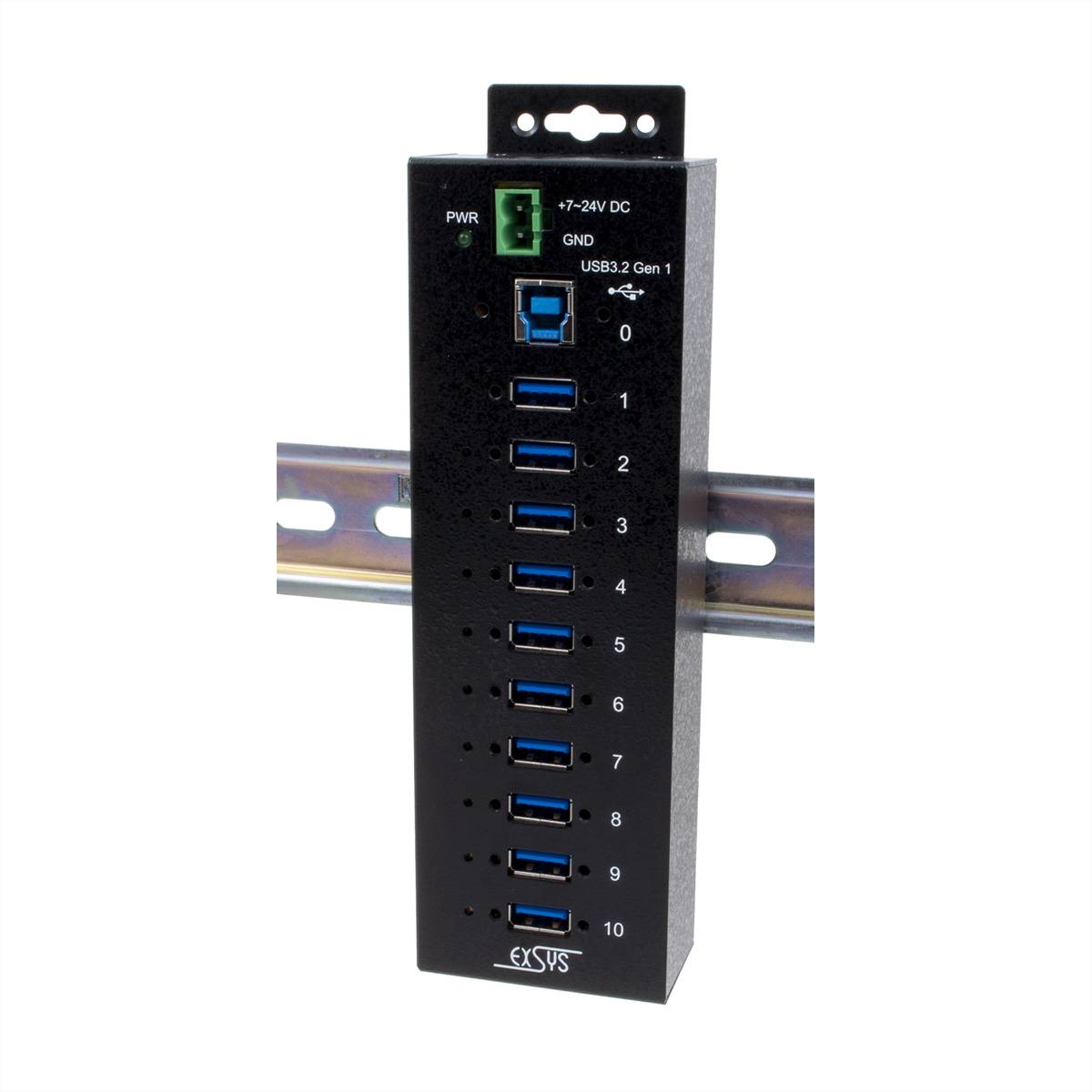

- Simple installation with integrated mounting rail bracket (DIN-rail)
- Compact industrial design
- Automatic detection of the data transfer rate for attached peripheral devices
- 2.4A maximum power on all 10 ports
- Automatic detection of the input polarity at the current terminal strip
- Supports Multi TT (Transaction Translator)
- Heavy duty metal casing
- 1x LED voltage display and 10x LED active display
- Chip-Set: Genesys GL3523
Scope of delivery

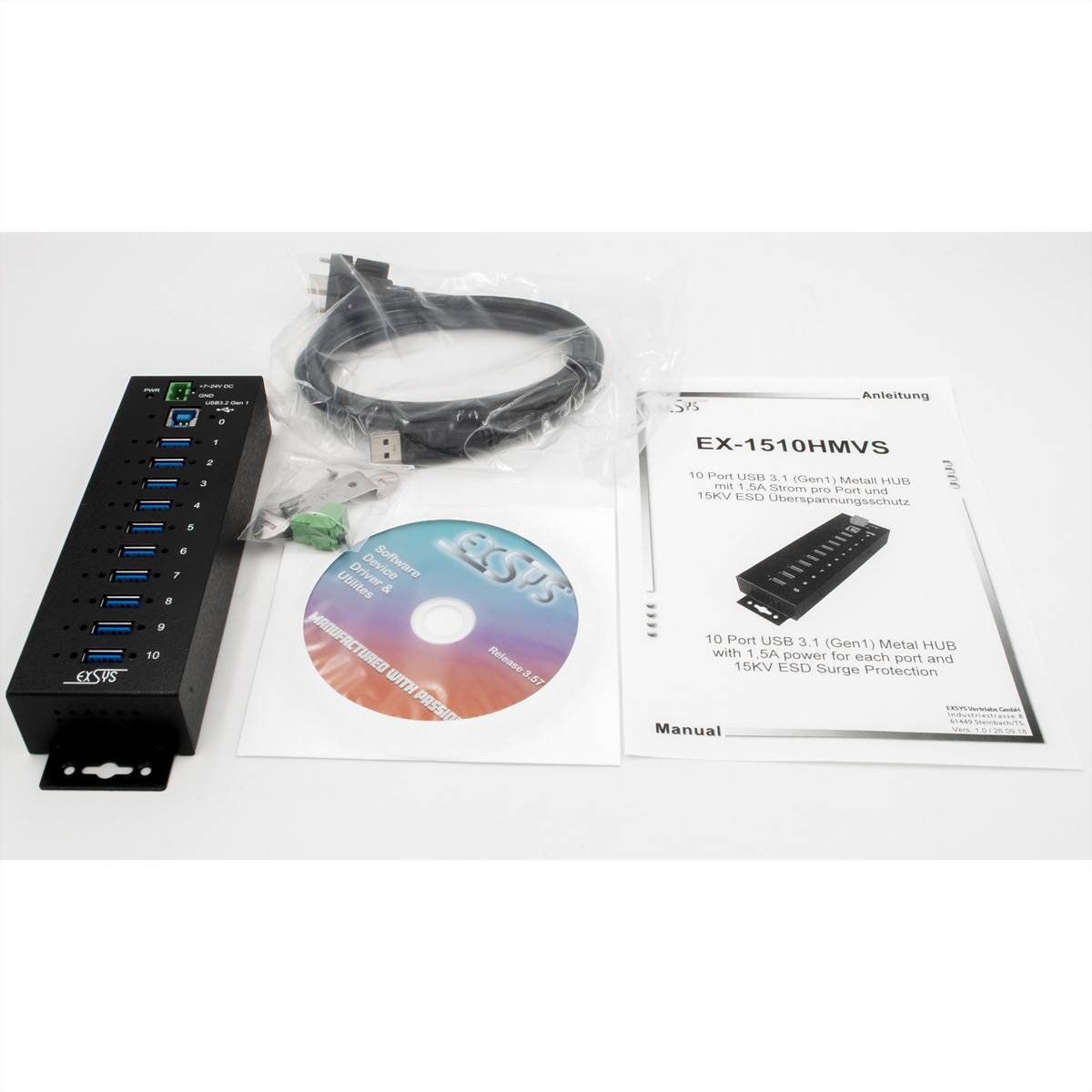

- EX-1510HMVS, USB 3.2 1st Gen cable, DIN rail kit, driver CD, manual
