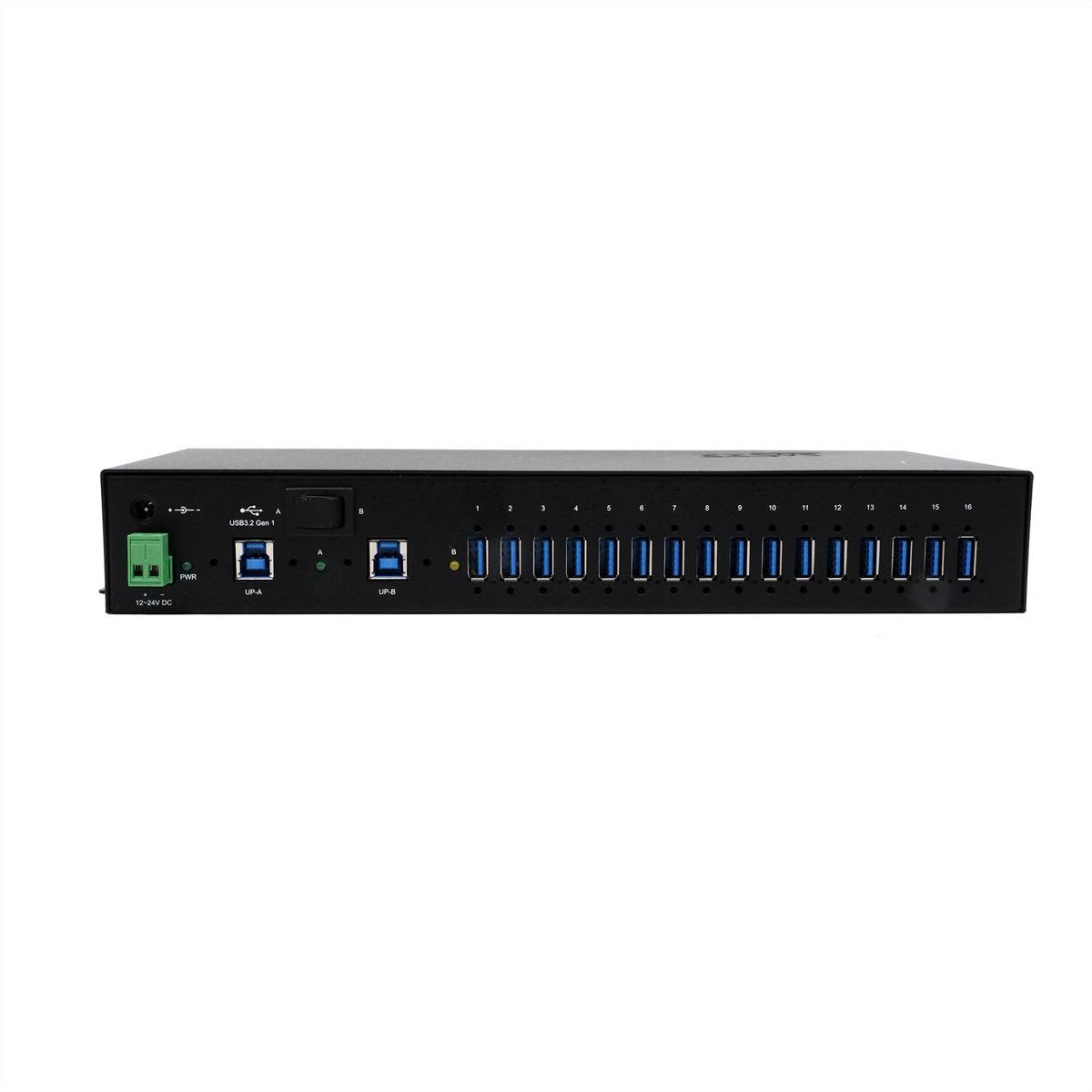

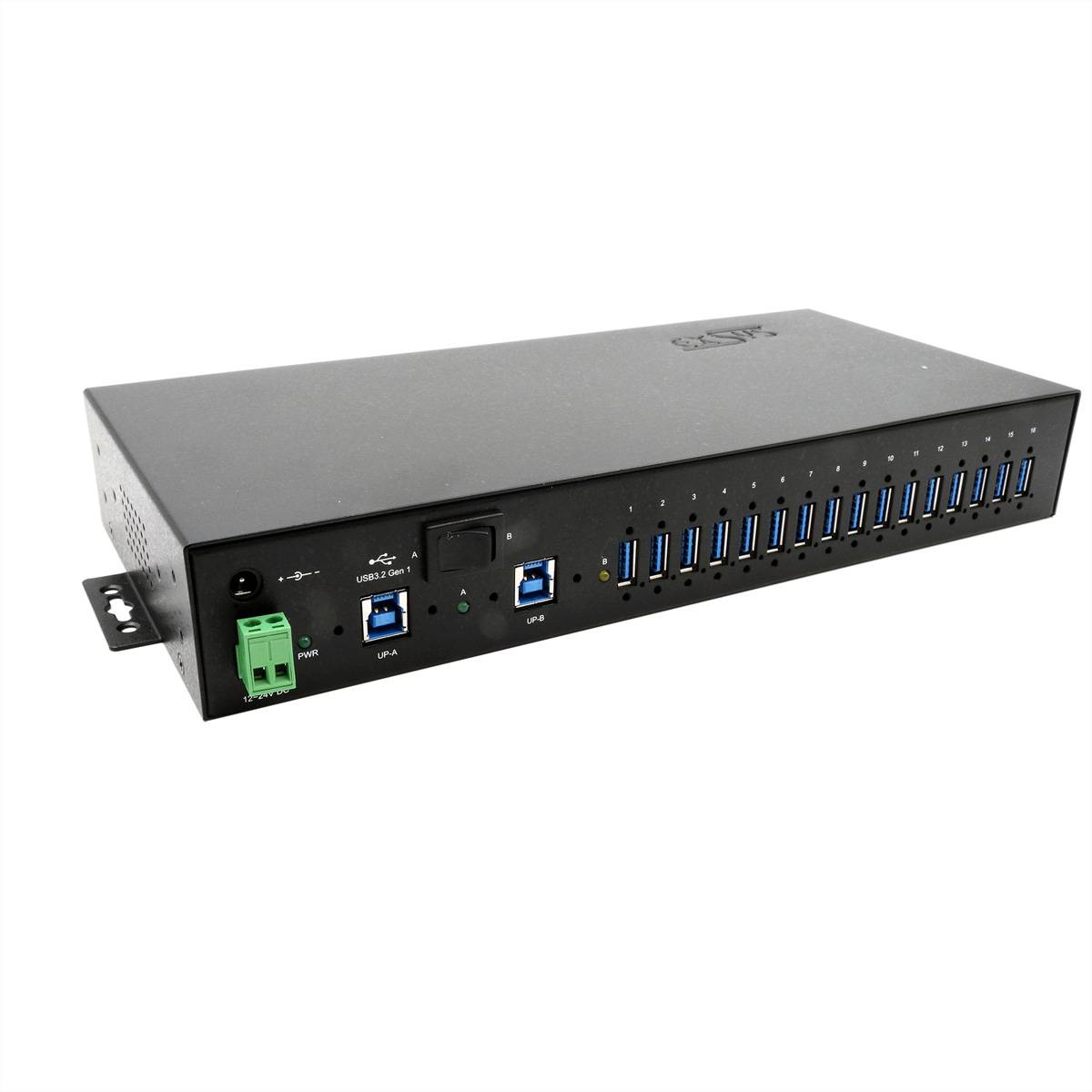

Exsys EXSYS EX-1526HMVS 16-Port USB 3.2 Gen1 M USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1526HMVS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 16
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
16 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
1.882
- Width
130 mm
- Height
43 mm
- Depth
306 mm
- Cable length
0 mm
- No. of USB type A 3.1 / 3.2 1st Gen
16 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Used at
Internal
- UKCA
yes
- Ports quantity
16
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796916 Exsys EXSYS EX-1526HMVS 16-Port USB 3.2 Gen1 M USB hub Black
User & Safety Instructions
User & Safety Instructions 3796916 Exsys EXSYS EX-1526HMVS 16-Port USB 3.2 Gen1 M USB hub Black
Description
The EX-1526HMVS is a managed USB 3.2 Gen 1 (or generally referred to as USB 3.0 or 3.1 Gen 1) hub developed to provide comprehensive and unique functions for industrial applications. The hub offers you an immediate extension of sixteen USB 3.2 1st Gen (screwed) ports and is compatible with all the existing USB 3.0, USB 3.1, USB 3.0, USB 2.0 and USB 1 1.1 devices. The EX-1526HMVS can be manually switched between two computers using a toggle switch. . The EX-1526HMVS supports USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4A and Samsung. Through the power supply via the DC socket or the terminal Block, 1.5A or 3A can be made available at each port. It can be used in automation, industry and office applications. Thanks to its special casing the EX-1526HMVS can be screwed on the wall, under a table or in a 19" cabinet. Optionally, the EX-6984 adapter with 24V/6.6A can be ordered.
This text is machine translated.
Features
- General:
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Data transfer rate 5000 Mbit/s.
- Product color: Black
- Case material: metal

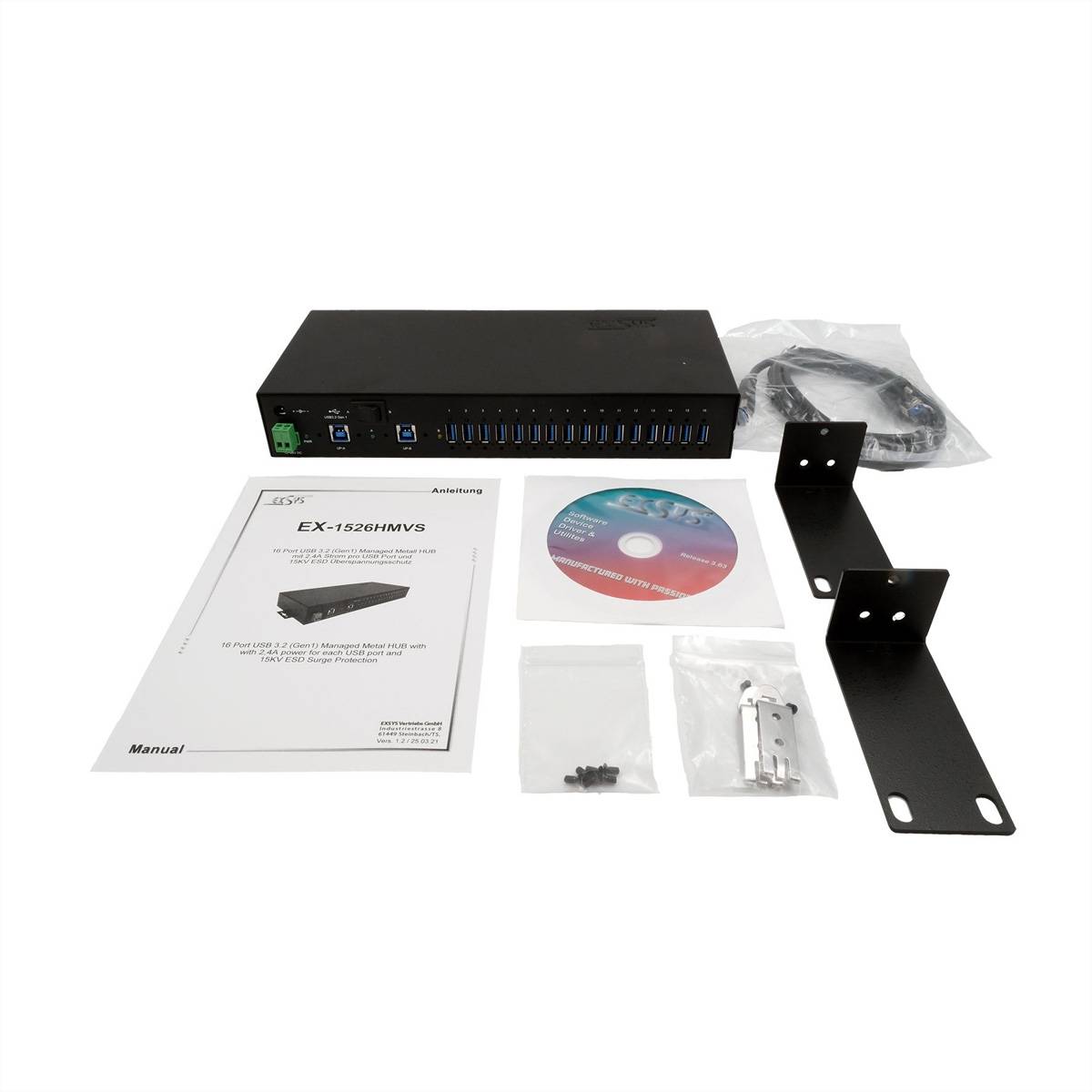

Scope of delivery
- EX-1526HMVS, USB 3.2 Gen 1 cable (1.5 meters), DIN rail kit, 2x mounting bracket, driver CD, manual
