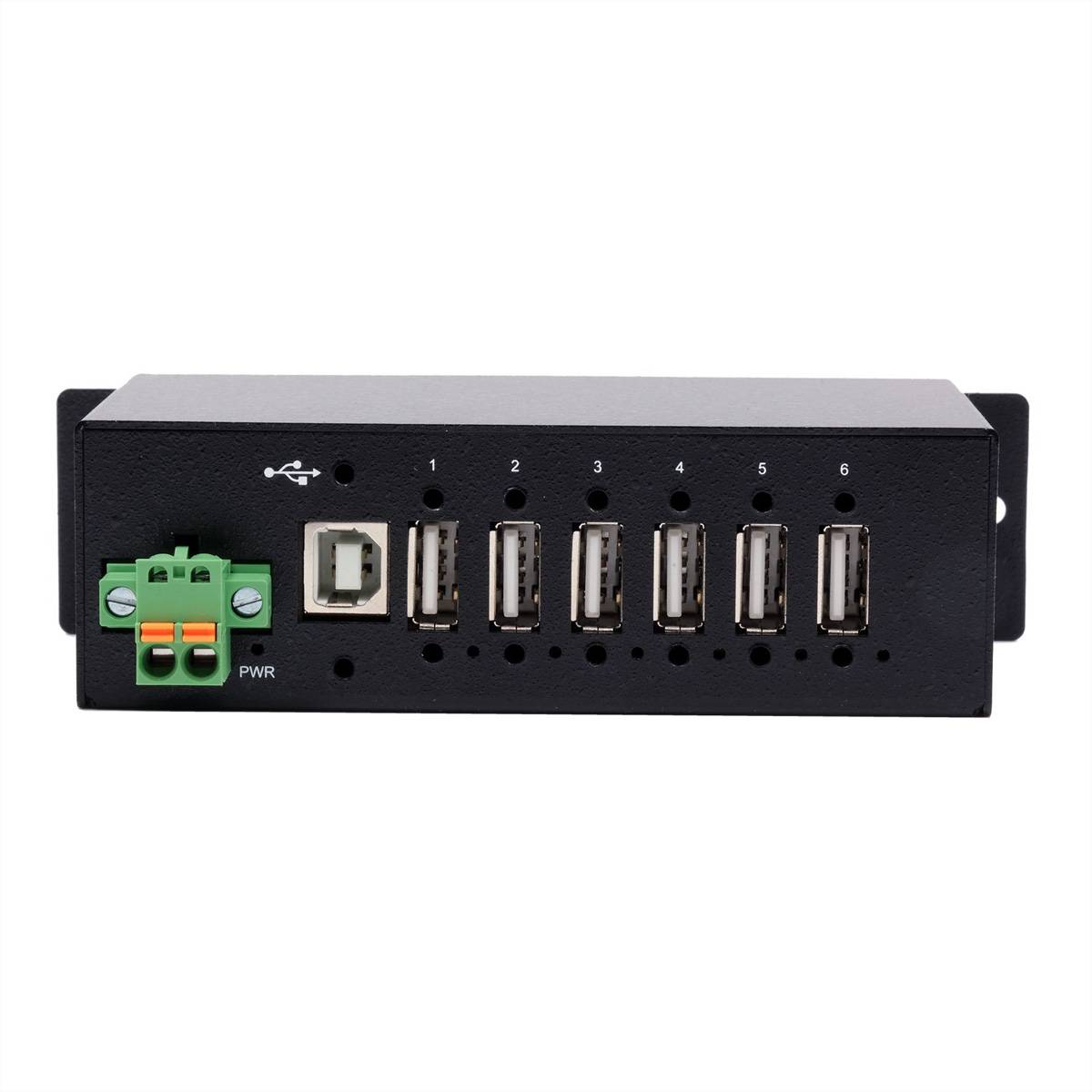

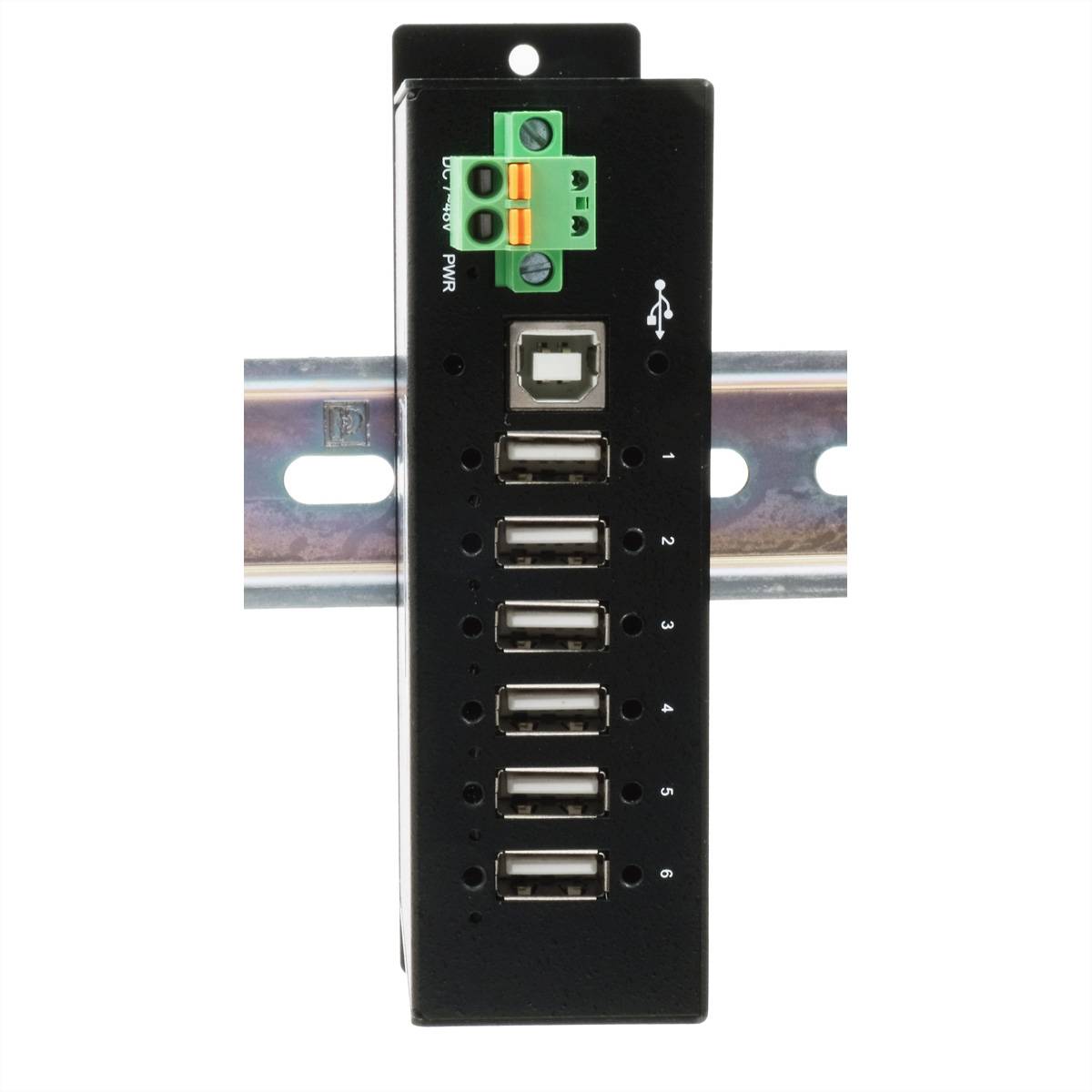

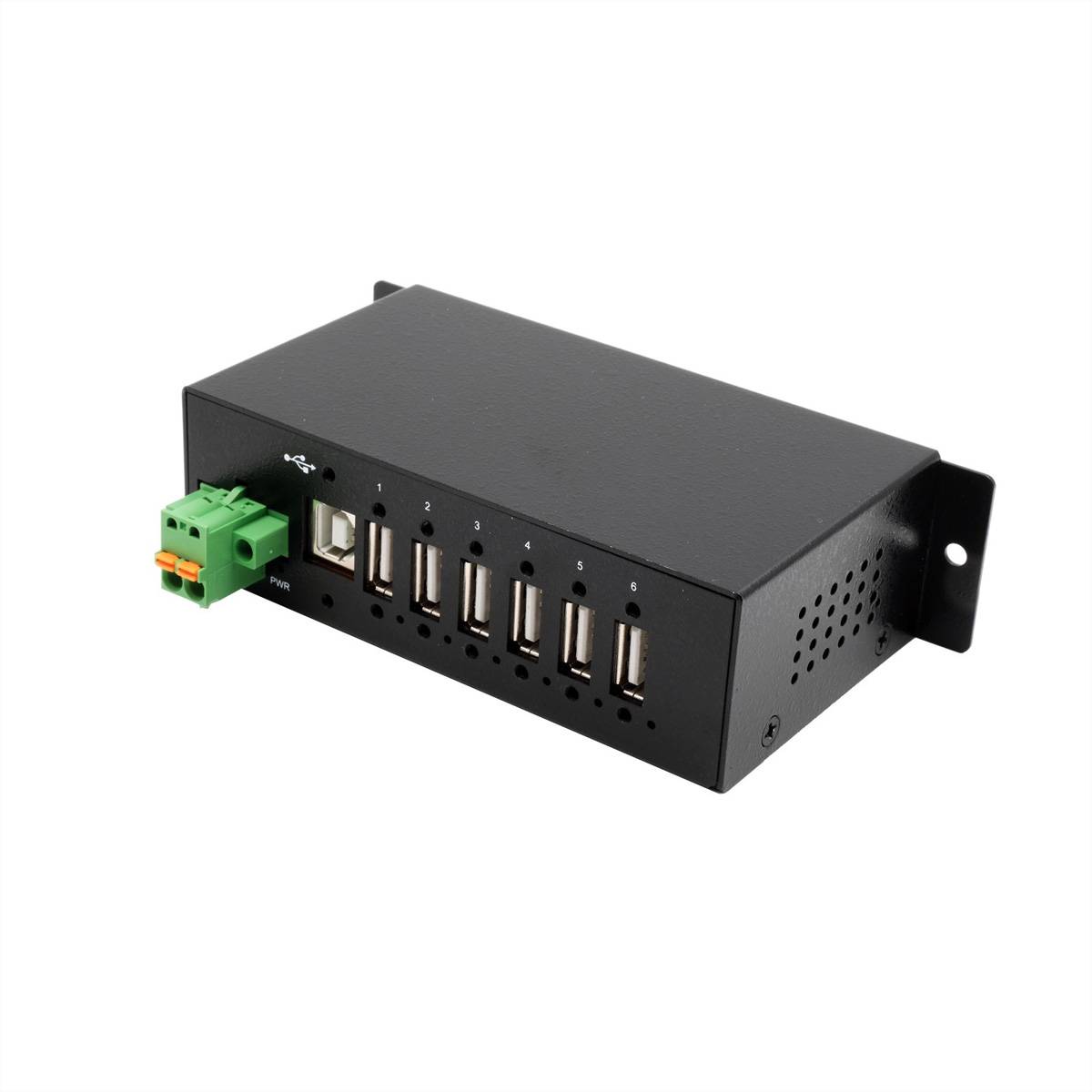

Exsys Exsys EX-1596HMVS - Hub - 6 x USB 2.0 - an DIN-Schiene USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1596HMVS port hub USB 2.0 Type-B 480 Mbit/s black
- Host Interface USB 2.0 Type B
- Hub interfaces USB 2.0
- Number of connections: 6
- 480 Mbit/s
- Black Metal
Technical specifications
- Host Interface USB 2.0 Type B
- Data transfer rate 480 Mbit/s.
- Product type
USB hub
- No. of outputs
6 x
- Interfaces (output)
USB type A
- Distributor/switch features
PC-controlled
- Factory colour
Black
- Weight
0.504
- Width
80.2 mm
- Height
132.5 mm
- Depth
36.2 mm
- Cable length
1.8 m
- No. of USB A 2.0 ports
6 x
- Keyboard layout
German, QWERTZ
- Cable specs
USB 2.0
- Transfer rate (max.)
480 MBit/s
- Material (details)
Metal
- Used at
External
- Input voltage
7 - 48 V
- UKCA
yes
- Ports quantity
6
- Terminal block port
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796907 Exsys Exsys EX-1596HMVS - Hub - 6 x USB 2.0 - an DIN-Schiene USB hub Black
User & Safety Instructions
User & Safety Instructions 3796907 Exsys Exsys EX-1596HMVS - Hub - 6 x USB 2.0 - an DIN-Schiene USB hub Black
Description

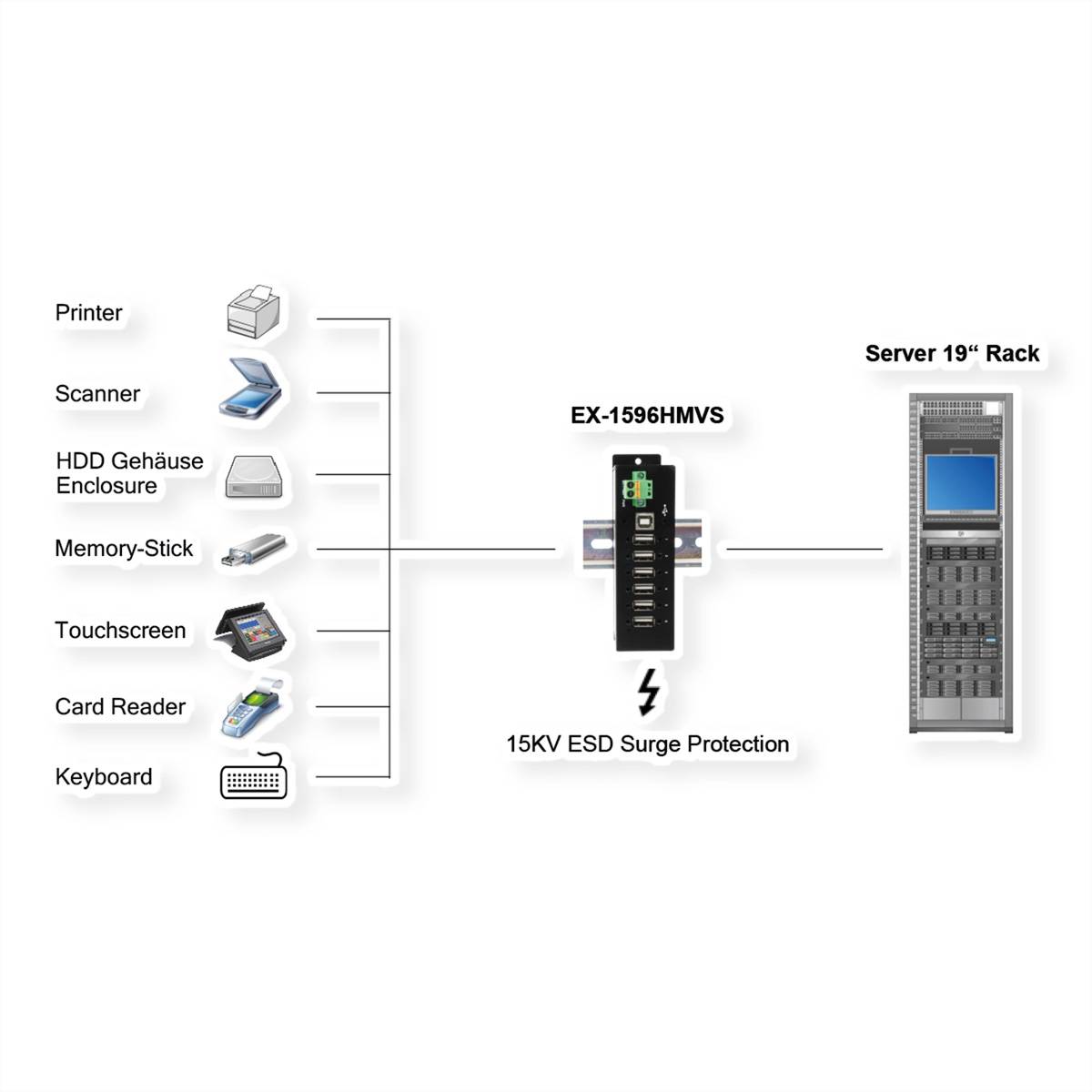

The EX-1596HMVS is a Managed USB 2.0 HUB, which was developed in order to provide comprehensive and unique functions for industrial applications. It offers you an immediate extension of six USB 2.0 screw-in ports and is compatible with all the existing USB 2.0 and USB 1.1 devices. The DC +7V to +48V Terminal Block connection is now pluggable. No more screwdriver is needed. . . The EX-1596HMVS has a management software, with which one can switch on and off the USB bus voltage (ports) of the individual devices or reset the entire USB hub to original condition. The EX-1596HMVS has a flash memory, where the desired starting state can be stored. The next time you turn the unit on, the last settings will be used. Various utilities are supported for operating systems such as Windows, Intel x86-64, and ARM-based Linux. It contains several management software utilities, for the different platforms such as GUI software (graphical user interface) or also the console command line for all common Microsoft Windows systems.
This text is machine translated.
Features
- Exsys EX-1596HMVS - hub – 6 connections
- Device type: Hub - 6 connections
- Sub-type: USB
- Ports : 6 x USB 2.0
- Performance : Data rate: 480 Mbps
- Remote Management Protocol : CLI
- Features : Manageable, 15KV ESD Protector, Metal Housing, Remote Power Management
- Product certifications : USB 1.1, USB 2.0
- Dimensions (width x depth x height): 13.25 cm x 8.02 cm x 3.62 cm
- Weight: 520 g
- Colour: black
- System requirements : Microsoft Windows CE, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 Server, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 2000/XP/Vista/7/8/8.1, Microsoft Windows Server 2013, Windows 10 (32/64 bits), Microsoft Windows Server 2016, Microsoft Windows Server 2019

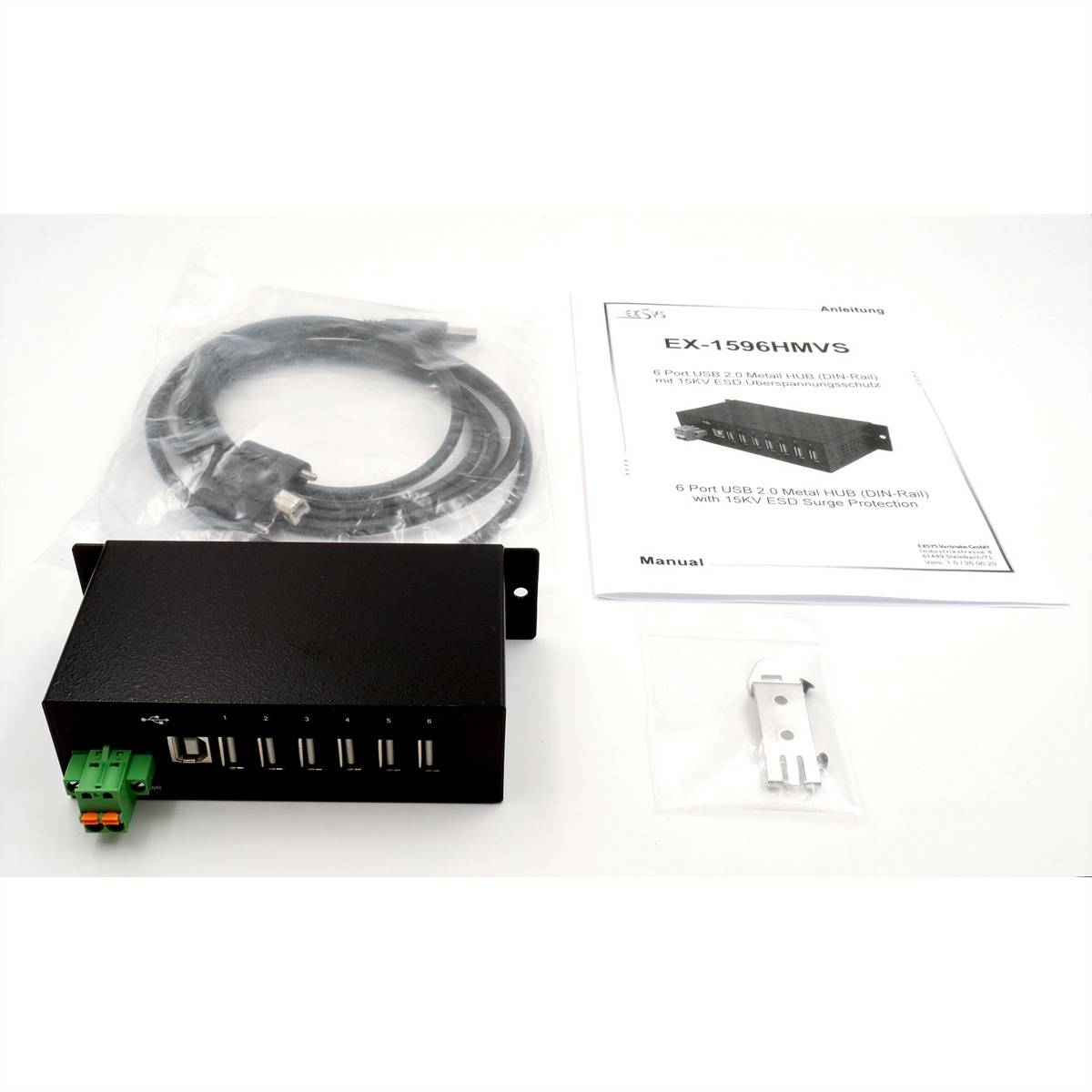

Scope of delivery
- EX-1596HMVS, USB 2.0 cable, DIN rail kit, driver CD, manual
