Exsys EXSYS EX-41052-2 2S RS-232 PCI Karte PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-41052-2 interface card / adapter built-in serial
- built-in
- Host Interface: PCI
- Output interface: Serial
- Grey, yellow
Technical specifications
- Supports Windows operating systems: Windows 2000, Windows 7 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 98SE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic, Windows Vista Home x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
- Data transfer rate 0.1152 Mbit/s.
- Product type
PCI card
- Version
Adapter
- Factory colour
Grey
Yellow
- Type A
PCI
- Depth
40 mm
- Width
120 mm
- Cable use
Series
- Type
EX-41052-2
- 4-pin Molex
1
- Used at
Internal
- Nominal voltage (details)
3.3 V & 5.0 V V
- Weight
200 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Serial ports quantity
2
- Internal
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796901 Exsys EXSYS EX-41052-2 2S RS-232 PCI Karte PCI card
User & Safety Instructions
User & Safety Instructions 3796901 Exsys EXSYS EX-41052-2 2S RS-232 PCI Karte PCI card
Description

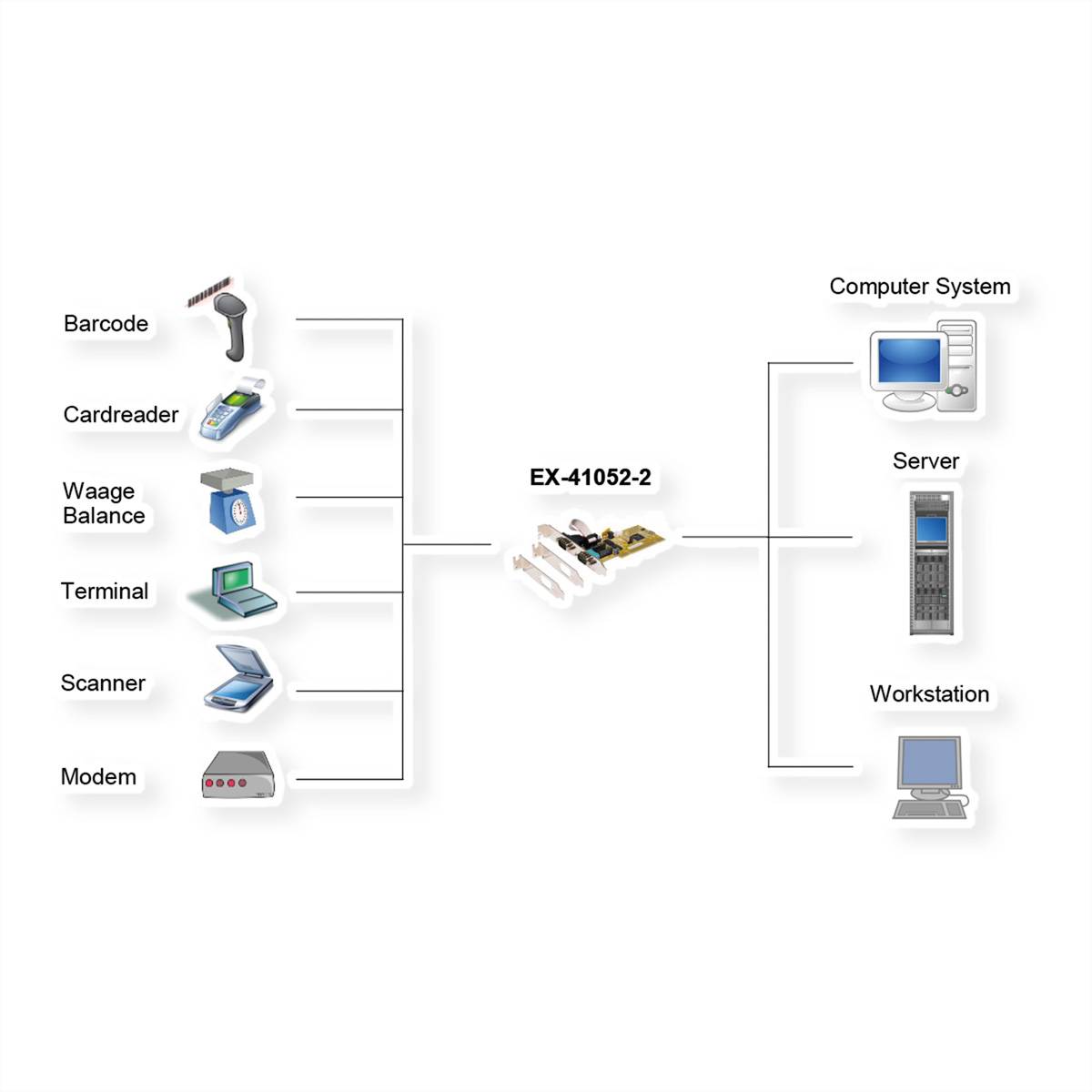

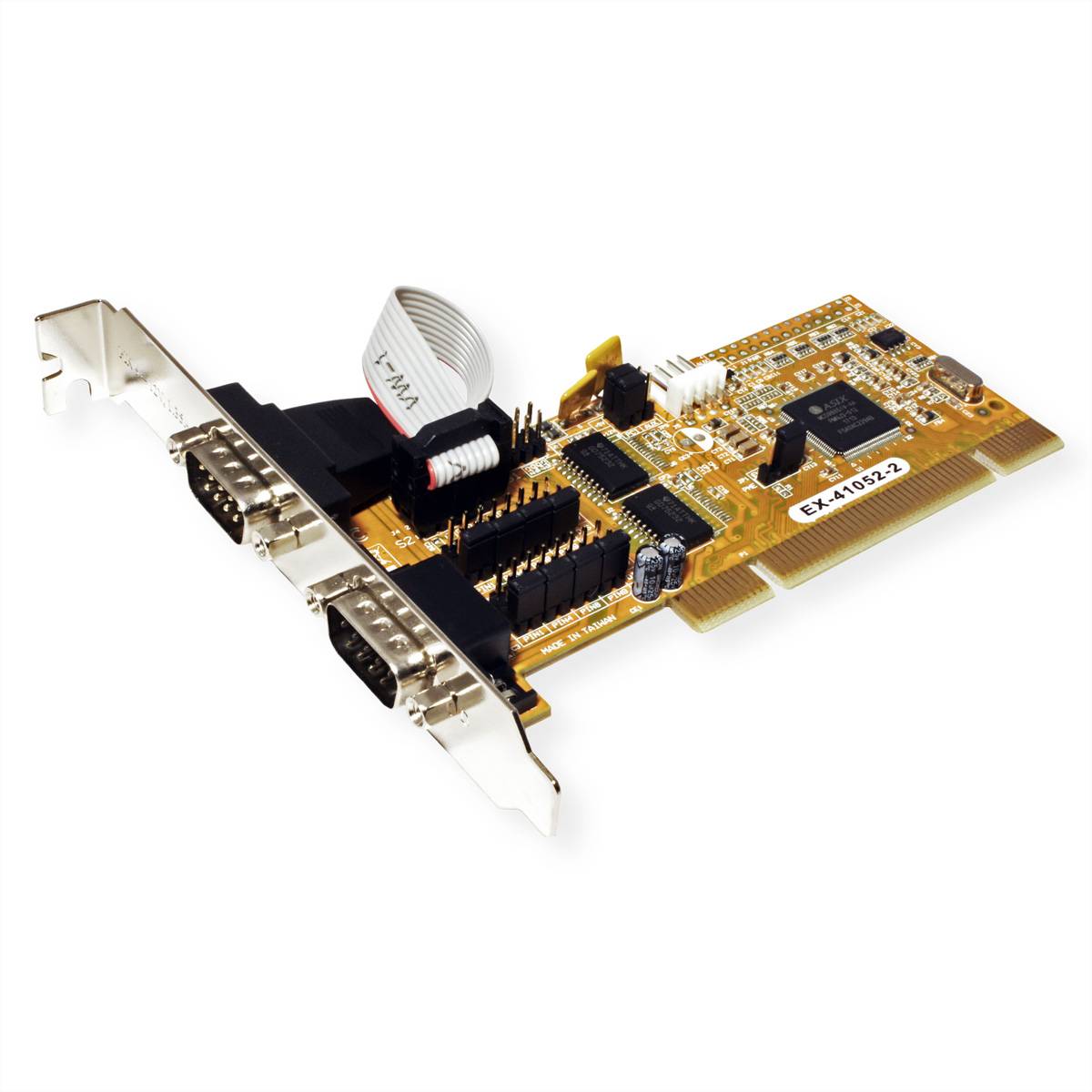

The EX-41052-2 PCI I/O card provides two serial RS-232 high-performance UART 16C550 outputs. It was developed to expand two additional serial ports for PC, small workstations or server via the PCI or PCI-X bus. +5V and +12V can be configured on pin 9 of the serial plugs for POS systems (Power over system).
This text is machine translated.
This text is machine translated.
Features
- Exsys EX-41052 - Serial adapter - PCI - RS-232 x 2
- Device Type : Serial adapter
- Form factor : Plug-in card
- Interface type (bus type) : PCI
- Bus-voltage : universal (3.3 V & 5.0 V)
- Ports : RS-232 x 2
- Dimensions (width x depth x height): 12 cm x 4 cm
- Weight: 200 g
- Data Link Protocol : RS-232
- Data transfer rate : 115.2 Kbps
- Processor : MosChip Semiconductor MCS9835
- System requirements : Microsoft DOS, Microsoft Windows 95, Microsoft Windows NT 4.0, Linux, Microsoft Windows 98/ME/2000, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits)
Scope of delivery

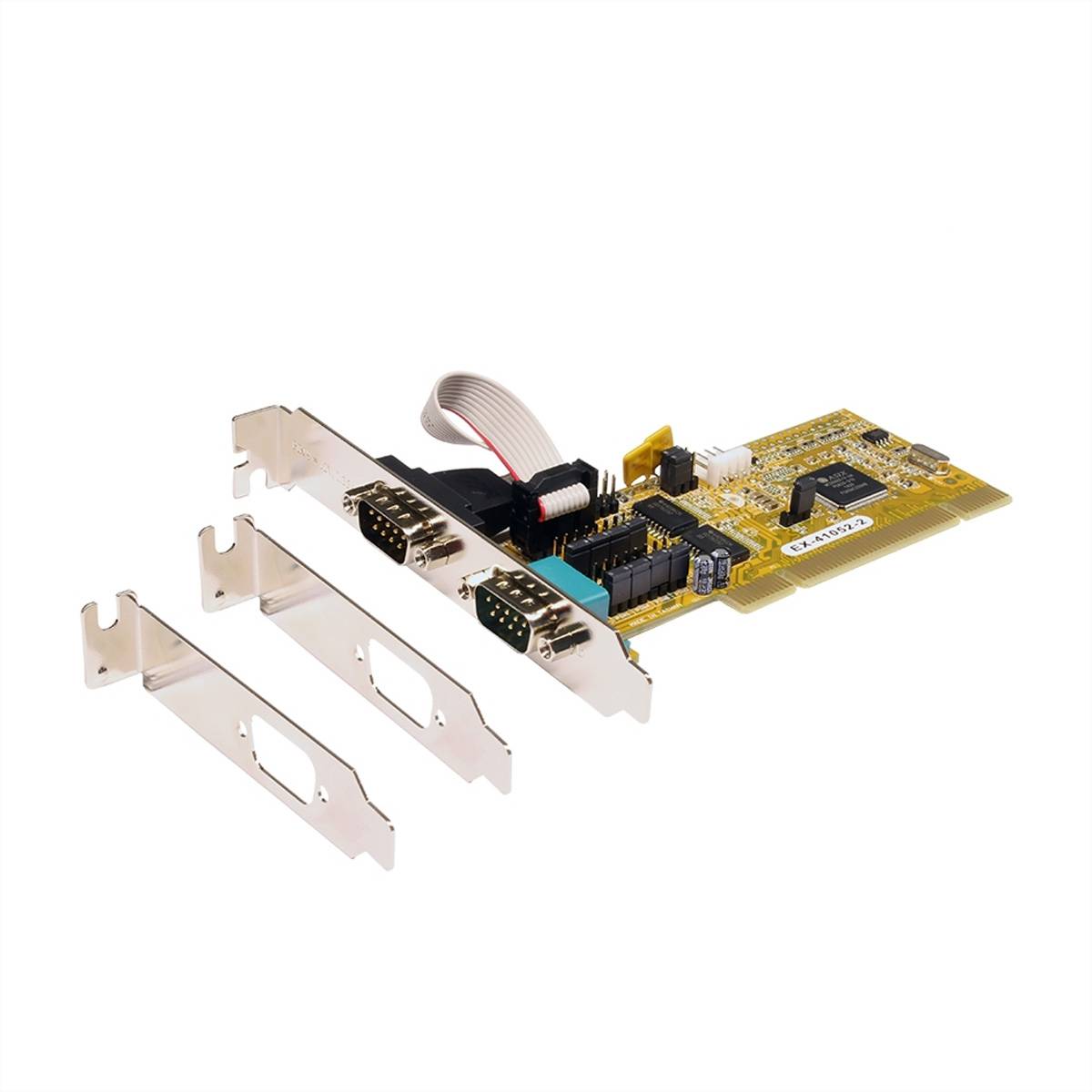

- EX-41052-2, 2 x low profile bracket, driver CD, manual
