Exsys EXSYS EX-41384 4 Port RS232 seriell PCI PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-41384 interface card / adapter built-in serial
- built-in
- Host Interface: PCI
- Output interface: Serial
- Purpose: PC
Technical specifications
- Product type
PCI card
- Type A
PCI
- Depth
34 mm
- Width
130 mm
- Weight
640 g
- UKCA
not relevant
- Internal
yes
- Drivers included
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3796881 Exsys EXSYS EX-41384 4 Port RS232 seriell PCI PCI card
User & Safety Instructions
User & Safety Instructions 3796881 Exsys EXSYS EX-41384 4 Port RS232 seriell PCI PCI card
Description

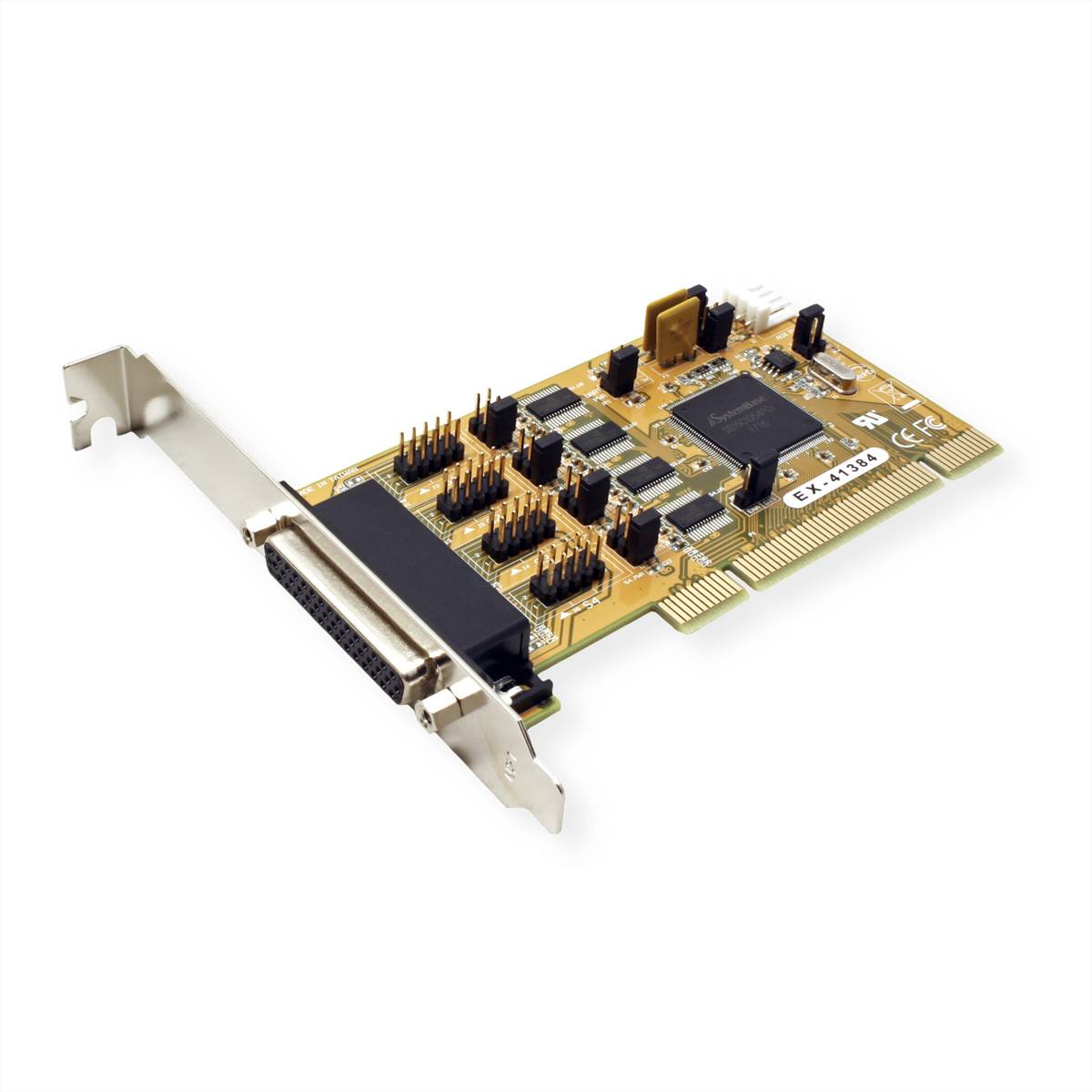

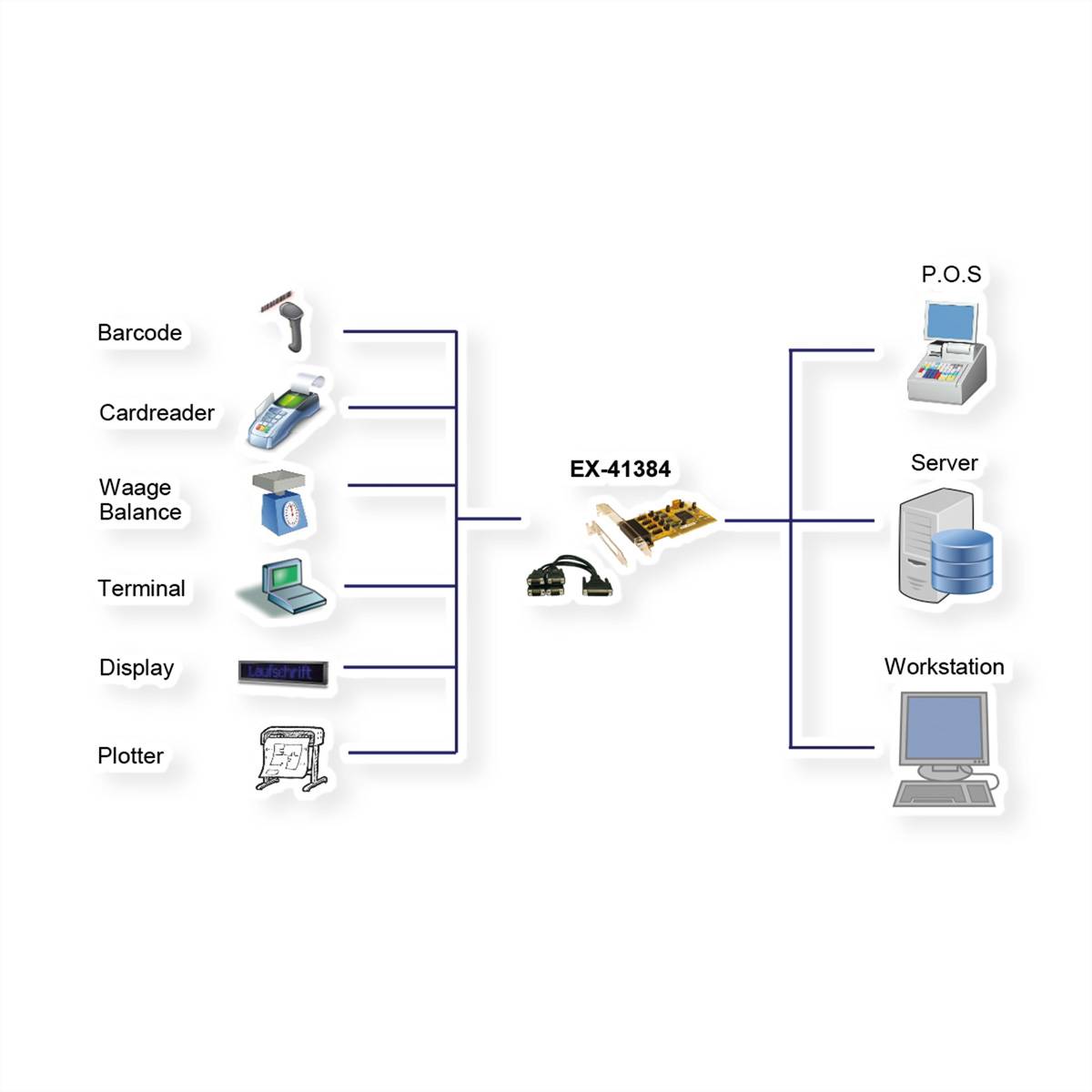

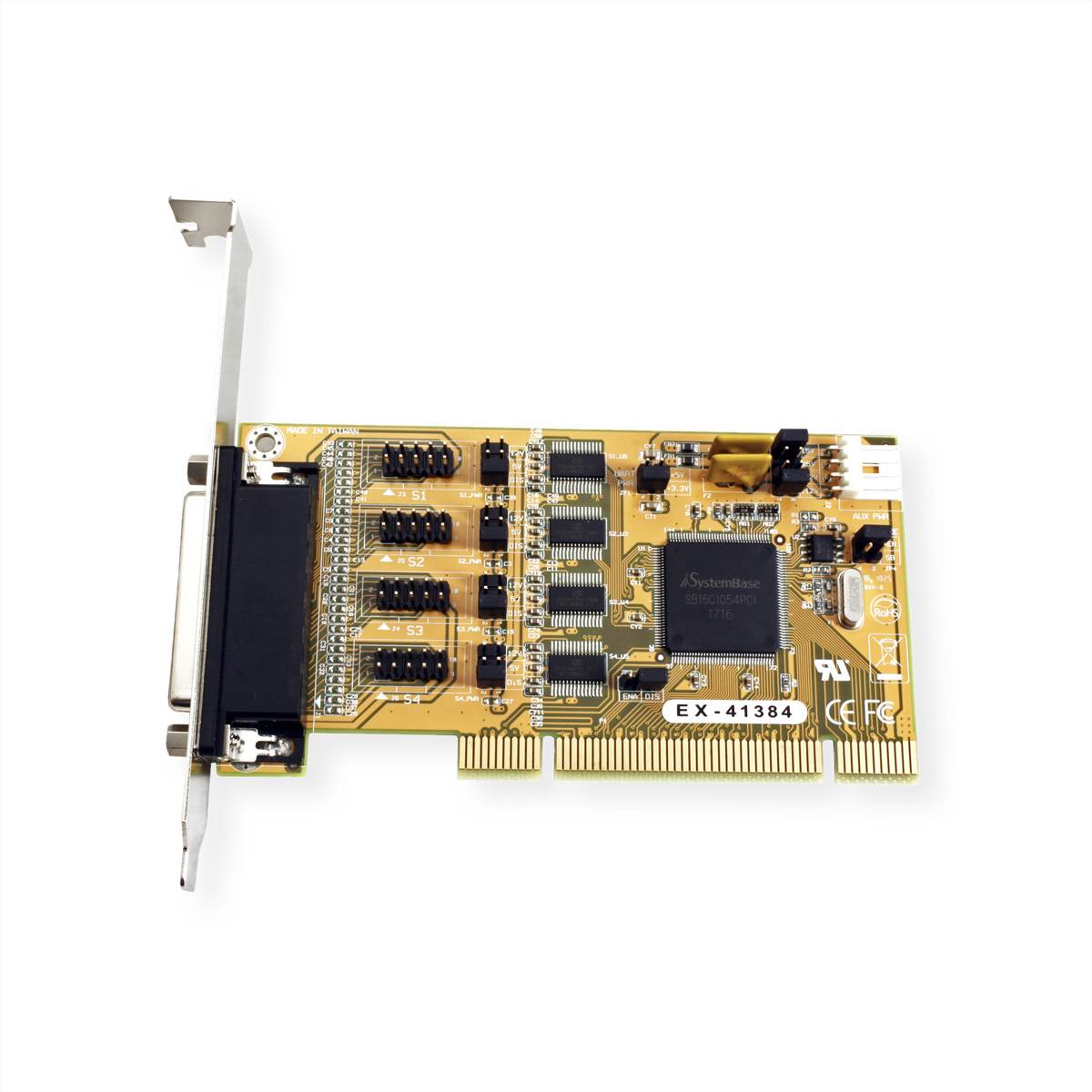

The EX-41384 PCI I/O card provides four serial RS232 high performance UART 16C1050 outputs. It was developed to expand four additional serial ports for PC, small workstations or servers via the PCI or PCI-X bus. The card is fully plug and play compatible and supports Linux and SCO-Unix. The EX-41384 can also be installed in a Low Profile computer housing with a maximum height of 8cm. In addition, +5V or +12V can be configured on pin 9 of the serial plug for a POS system (Power over system).
This text is machine translated.
This text is machine translated.
Features
- Interface RS232 V.24
- FIFO buffer: 16C1050 with 256 bytes
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- I/O addresses and interrupt are assigned by the system BIOS, IRQ Sharing
- Data bits 5, 6, 7, 8
- Stop bits 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Flow control RTS/CTS, XON/XOFF
- Supports 5V and 3.3V motherboards
- +5V or +12V can be set on pin 9 of all four plugs
Scope of delivery

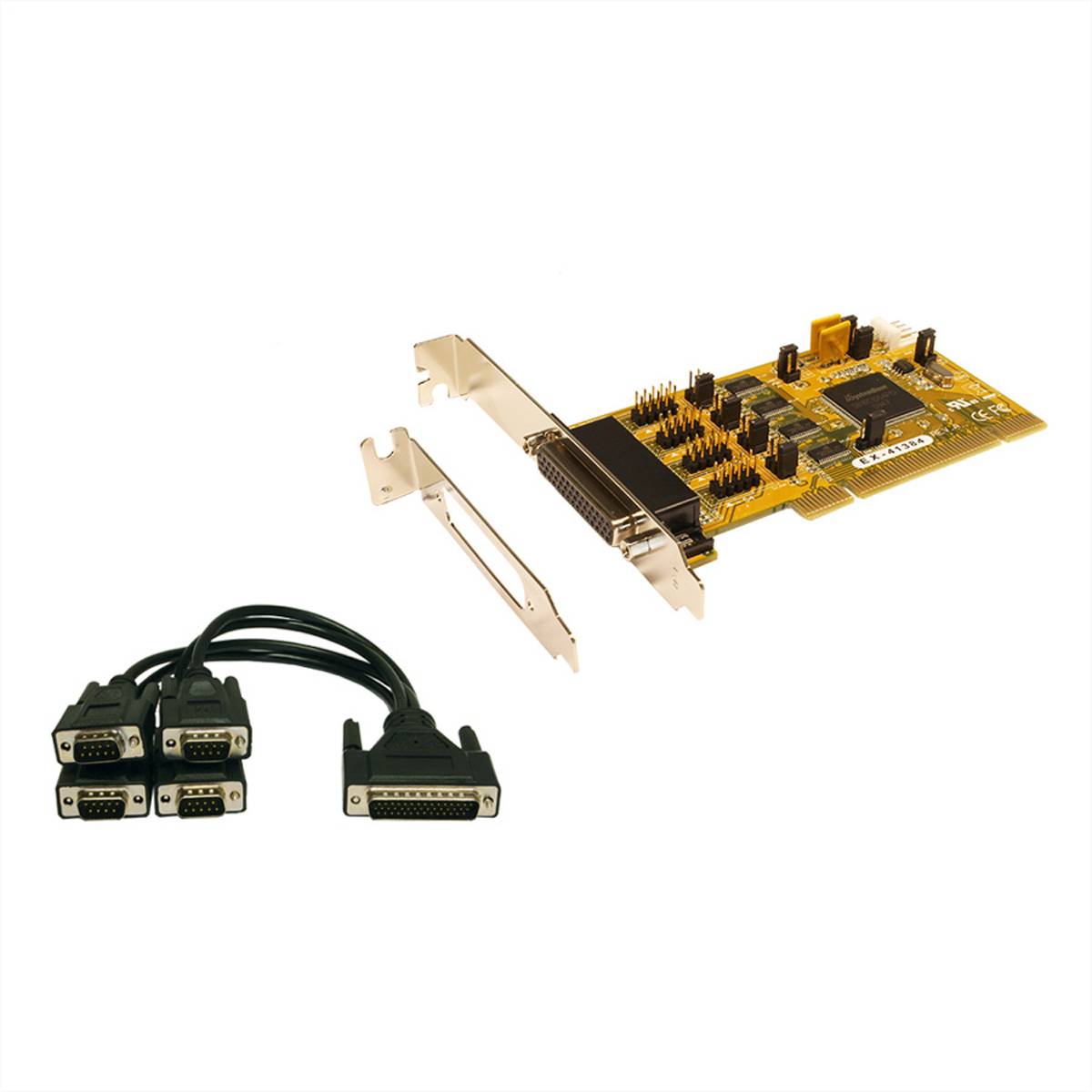

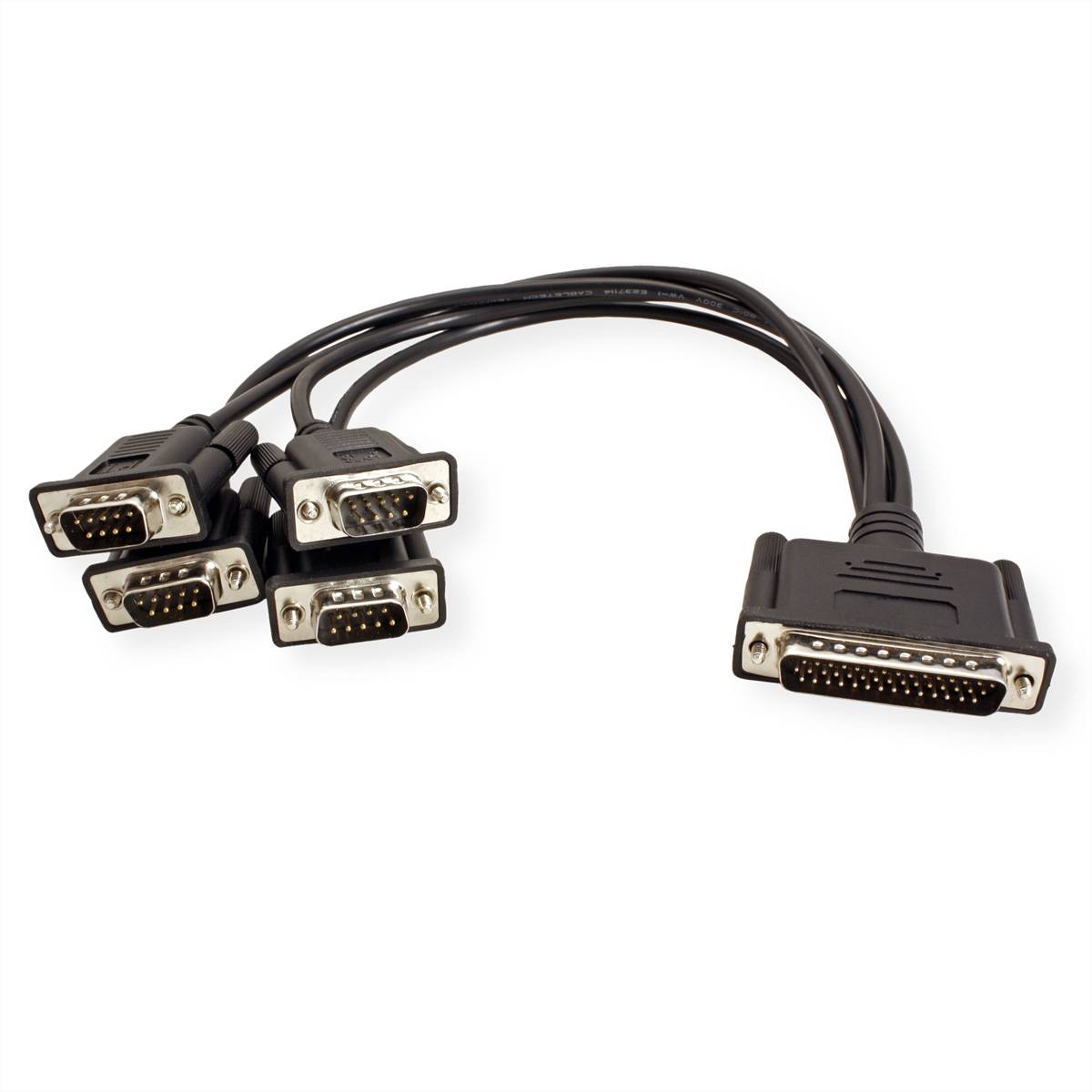

- EX-41384, 1 x Octopus-Cable, CD, Manual, Low Profile clip
