Exsys EXSYS EX-42374 PCI Karte 4x RS-232/422/4 PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
The EX-42374 PCI I/O card provides four serial RS-232, 422 and 485 high-performance UART 16C550 outputs. ...
- RS-232 V.24 interface
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- Supports 5V and 3.3V motherboards
- Data transfer rate: 300Baud to 921.6Kbaud
- Plug and Play compatible
Technical specifications
- Product group: Interface cards
- Product type: PCI adapter card
- Bus system: PCI
- Interfaces: 4x serial RS-232 V.24
- RS-232 interface: Yes
- Power supply: 5V and 3.3V
- Data transfer rate: 50 Baud to 921.6Kbaud
- SystemBase chip set
- MS Windows 98SE/Me/2000/XP/Vista/7/8/8.1/Server 200x(32&64)
- Connections: 4 x 9 pin D-SUB serial connector with Octopus cable
- Installation guide / manual: Yes
- Weight: 560 g
- Packaging height 70 mm
- Package width 180 mm
- Packaging depth 250 mm
- Package weight: 0,436 kg
- Gross weight: 0.436
- Product type
PCI card
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796846 Exsys EXSYS EX-42374 PCI Karte 4x RS-232/422/4 PCI card
User & Safety Instructions
User & Safety Instructions 3796846 Exsys EXSYS EX-42374 PCI Karte 4x RS-232/422/4 PCI card
Description

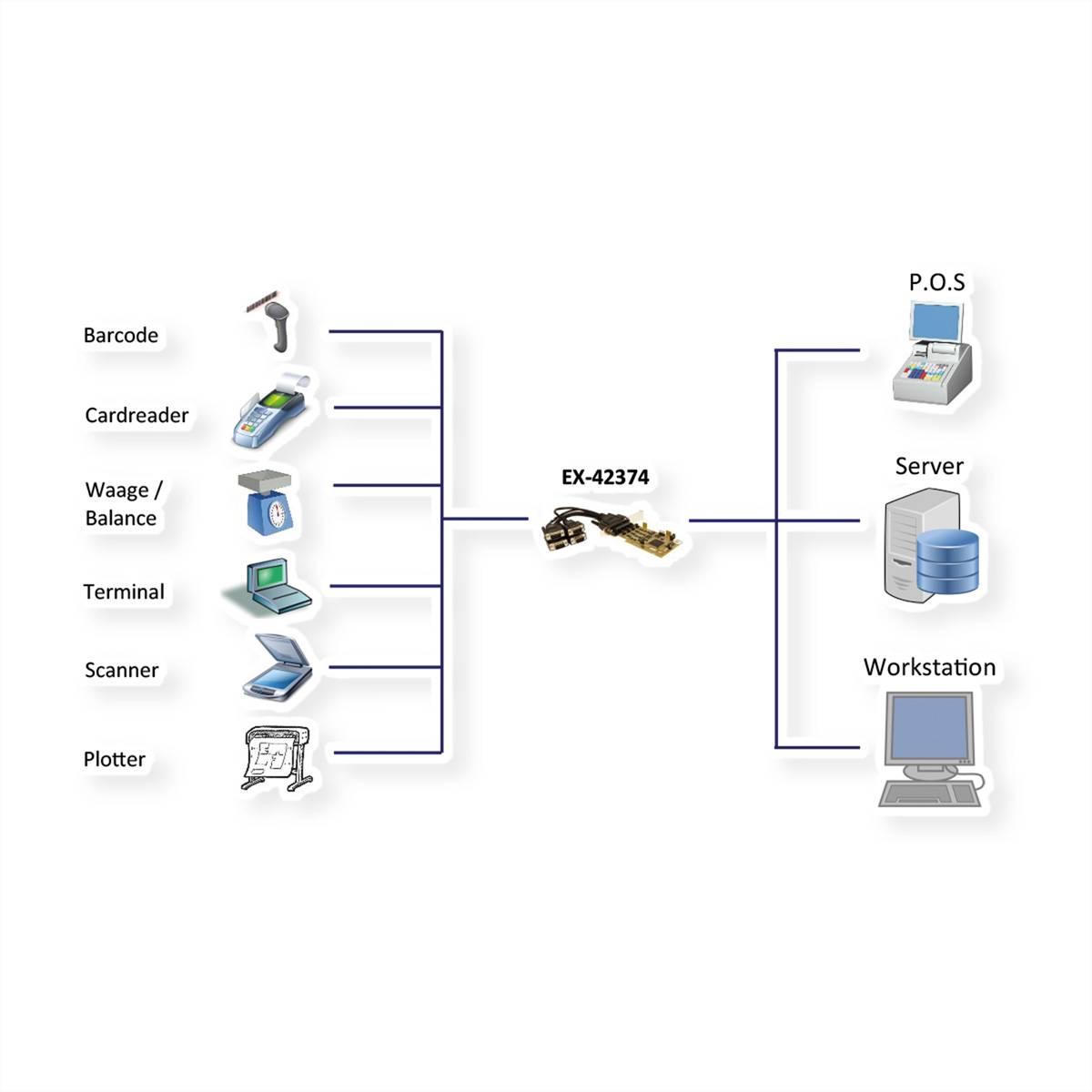

The EX-42374 PCI I/O card provides four serial RS-232, 422 and 485 high-performance UART 16C550 outputs. Each port can be independently configured as RS-232, 422 or 485. It was developed to expand four further serial combo ports for PC, small workstations or servers via the PCI bus. The card is fully PCI or PCI-X plug and play compatible and has no problems with IRQ and I/O addresses conflicts. . 4x serial RS-232 V.24 RS-422/485 independent mode selection. FIFO buffer: 16C1050 with 256 bytes. 4 x 9 pin D-Sub serial connector with Octopus cable. 50 Baud up to 921.6KBaud. SystemBase chip set. Included: EX-42374, 1 x Octopus-cable, driver-CD, manual, low profile bracket
This text is machine translated.
Scope of delivery

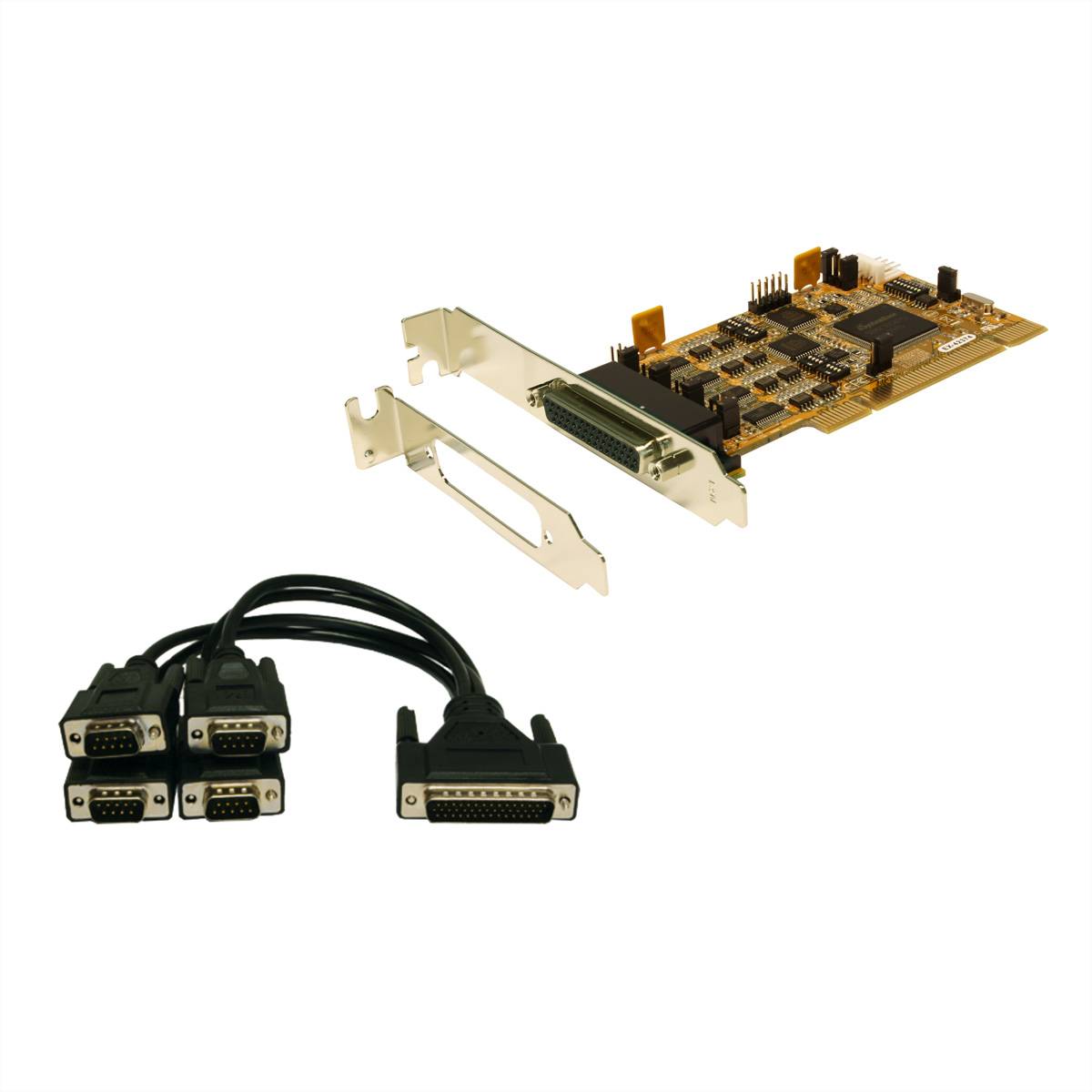

- EX-42374, 1 x Octopus-cable, driver-CD, manual, low profile clip
