Exsys EXSYS EX-42378 PCI Karte 8x RS-232/422/4 PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-42378 interface card / adapter built-in serial
- built-in
- Host Interface: PCI
- Output interface: Serial
Technical specifications
- Supports Windows operating systems: Windows 10 8.1 Education, Windows 10 Enterprise, Windows 7 8 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 x64 Ultimate, Windows 7, Windows 7, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home Professional, Windows XP Professional x64
- Product type
PCI card
- Type A
PCI
- Depth
60 mm
- Width
150 mm
- Weight
1.2 kg
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 75 °C
- Serial ports quantity
8
- Internal
yes
- Manual
yes
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
Documents & Downloads
Datasheet
Datasheet 3796847 Exsys EXSYS EX-42378 PCI Karte 8x RS-232/422/4 PCI card
User & Safety Instructions
User & Safety Instructions 3796847 Exsys EXSYS EX-42378 PCI Karte 8x RS-232/422/4 PCI card
Description

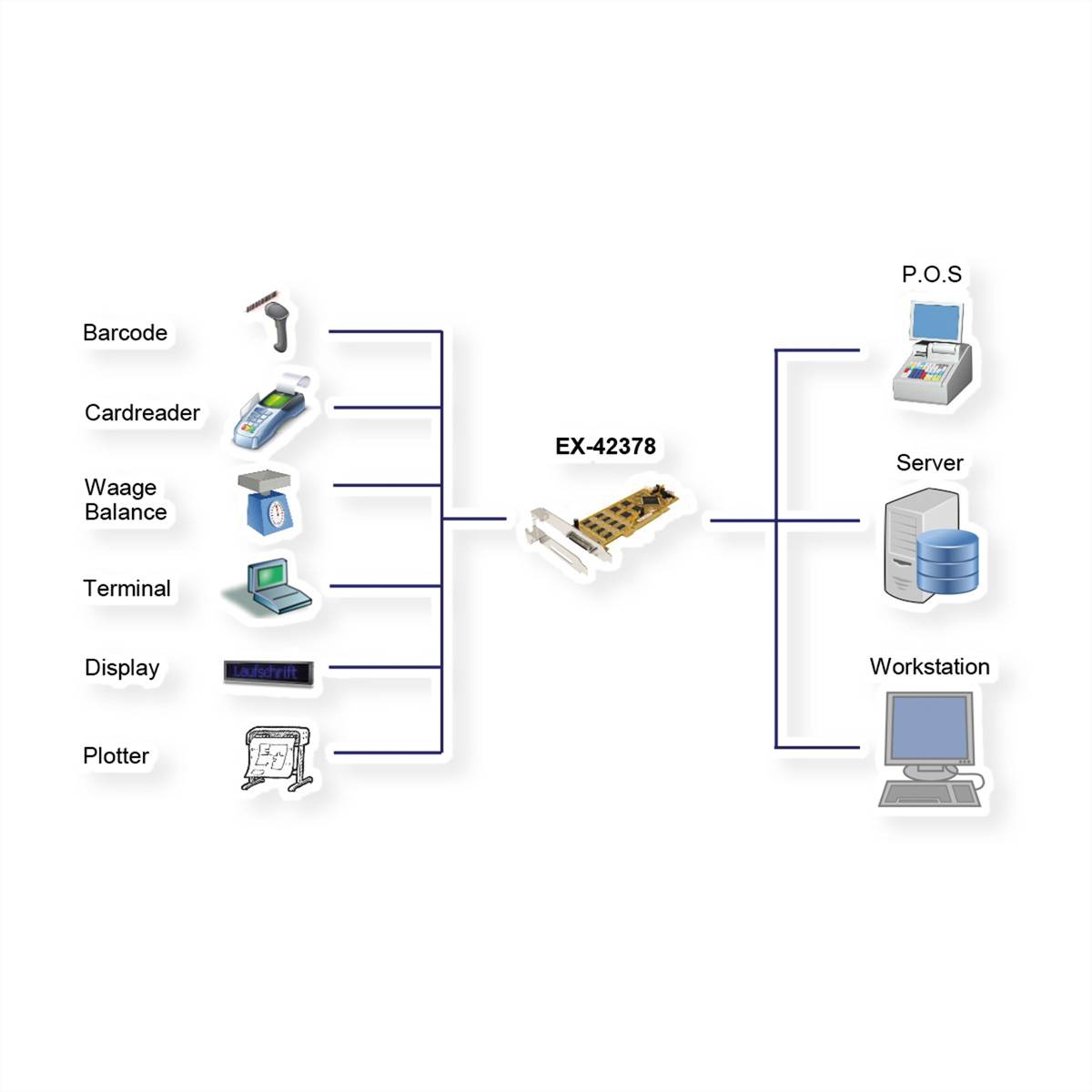

The EX-42378 PCI I/O card provides eight serial RS-232 , 422 and 485 high-performance UART 16C1050 outputs. It was developed to expand eight additional serial combo ports for PC, small workstations or servers via the PCI bus. The card is fully PCI- or PCI-X plug-and-play compatible and has no problems with IRQ and I/O addresses conflicts. It supports the features ATATM AUTO RS-485 Transmitter. In addition, +5V or +12V can be configured on pin 9 of the RS-232 serial plug for a POS system (Power over system).
This text is machine translated.
This text is machine translated.

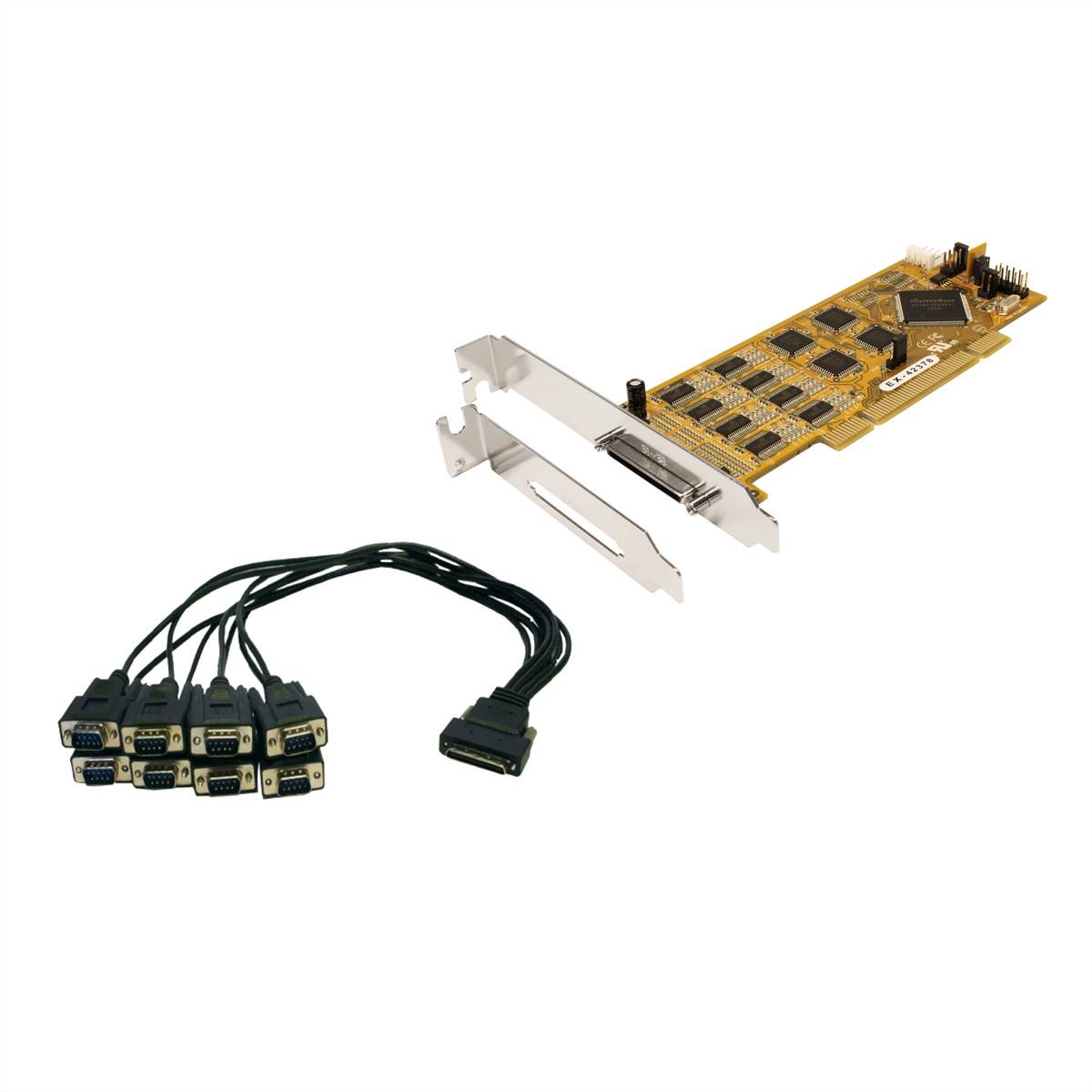

Scope of delivery
- • EX-42378
- • 1 x Octopus-cable
- • Driver CD
- • Manual
- • Low profile bracket
