Exsys EXSYS EX-44001 PCIe x1 LP 1x parallel EP PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-44001 interface card / adapter built-in parallel
- built-in
- Host Interface: PCIe
- Output interface: Parallel
- 0.002 Gbit/s
Technical specifications
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7 Pro, Windows 7 Pro x64, Windows 7, Windows 2000 Professional, Windows 10 Enterprise, Windows 2000 Enterprise x64, Windows 10 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8.1,Windows 98,Windows ME,Windows NT,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista, Windows Vista Ultimate x64 Home,Windows XP Home,Windows XP Professional x64
- Support for other operating systems: DOS
- Product type
PCI Express card
- Type A
PCI Express
- Height
58 mm
- Width
65 mm
- Weight
200 g
- UKCA
yes
- Data transfer rate (max)
0.002 Gbit/s
- Operating temperature (T-T)
0 - 55 °C
- Parallel ports quantity
1
- Internal
yes
- Manual
yes
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 70 °C
- Supports EPP and ECP
yes
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3796841 Exsys EXSYS EX-44001 PCIe x1 LP 1x parallel EP PCI Express card
User & Safety Instructions
User & Safety Instructions 3796841 Exsys EXSYS EX-44001 PCIe x1 LP 1x parallel EP PCI Express card
Description

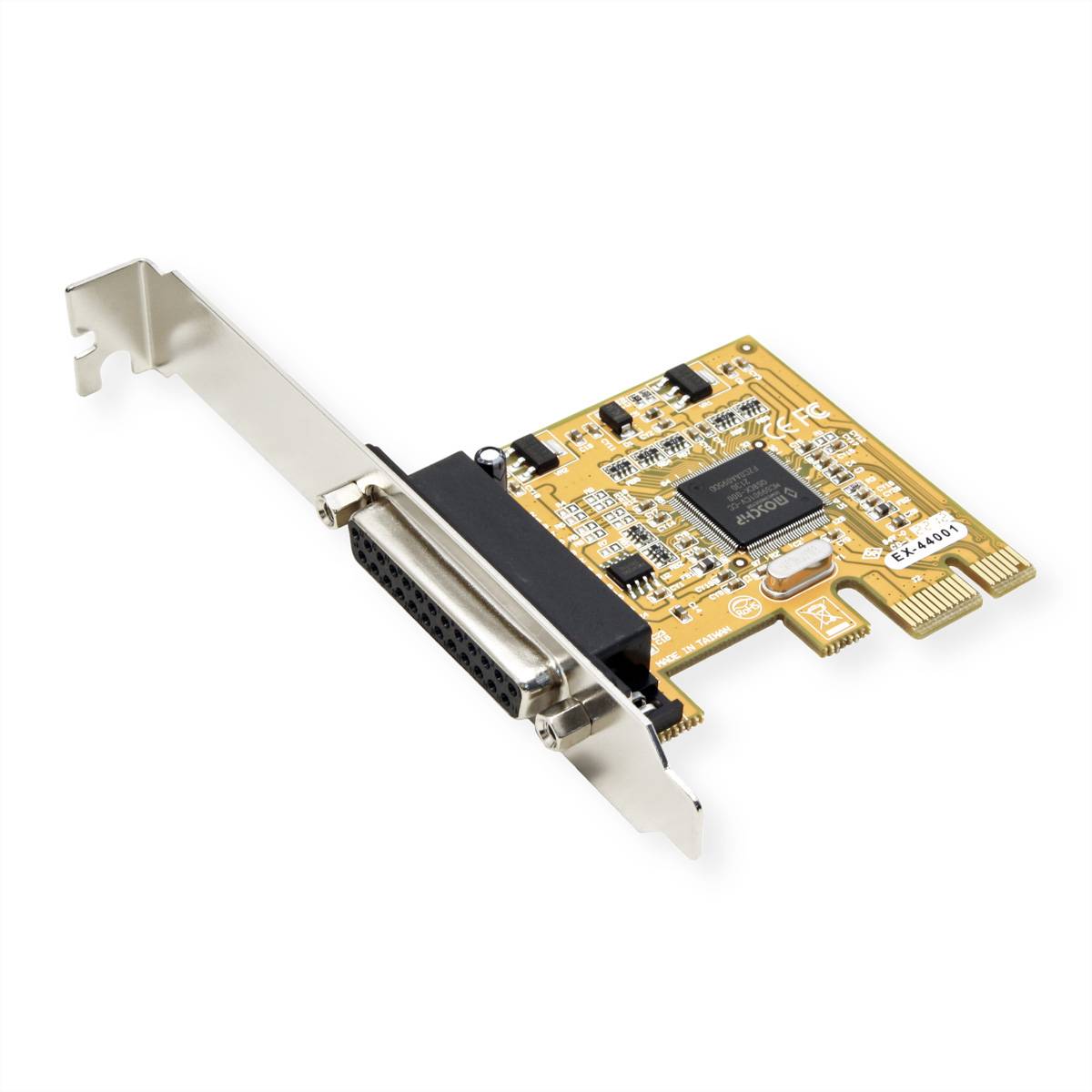

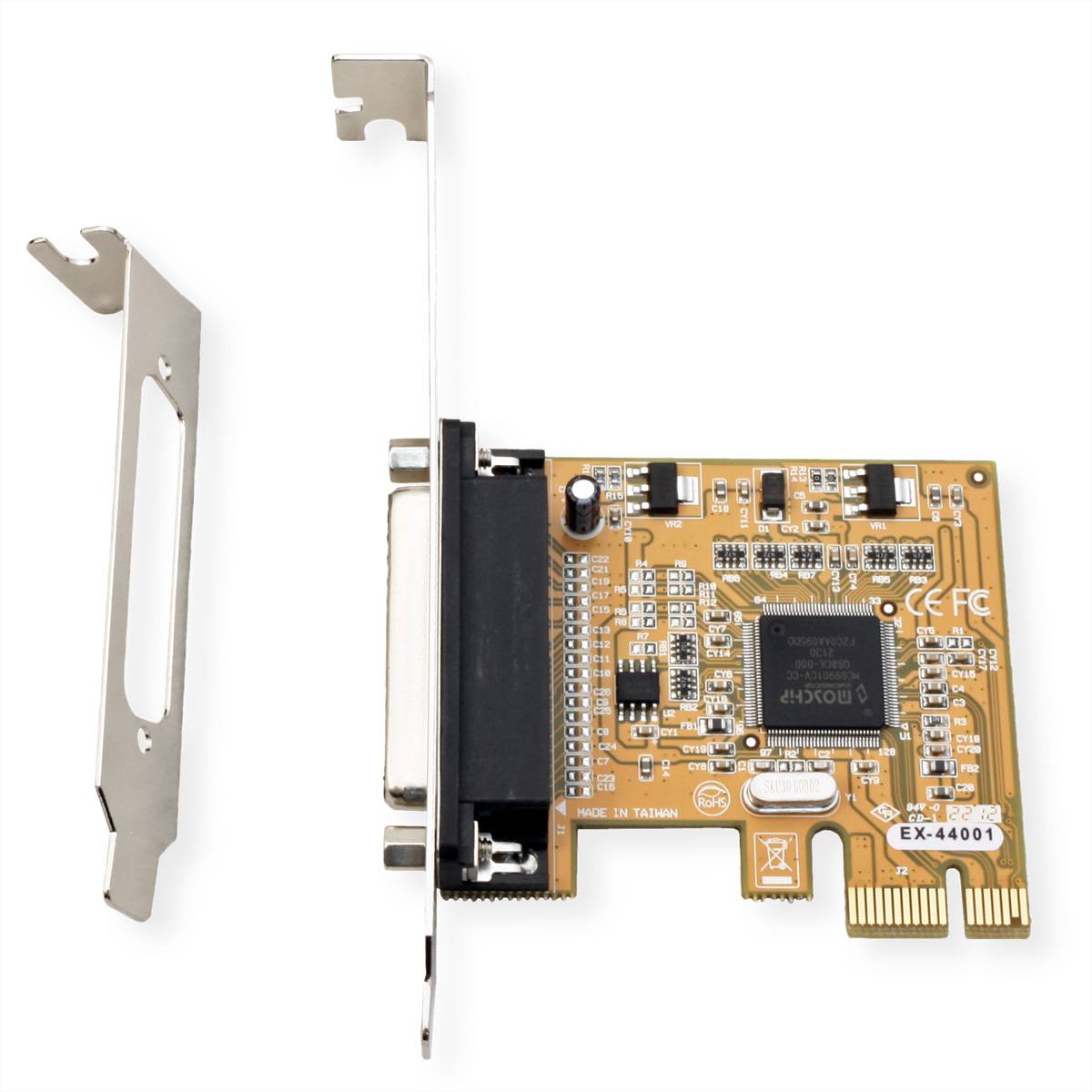

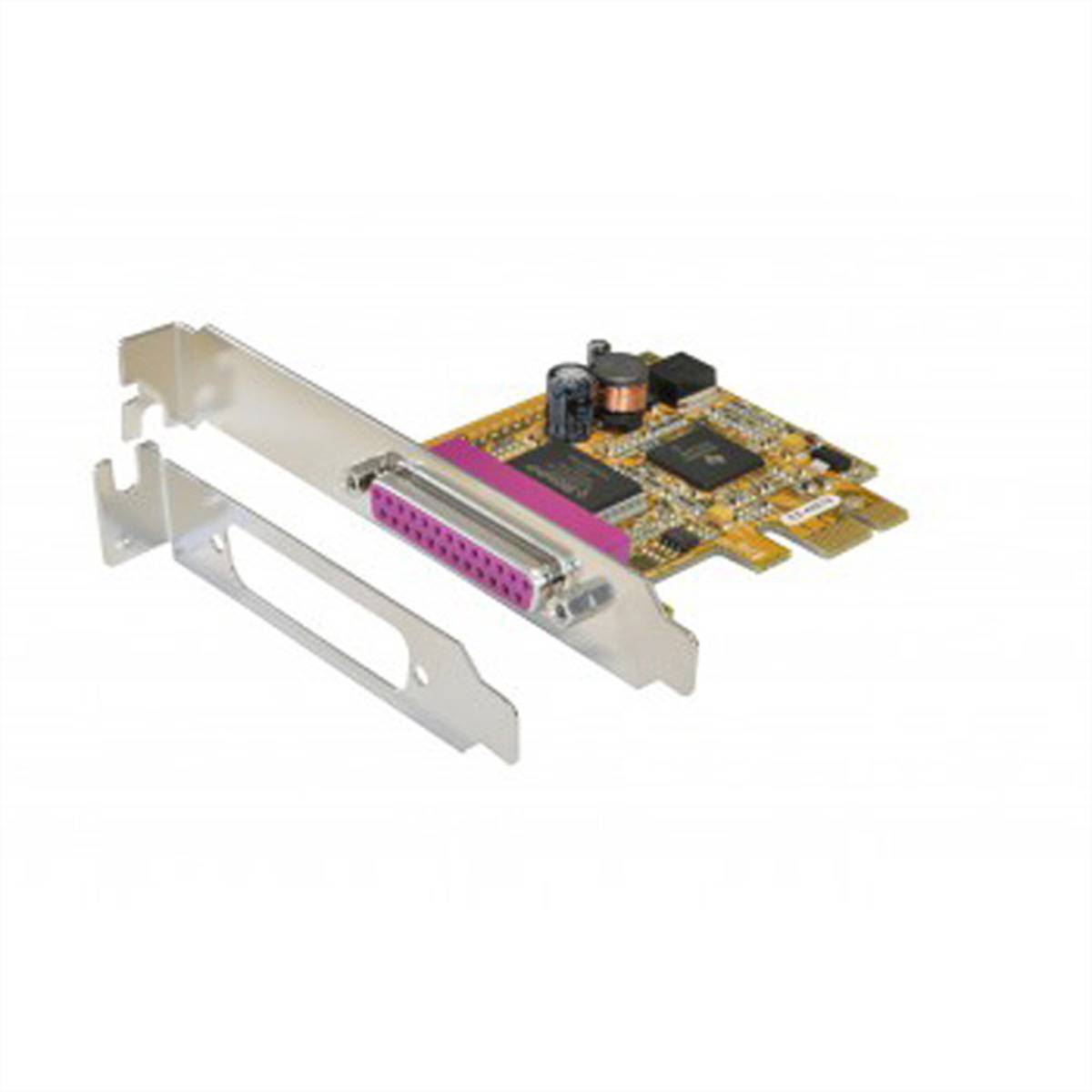

The EX-44001 PCI Express Parallel card provides a parallel SPP/EPP/ECP high performance output. It was developed to expand another parallel output for PC, small workstations or servers via the PCI Express bus. With the EX-44001 there are no IRQ and I/O-addresses problems and it is PCI-Express Plug-and-Play-compatible. With the EX-44001 a Low Profile bracket is included, so the EX-44001 can be used even in narrow housings up to a maximum height of 8 cm.
This text is machine translated.
This text is machine translated.
Features
- Exsys EX-44001 - Parallel-Adapter
- Device type: Parallel adapter
- Form factor : Plug-in card - Low profile
- Interface type (bus type) : PCI Express x1
- PCI specification revision : PCIe 1.0a, PCIe 3.0
- Ports : IEEE 1284
- Dimensions (width x depth x height): 6.5 cm x 5.8 cm
- Weight: 200 g
- Data transfer rate : 2 Mbps
- Processor : ASIX
- System Requirements : Microsoft DOS, Microsoft Windows NT 4.0, Linux, Microsoft Windows 2000 server or higher, Microsoft Windows 7, Microsoft Windows 98/ME/2000/XP/Vista, Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Windows 8.x
Scope of delivery
- EX-44001, Low Profile bracket, driver CD, manual
