Exsys EXSYS EX-44062 2S Seriell RS232 PCIe Kar PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-44062 interface card / adapter built-in serial
- built-in
- Host Interface: PCIe
- Output interface: Serial
- Purpose: PC
- Black, stainless steel
Technical specifications
- Product type
PCI Express card
- Cable length
0 cm
- Factory colour
Black
Stainless steel
- Type A
PCI Express
- Depth
66 mm
- Width
88 mm
- Keyboard layout
German, QWERTZ
- Weight
120 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Serial ports quantity
2
- Internal
yes
- RS-232 interface
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3796854 Exsys EXSYS EX-44062 2S Seriell RS232 PCIe Kar PCI Express card
User & Safety Instructions
User & Safety Instructions 3796854 Exsys EXSYS EX-44062 2S Seriell RS232 PCIe Kar PCI Express card
Description

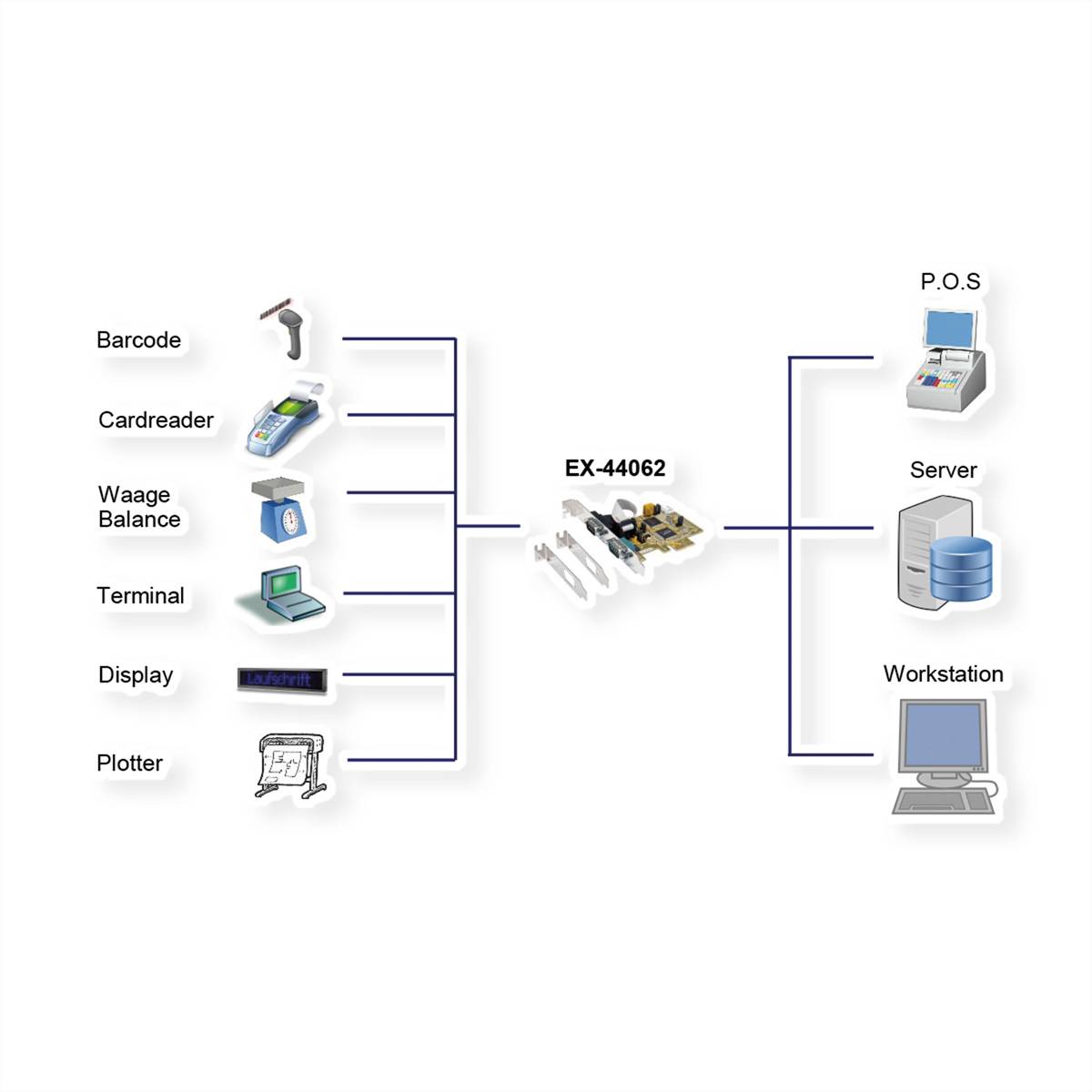

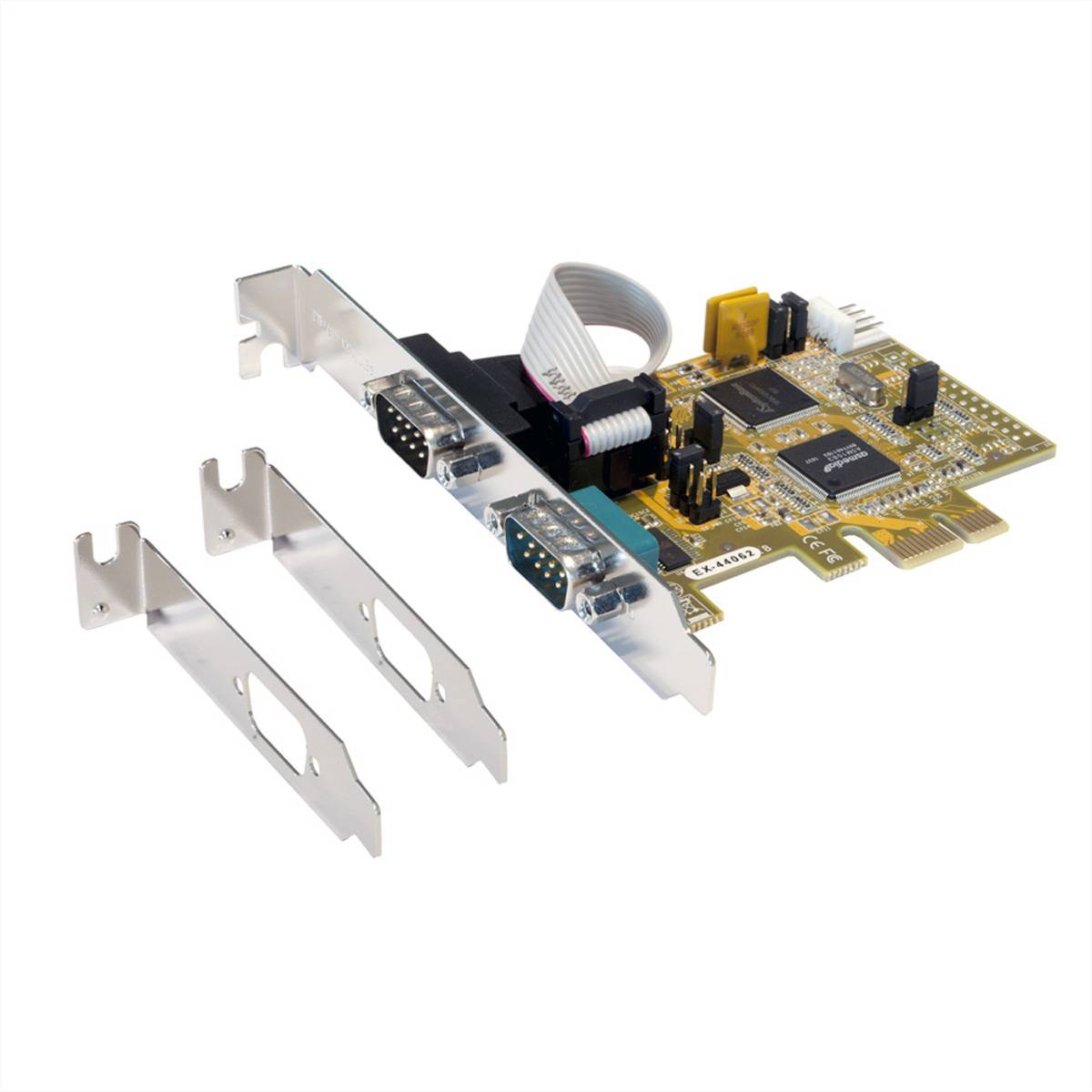

The EX-44062 PCI Express I/O card provides two serial RS-232 High Performance UART 16C1050 outputs. It was developed to expand two additional serial ports for PC, small workstations or server via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no problems with IRQ and I/O addresses conflicts. In addition, +5V or +12V can be configured on pin 9 of the serial plug for a POS system (Power over system). With the EX-44062 two Low Profile Brackets are made in the middle, so that the card can also be installed in slim PC casing.
- Interface: RS-232 V.24 with FIFO buffer 16C1050 with 256 bytes
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- I/O addresses and interrupt are assigned by the operating system, IRQ sharing
- PCIe interface compatible with 1.0a to 3.0 specifications
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Supports RTS/CTS and XON/XOFF flow control
- Supports +5V or +12V on pin 9 of the serial connector
- Chip set: SystemBase SB16C1052PCI
This text is machine translated.
- Interface: RS-232 V.24 with FIFO buffer 16C1050 with 256 bytes
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- I/O addresses and interrupt are assigned by the operating system, IRQ sharing
- PCIe interface compatible with 1.0a to 3.0 specifications
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Supports RTS/CTS and XON/XOFF flow control
- Supports +5V or +12V on pin 9 of the serial connector
- Chip set: SystemBase SB16C1052PCI
This text is machine translated.
Features
- Exsys EX-44062 - Serial adapter - PCIe - RS-232/V.24 x 2
- Device Type : Serial adapter
- Form factor : Plug-in card - Low profile
- Interface type (bus type) : PCI Express x1
- PCI specification revision : PCIe 3.0
- Bus voltage : 3.3 V.
- Ports : RS-232/V.24 x 2
- Dimensions (width x depth x height): 8.8 cm x 6.6 cm
- Weight: 200 g
- Data Link Protocol : RS-232 V.24
- Data transfer rate : 921.6 Kbps
- Processor : SystemBase SB16C1054PCI
Scope of delivery
- EX-44062, Low Profile bracket, driver CD, manual
