Exsys Exsys EX-44342 - Serieller Adapter - PCIe - RS-232 PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-44342 interface card / adapter built-in serial
- built-in
- Host Interface: PCIe
- Output interface: Serial
Technical specifications
- Product type
PCI Express card
- Type A
PCI Express
- Depth
65 mm
- Width
66 mm
- Cable use
Series
- Connection type
PCI Express
- UKCA
yes
- Internal
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3796903 Exsys Exsys EX-44342 - Serieller Adapter - PCIe - RS-232 PCI Express card
User & Safety Instructions
User & Safety Instructions 3796903 Exsys Exsys EX-44342 - Serieller Adapter - PCIe - RS-232 PCI Express card
Description

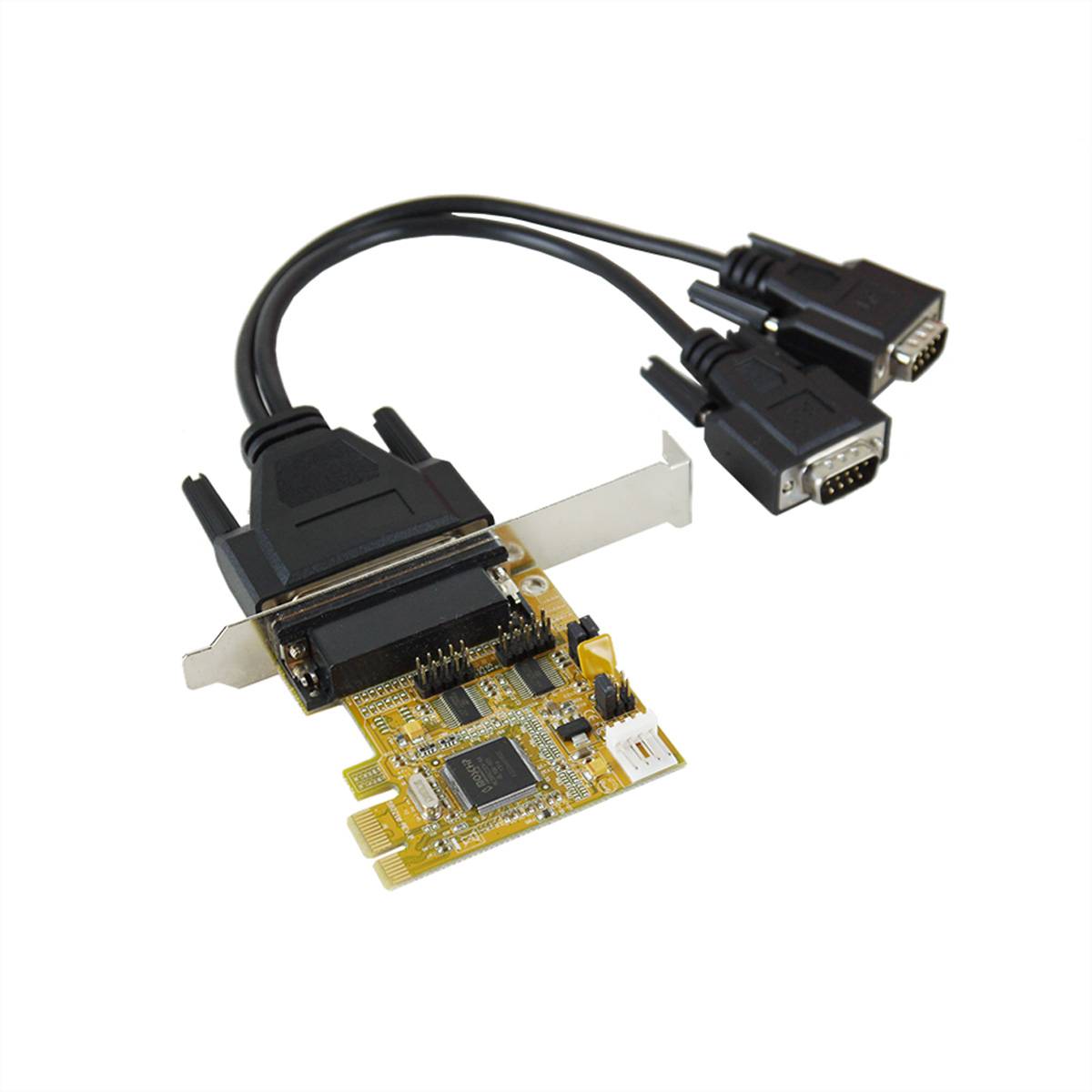

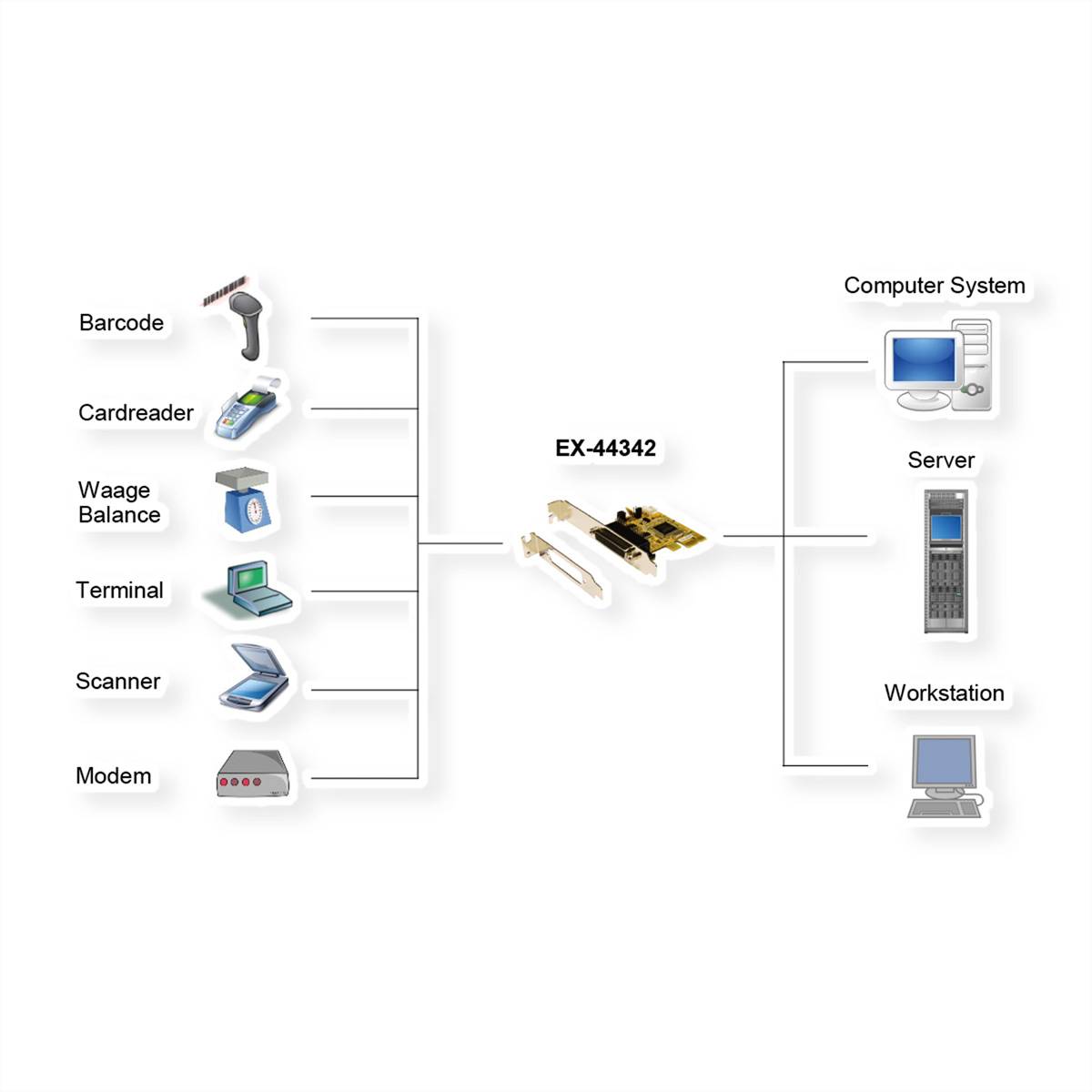

The EX-44342 PCI-Express I/O card provides two serial RS-232 High Performance UART 16C550 outputs. It was developed to expand two additional serial ports for PC, small workstations or server via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no problems with IRQ and I/O addresses conflicts. In addition, +5V or +12V can be configured on pin 9 of the serial plug for a POS system (Power over system). With the EX-44342 a Low Profile bracket is included, so that the card can also be installed in a slim PC housing of 8cm.
This text is machine translated.
This text is machine translated.
Features
- Interface: RS232 V.24 / FIFO buffer: 16C550 with 256 bytes
- PCIe interface compatible with 1.0a to 3.0 specifications
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- I/O addresses and interrupt are assigned by the system BIOS
- Data bits: 5, 6, 7, 8 / Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Supports hardware and software flow control
- +5V or +12V can be set on pin 9 of all four plugs
- Chip set: ASIX MCS9901CV
Scope of delivery

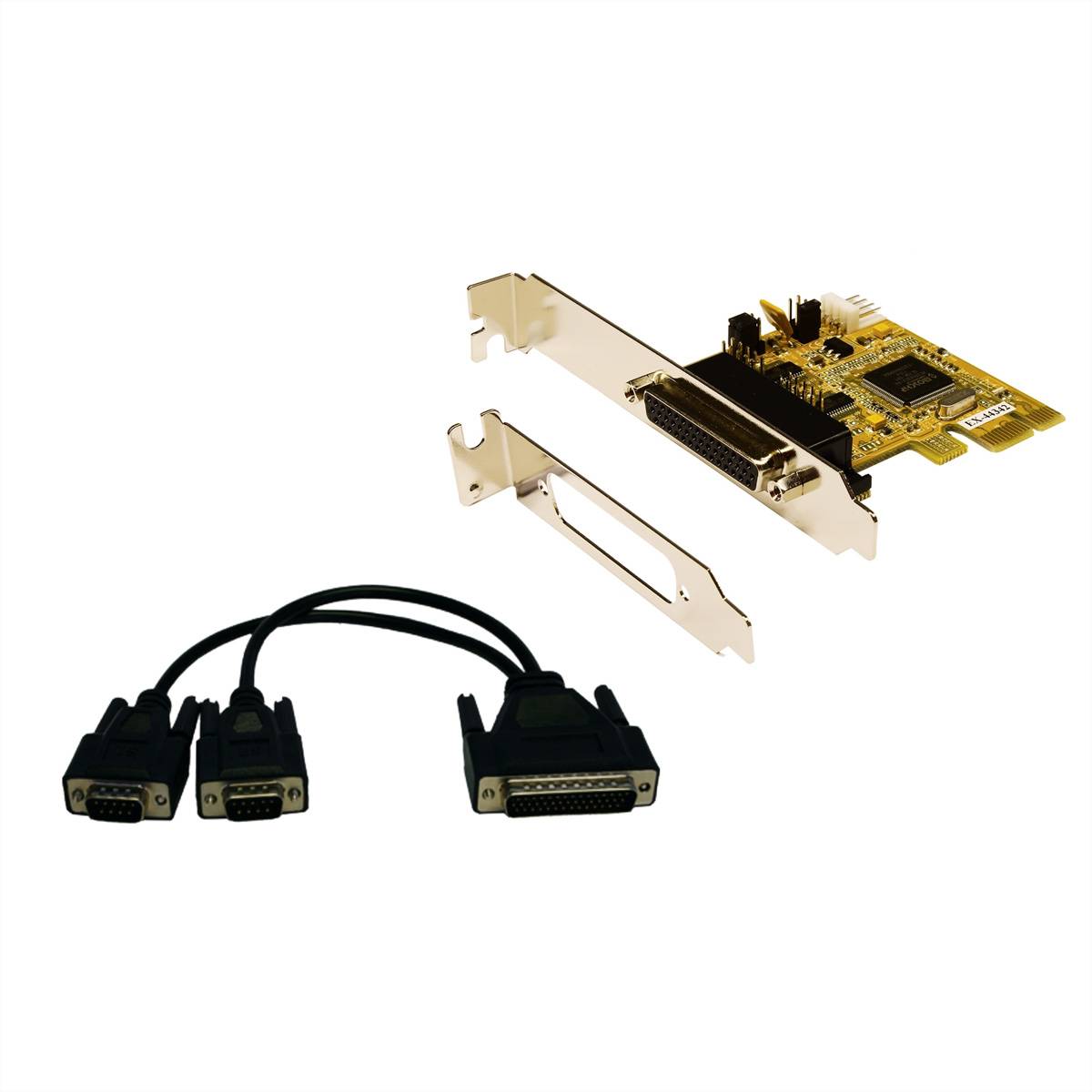

- EX-44342, Octopus cable, driver CD, Low Profile clip, manual
