Exsys EXSYS EX-45364 4 Port RS-232/422/485 PCI PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-45364 interface card / adapter built-in serial
- built-in
- Host Interface: PCIe
- Output interface: Serial
- Purpose: PC
Technical specifications
- Product type
PCI card
- Type A
PCI Express
- Depth
110 mm
- Width
68 mm
- Weight
800 g
- UKCA
not relevant
- Internal
yes
Documents & Downloads
Datasheet
Datasheet 3796882 Exsys EXSYS EX-45364 4 Port RS-232/422/485 PCI PCI card
User & Safety Instructions
User & Safety Instructions 3796882 Exsys EXSYS EX-45364 4 Port RS-232/422/485 PCI PCI card
Description

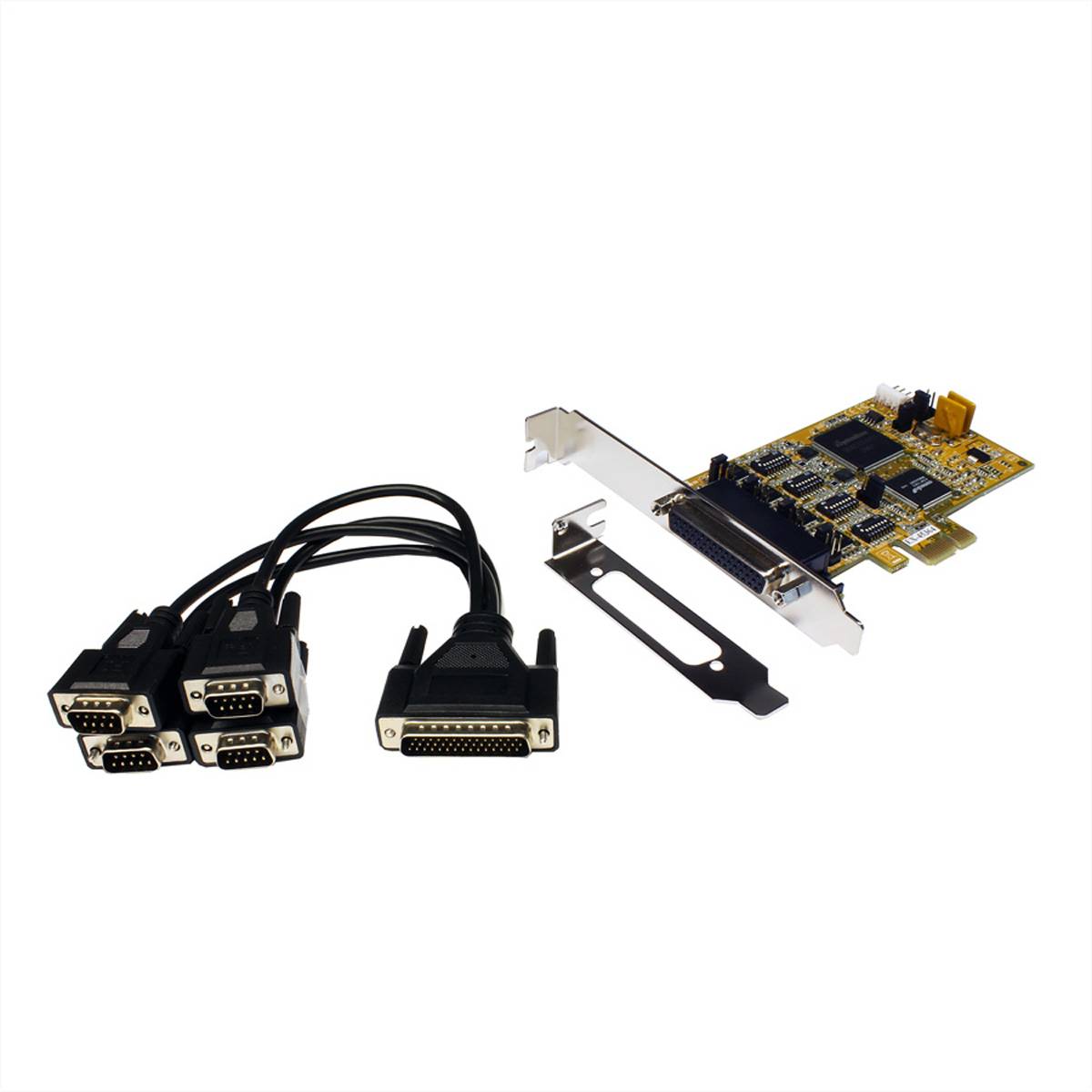

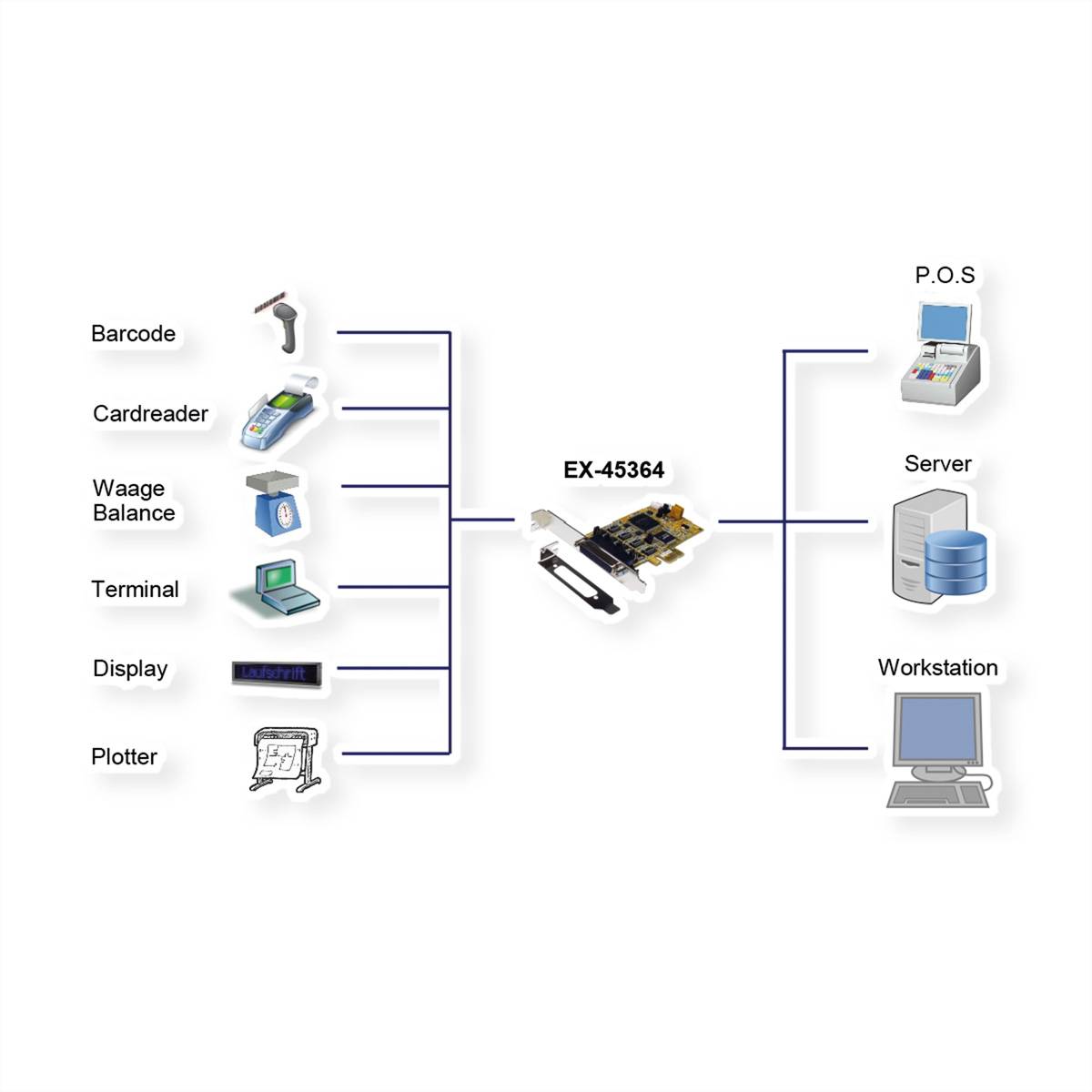

The EX-45364 PCIe I/O card provides four serial RS-232 , 422 and 485 high-performance UART 16C1050 outputs. Each port can be set independently of the interface type. It was developed to expand four further serial combo ports for PC, small workstations or servers via the PCIe bus. The card is fully PCIe Plug and Play compatible and has no problems with IRQ and I/O addresses conflicts. It supports the features ATATM AUTO RS-485 Transmitter. In addition, +5V or +12V can be configured on pin 9 of the RS-232 serial plug for a POS system (Power over system). In addition, a Low Profile bracket is supplied for slim PC case.
This text is machine translated.
This text is machine translated.
Features
- Interface: 4 x RS-232 V.24, RS-422/485 - independent mode selection
- FIFO buffer: 16C1050 with 256 bytes
- I/O addresses and interrupt: Is assigned by the system BIOS, IRQ sharing
- Data bits: 5, 6, 7, 8 / Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Signals RS-422/485:
- RS-422 - 4 wires (TXD+/-, RXD+/-) (full-duplex)
- RS-485 - 4 wires (TXD+/-, RXD+/-) (full-duplex)
- RS-485 - 2 wires (data+/-, data+/-) (half-duplex)
- Supports ATTATM auto transmitter
- Termination RS-422/485 120 Ohm can be switched on and off
- Chip set: SystemBase SB16C1054PCI
Scope of delivery
- EX-45364, Octopus cable, low profile clip, driver CD, manual
