Exsys EXSYS EX-45368 PCI Express 8x seriell in PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-45368 interface card / adapter built-in serial
- built-in
- Host Interface: PCIe
- Output interface: Serial
- Purpose: PC
Technical specifications
- Product type
PCI Express card
- Type A
PCI Express
- Depth
64.2 mm
- Width
115.3 mm
- Weight
1.1 kg
- UKCA
not relevant
- Operating temperature (T-T)
0 - 55 °C
- Internal
yes
- Manual
yes
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3796857 Exsys EXSYS EX-45368 PCI Express 8x seriell in PCI Express card
User & Safety Instructions
User & Safety Instructions 3796857 Exsys EXSYS EX-45368 PCI Express 8x seriell in PCI Express card

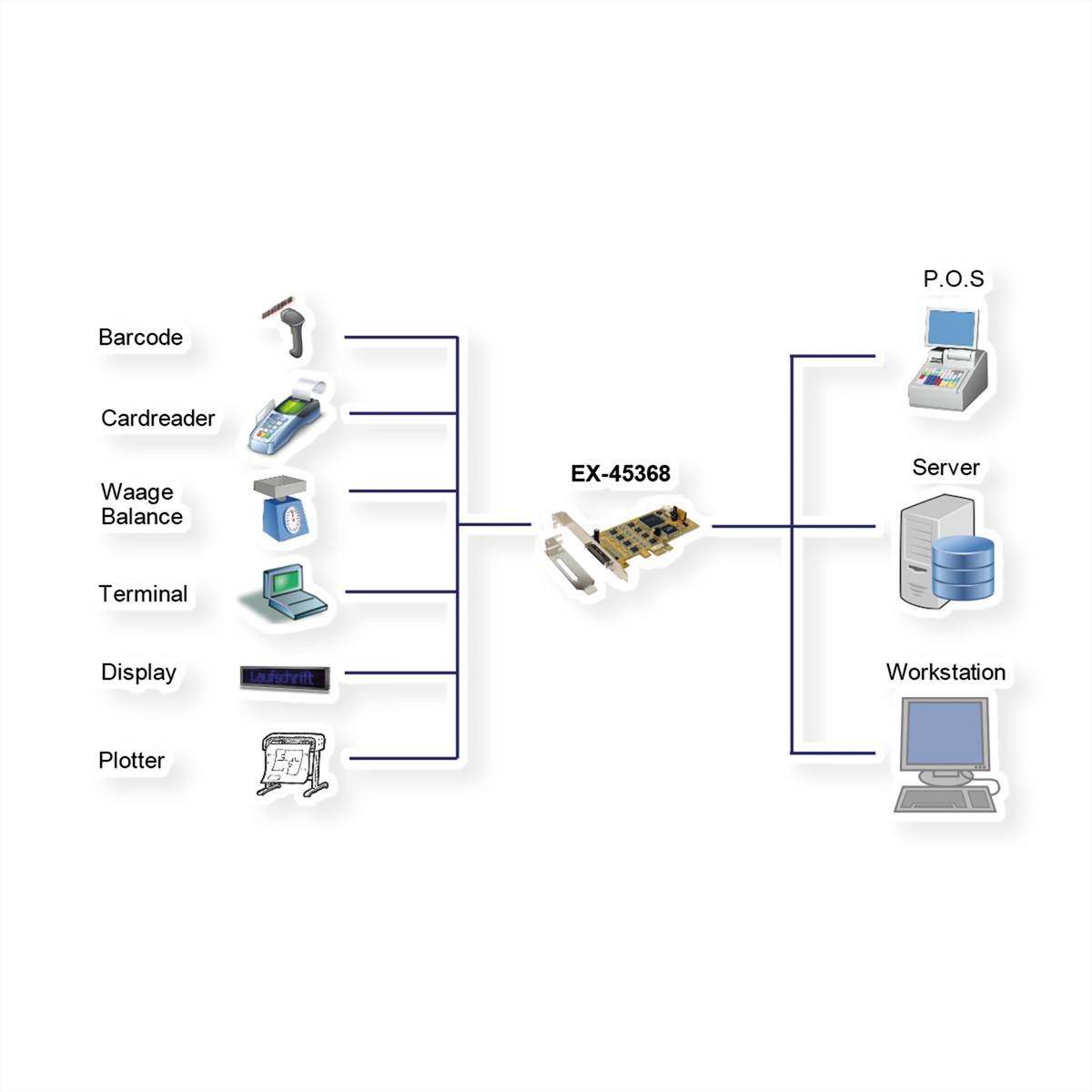

Description
The EX-45368 PCIe I/O card provides eight serial RS-232 , 422 and 485 high-performance UART 16C1050 outputs. Each port can be set independently of the interface type. It has been developed to expand eight additional serial combo ports for PC, small workstations or servers via the PCIe bus. The card is fully PCIe Plug and Play compatible and has no problems with IRQ and I/O addresses conflicts. It supports the features ATATM AUTO RS-485 transmitter. In addition, +5V or +12V can be configured on pin 9 of the RS-232 serial plug for a POS system (Power over system). In addition, a Low Profile bracket is supplied for slim PC case.
This text is machine translated.
This text is machine translated.
Features
- Interface: 8 x RS-232 V.24, RS-422/485 - independent mode selection
- FIFO buffer: 16C1050 with 256 bytes
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- I/O addresses and interrupt: Is assigned by the system BIOS, IRQ sharing
- Data bits: 5, 6, 7, 8 / Stop bits: 1, 1.5, 2 / Parity: None, even, odd, space, mark
- Supports ATTA TM Auto Transmitter
- Supports PCIe Slot version 1.0 to 3.0
- Termination RS-422/485 120 Ohm can be switched on and off
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Signals RS-422/485:
- RS-422 - 4 wires (TXD+/-, RXD+/-) (full-duplex)
- RS-485 - 4 wires (TXD+/-, RXD+/-) (full-duplex)
- RS-485 - 2 wires (data+/-, data+/-) (half-duplex)
- Chip set: SystemBase SB16C1058PCI

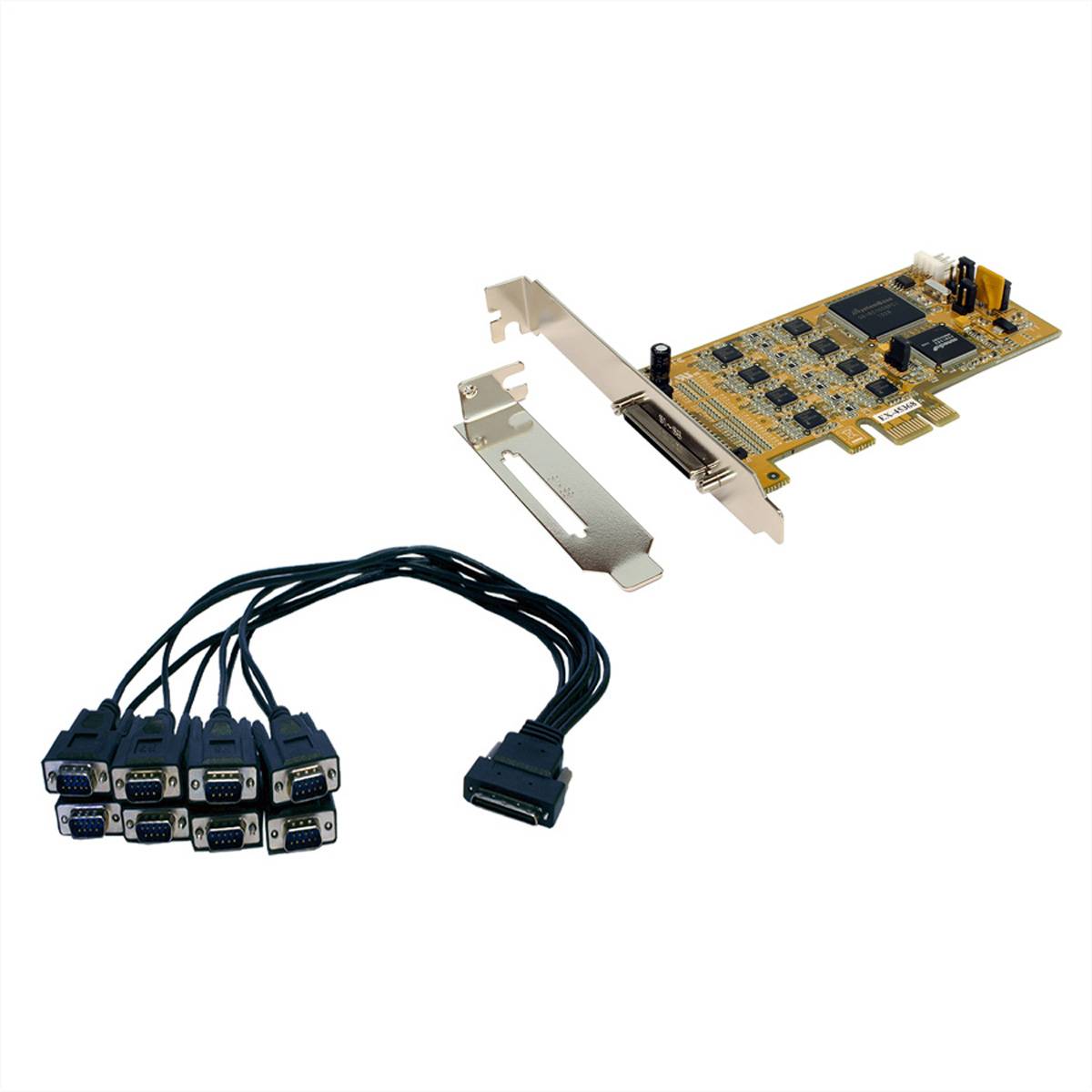

Scope of delivery
- EX-45368, Octopus cable, low profile clip, driver CD, manual
