Exsys EXSYS - EX-46014 4S Seriell RS-232 PCIe Karte - PCI-Express PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Provides four serial RS-232 High Performance UART 16C550 outputs
- Four serial RS-232 high-performance UART 16C550 outputs
- Data bits 5, 6, 7 and 8
- 300Baud up to 921.6KBaud
Technical specifications
- Product group: Interface cards
- Product type: PCI Express adapter card
- Bus system PCI Express
- Interfaces: 4x 9-pin serial RS-232 plug
- RS-232 interface: Yes
- Power supply 3.3V over PCIe Slot
- Data transfer rate: 300Baud to 921.6Kbaud
- ASIX MCS9901CV-CC CHIPSET
- Operating systems: WinXP/Vista/7/8.x/10/11 (32&64), Server 200x & 2012 R2, Linux
- Connections: 4 x 9 pin D-SUB serial plug
- Height: Low profile
- Installation guide / manual: Yes
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 60 mm
- Width: 89 mm
- Weight 180 g
- Packaging height 30 mm
- Package width 130 mm
- Packaging depth 180 mm
- Package weight: 0,175 kg
- Gross weight: 0.175
- Product type
PCI Express card
- Connection type
Series
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796949 Exsys EXSYS - EX-46014 4S Seriell RS-232 PCIe Karte - PCI-Express PCI Express card
User & Safety Instructions
User & Safety Instructions 3796949 Exsys EXSYS - EX-46014 4S Seriell RS-232 PCIe Karte - PCI-Express PCI Express card
Description

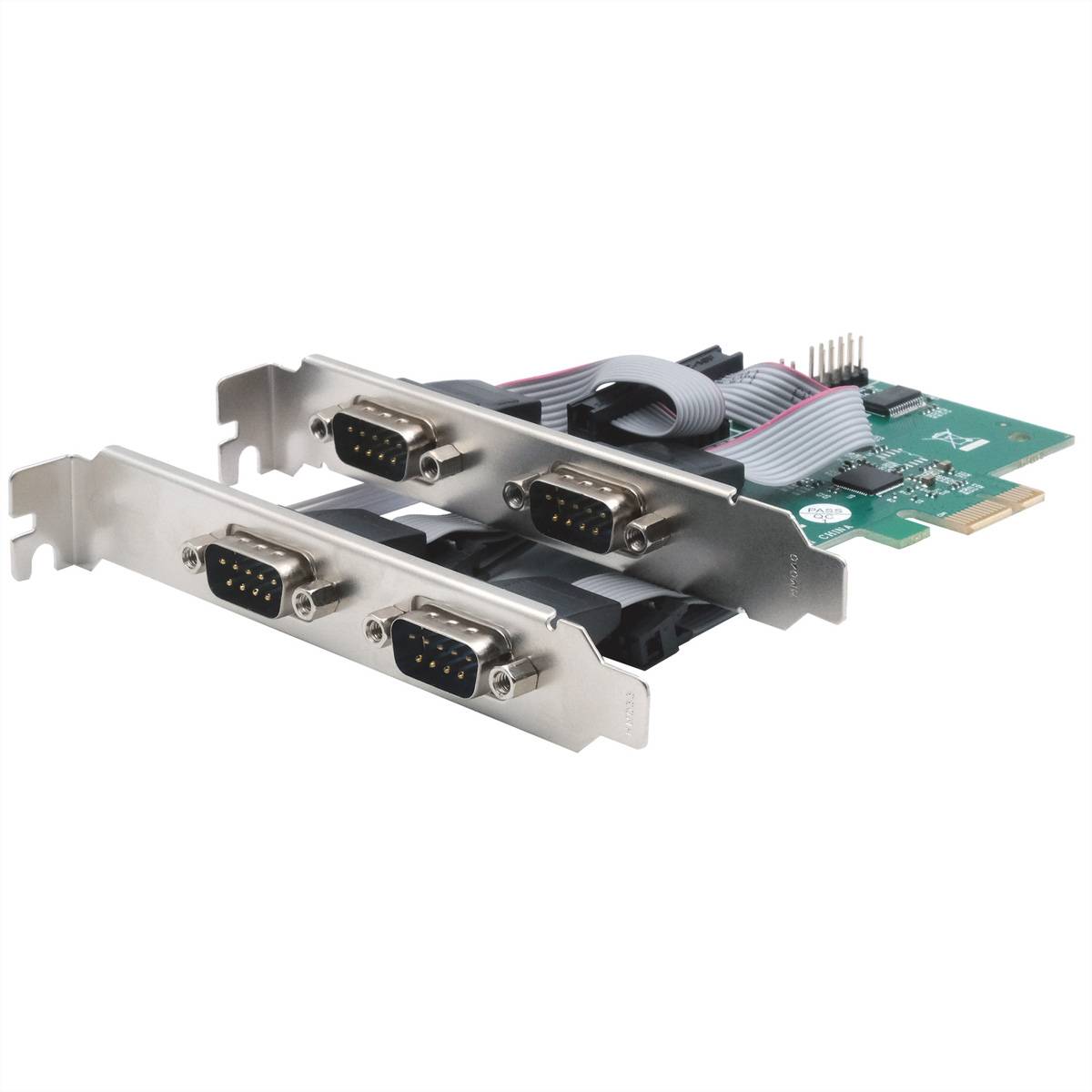

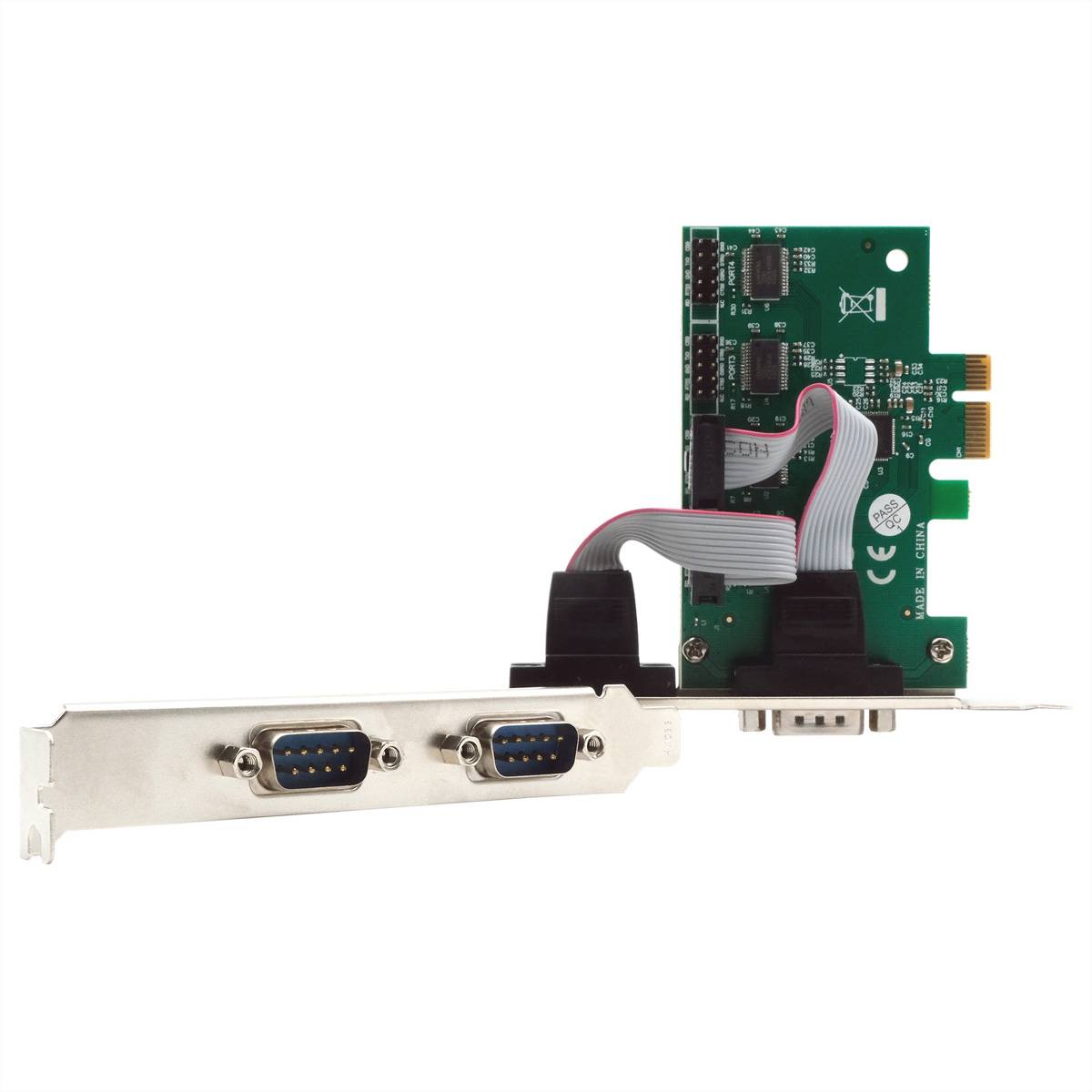

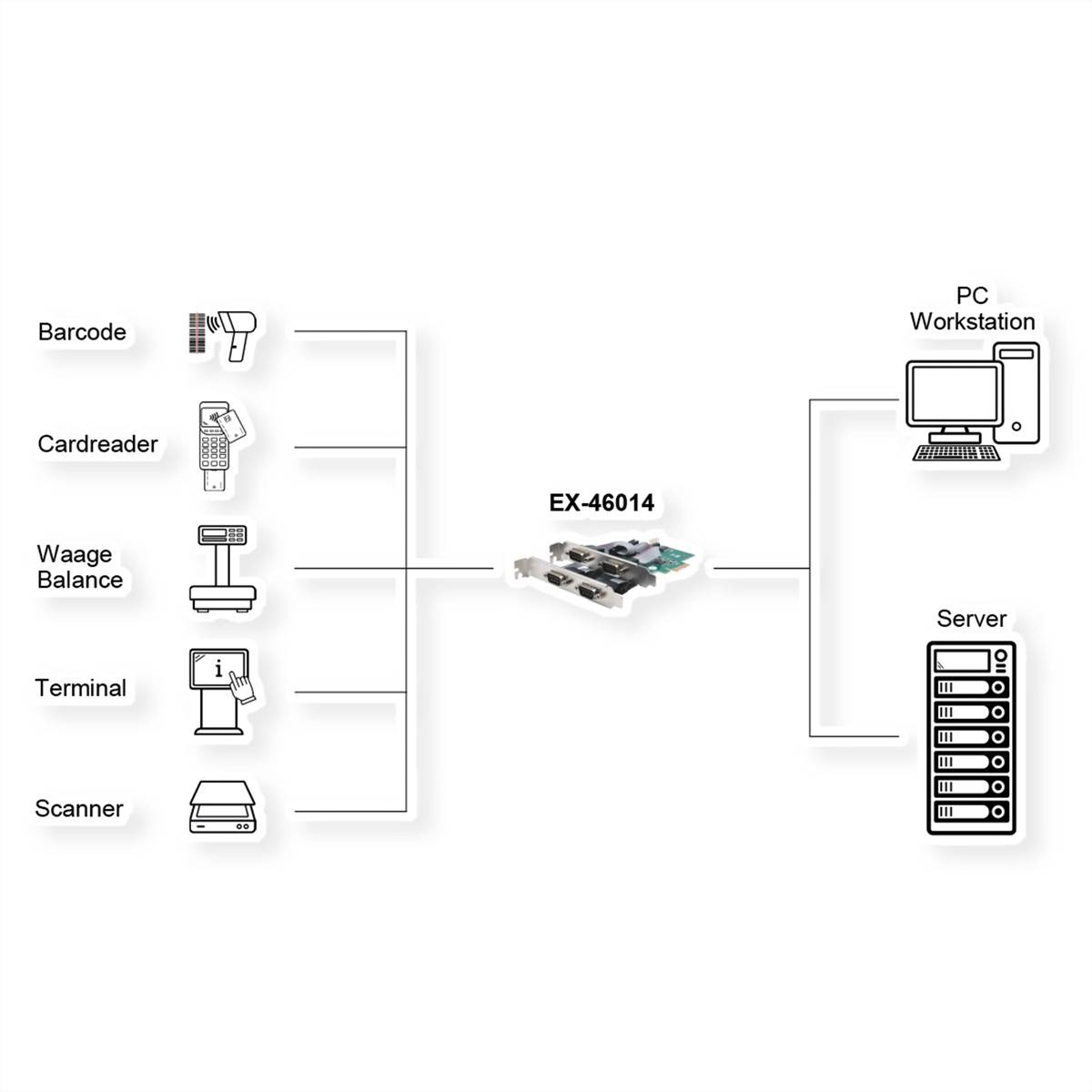

Provides four serial RS-232 High Performance UART 16C550 outputs. The EX-46014 PCIe I/O card provides four serial RS-232 high-performance UART 16C550 outputs. . It was developed to expand four additional serial ports for PC, small workstations or server via the PCIe bus. . The four 9-pin connectors are mounted on two slot brackets. Four Low Profile plates are supplied for small computers.
This text is machine translated.
Scope of delivery

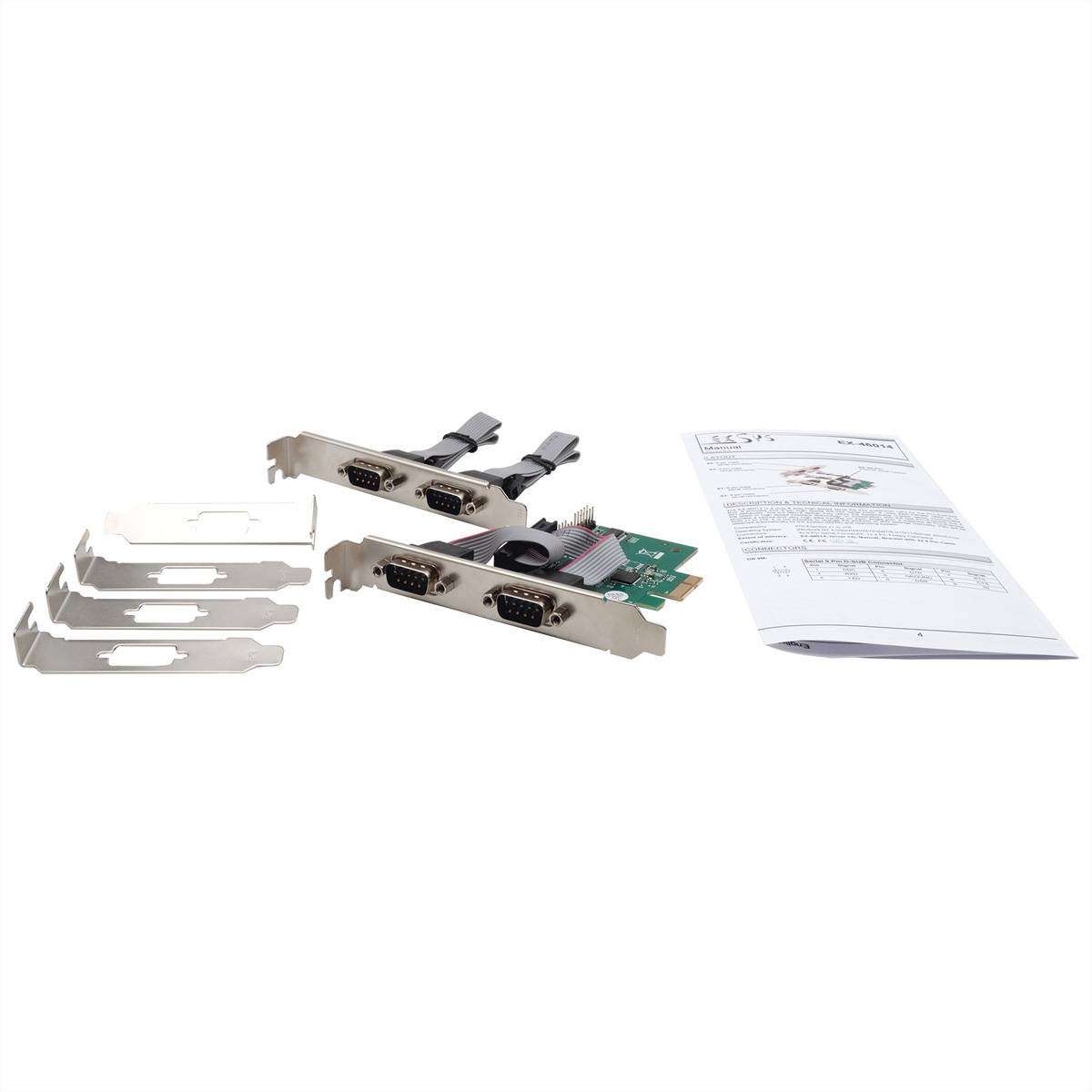

- EX-46014, 4x low profile bracket, manual
