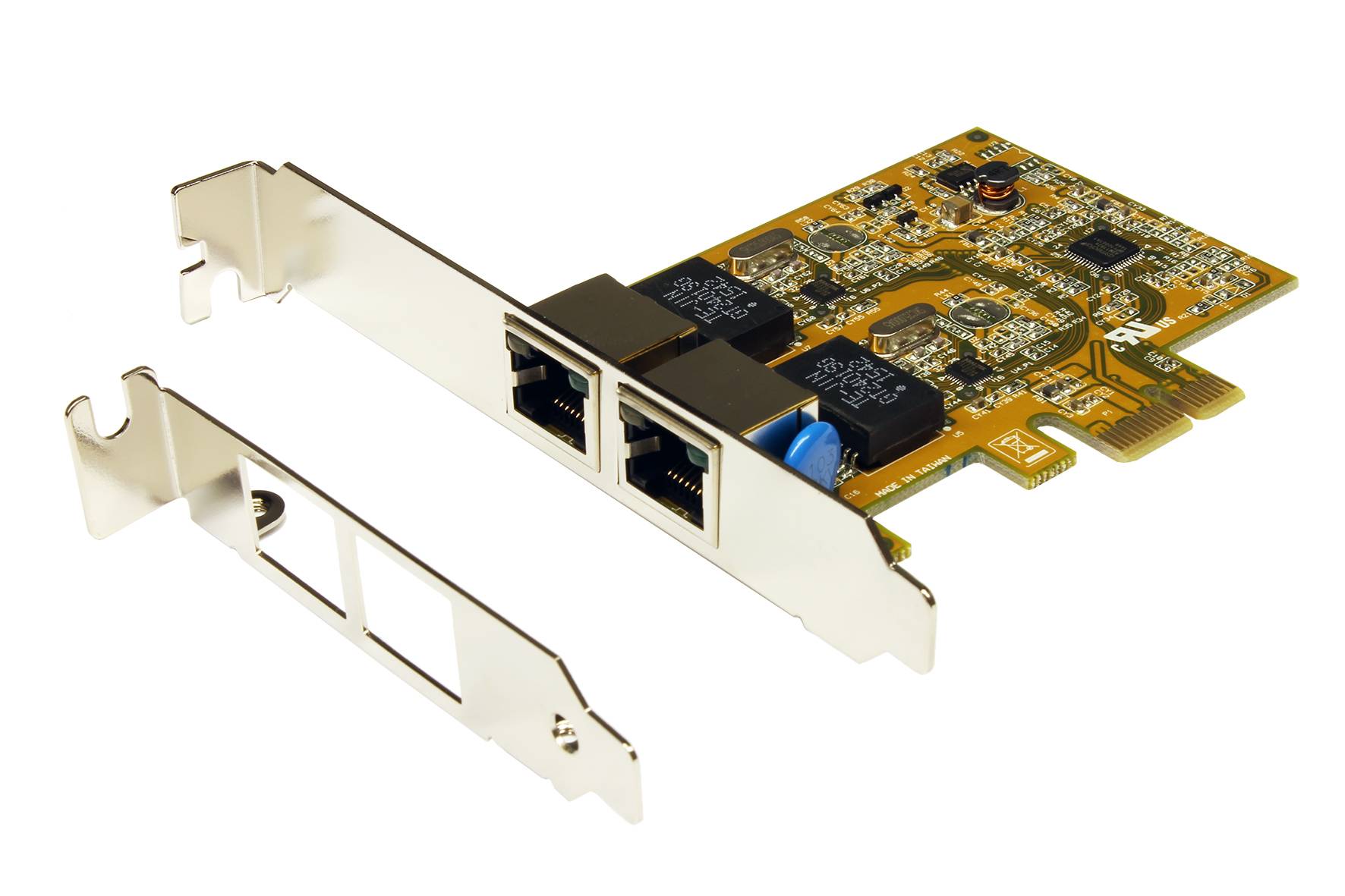

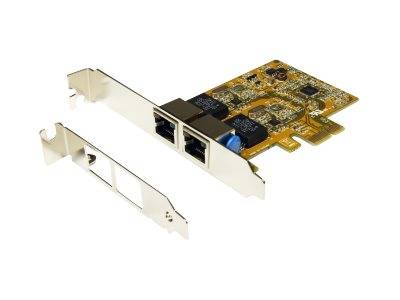

Exsys EXSYS EX-6072-3 PCIe 2x Gigabit Ethernet PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-6072-3 Network Card Built-in Ethernet 1000 Mbit / s.
- Cable connected
- PCI Express Ethernet
- 1000 Mbit/s
- Realtek RTL8111E integrated chipset
Technical specifications
- Host Interface: PCI Express
- Interface: Ethernet
- Maximum data transfer rate of 1000 Mbit/s.
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7 Pro, Windows 7 Pro x64, Windows 7, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 2000 Home Basic, Windows 10 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98SE, Windows CE, Windows ME, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home x64, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Supports Mac operating systems: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X. 10.9 Mavericks
- Product type
PCI card
- 10/100/1000 Mbps ports
2 x
- Height
63.6 mm
- Width
90 mm
- Interfaces
PCI-Express
- LAN transfer rate
1000 MBit/s
- Output voltage
3.3 V
- Transfer rate
10 / 100 / 1000 MBit/s
- No. of LAN ports
2 x
- No. of Gigabit LANs
2 x
- Transfer type
Corded
- Weight
300 g
- UKCA
yes
- Operating temperature (T-T)
0 - 60 °C
- Buffer size
48 KB
- Low-profile bracket
yes
- Jumbo frames
9000
- Internal
yes
- Wake-on-LAN ready
yes
- Jumbo frames support
yes
- Manual
yes
- Full duplex
yes
- Auto MDIX IEEE
yes
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796863 Exsys EXSYS EX-6072-3 PCIe 2x Gigabit Ethernet PCI card
User & Safety Instructions
User & Safety Instructions 3796863 Exsys EXSYS EX-6072-3 PCIe 2x Gigabit Ethernet PCI card
Description
The EX-6072-3 is a fast Dual Gigabit Ethernet card, developed for the PCI Express bus, which offers a faster data transfer than the PCI bus. The EX-6072-3 supports a data transfer rate of up to 1000Mbit per second for each connection and thus offers a higher speed advantage to the standard PCI network cards. Larger amounts of data can thus be transferred faster and more efficiently in the network. The EX-6072-3 supports half and full duplex as well as NWay auto-negotiation, in order to have the speed in the network (10/100/1000 Mbit/s.) automatically. The card is also equipped with Auto-MDI/MDI-X. Moreover, it offers a very far-reaching support of various operating systems. The card comes with a low-profile bracket for installation in a slim PC case.
- Supports 10/100/1000 Base-T Ethernet standard
- Supports Auto-MDI/MDI-X Auto (for crossover cable)
- Supports Jumbo frame up to 9Kbytes, pair swap/polarity/skew correction
- Wake-on-LAN and Remote Wake-up
- Supports full duplex flow control (IEEE 802.3x)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
- IEEE 802.1Q VLAN tagging, IEEE 802.1p layer 2 priority encoding
- 48KB Buffer Transmit/Receiver Chip
- Data transfer LED
This text is machine translated.
- Supports 10/100/1000 Base-T Ethernet standard
- Supports Auto-MDI/MDI-X Auto (for crossover cable)
- Supports Jumbo frame up to 9Kbytes, pair swap/polarity/skew correction
- Wake-on-LAN and Remote Wake-up
- Supports full duplex flow control (IEEE 802.3x)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
- IEEE 802.1Q VLAN tagging, IEEE 802.1p layer 2 priority encoding
- 48KB Buffer Transmit/Receiver Chip
- Data transfer LED
This text is machine translated.
Features
- Exsys EX-6072-3 - Network adapter - PCIe - Gigabit Ethernet x 2
- Device Type : Network adapters
- Form factor : Plug-in card - Low profile
- Interface type (bus type) : PCI Express x1
- Ports : Gigabit Ethernet x 2
- Dimensions (width x depth x height): 9 cm x 6.36 cm
- Weight: 300 g
- Wiring type : Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol : 10Mb LAN, 100Mb LAN, GigE
- Data transfer rate : 1 Gbps
- Processor : 1 x Realtek Semiconductor RTL8111E
- Product certifications : IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- System Requirements : UNIX, Novell NetWare, Linux, Apple MacOS X, Windows 10 (32/64 bits), Microsoft Windows 98SE/2000/ME/XP/Vista/7/8
Scope of delivery
- EX-6072-3, low profile bracket, driver CD, manual
