Exsys EXSYS GmbH 10-Port USB 3.2 Gen 2x1 Metall HUB, 4x USB-C + 6x USB-A (EX-12280HMS) USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)

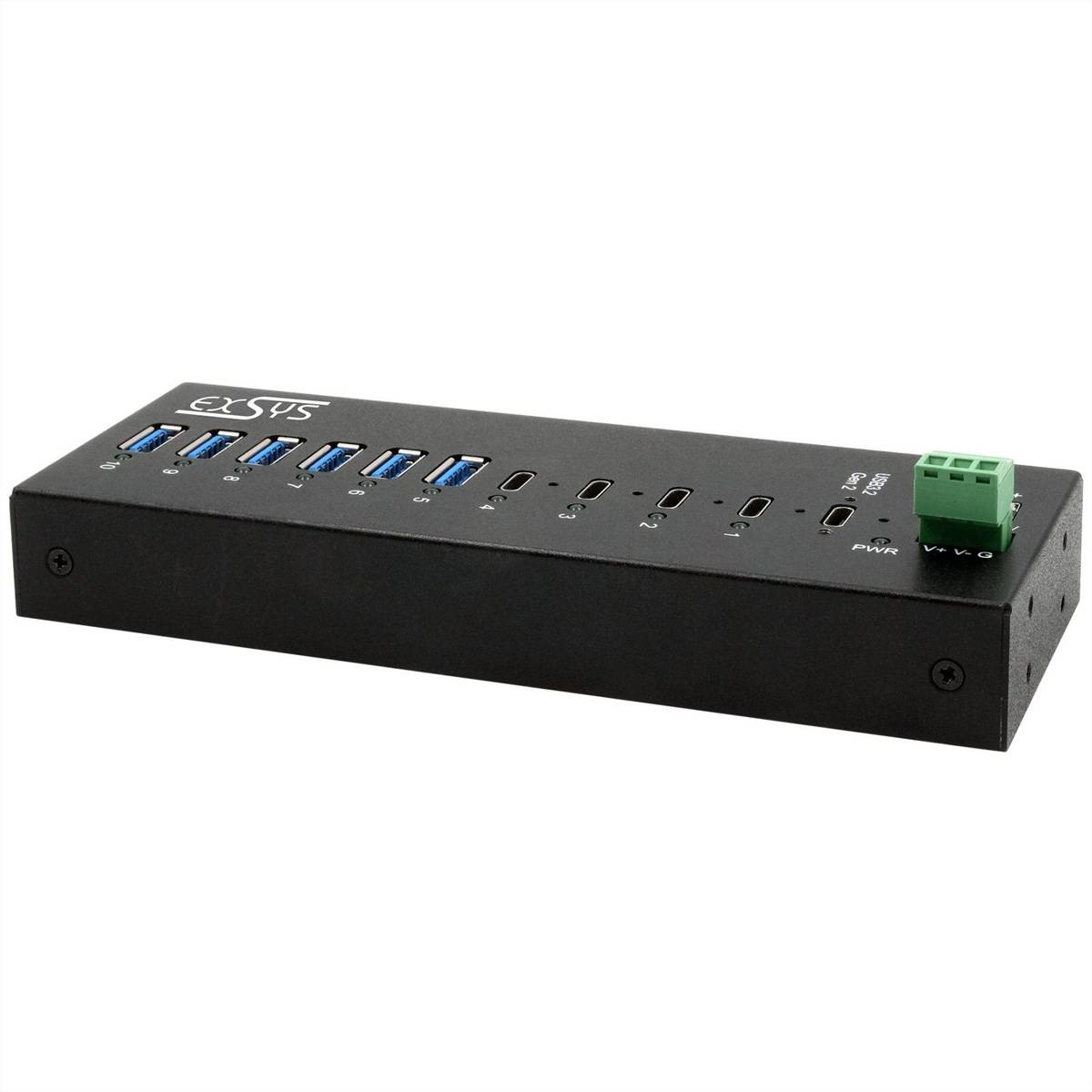

Robust, industrial-grade metal hub for table, wall and DIN rail mounting...
Highlights & Details
- USB 3.2 metal HUB with 4x USB-C Gen 2x1 and 6x USB A
- 15KV ESD surge protection for each output
- Up to 2.4A per port
- Automatic detection of the data transfer rate
- Metal casing for wall or rack mounting
Technical specifications
- Product group: Industrial Networking
- Product type USB Hub
- Colour, black
- Connections: 1x C-socket upstream 4x C-sockets and 6x A-sockets downstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 10
- Range of application: External
- Material (casing): Metal
- Power supply required: Yes
- Power supply included in delivery: No.
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Min. Storage temperature: -20 °C
- Storage temperature max. 85 °C.
- Height: 23 mm
- Width 160 mm
- Depth: 60 mm
- Weight: 302 g
- Packaging height 80 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,484 kg
- Gross weight: 0.484
- Product type
USB hub
- No. of outputs
10 x
- Interfaces (output)
USB C®
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.484
- Width
160 mm
- Height
23 mm
- Depth
60 mm
- Cable length
0 mm
- Version
Cable
- Type A
USB
- Type B
USB
- Cable use
USB 3.2 2nd Gen (USB 3.1 2nd Gen)
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Connection type
USB 3.2 Gen 2 (USB 3.1)
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797006 Exsys EXSYS GmbH 10-Port USB 3.2 Gen 2x1 Metall HUB, 4x USB-C + 6x USB-A (EX-12280HMS) USB hub Black
User & Safety Instructions
User & Safety Instructions 3797006 Exsys EXSYS GmbH 10-Port USB 3.2 Gen 2x1 Metall HUB, 4x USB-C + 6x USB-A (EX-12280HMS) USB hub Black
Description

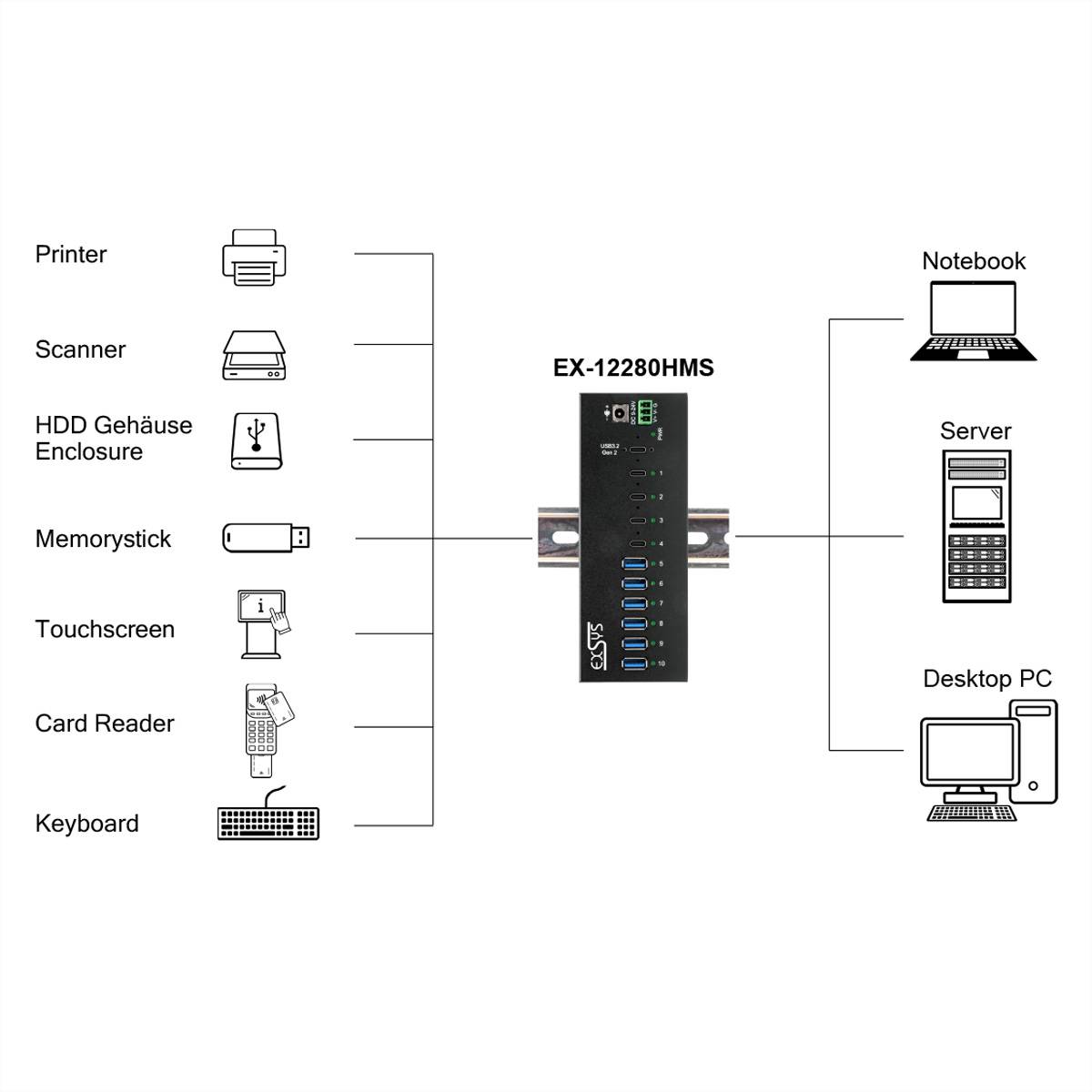

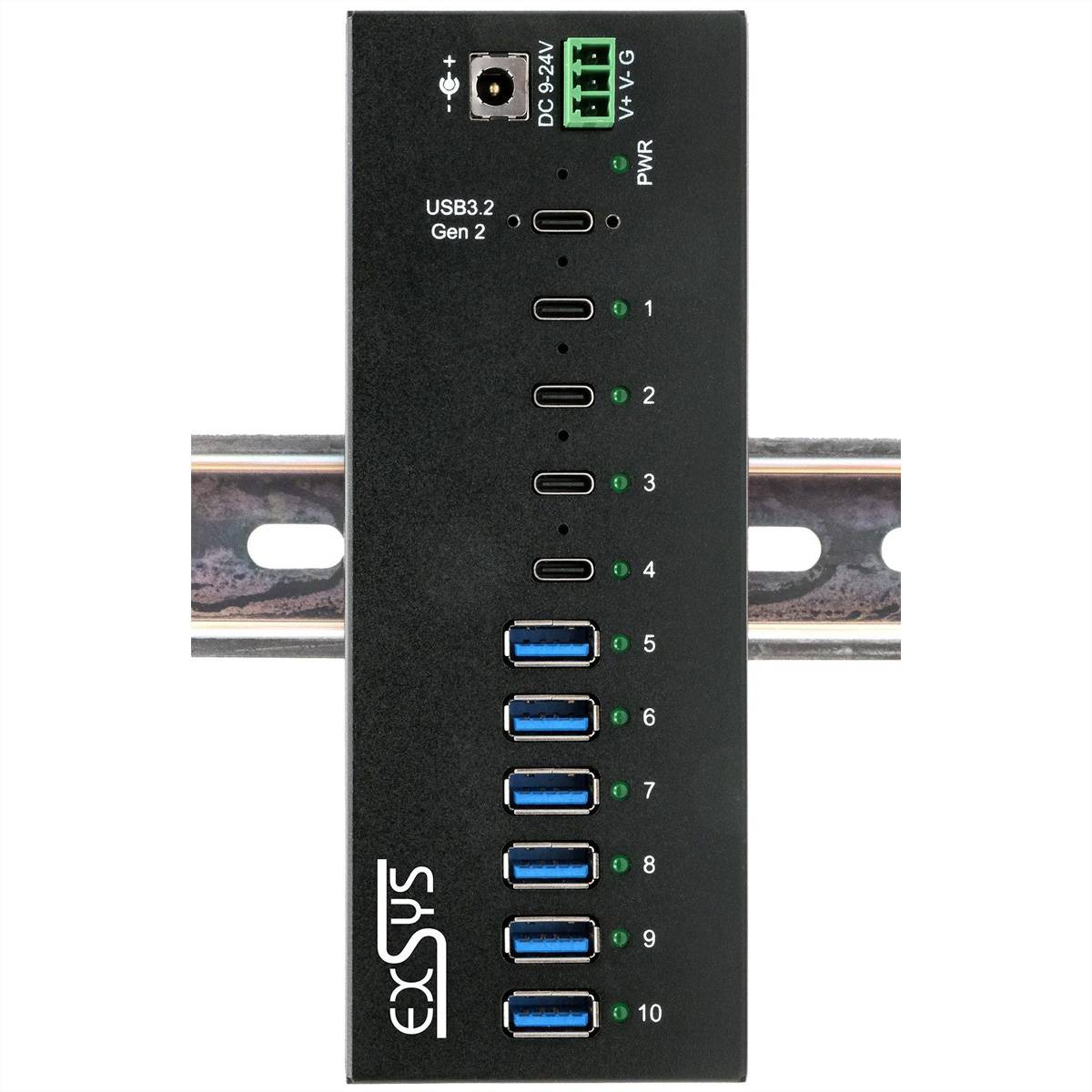

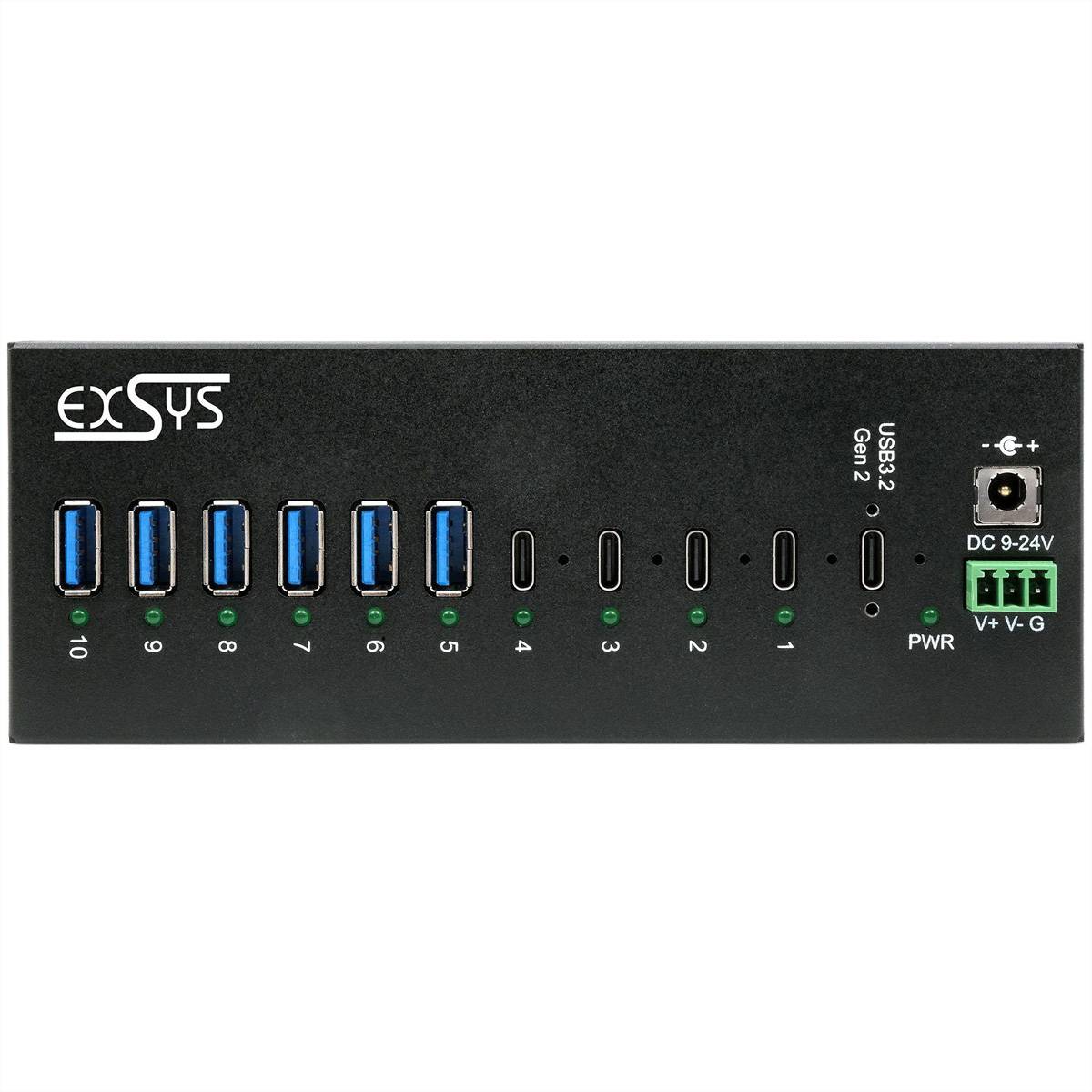

Robust, industrial-grade metal hub for table, wall and DIN-rail mounting The robust, industry-compatible EX-12280HMS is a USB 3.2 Gen 2x1 metal hub for up to ten devices that can be mounted on the wall or on a DIN rail. All connections are mounted on the top and thus offer a high flexibility e.g. for mounting in a housing or a cabinet. It connects to the host PC via a USB-C cable and has four USB-C 3.2 Gen 2x1 ports and six USB-A 3.2 Gen 1 ports for devices. The USB-C ports offer a performance of up to 10 Gbit/s, while the data transfer at the USB-A ports is up to 5 Gbit/s. A maximum power output of 64 W and up to 2.4 A per port can be made available via an external power supply. This allows the iPhone, iPad, smartphone and tablet to be easily charged. A DC-socket (5.5 mm/2.1 mm) for a plug power supply and a terminal Block for connecting a DIN-rail power supply are available for supplying power
This text is machine translated.
Scope of delivery

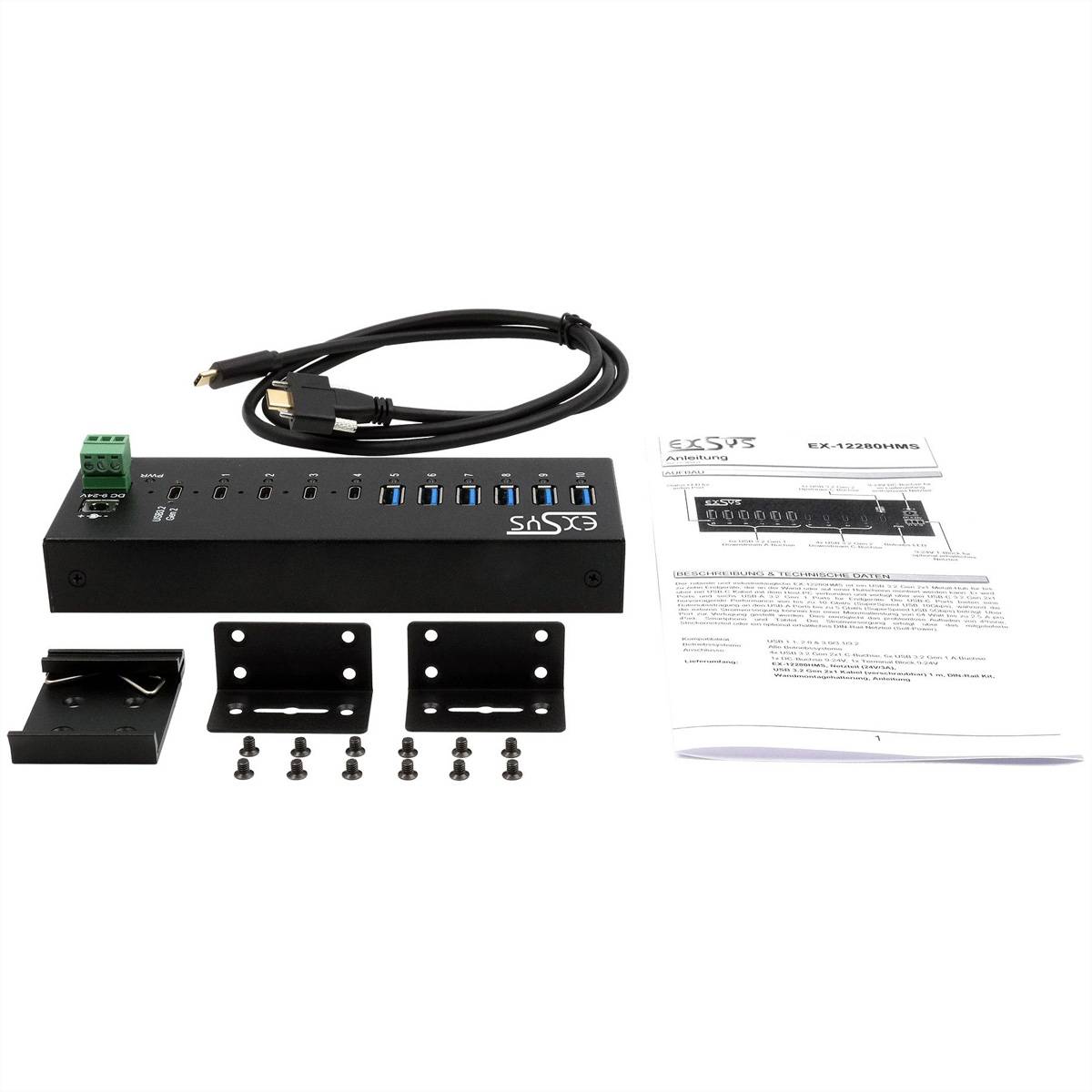

- EX-12280HMS, USB 3.2 Gen cable 2x1 screw-in 1m, DIN rail kit, wall mounting kit, manual
