Exsys EXSYS - USB 2.0 Hub 4-Port extern Din-Rail Kit USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)

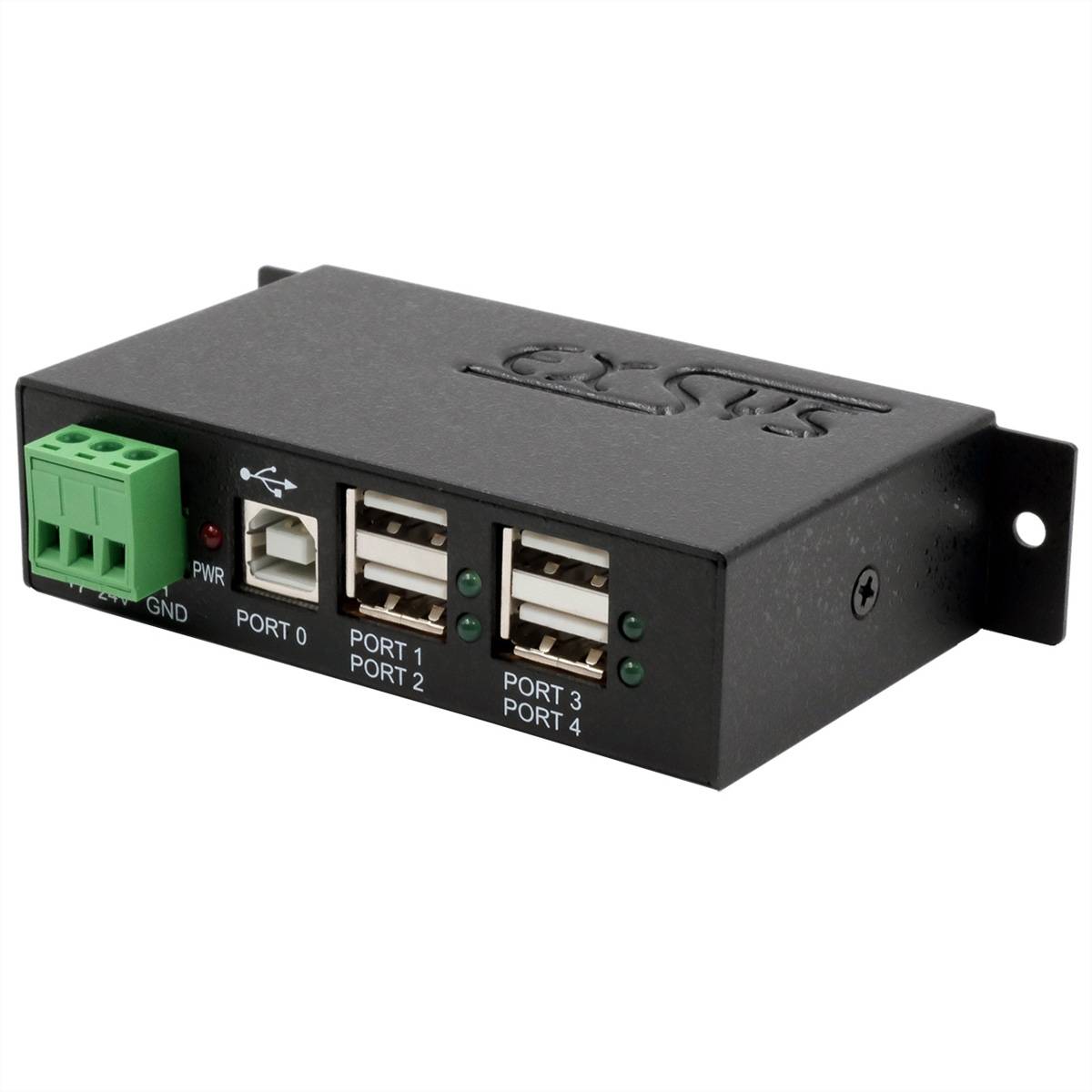

EX-1163HMS - USB 2.0 metal HUB with 4 ports, including DIN-RAIL kit with 15KV ESD surge protection...
Highlights & Details
- USB 2.0 metal HUB with four downstream
- +7V to +24V DC power supply via terminal Block
- Compact industrial design
- Individual configuration of the current output
- 500mA current on all 4 ports
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connection 1x USB type B
- Connections devices: 4x USB type A
- Transmission quality USB 2.0 hi-speed 480 Mbit/s
- Page 1 Type of connector: USB 2.0 Type A.
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB 2.0 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Dimensions (HxWxD) 114.5 x 73 x 26.3 mm
- Power supply required: No.
- Technical features: Robust metal housing
- Mains connection: Loose cables / screw terminals
- Height: 114.5 mm
- Width 73 mm
- Depth: 26.3 mm
- Weight: 0.2 kg
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,399 kg
- Gross weight: 0.399
- Product type
USB hub
- Factory colour
Black
- Weight
0.399
- Cable length
0 m
- Version
Cable
- Keyboard layout
German, QWERTZ
- Cable use
USB
- Cable features
Metal foil shield
- Connection type
USB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796987 Exsys EXSYS - USB 2.0 Hub 4-Port extern Din-Rail Kit USB hub Black
User & Safety Instructions
User & Safety Instructions 3796987 Exsys EXSYS - USB 2.0 Hub 4-Port extern Din-Rail Kit USB hub Black
Description

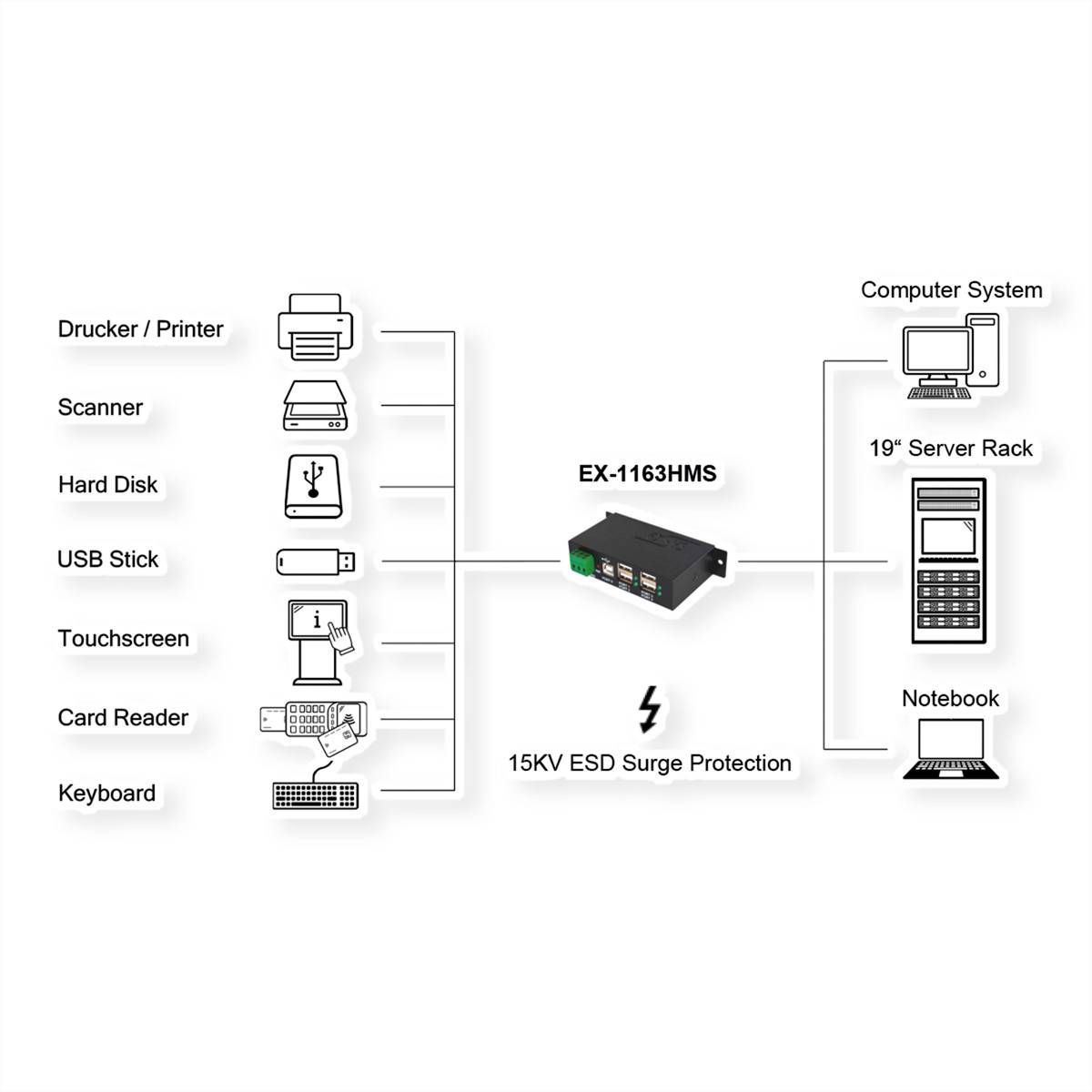

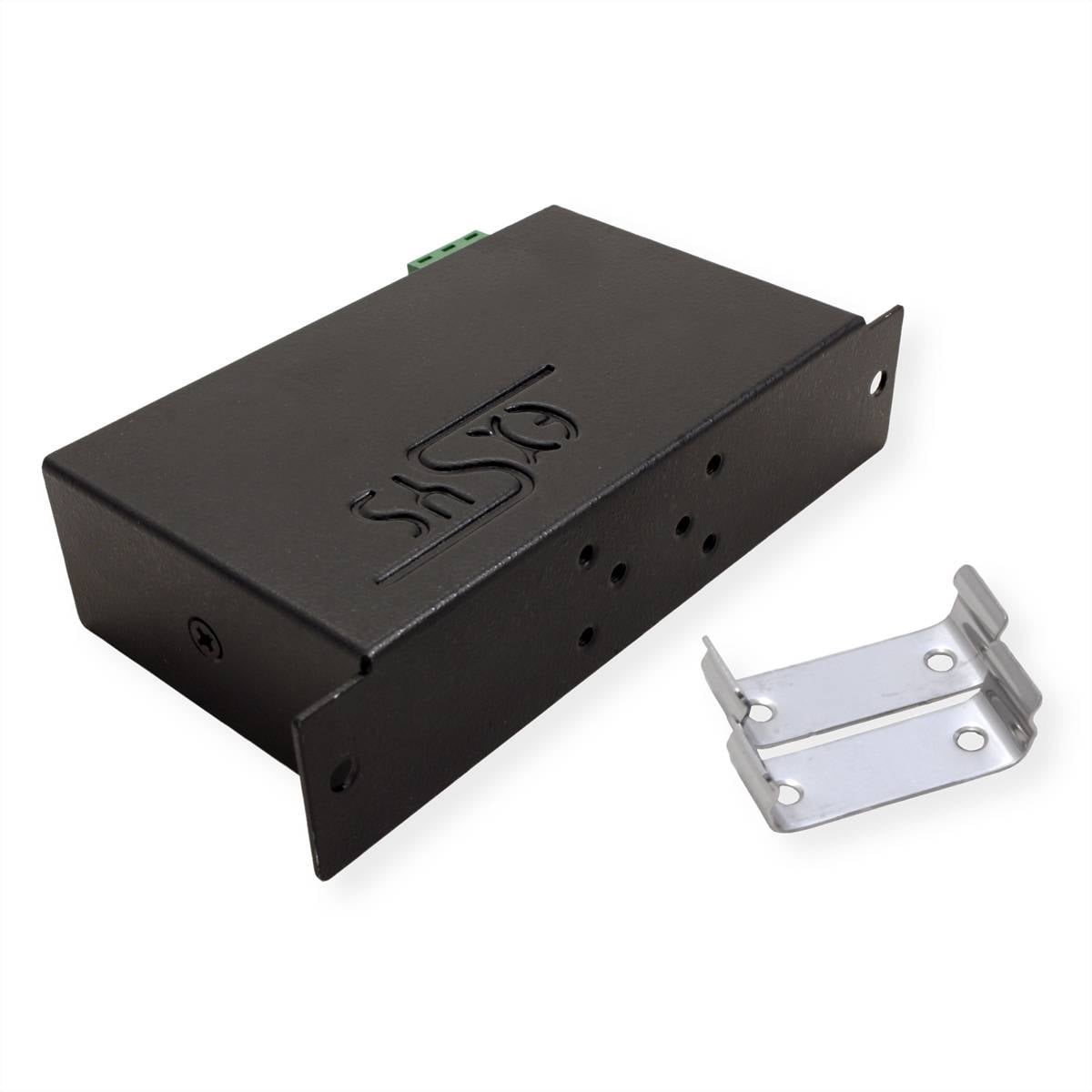

EX-1163HMS - USB 2.0 metal HUB with 4 ports, including DIN-RAIL kit with 15KV ESD surge protection The industry-compatible EX-1163HMS USB hub with four USB 2.0 outputs can be installed on the wall or on a carrier rail. It is connected to a computer or server with the provided USB 2.0 cable. It has a 15 KV ESD surge protection for all four USB 2.0 downstream ports. The power is supplied either via USB (bus-Power) or the 3-pin terminal strip connection (7-24 VDC). . With two internal jumpers the current output at the downstream ports can be configured individually according to your needs. The EX-1163HMS meets the special requirements of industrial applications and is very compact and robust.
This text is machine translated.

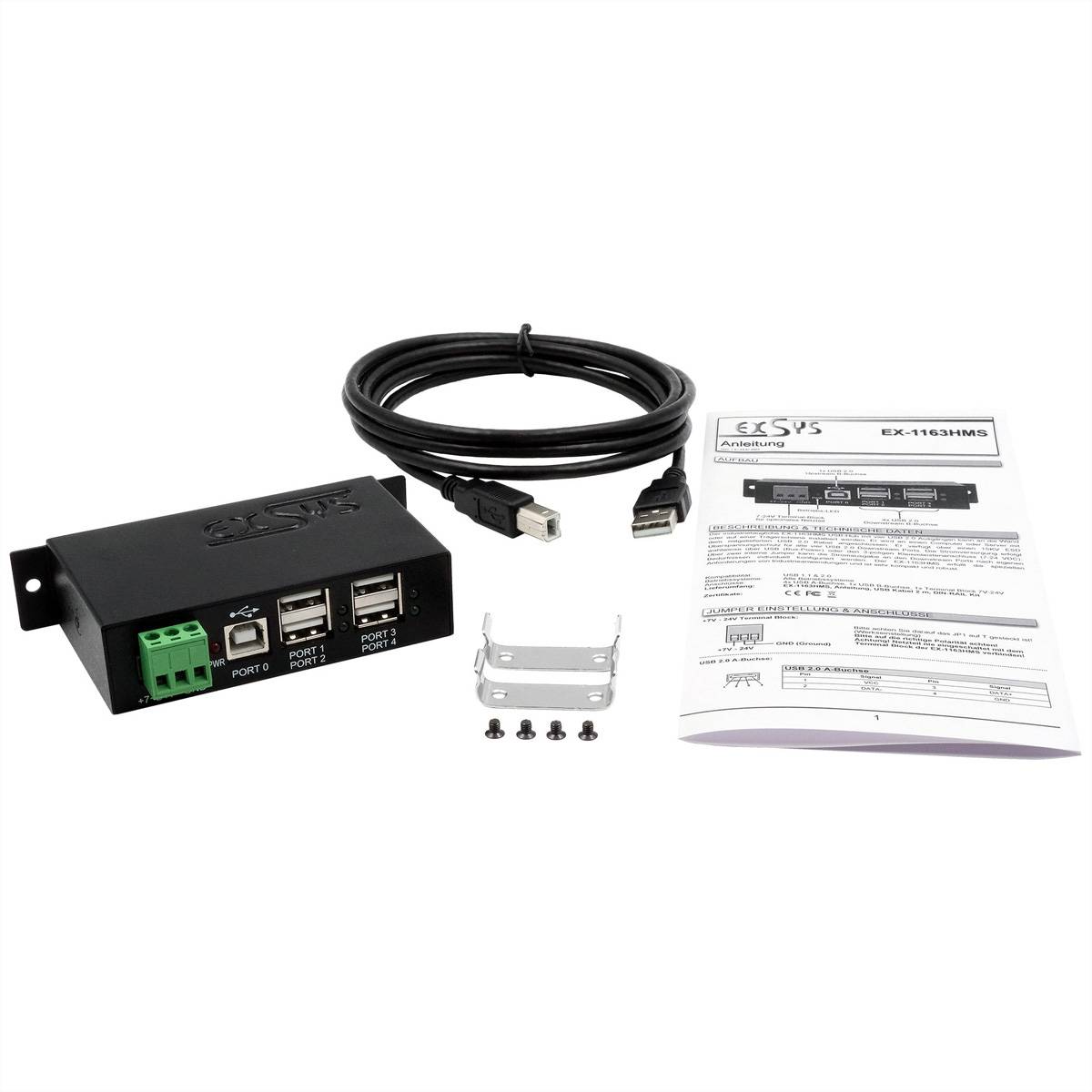

Scope of delivery
- EX-1163HMS, USB 2.0 cable 2.0 m, DIN rail kit, manual
