Exsys EXSYS - USB 2.0 HubÜberspannungsch. 15KV ESDÜberspannungss. inkl USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
USB 2.0 metal HUB with 10 ports, DIN-rail and 15KV ESD surge protection for up to 10 devices...
Highlights & Details
- USB 2.0 METAL HUB with 10 Ports
- 15KV ESD surge protection for all ports
- Protection of the terminals against voltage fluctuations
- Easy to set up
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connection 1x USB type B
- Connections devices: 10x USB type A 1x +5V-24V terminal Block & DC-socket
- Transmission quality USB 2.0 hi-speed 480 Mbit/s
- Page 1 Type of connector: USB 2.0 Type A.
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB 2.0 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 10
- Range of application: External
- Material (casing): Metal
- Dimensions (HxWxD) 198.00 x 55.00 x 39.98 mm
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 198 mm
- Width 55 mm
- Depth: 39.98 mm
- Weight: 607 g.
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0.56 kg
- Gross weight: 0.56
- Product type
USB hub
- Factory colour
Black
- Weight
0.56
- Cable length
0 m
- Version
Cable
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796974 Exsys EXSYS - USB 2.0 HubÜberspannungsch. 15KV ESDÜberspannungss. inkl USB hub Black
User & Safety Instructions
User & Safety Instructions 3796974 Exsys EXSYS - USB 2.0 HubÜberspannungsch. 15KV ESDÜberspannungss. inkl USB hub Black
Description

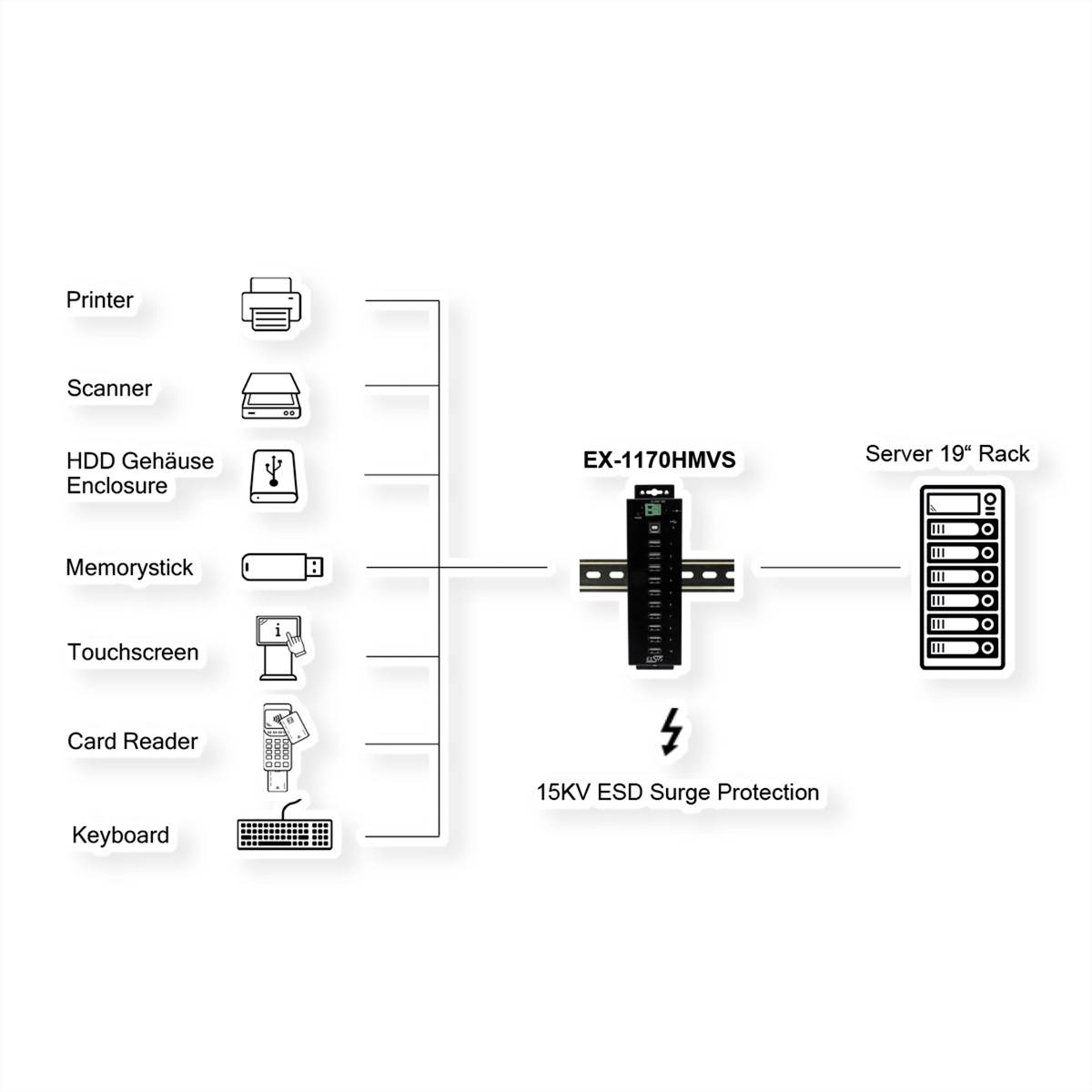

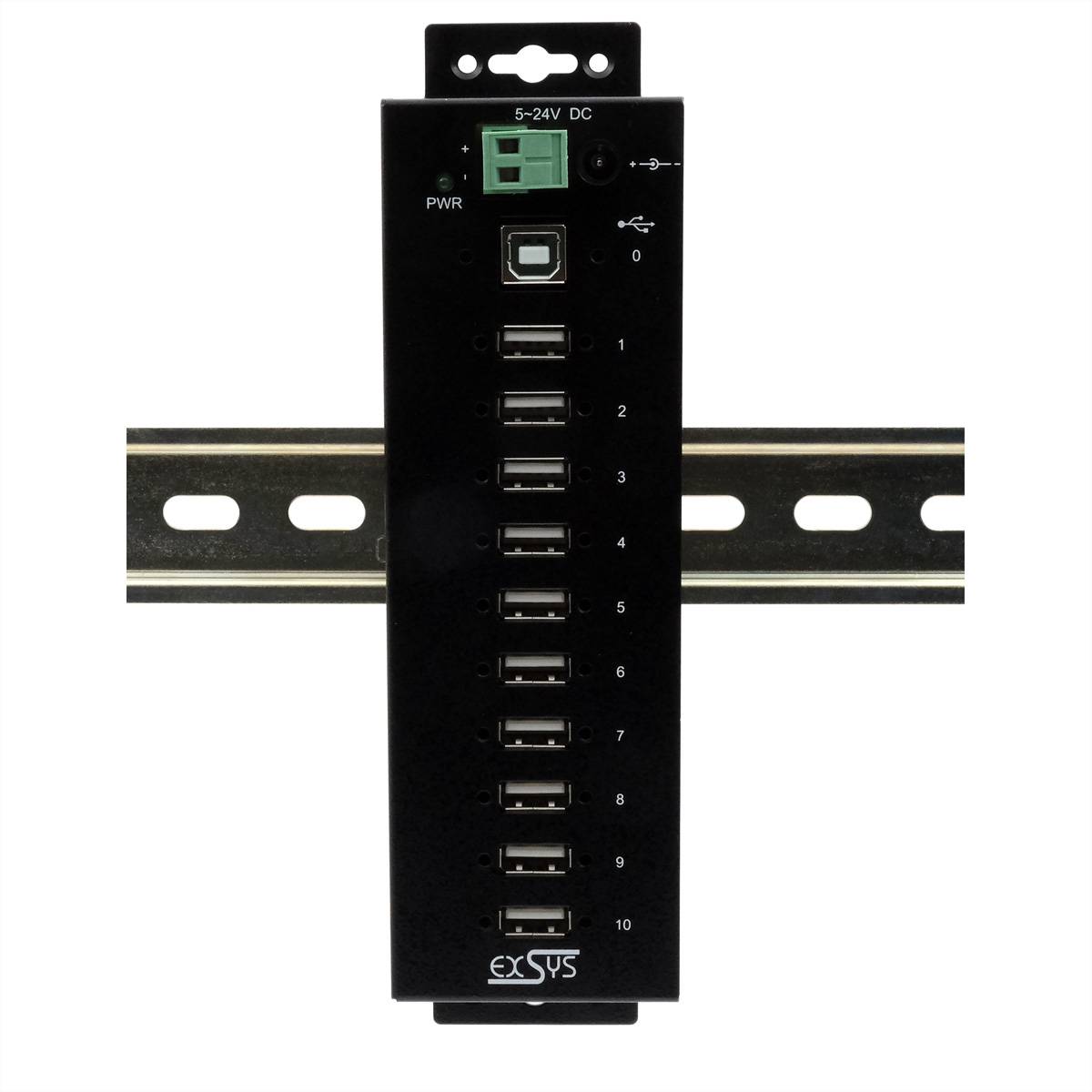

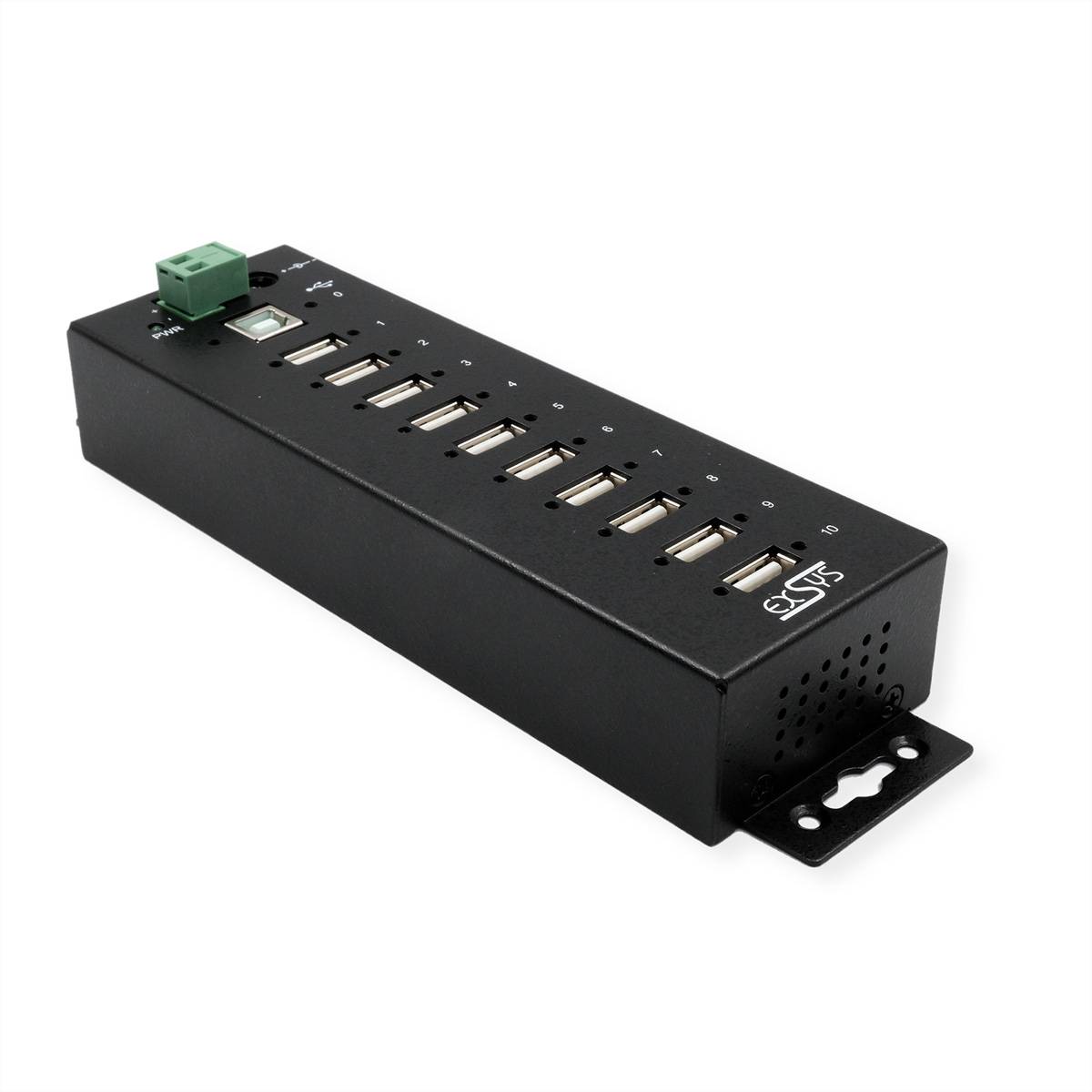

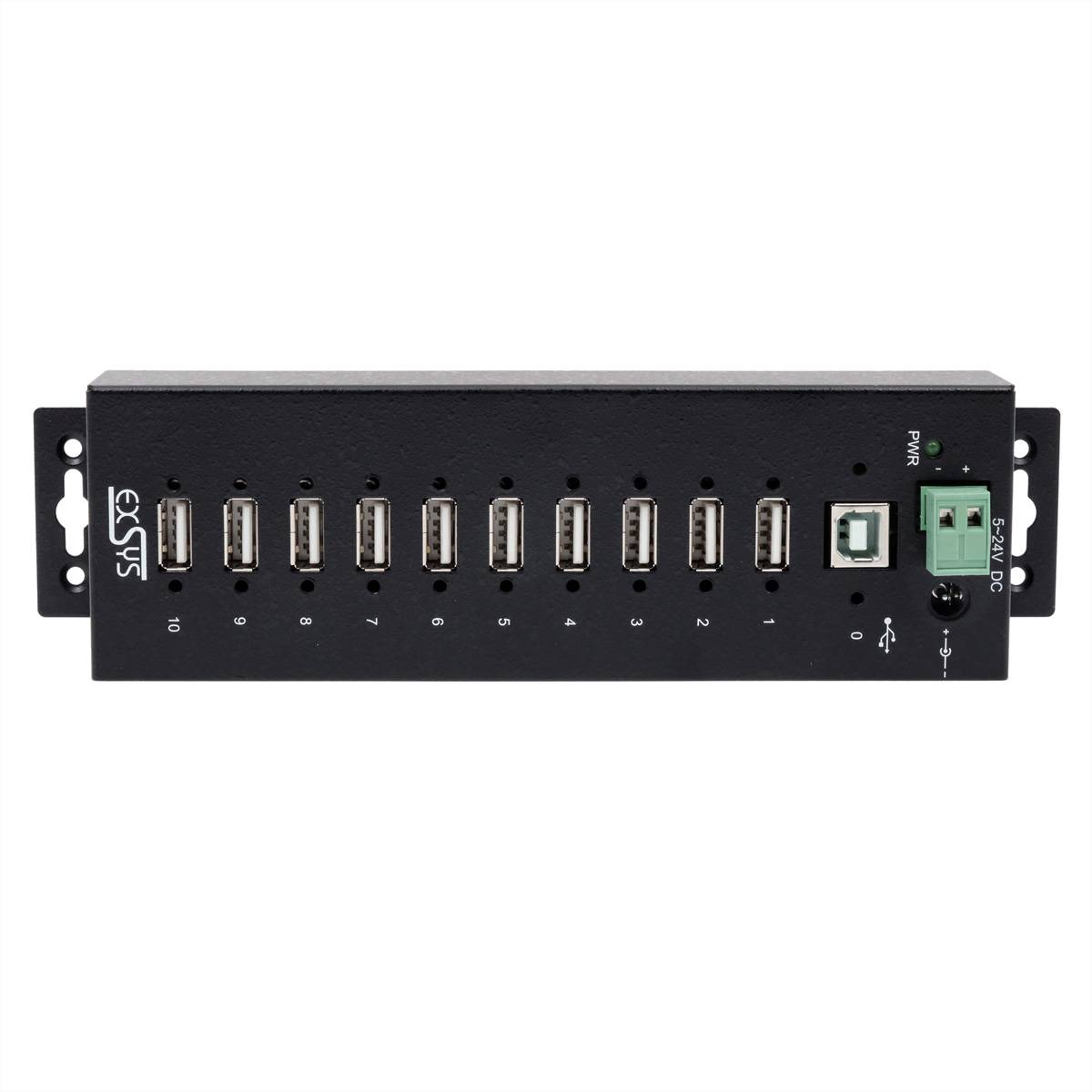

USB 2.0 metal HUB with 10 ports, DIN-Rail and 15KV ESD surge protection for up to 10 devices The robust and industry-compatible EX-1170HMVS is a USB 2.0 metal hub for up to ten devices. The hub provides ten USB 2.0 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to ten external USB peripheral devices to a USB 2.0 port of the computer in a 19" rack. . Through the power supply via the two-wire terminal strip connection or the DC jack, 500mA can be supplied to each USB port. The hi-speed USB 2.0 data transfer rate of up to 480Mbit/s is supported and is backward-compatible to USB 1.1. The EX-1170HMVS can be supplied with power via USB-bus Power, via a two-wire terminal strip connection or via a DC-socket (+5V to 24V). The HUB meets the special requirements of industrial applications.
This text is machine translated.
Scope of delivery

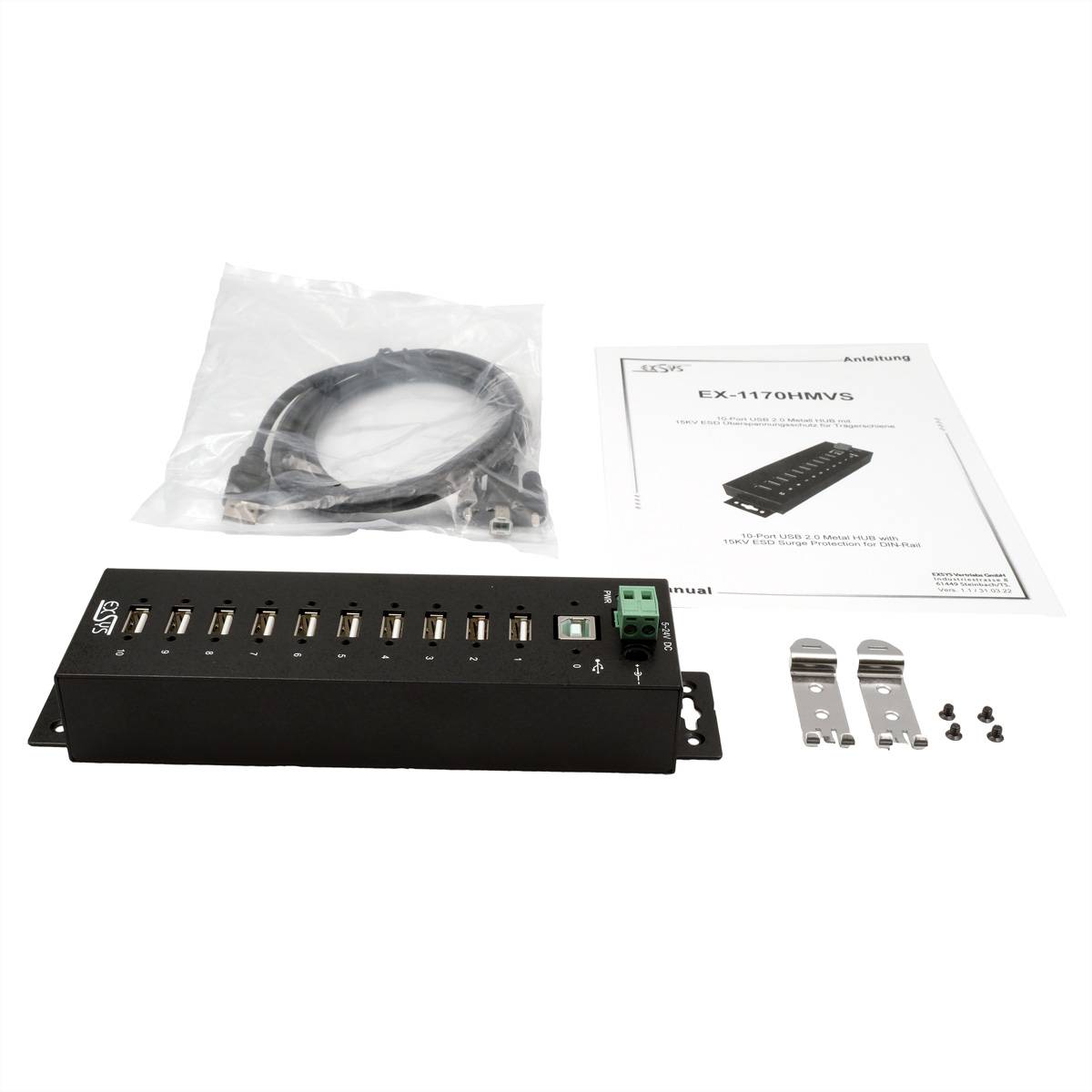

- EX-1170HMVS, USB 2.0 cable, DIN rail kit, manual
