Exsys EXSYS - USB 3.1 HUB Metall-Gehäuse Gen1.15KVÜberspannungsschutz USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
USB 3.2 Gen 1 HUB with one USB-C PD and three USB-A ports...
- USB 3.2 1st Gen 1 HUB with one USB-C PD and three USB-A ports
- 15KV ESD surge protection for each port
- PD Source with max. 60 W charging power
- For all USB 1.1 to 3.2 compatible peripherals
- Metal casing for wall or rack mounting
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections 1x USB 3.2 1st Gen 1 PD Upstream C-socket
- Connections: USB 3.2 1st Gen 1 PD Downstream C-socket, 3x USB 3.2 Gen 1 Downstream A-socket
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Dimensions (HxWxD) 178.6 x 59.2 x 23.2 mm
- Power supply required: Partially
- Power supply included: Yes
- Power supply: 20V/3.25A
- Technical features: Robust metal housing
- Power connection: Power plug, type C
- Height: 178.6 mm
- Width 59.2 mm
- Depth: 23.2 mm
- Weight: 0.88 kg
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0.87 kg
- Gross weight: 0.87
- Product type
USB hub
- Factory colour
Black
- Weight
0.87
- Cable length
0 m
- Version
Cable
- Type A
USB-C® socket
- Keyboard layout
German, QWERTZ
- Cable use
USB
- Connection type
USB-C®
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797007 Exsys EXSYS - USB 3.1 HUB Metall-Gehäuse Gen1.15KVÜberspannungsschutz USB hub Black
User & Safety Instructions
User & Safety Instructions 3797007 Exsys EXSYS - USB 3.1 HUB Metall-Gehäuse Gen1.15KVÜberspannungsschutz USB hub Black
Description

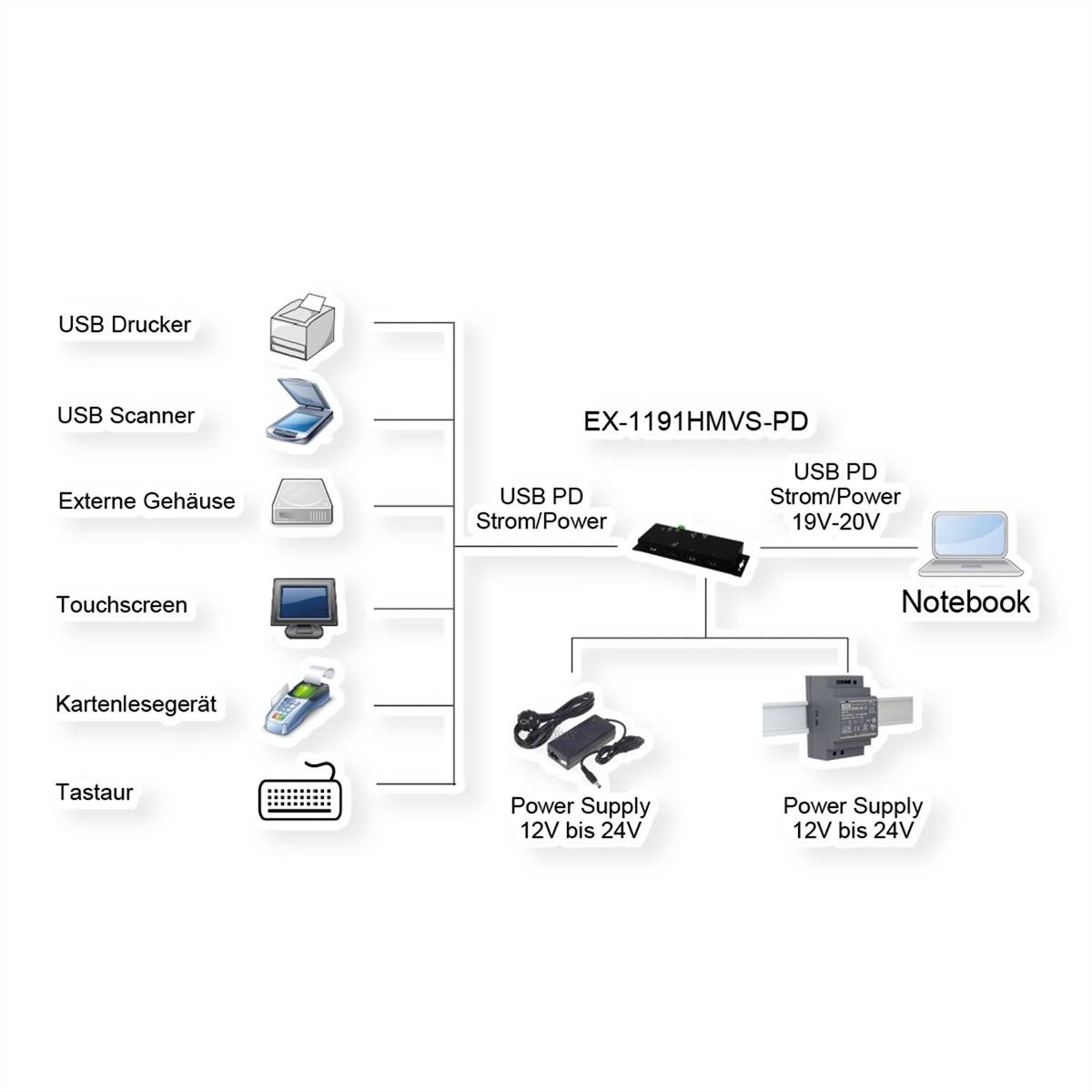

USB 3.2 Gen 1 HUB with one USB-C PD and three USB-A ports The EX-1191HMVS-PD is a USB 3.2 Gen 1 Metal HUB with USB-C PD (Power Delivery) support. Up to 60 W charging power for the host notebook or tablet is available at the rear USB-C port (PD source). . Your peripheral devices can be connected to the USB-C downstream port on the front and charged. Host and device requires only one power supply from the EX-1191HMVS-PD. The three A- and the USB-C downstream port are protected against overvoltage with 15KV each. The EX-1191HMVS-PD supports +12V to +24V power supply via a terminal Block. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
This text is machine translated.
Scope of delivery

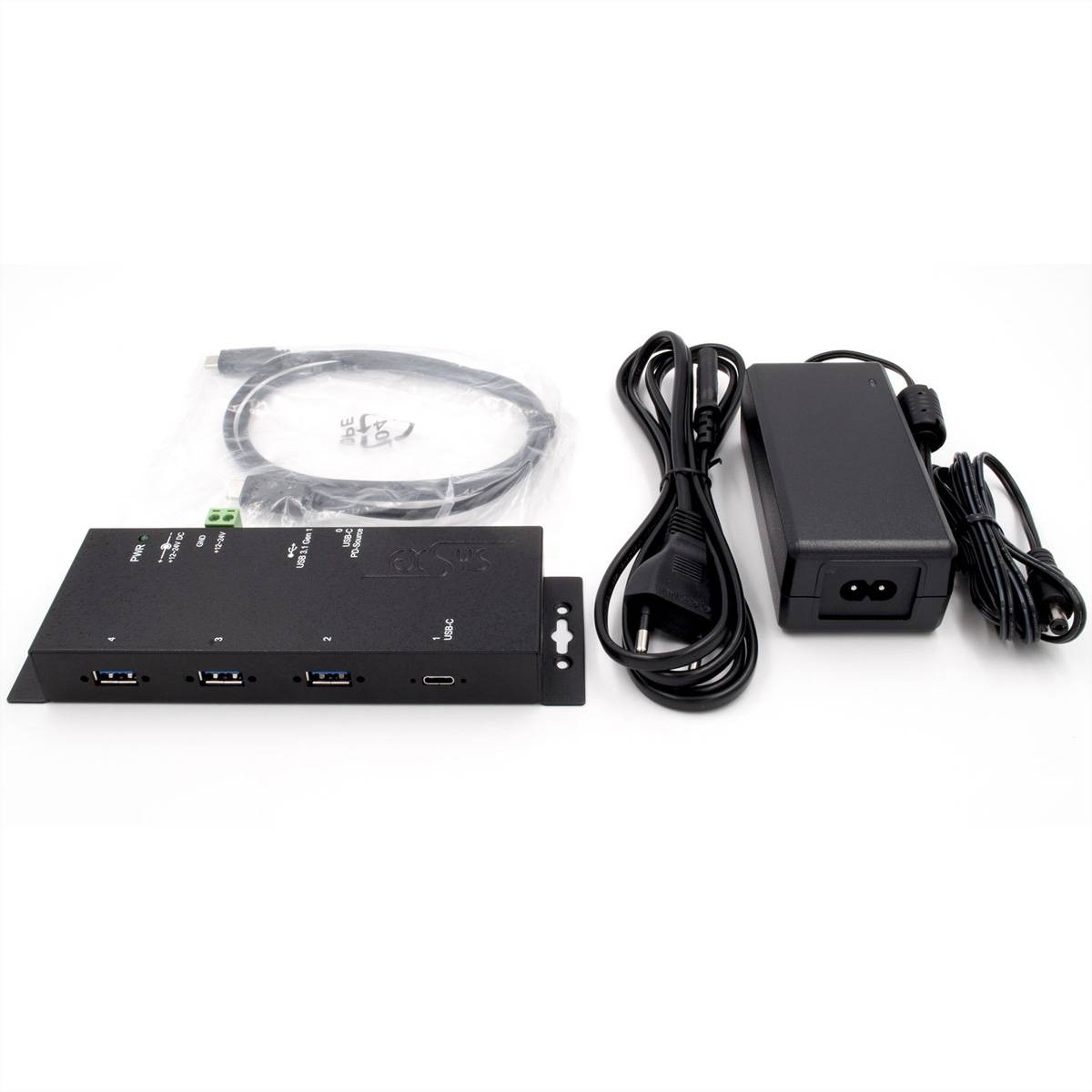

- EX-1191HMVS-PD, USB-C 3.2 Gen 1 Cable 1 m, Power Supply 20V/3.25A, Manual
