Exsys EXSYS - USB 3.2 Gen 1 Hub 4-Port extern managed inkl.Kabel - Kabel USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

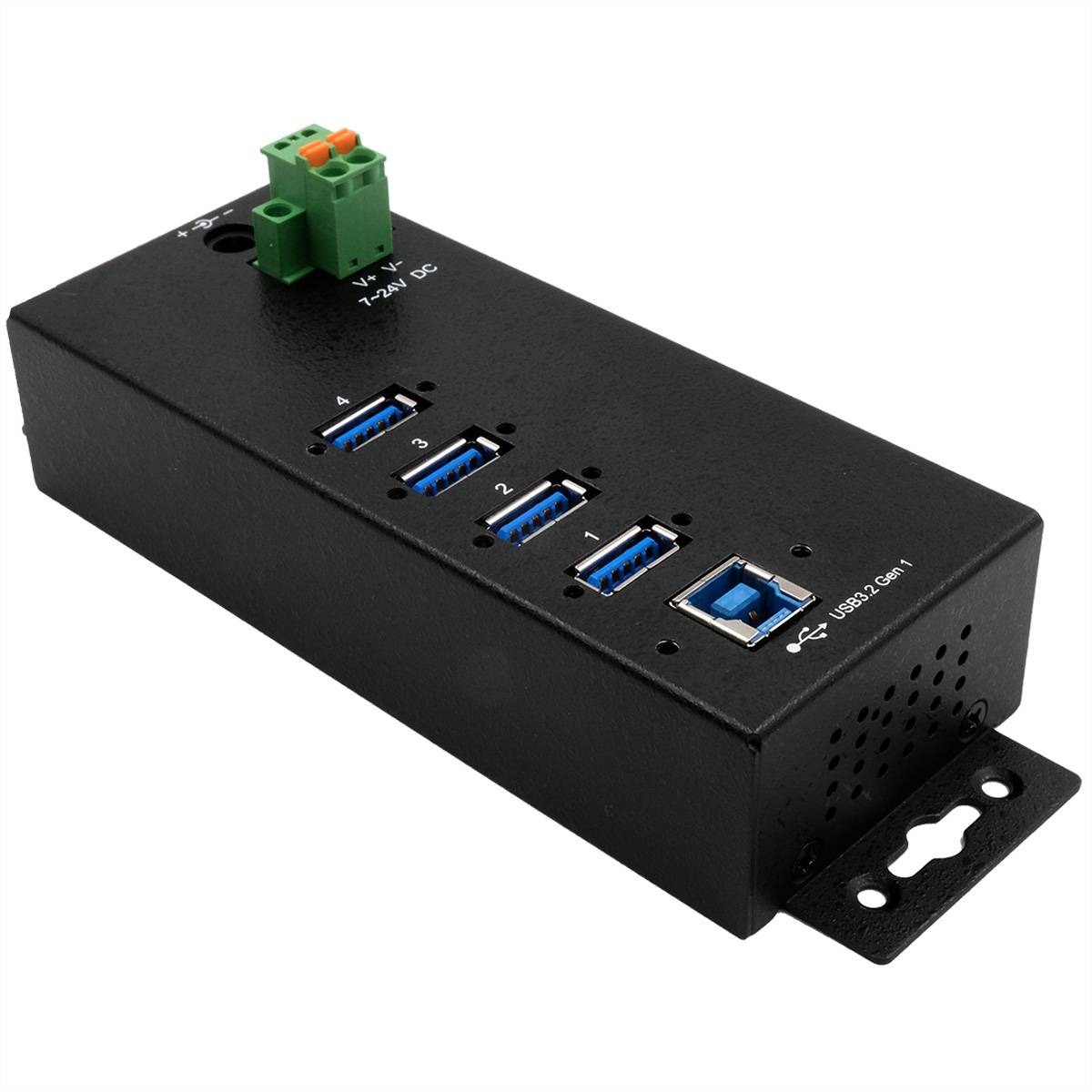

Metal HUB with 3.0A current simultaneously on 4 ports (DIN rail)...

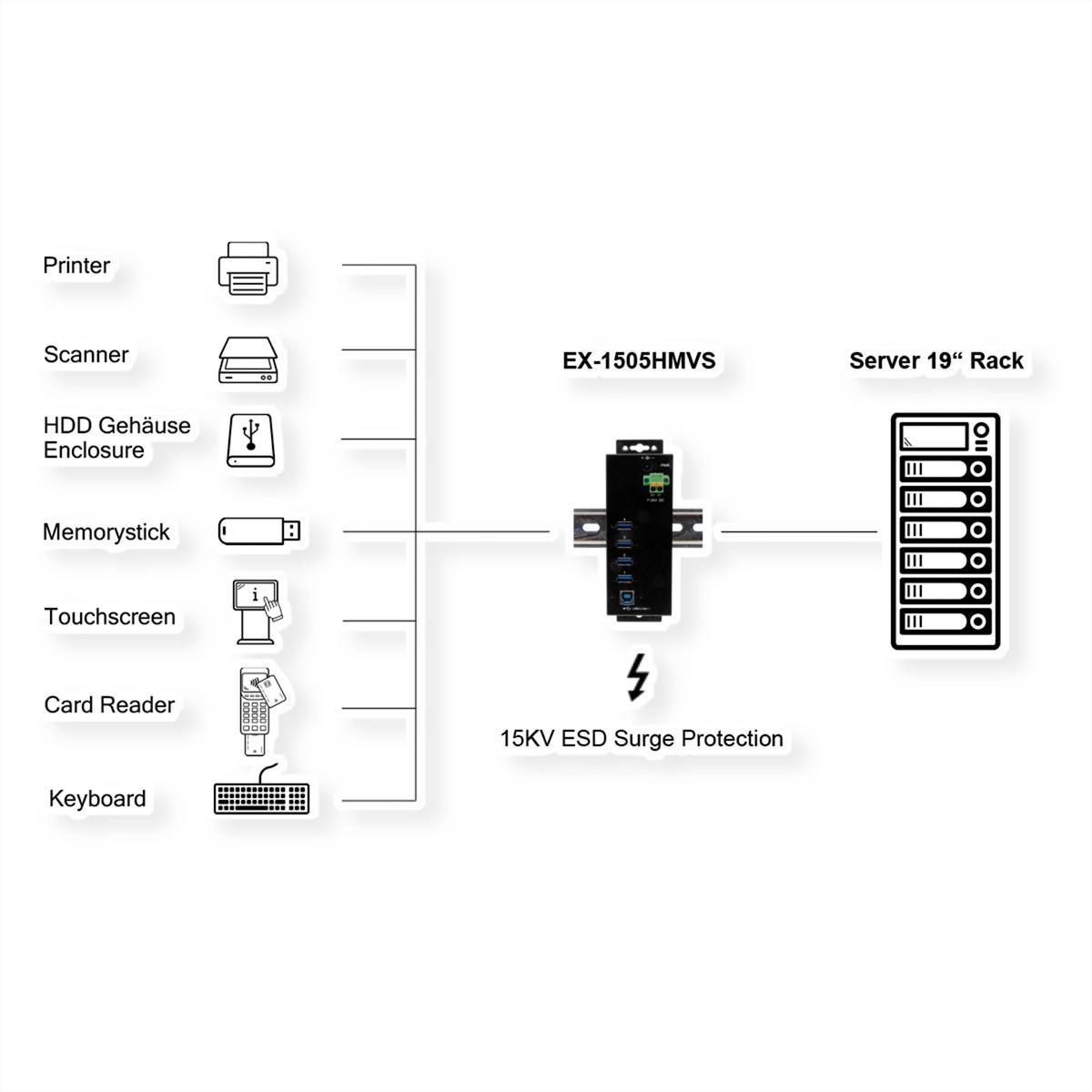

- Connections for up to four USB peripheral devices
- 15KV ESD surge protection for all 4 ports
- Automatic detection of input polarity
- Compact industrial design
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections 1x USB 3.2 1st Gen 1 upstream B socket
- Connections devices: 4x USB 3.2 Gen 1 downstream A socket
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB 3 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Power supply included in delivery: No.
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 163.2 mm
- Width 54.8 mm
- Depth: 30.8 mm
- Weight: 588 g.
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0.53 kg
- Gross weight: 0.53
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.53
- Width
54.8 mm
- Height
163.2 mm
- Depth
30.8 mm
- Cable length
0 mm
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797013 Exsys EXSYS - USB 3.2 Gen 1 Hub 4-Port extern managed inkl.Kabel - Kabel USB hub Black
User & Safety Instructions
User & Safety Instructions 3797013 Exsys EXSYS - USB 3.2 Gen 1 Hub 4-Port extern managed inkl.Kabel - Kabel USB hub Black
Description

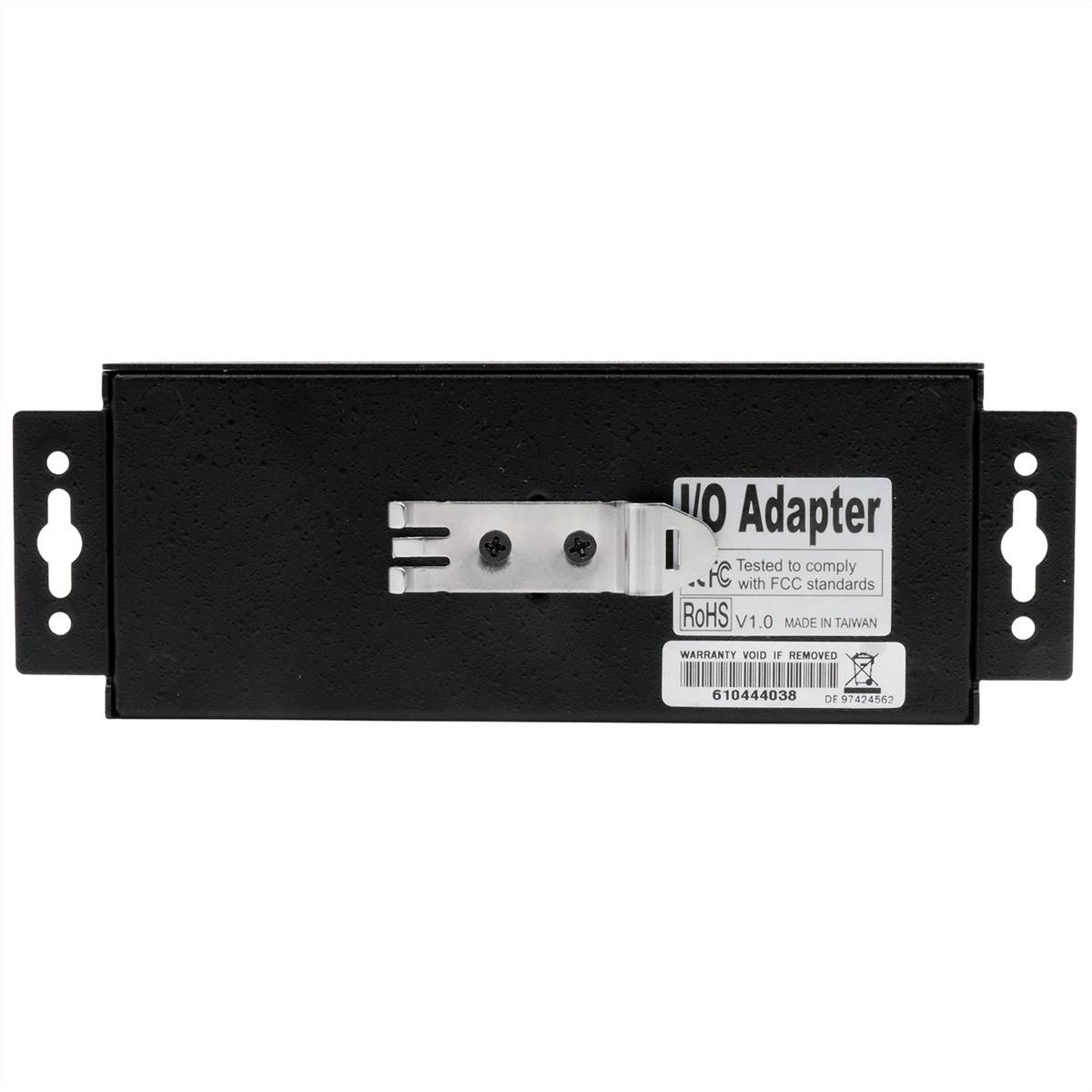

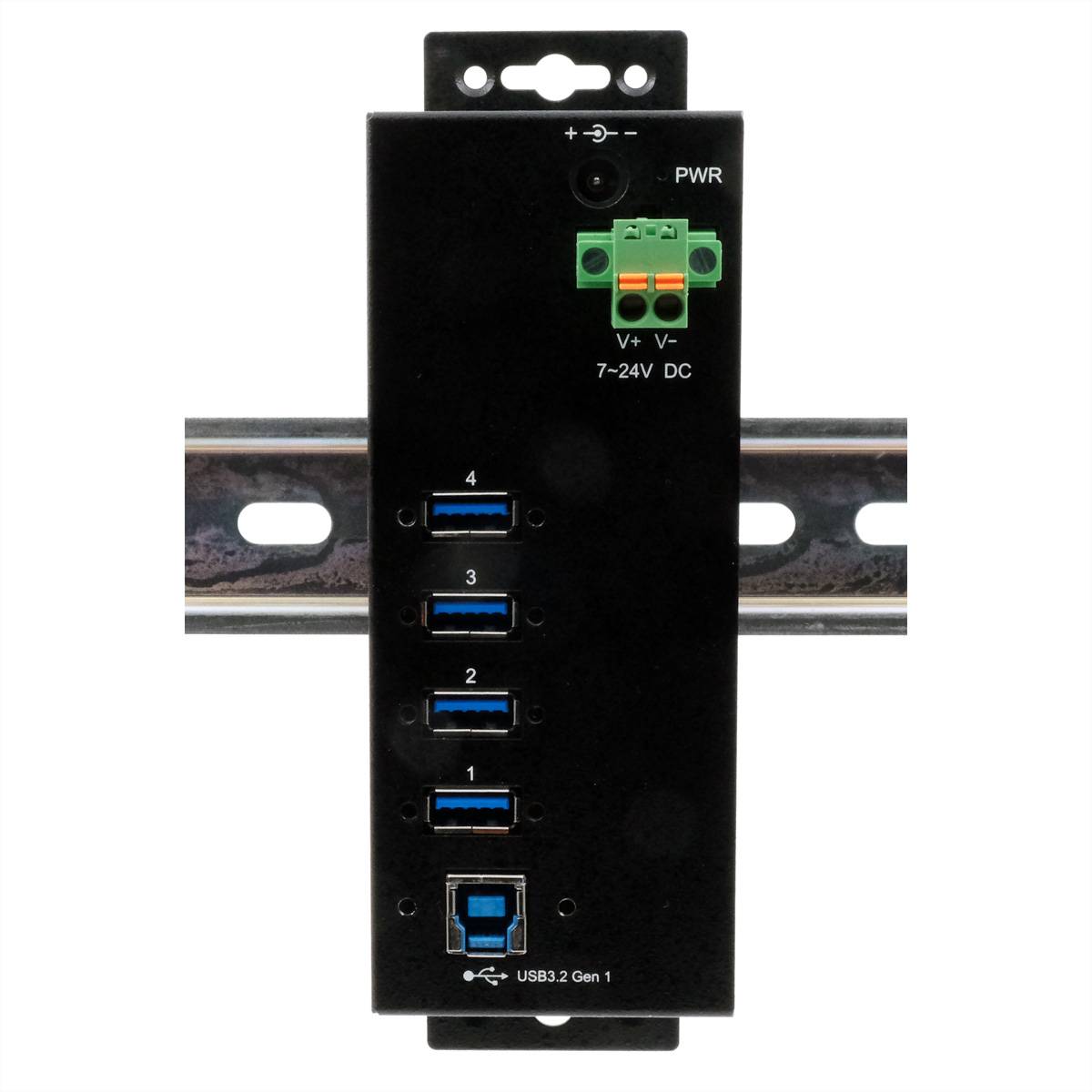

Metal HUB with 3.0A power simultaneously at 4 ports (DIN-rail) The robust, industry-compatible EX-1505HMVS Managed Metal Hub provides four screw-able USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. . It supports SuperSpeed USB 3.2 Gen 1 data transfer rates of up to 5 Gbit/s and is downwards compatible up to USB 1.1. The provided USB 3.2 Gen 1 cable can be attached to the EX-1505HMVS with knurled screws without using a screwdriver. . The EX-1505HMVS only supports self-powered mode and therefore it is absolutely necessary to supply power to the HUB via the DC socket (+7V to +24V) or via the two-wire terminal strip connection (+7V to +24V). . . The EX-1505HMVS has been developed to provide comprehensive and unique functions for industrial applications. . The EX-1505HMVS supports 3A current at each output simultaneously and the USB battery charging specification V1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4A and Samsung.
This text is machine translated.

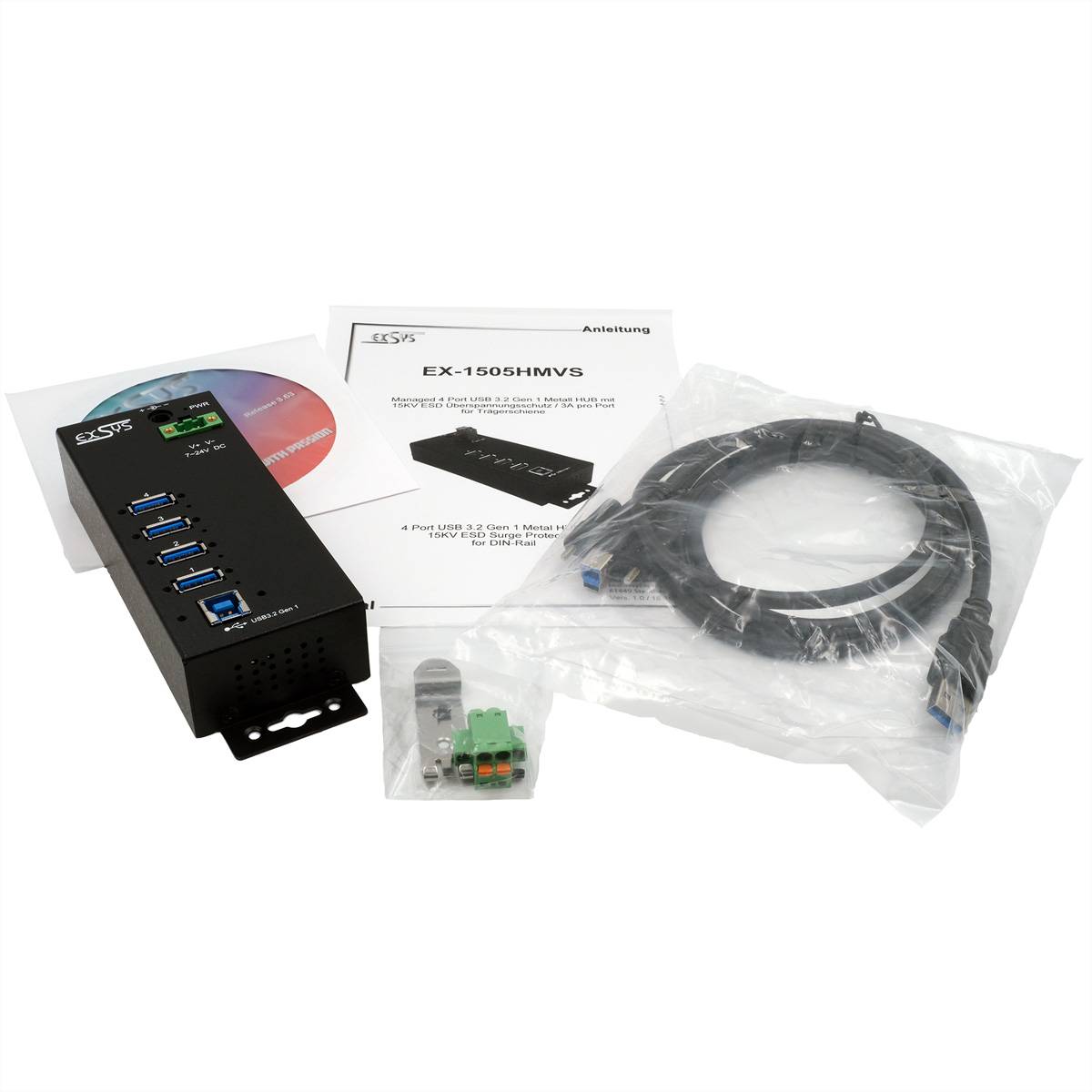

Scope of delivery
- EX-1505HMVS, USB 3.2 Gen 1 cable, DIN-Rail Kit, driver CD, manual
