Exsys EXSYS - USB 3.2 Gen 2 HUB 7-Port 2xC und 5xA-Anschlüsse inkl.Netzteil USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Robust, industrial-grade metal hub for table, wall and DIN rail mounting, including power supply 12V/5A...

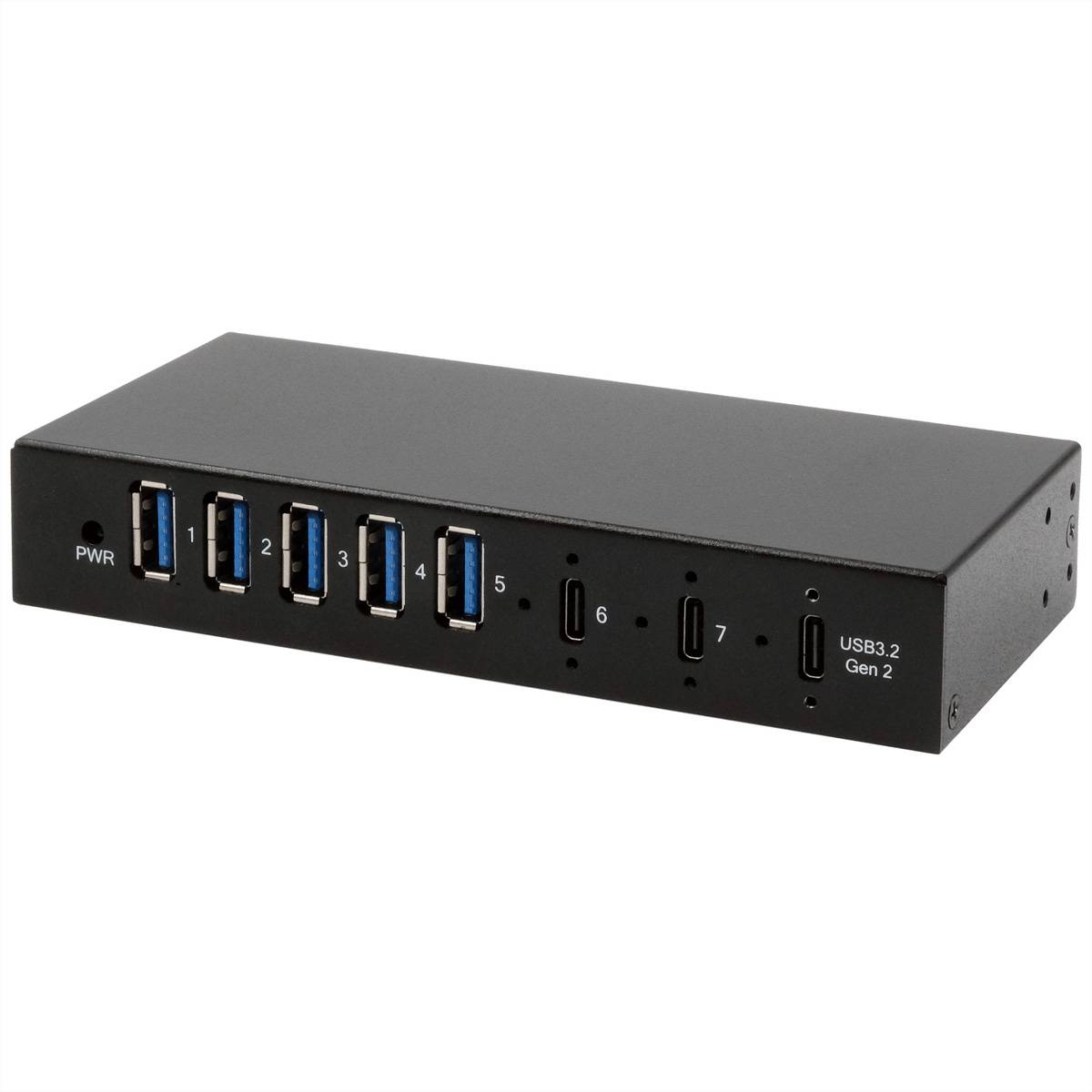

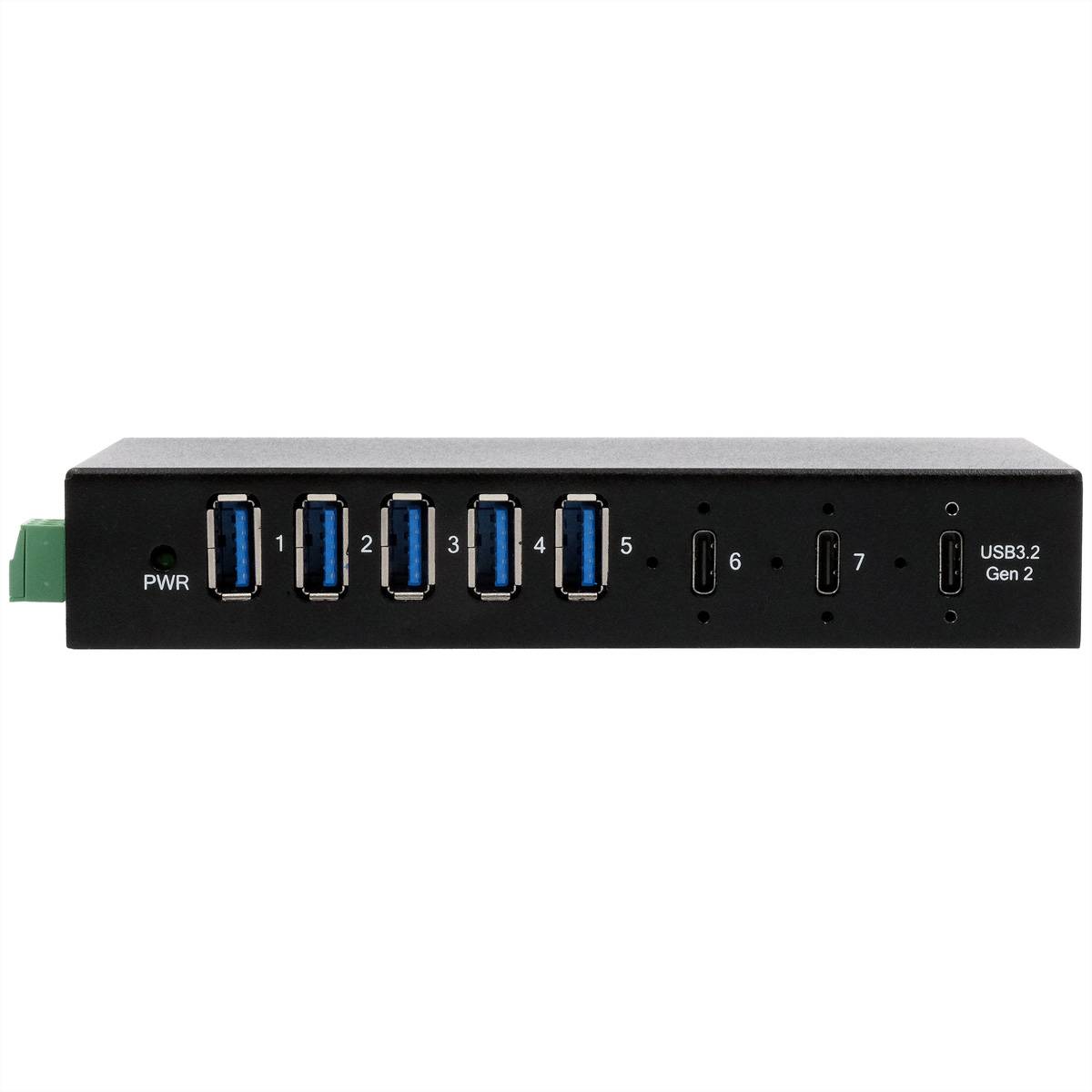

- USB 3.2 metal HUB with 2x USB-C Gen 2x1 and 5x USB A
- 15KV ESD surge protection for each output
- Up to 2.5A per Port
- Automatic detection of the data transfer rate
- Metal casing for wall or rack mounting
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- Connections: 1x C-socket upstream 2x C-sockets downstream 5x A-socket downstream
- Transmission quality USB 3.2 Gen 2 2 SuperSpeed 10 Gbps (USB 3.1 1st Gen, USB 3.1)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 7
- Range of application: External
- Material (casing): Metal
- Power supply required: Yes
- Power supply included: Yes
- Technical features: Robust metal housing
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 25 mm
- Width: 139 mm
- Depth: 58 mm
- Weight: 297 g
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,782 kg
- Gross weight: 0.782
- Product type
USB hub
- Factory colour
Black
- Weight
0.782
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Cable features
Metal foil shield
- Connection type
USB-C®
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796993 Exsys EXSYS - USB 3.2 Gen 2 HUB 7-Port 2xC und 5xA-Anschlüsse inkl.Netzteil USB hub Black
User & Safety Instructions
User & Safety Instructions 3796993 Exsys EXSYS - USB 3.2 Gen 2 HUB 7-Port 2xC und 5xA-Anschlüsse inkl.Netzteil USB hub Black
Description

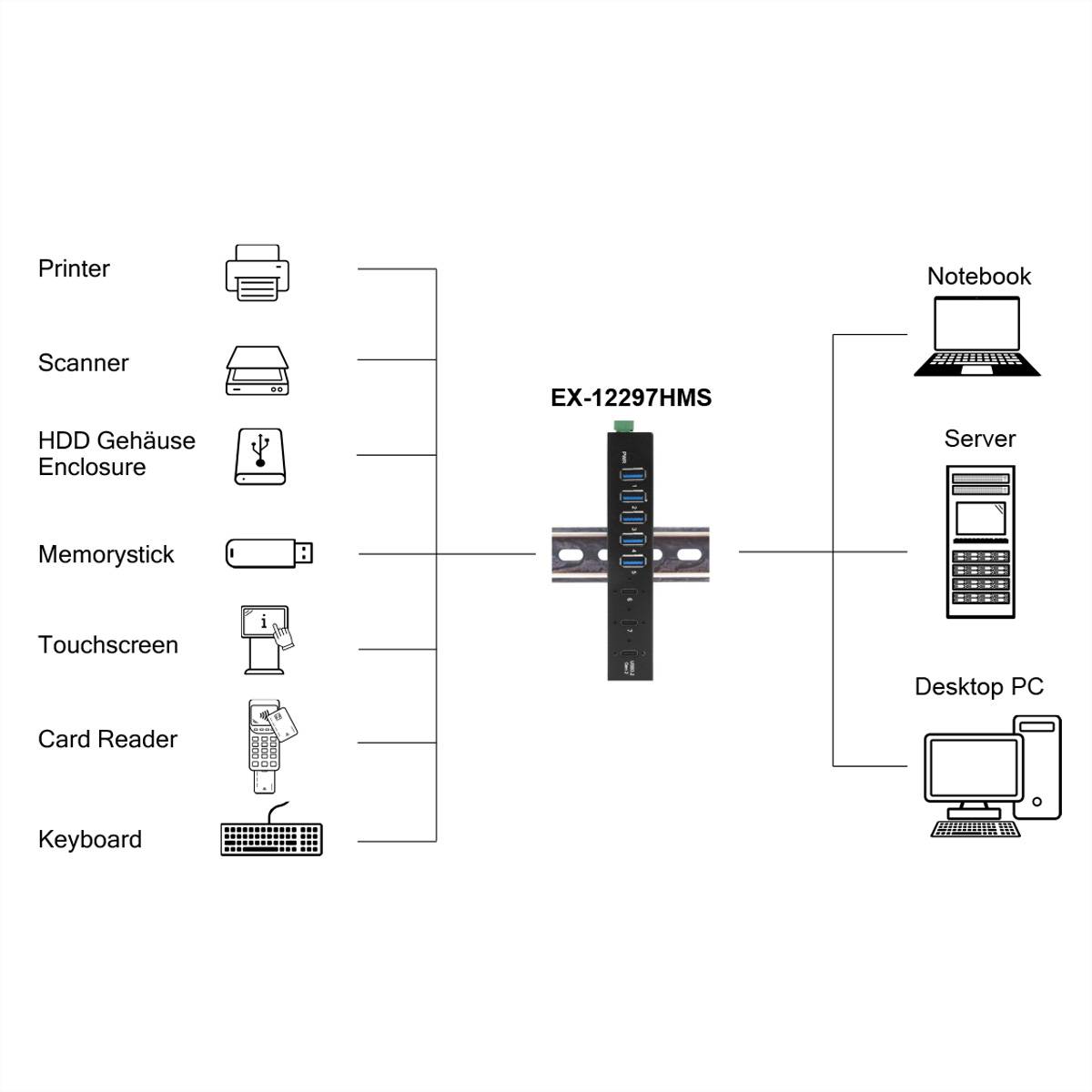

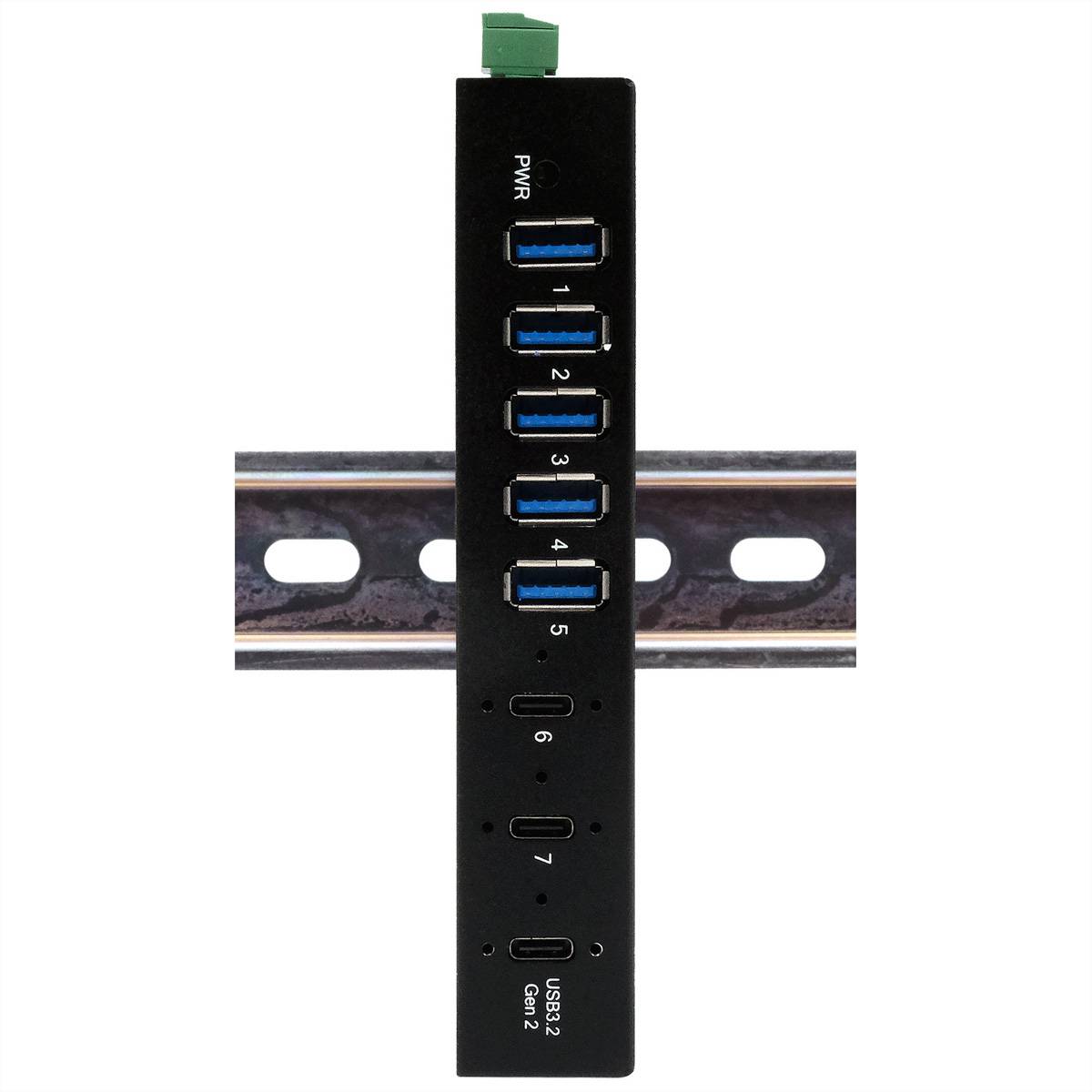

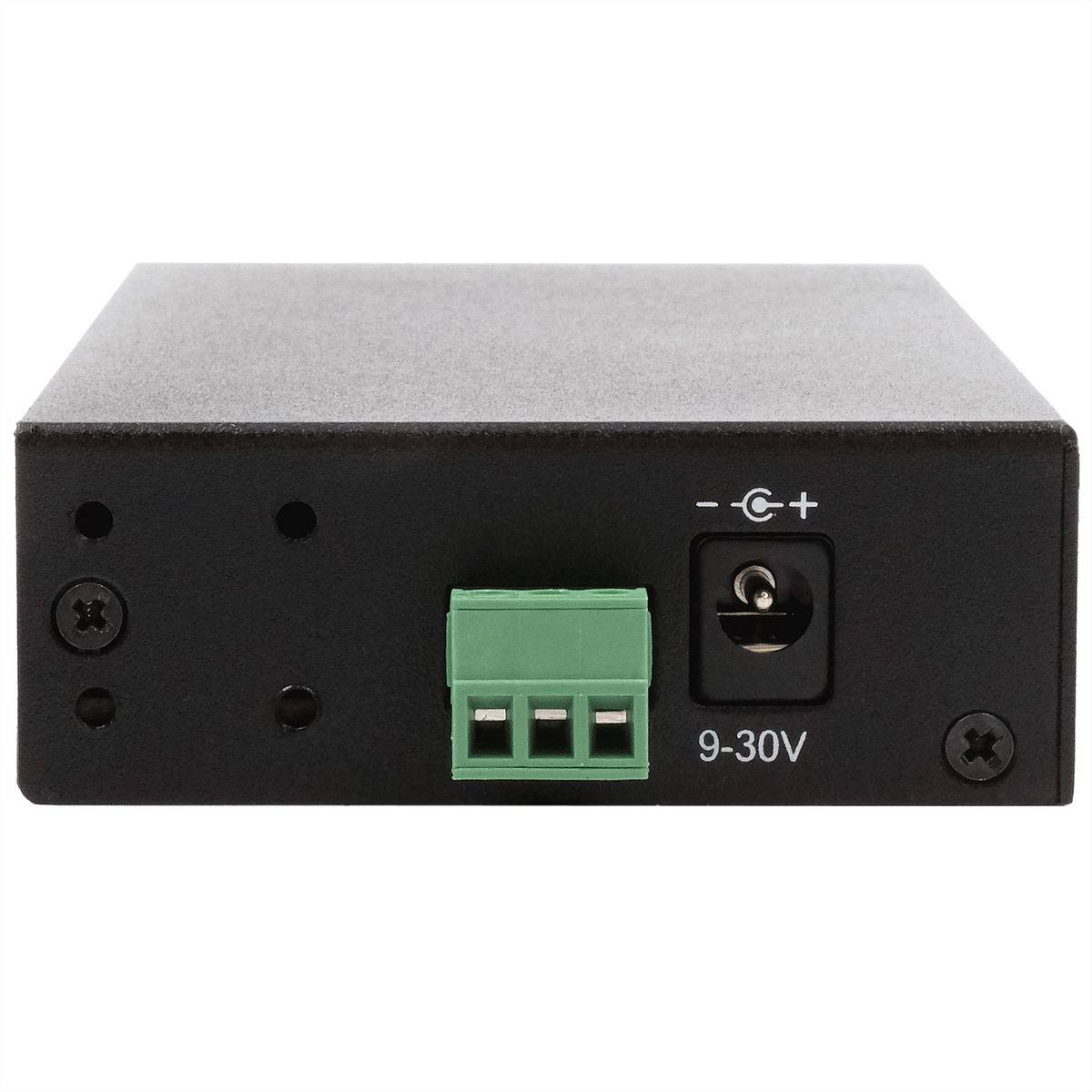

Robust, industrial-grade metal hub for table, wall and DIN rail mounting, including 12V/5A adapter . The robust and industry-compatible EX-12297HMS is a USB 3.2 Gen 2x1 metal hub for up to seven devices, which can be mounted on the wall or on a DIN rail. It connects to the host PC via a USB-C cable and has two USB-C 3.2 Gen 2x1 ports and five USB-A 3.2 Gen 1 ports for devices. The two USB-C ports offer an outstanding performance of up to 10 Gbit/s (SuperSpeed USB 10Gbps), while the data transfer at the five USB-A ports is up to 5 Gbit/s (SuperSpeed USB 5Gbps). Via the external power supply, a maximum capacity of 56 watt is available up to 2.5 A per port. . . This allows the iPhone, iPad, smartphone and tablet to be easily charged. The power is supplied via the accompanying wall plug transformer or an optionally available DIN-rail power supply (Self-Power).
This text is machine translated.
Scope of delivery
- EX-12297HMS, USB 3.2 1st Gen cable screw-in 1.0 m, mains supply 12V/5A, DIN rail kit, wall mounting kit, manual
