Exsys EXSYS - USB 3.2 Gen1 Hub 7-Port 7xC Anschluss ink.USB-Kabel Din-Rail - Kabel USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
METAL HUB with 15KV EDS surge protection...

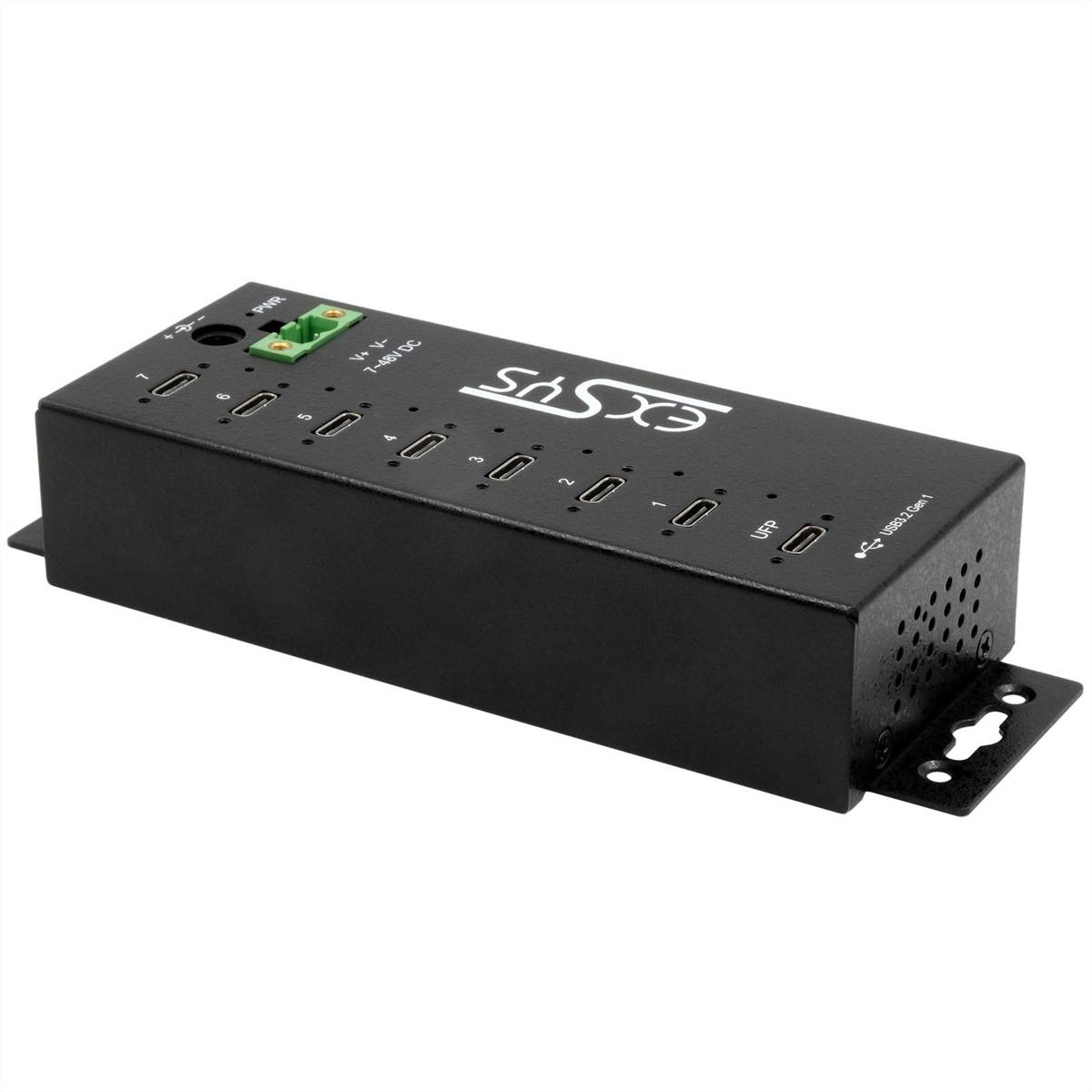

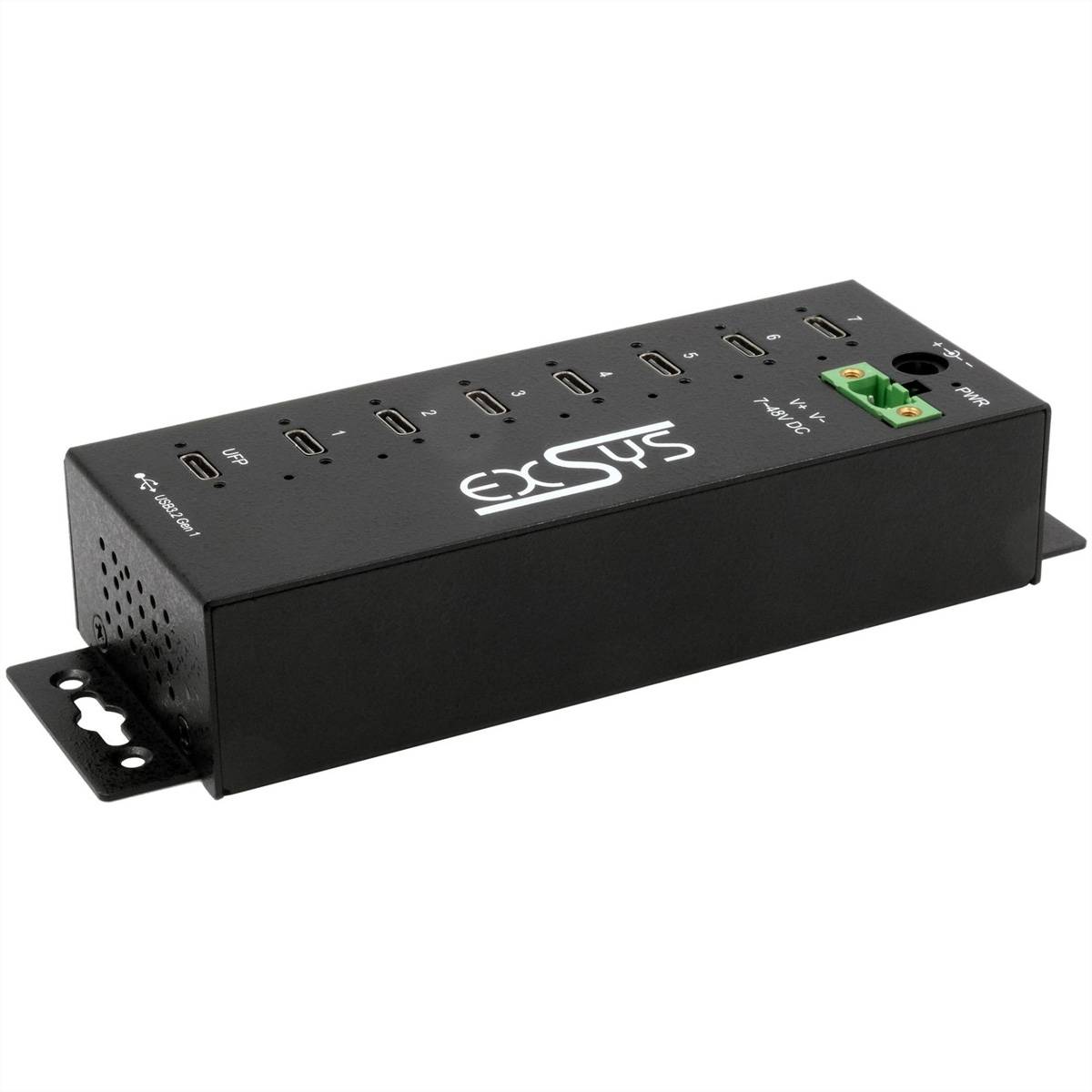

- USB 3.2 Gen 1 metal HUB with seven USB-C downstream ports
- 15KV ESD surge protection per output
- Up to 2.4 A per port, total output power max. 52.5 W
- +7V to +48V power supply via terminal Block and DC jack
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections 1x USB 3.2 1st Gen 1 upstream C socket
- Connections devices: 7x USB 3.2 Gen 1 downstream C-socket
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB Type C (USB-C)
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB Type C (USB-C)
- Page 2 Type of connection: Female (female)
- Total number of ports: 7
- Range of application: External
- Material (casing): Metal
- Power supply included in delivery: No.
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 162 mm
- Width 54.8 mm
- Depth: 40.8 mm
- Weight: 850 g
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,901 kg
- Gross weight: 0.901
- Product type
USB hub
- Factory colour
Black
- Weight
0.901
- Cable length
0 m
- Version
Cable
- Type A
USB
- Type B
USB
- Keyboard layout
German, QWERTZ
- Cable use
USB 3.2 1st Gen (USB 3.0)
- Cable features
Metal foil shield
- Connection type
USB-C®
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797014 Exsys EXSYS - USB 3.2 Gen1 Hub 7-Port 7xC Anschluss ink.USB-Kabel Din-Rail - Kabel USB hub Black
User & Safety Instructions
User & Safety Instructions 3797014 Exsys EXSYS - USB 3.2 Gen1 Hub 7-Port 7xC Anschluss ink.USB-Kabel Din-Rail - Kabel USB hub Black
Description

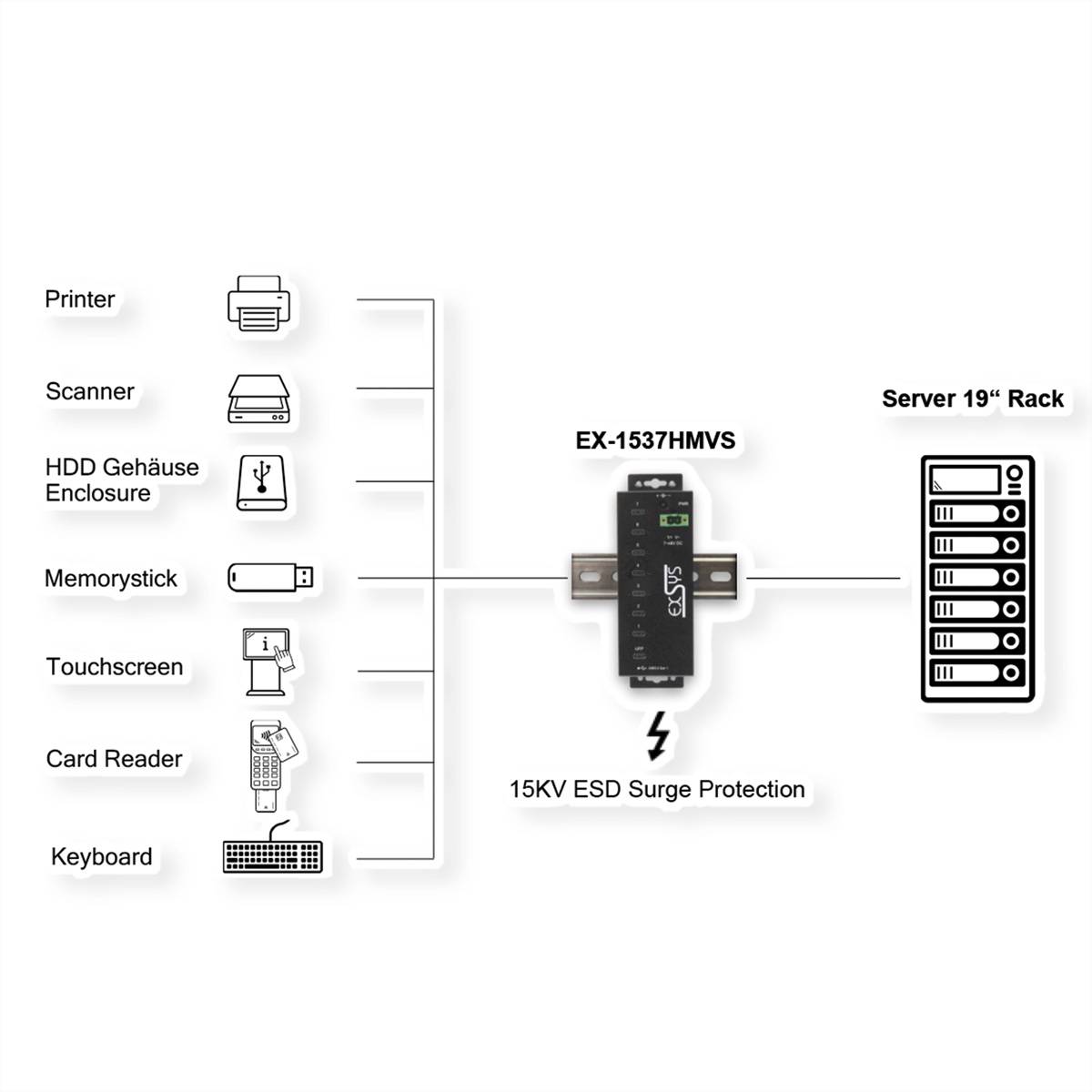

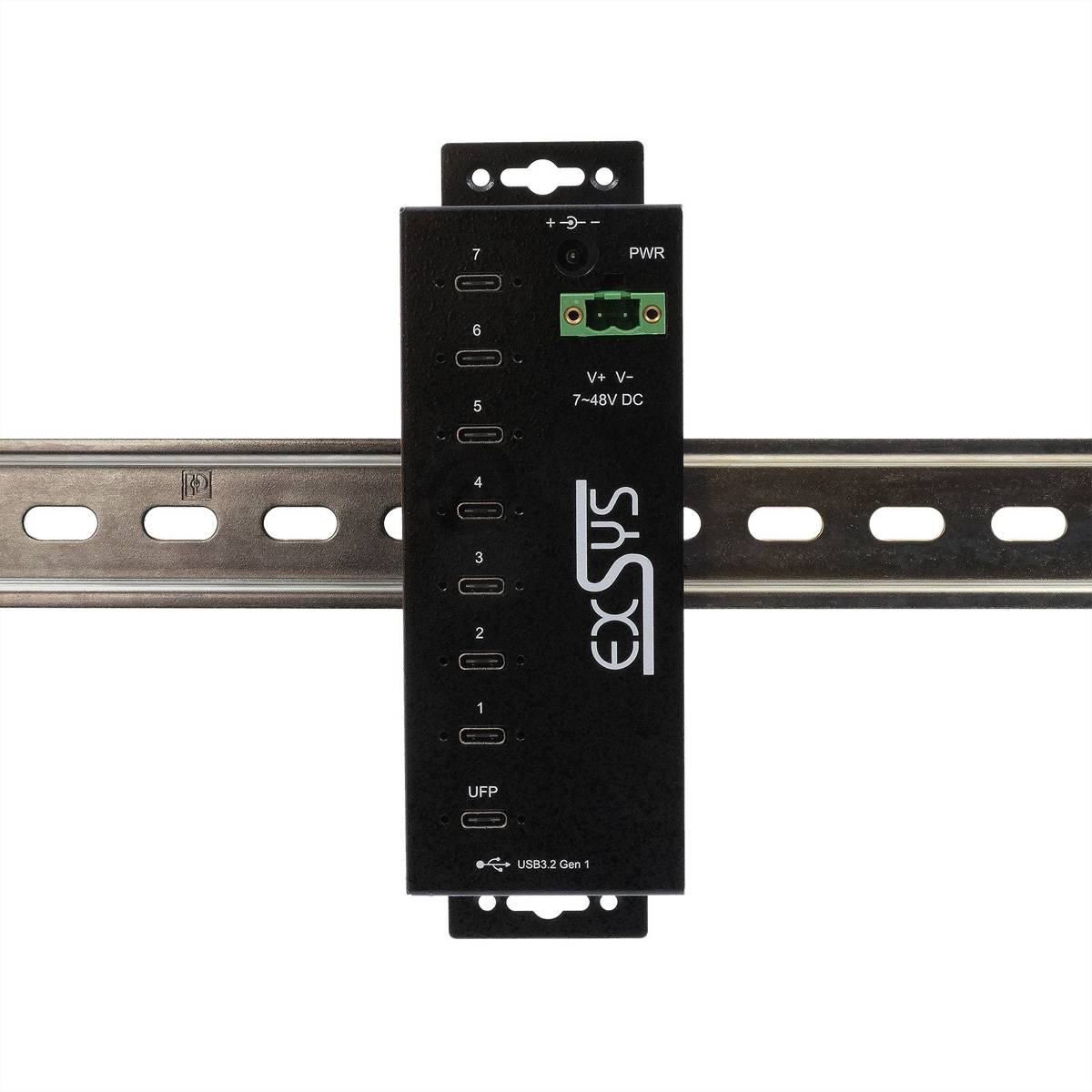

Metal HUB with 15KV EDS Surge Protection The EX-1537HMVS is a USB 3.2 Gen 1 (formerly USB 3.0 or 3.1 Gen 1) Managed Metal Hub with seven USB-C downstream ports offering comprehensive and unique features for industrial applications. . . It is a pure USB-C hub and backward compatible with USB 1.1 devices. The EX-1537HMVS supports the USB battery charging specification v1.2 (CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4 A and Samsung. It can be used in automation, industrial and office applications and mounted on the wall, under a table or in a 19" cabinet thanks to its well thought-out housing. . The EX-1537HMVS supports only the self-powered mode, thus it is absolutely necessary to connect a power supply unit (available optionally). .
This text is machine translated.

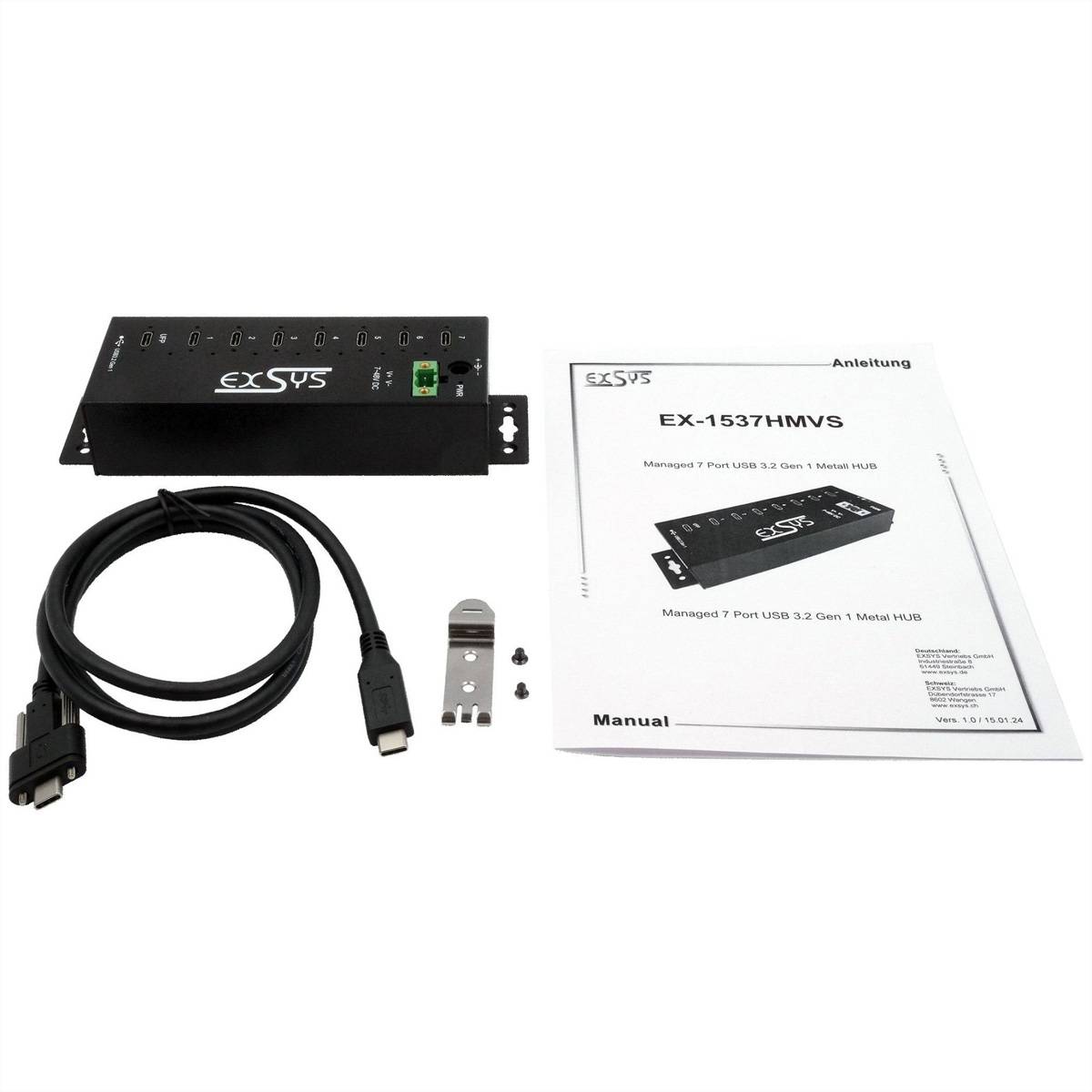

Scope of delivery
- EX-1537HMVS, USB 3.2 Gen 1 cable, DIN rail kit, driver CD, manual
