Exsys Kabel USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

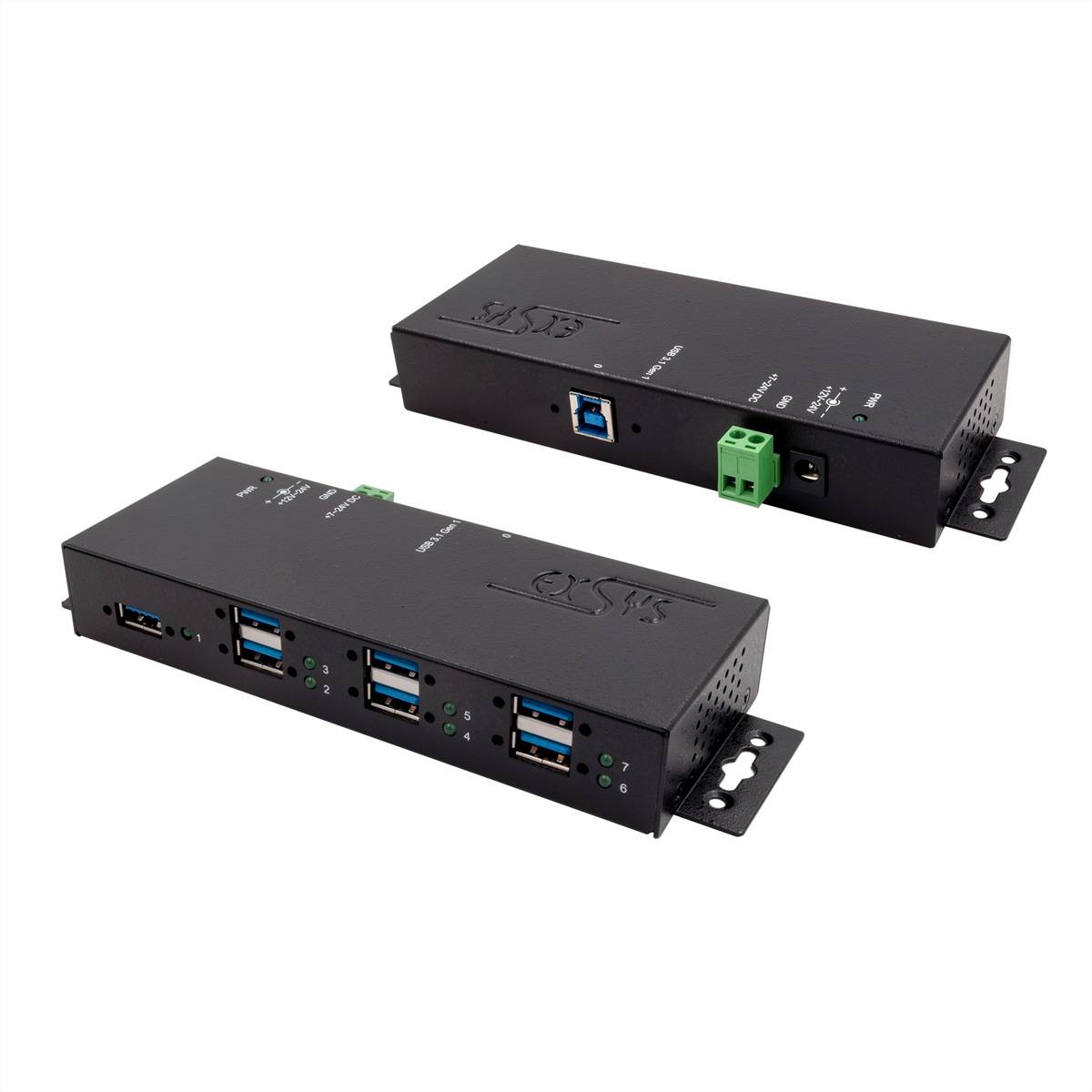

EXSYS EX-1189HMVS-3, 7x USB 3.0, metal, USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 2.0, USB 3.2 1st Gen 1 (3.1 1st Gen 1) Type A
- Number of connections: 8
- 5000 Mbit/s
- USB Power Delivery
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Output voltage 7 - 24 V
- Product type
USB hub
- Factory colour
Black
- Weight
843 g
- Width
178.6 mm
- Height
25.4 mm
- Depth
59.9 mm
- Cable length
0 mm
- Version
Connection cable
- Type A
USB
- Type B
USB
- No. of USB type A 3.1 / 3.2 1st Gen
7 x
- Cable use
USB 3.2 1st Gen (USB 3.0)
- Charging method (Power Delivery)
with USB Power Delivery
- Material (details)
Metal
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
8
- DC-in jack
yes
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Plug and Play
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796919 Exsys Kabel USB hub Black
User & Safety Instructions
User & Safety Instructions 3796919 Exsys Kabel USB hub Black
Description

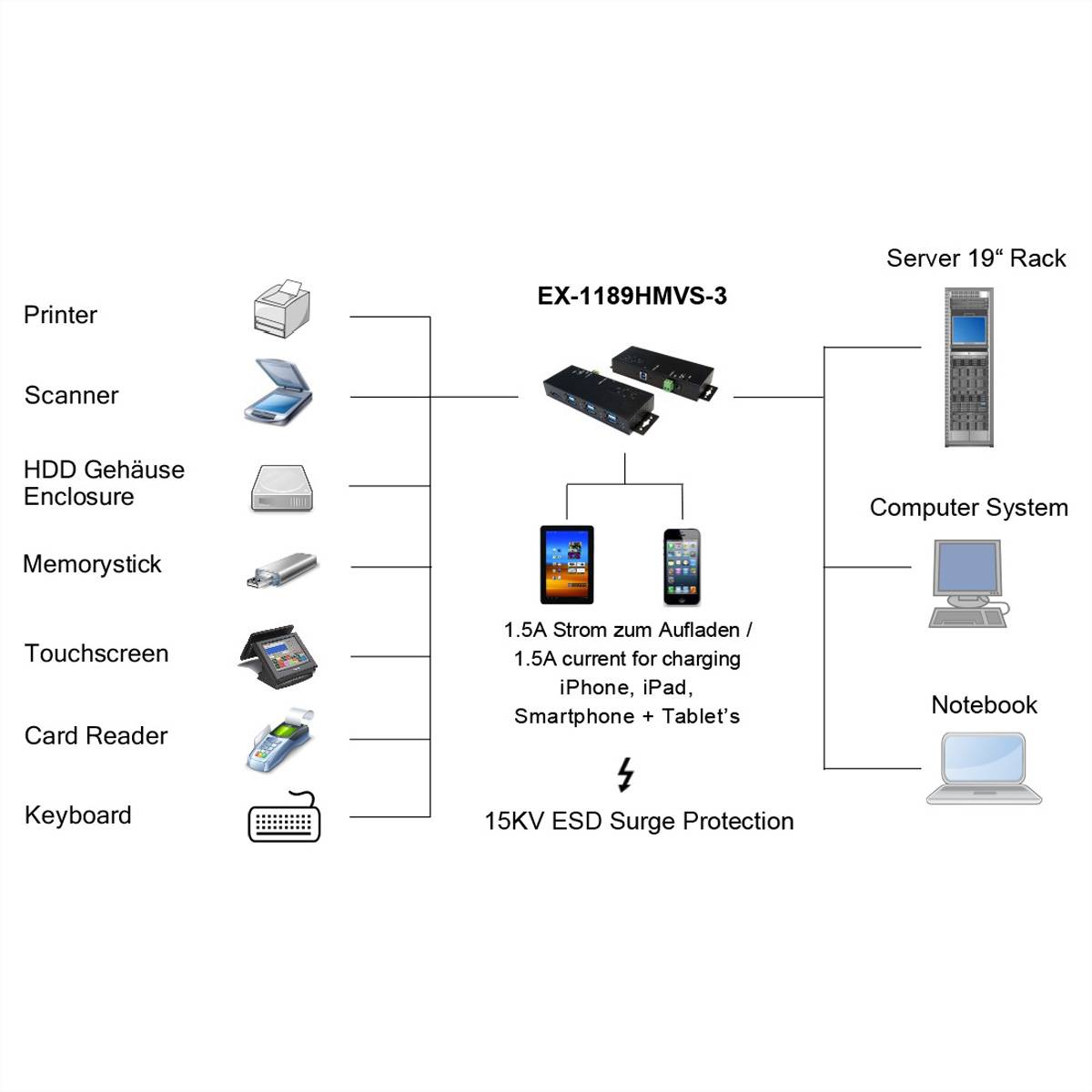

The EX-1189HMVS-3 provides 7 screw-able USB 3.2 Gen1 (previously called USB 3.0) downstream ports with 15KV ESD surge protection for each output. The EX-1189HMVS-3 provides simultaneously for up to 4 ports 1.5A power for charging iPhone, iPad, smartphone and tablet. It is possible to connect up to seven external USB peripherals to a USB 3.2 Gen1 port of laptop, desktop computer or server in a 19" rack. The supplied cable EX-K1571V (1.5 meters) can be fixed to the EX-1189HMVS-3W with knurled screws without a screwdriver. It can be used in automation, industry and office applications. Thanks to its special casing the EX-1189HMVS-3 can be screwed on the wall, under a table or in a 19" cabinet (optionally with EX-6099).
This text is machine translated.
This text is machine translated.
Features

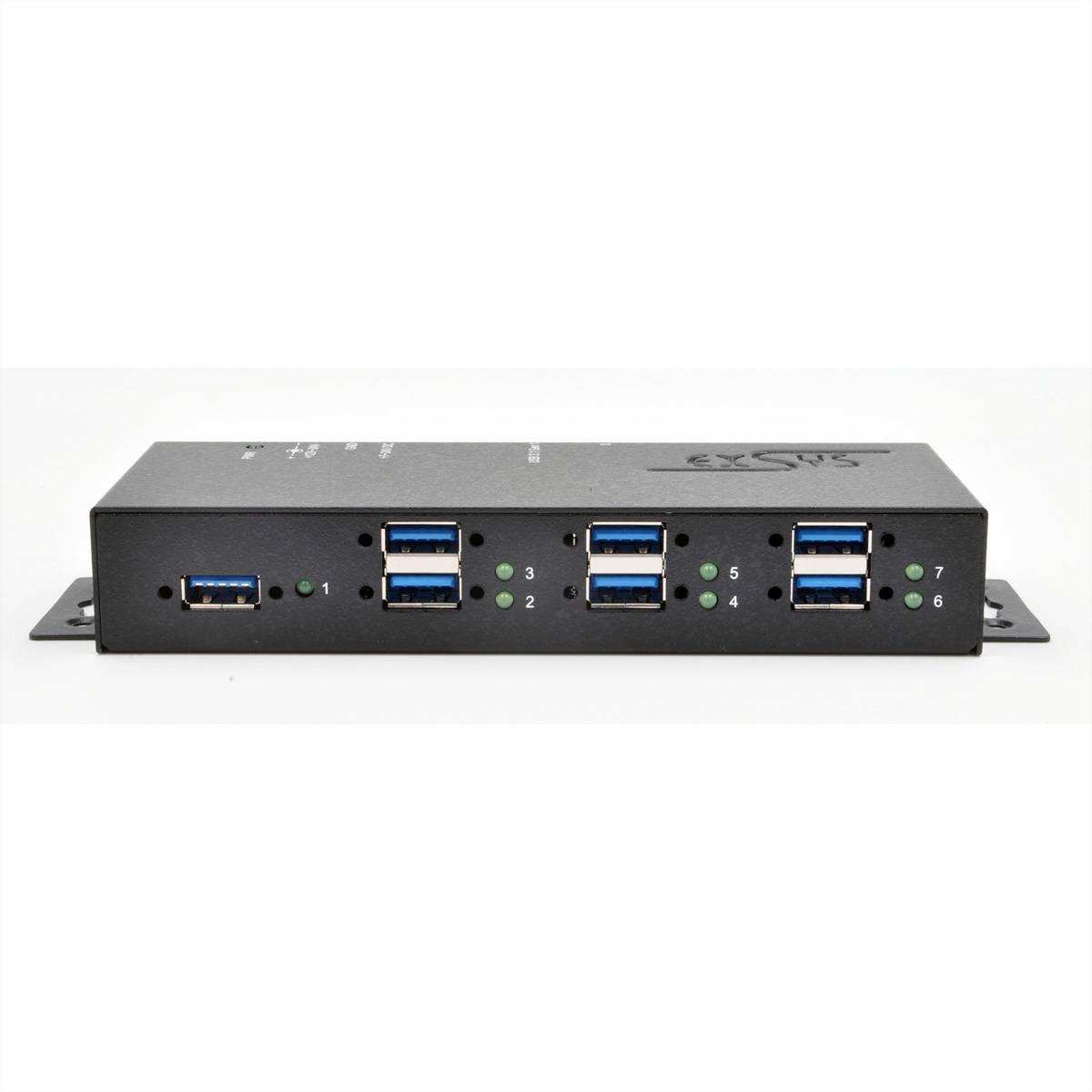

- USB 3.2 1st Gen metal HUB with 7 ports
- 15KV ESD surge protection for all 7 ports

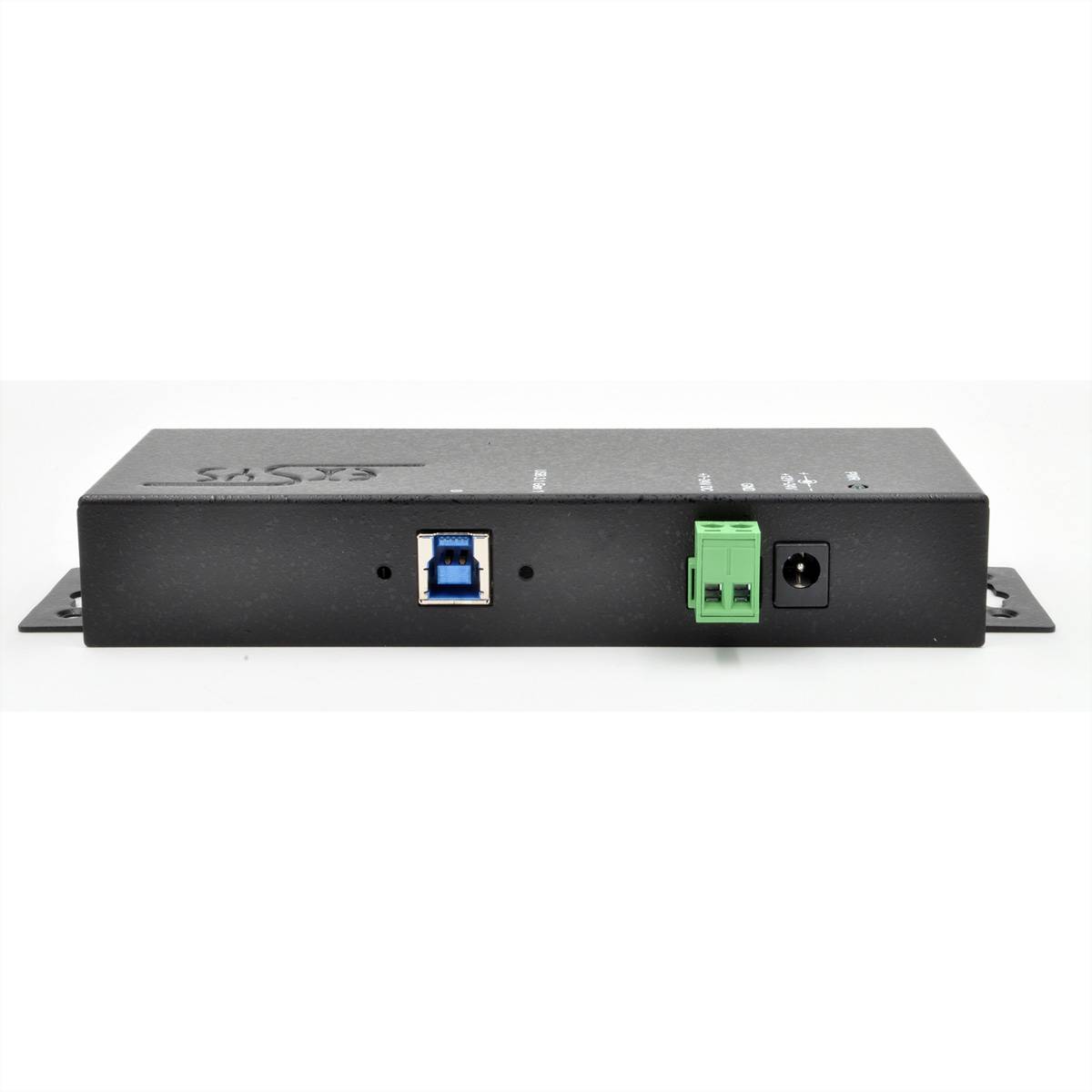

- Power supply 12V/3A with DC jack or +7V to +24V with terminal Block
- Power supply optionally also from the USB-BUS +5V (bus-Power)
- Automatic detection of the data transfer rate for the
- Attached peripherals
- Supports 1.5A current at the same time to a maximum 4 ports

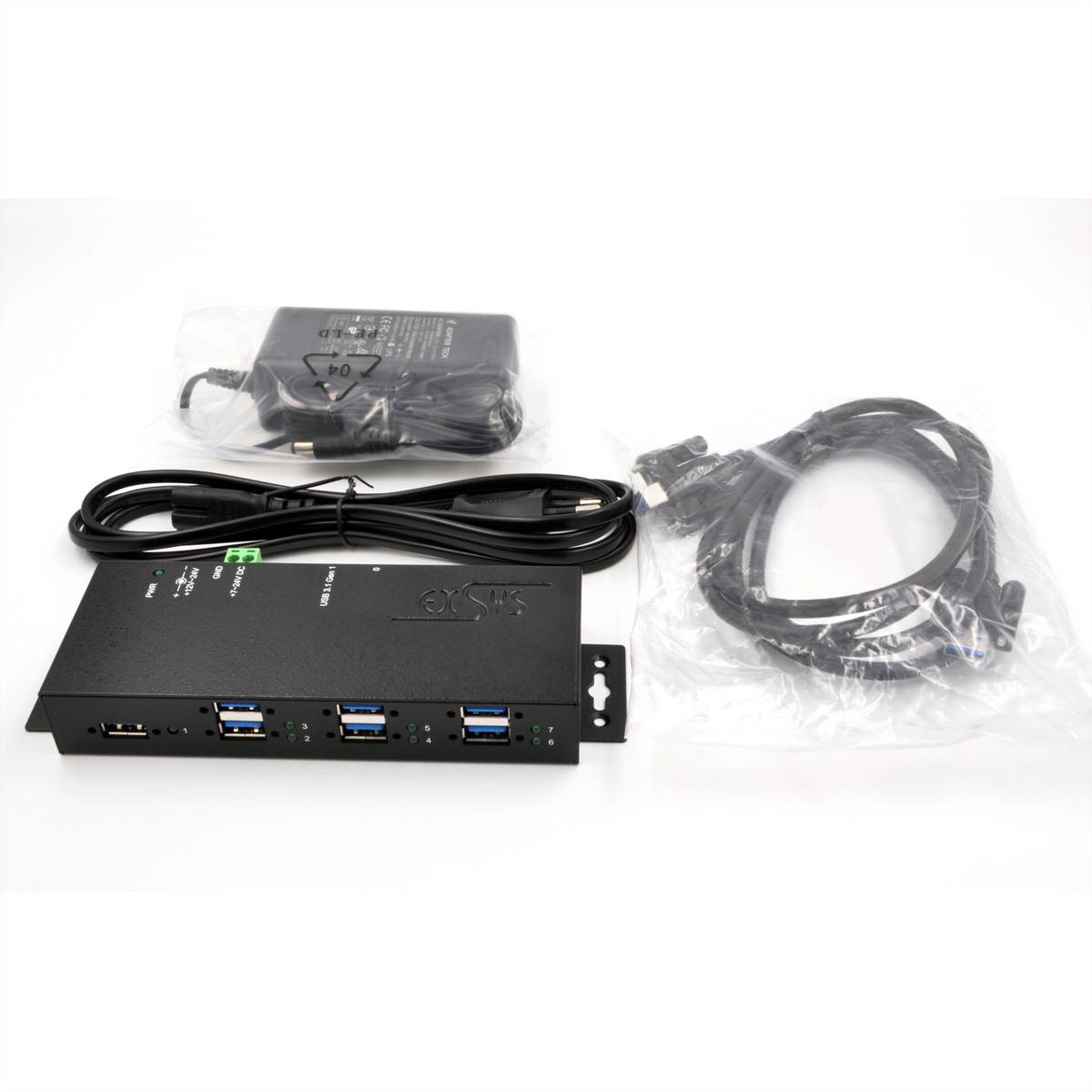

Scope of delivery
- EX-1189HMVS-3, USB 3.2 1st Gen cable (1.5 meters),
- Power 12V/3A supply, manual
