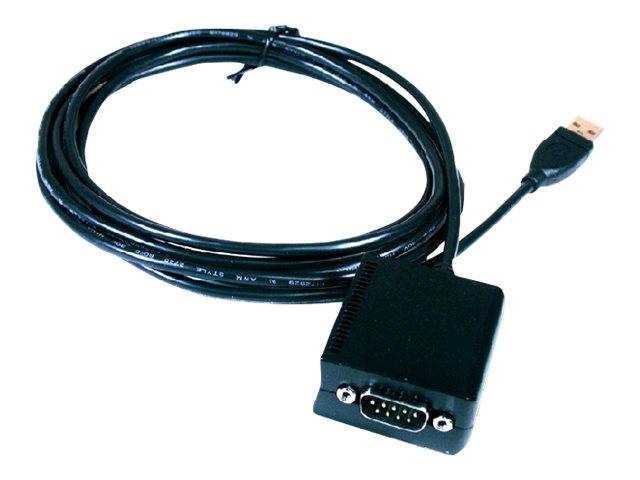

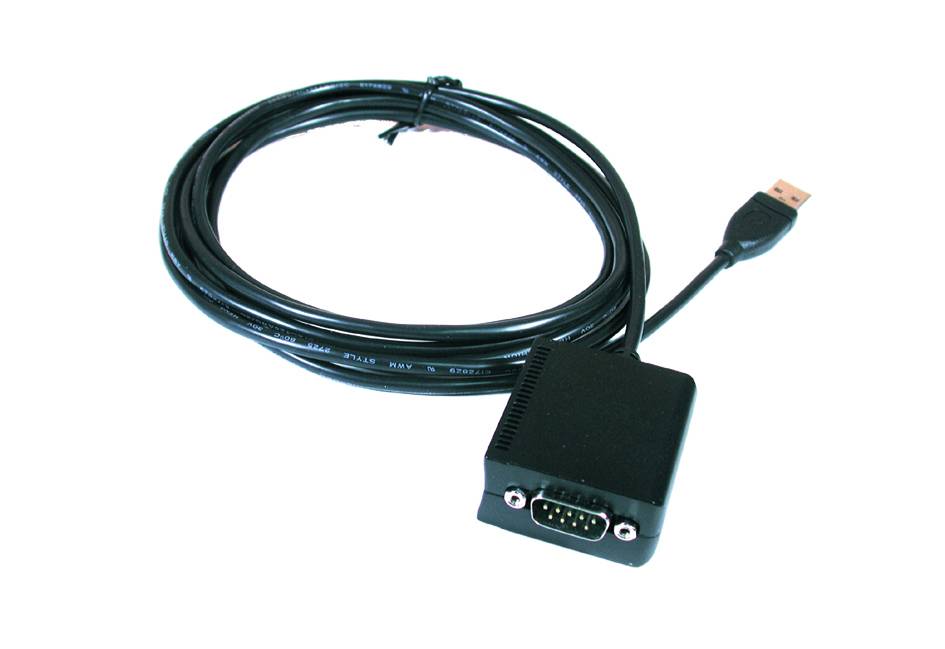

Exsys PC Adapter Exsys EX-1301-2 - Serieller Adapter - USB - RS-232 1.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS USB 1.1 - 1S serial RS-232 port series cable black 1.8 m USB type A DB-9
Highlights & Details
- 1.8 m
- USB Type A connector
- DB-9 plug
- Black
Technical specifications
- Connection 1 USB type A
- Connection 2:DB-9
- Product type
PC Adapter
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Weight
150 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796822 Exsys PC Adapter Exsys EX-1301-2 - Serieller Adapter - USB - RS-232 1.80 m
User & Safety Instructions
User & Safety Instructions 3796822 Exsys PC Adapter Exsys EX-1301-2 - Serieller Adapter - USB - RS-232 1.80 m
Description
The USB 1.1 to RS-232 cable provides a serial RS-232 high-performance UART 16C550 output. It has been developed to expand a second serial output for PC, small workstation or server via the USB 1.1 or 2.0 bus. Through the simple installation, the computer does not need to be opened and the EX-1301-2 can be installed during running operation.
- Interface: RS-232 V.24
- FIFO buffer: 16C550 with 16 bytes
- I/O addresses: Is assigned by the operating system
- Interrupt: Is assigned by the system BIOS with interrupt sharing
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
This text is machine translated.
- Interface: RS-232 V.24
- FIFO buffer: 16C550 with 16 bytes
- I/O addresses: Is assigned by the operating system
- Interrupt: Is assigned by the system BIOS with interrupt sharing
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
This text is machine translated.
Features
- Exsys EX-1301-2 - Serial adapter - USB - RS-232
- Device Type : Serial adapter
- Form factor : External
- Interface type (bus type): USB
- Ports : RS-232
- Weight: 150 g
- Data Link Protocol : RS-232
- Processor : 1 x FTDI
- Product Certifications : USB 1.1
- System Requirements : Microsoft Windows Server 2003, Microsoft Windows 98SE/2000/ME/XP, Microsoft Windows Vista
Scope of delivery
- EX-1301-2, driver CD, manual
