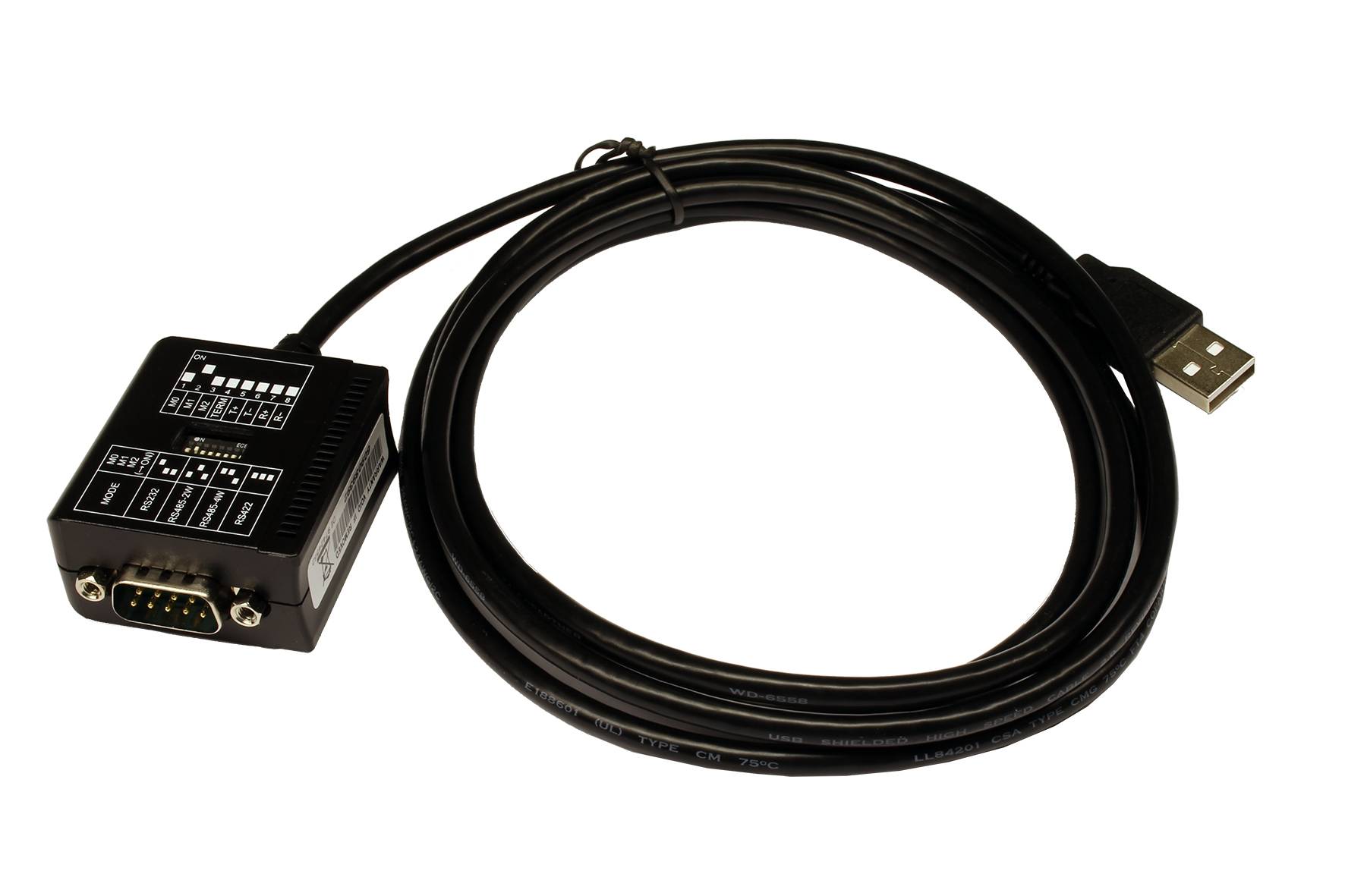

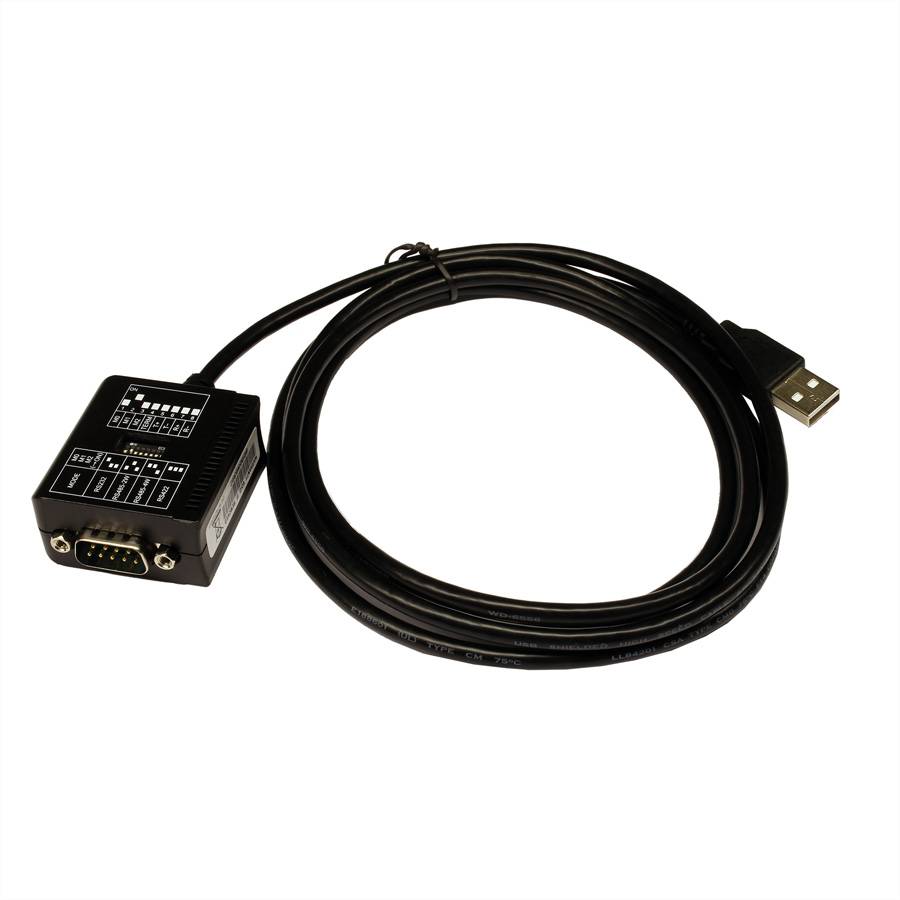

Exsys PC Adapter Exsys EX-1309-9 - Serieller Adapter - USB 2.0 1.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1309-9 series cable black 1.8 m USB type A DB-9
Highlights & Details
- 1.8 m
- USB Type A connector
- DB-9 plug
- Black
- 1 pieces(s)
Technical specifications
- Connection 1 USB type A
- Connection 2:DB-9
- Product type
PC Adapter
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Connections
RJ45 connector
- Weight
150 g
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3796866 Exsys PC Adapter Exsys EX-1309-9 - Serieller Adapter - USB 2.0 1.80 m
User & Safety Instructions
User & Safety Instructions 3796866 Exsys PC Adapter Exsys EX-1309-9 - Serieller Adapter - USB 2.0 1.80 m
Description
The USB 2.0 to RS-232 cable provides a serial RS-232/422/485 high-performance UART 16C550 output. It has been developed to expand a second serial output for PC, small workstation, notebook or server via the USB 1.1 or 2.0 bus. Through the simple installation, the computer does not need to be opened and the EX-1309-9 can be installed during running operation.
- Interface: RS232 V.24, RS422 and RS485 via 9 pin connector
- FIFO buffer: 16C550 with 16 bytes
- Data bits: 7, 8 / Stop bits: 1 or 2 / Parity: None, even, odd, space, mark
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS422 signals: 4-wire (TXD+/-, RXD+/-) full duplex
- RS485 signals: 2-wire and 4 wires (Data+/-, Data +/-) half- and full-duplex
- Power supply from the USB bus (bus Power)
- Optionally also supports power via the DB 9 pin connector
- Optionally with the DIN-Rail Kit (EX-6099) it can also be installed in a 19" rack
This text is machine translated.
- Interface: RS232 V.24, RS422 and RS485 via 9 pin connector
- FIFO buffer: 16C550 with 16 bytes
- Data bits: 7, 8 / Stop bits: 1 or 2 / Parity: None, even, odd, space, mark
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS422 signals: 4-wire (TXD+/-, RXD+/-) full duplex
- RS485 signals: 2-wire and 4 wires (Data+/-, Data +/-) half- and full-duplex
- Power supply from the USB bus (bus Power)
- Optionally also supports power via the DB 9 pin connector
- Optionally with the DIN-Rail Kit (EX-6099) it can also be installed in a 19" rack
This text is machine translated.
Features
- Exsys EX-1309-9 - Serial adapter
- Device Type : Serial adapter
- Form factor : External
- Interface type (bus type): USB 2.0
- Ports : RS-232/422/485
- Dimensions (width x depth x height): 4.49 cm x 4.18 cm x 2.2 cm
- Weight: 150 g
- Data Link Protocol : RS-232, RS-422, RS-485
- Data transfer rate : 921.6 Kbps
- Processor : FTDI
- Product certifications : USB 1.1, USB 2.0
- System requirements : Linux, Apple MacOS X 10.x, Microsoft Windows 98SE/2000/ME/XP, Microsoft Windows Vista, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 10
Scope of delivery
- EX-1309-9, driver CD, manual
