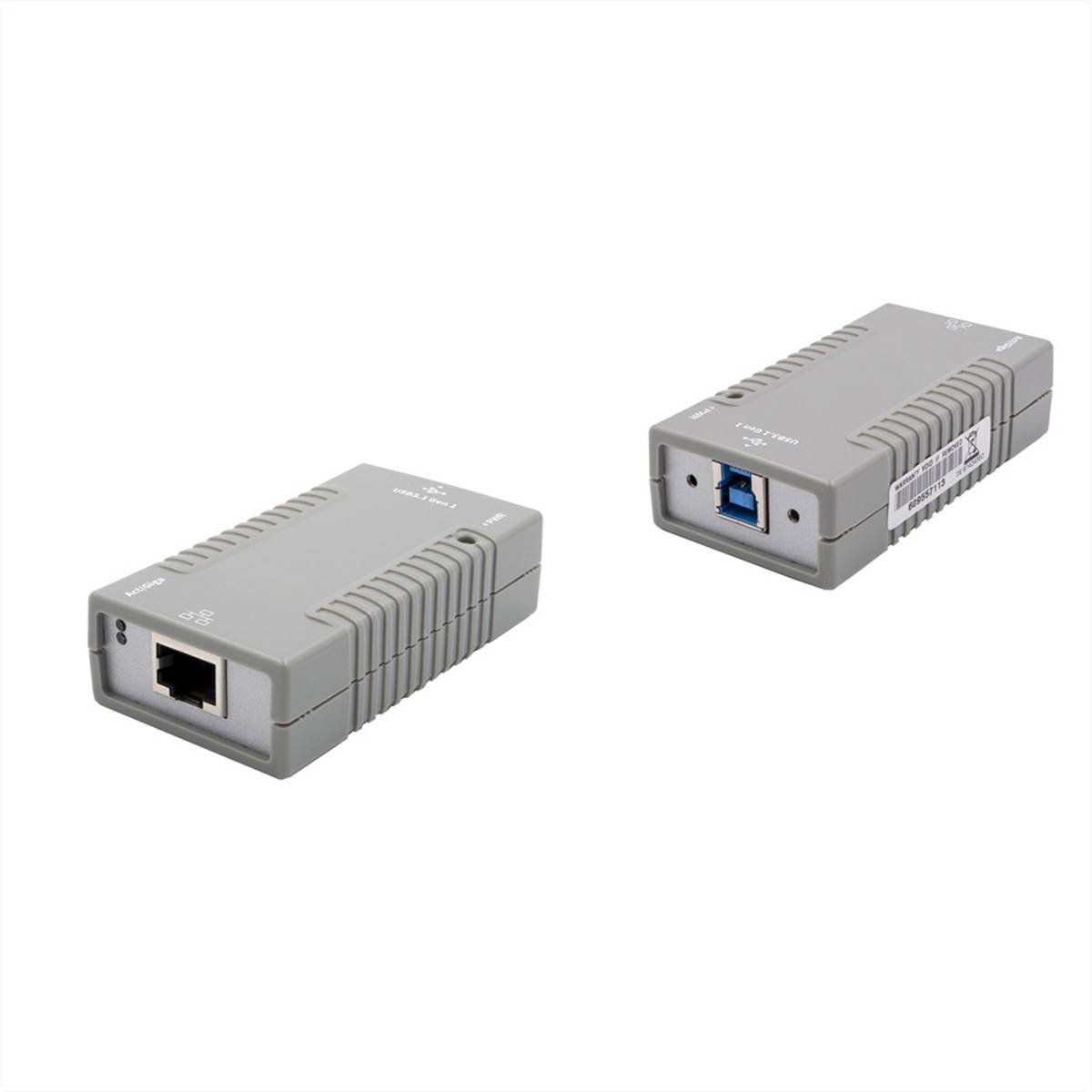

Exsys PC Adapter EXSYS EX-1321-4K USB 3.0 zu Ethernet 1Gi 0 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1321-4K Ethernet network card 1000 Mbit/s.
- Cable connected
- USB 3.2 1st Gen 1 (3.1 Gen 1) Ethernet
- 1000 Mbit/s 10/100/1000BaseT(X)
- ASIX AX88179 chipset
Technical specifications
- Interface: Ethernet
- USB version 3.2 Gen 1 (3.1 Gen 1)
- Maximum data transfer rate of 1000 Mbit/s.
- Product type
PC Adapter
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- Type A
USB
- Type B
USB
- Cable length
0 cm
- Factory colour
Multicolour
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Depth
42.5 mm
- Height
20.5 mm
- Width
65 mm
- No. of USB ports
1 x
- Keyboard layout
German, QWERTZ
- 10/100/1000 Mbps ports
1 x
- Transfer type
Corded
- Weight
200 g
- UKCA
not relevant
- Operating temperature (T-T)
0 - 55 °C
- Ethernet LAN
yes
- Internal
no
- Wake-on-LAN ready
yes
- Flow control support
yes
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3796885 Exsys PC Adapter EXSYS EX-1321-4K USB 3.0 zu Ethernet 1Gi 0 cm
User & Safety Instructions
User & Safety Instructions 3796885 Exsys PC Adapter EXSYS EX-1321-4K USB 3.0 zu Ethernet 1Gi 0 cm
Description

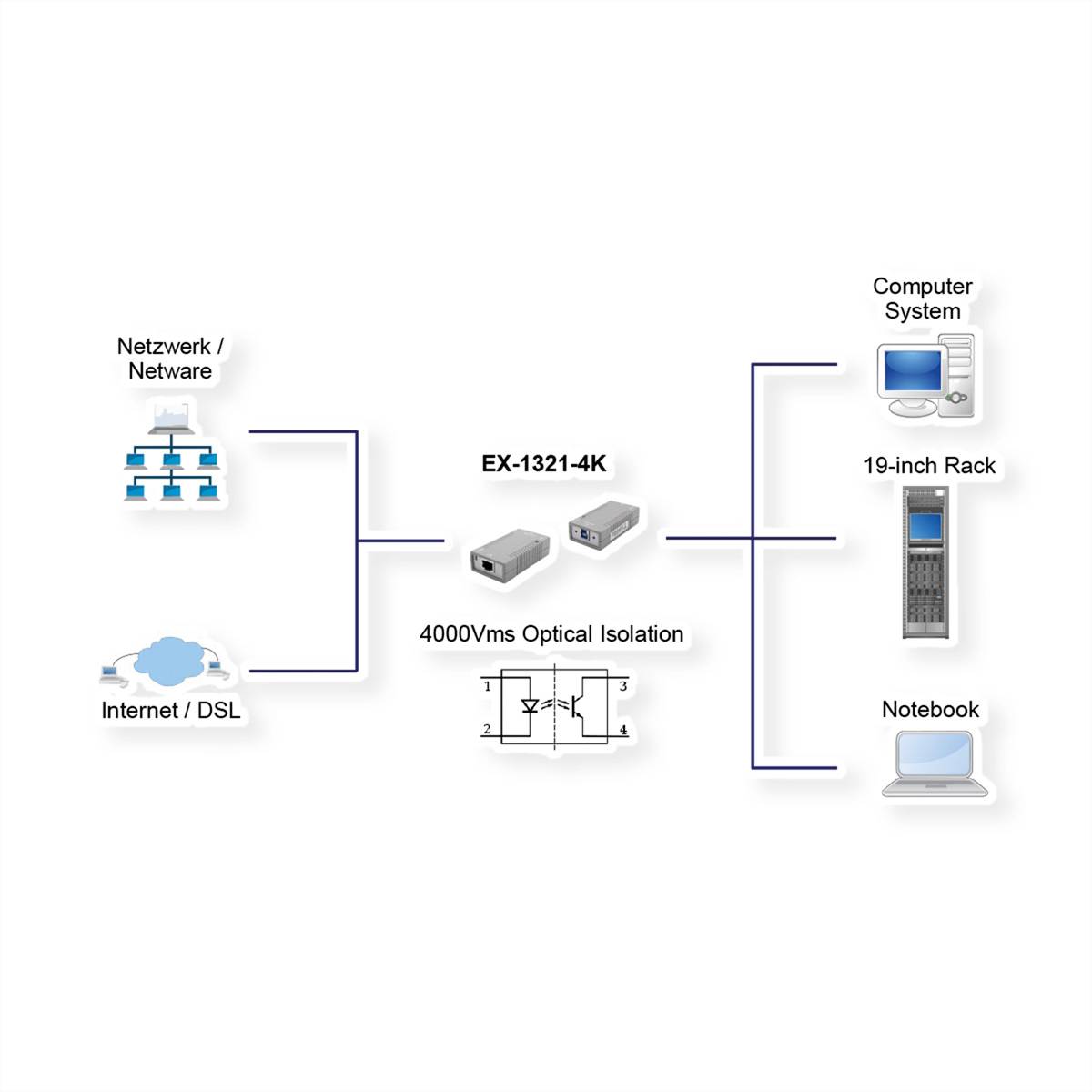

The EX-1321-4K can connect a 19" notebook, desktop computer or server via the USB 3.0/3.1 (Gen1) or 2.0 output to a 10/100 or 1000Mbps network. The EX-1321-4K supports 4KV optical isolation for the network connection. The EX-1321-4K can be installed simultaneously with an existing network card. Installation is very easy without having to open the systems. The EX-1321-4K comes with a DIN rail kit for installation in a 19" rack.
This text is machine translated.
This text is machine translated.
Features
- Supports 4KV optical insulation
- Universal Serial BUS 3.1 compliant (Gen1)
- Compatible with USB 2.0 and USB 1.1 standard
- It supports full duplex operation with IEEE 802.3x flow control and half duplex operation with return load flow control
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Supports crossover detection and auto-correction
- Power supply from the USB bus (bus Power)
- Supports Wake on LAN
- Screw-on USB 3.0 cable for secure installation
- Plastic casing with wall and DIN-rail kit for industrial applications
- LED display for Power and Ethernet connection
- Chip set: ASIX AX88179

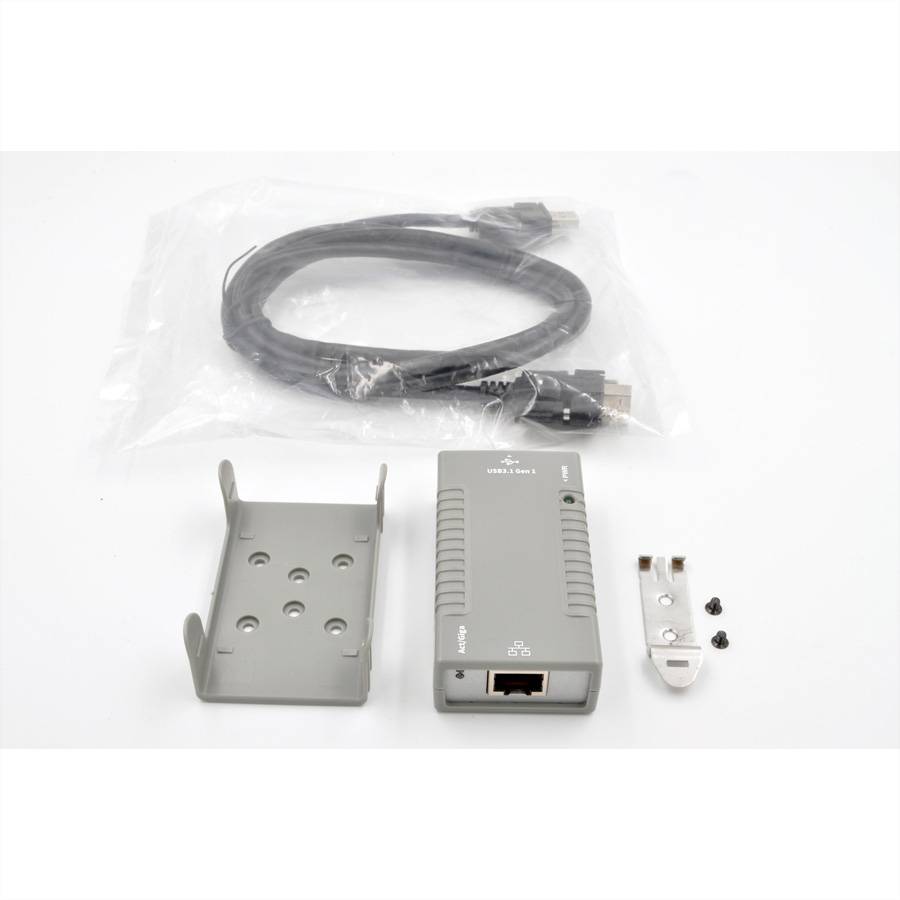

Scope of delivery
- EX-1321-4K, USB 3.0 screwed cable, DIN rail kit, wall mount, driver CD, manual
