Exsys PC Adapter EXSYS GmbH USB zu 1S Seriell RS-485 Kabel mit Terminal Block mit Drucktaster, 1. 1.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

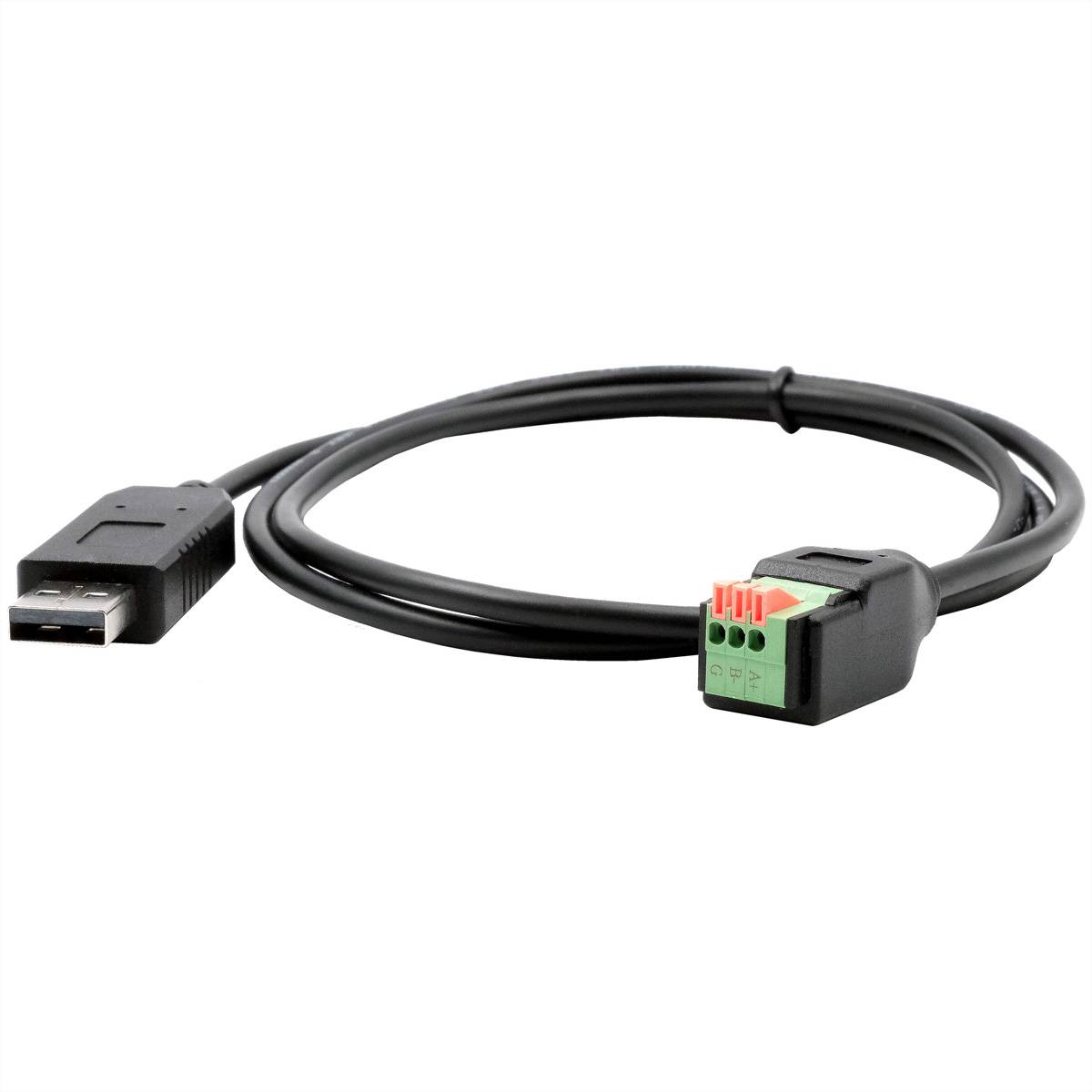

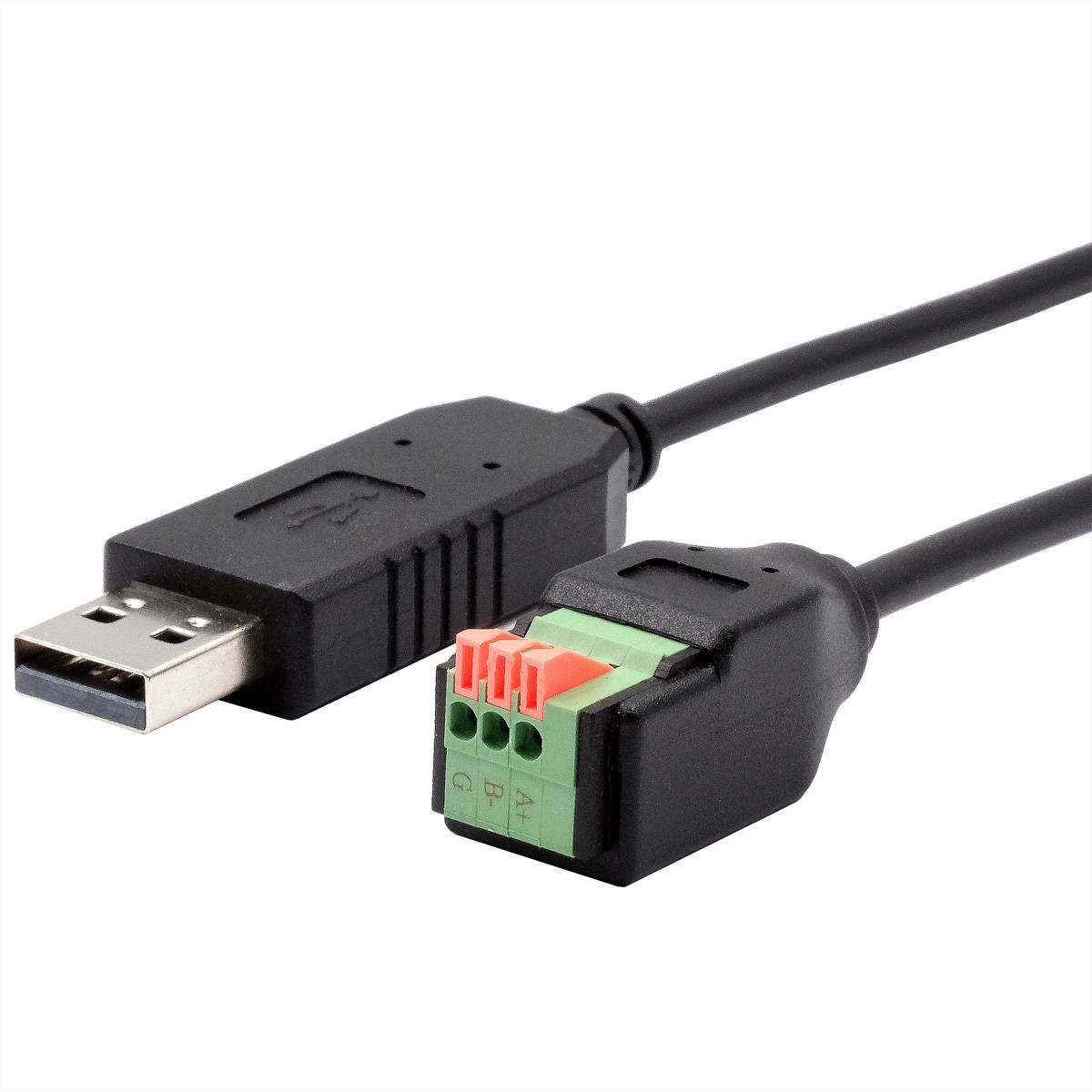

EXSYS EX-13009 USB to 1x serial RS-458 cable with terminal Block with push button

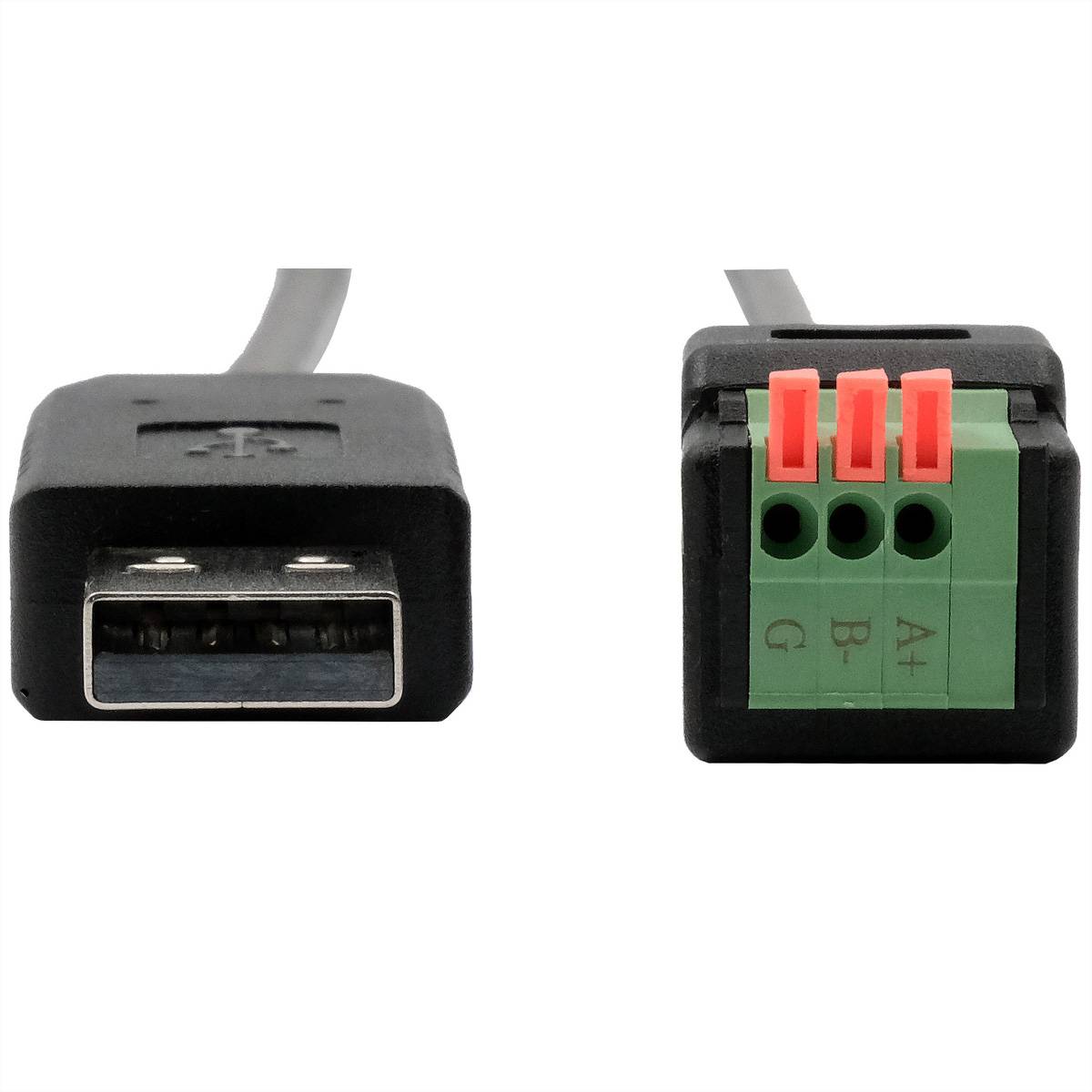

- Interface RS-485 via a tool-free 3-pin Block
- SIGNALS T/R+, T/R-, GND
- Power supply from the USB bus
- Transmission distance: Up to 1.2 km (9600 bps)
- FTDI chipset
Technical specifications
- Product group: Adapters, terminators, converters
- Product type: USB-serial converter
- Colour, black
- Length: 1 m
- Connections page 1 (PC): 1x USB C and USB-A connector upstream
- Connections side 2 (peripherals): 1x 3 pin serial RS-485 terminal Block
- Page 1 Type of connector: USB 2.0 Type A.
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connection: Terminal block
- Range of application: External
- Min. Operating temperature -40 °C
- Max. operating temperature: 85 °C
- Weight: 41 g
- Packaging height 30 mm
- Package width 90 mm
- Packaging depth 190 mm
- Package weight: 0,042 kg
- Gross weight: 0.042
- Product type
PC Adapter
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable length
1.00 m
- Factory colour
Black
- Cable use
PC
- Version
Adapter
- Range of use
PC
- Weight
0.042
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796990 Exsys PC Adapter EXSYS GmbH USB zu 1S Seriell RS-485 Kabel mit Terminal Block mit Drucktaster, 1. 1.00 m
User & Safety Instructions
User & Safety Instructions 3796990 Exsys PC Adapter EXSYS GmbH USB zu 1S Seriell RS-485 Kabel mit Terminal Block mit Drucktaster, 1. 1.00 m
Description

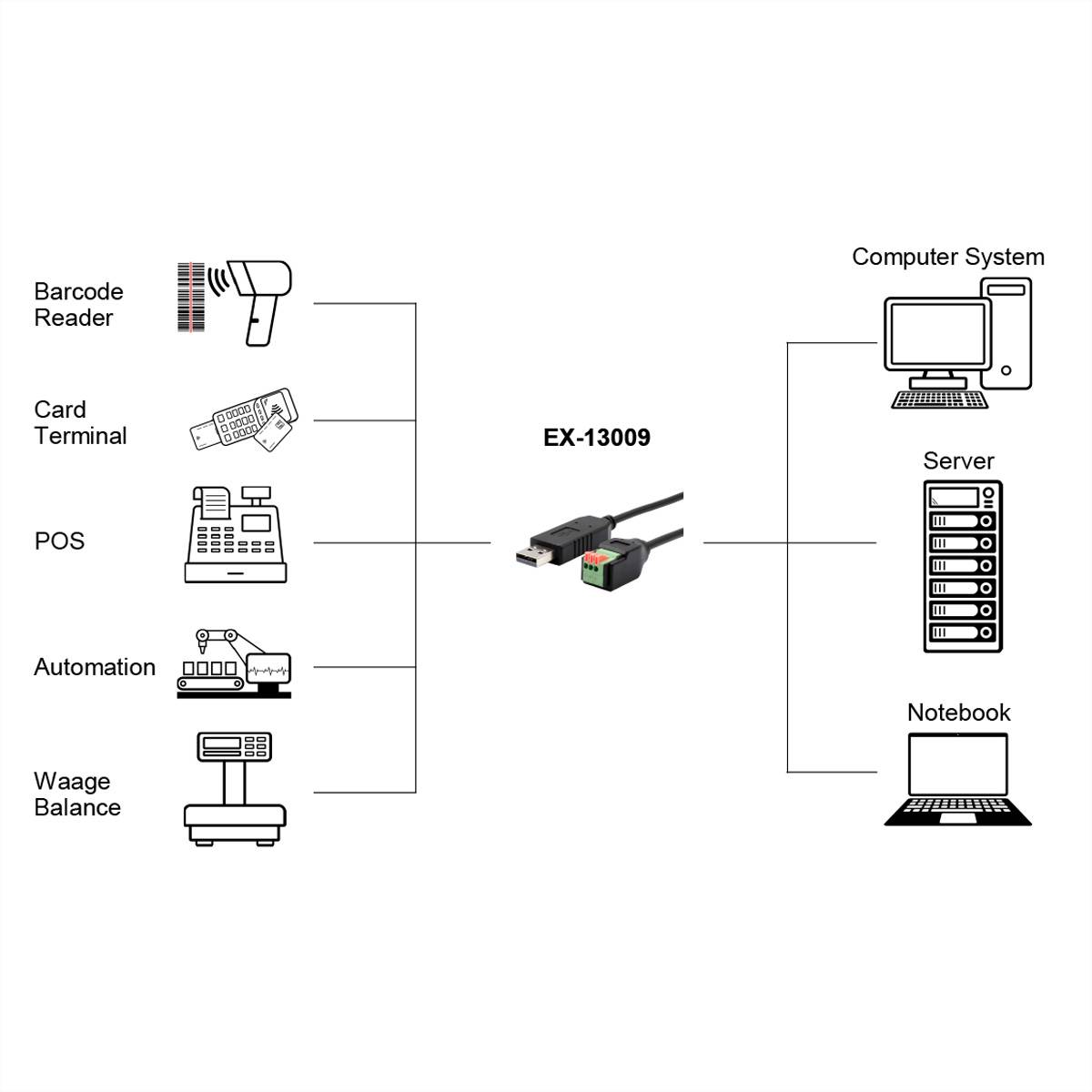

EXSYS EX-13009 USB to 1x serial RS-458 cable with terminal Block with push-button The USB to RS-485 cable with A-plug provides a serial RS-485 output for PC, workstation or server via the USB 1.1, 2.0 or 3.2 bus. . Through the simple installation, the computer does not need to be opened and the EX-13009 can be installed during running operation. Thus it is Ideal for short-term setup of RS-485 installations and, for example, in the service case of system administrators.
This text is machine translated.
Scope of delivery
- EX-13009
