Exsys PC Adapter Kabel-/Adapterset 1.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

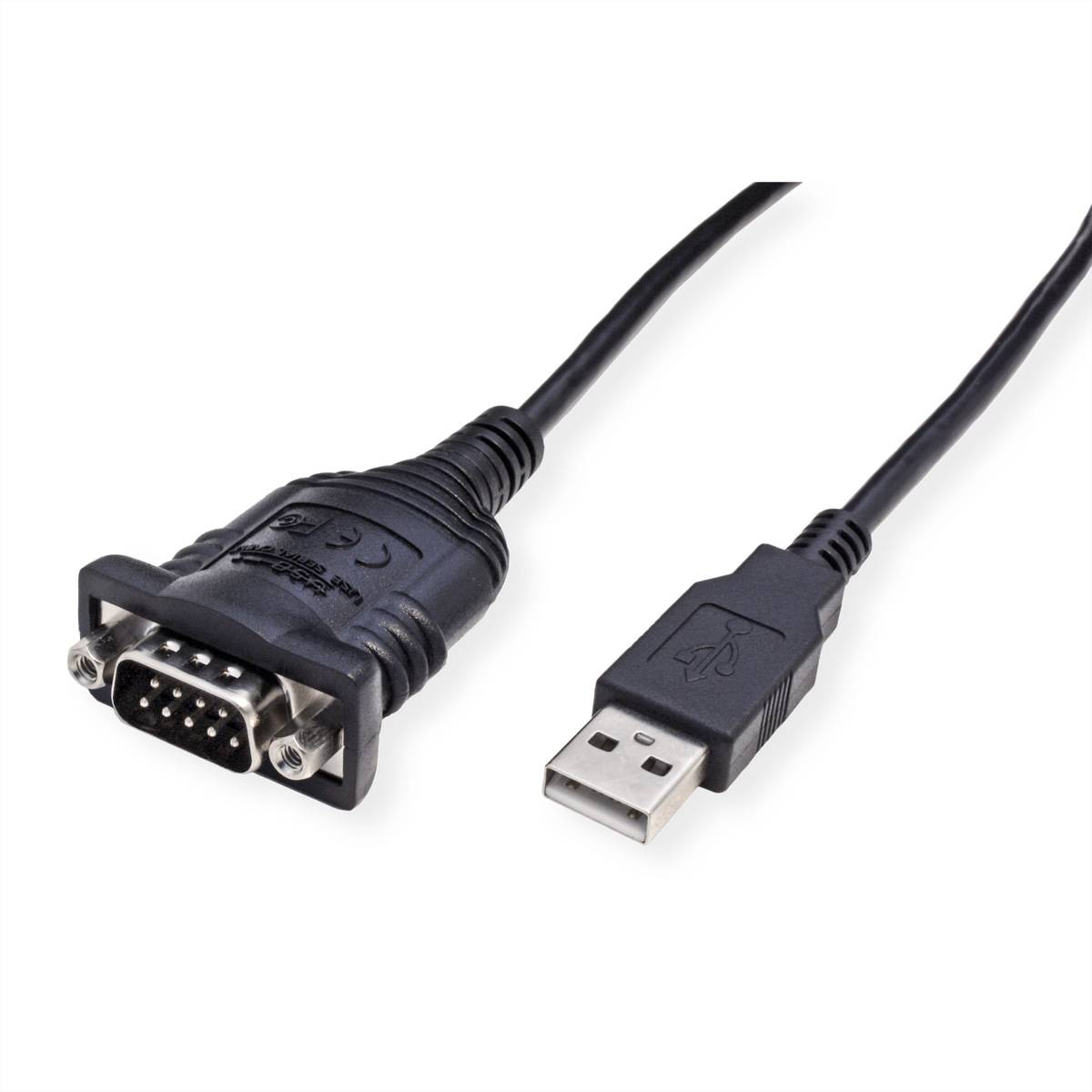

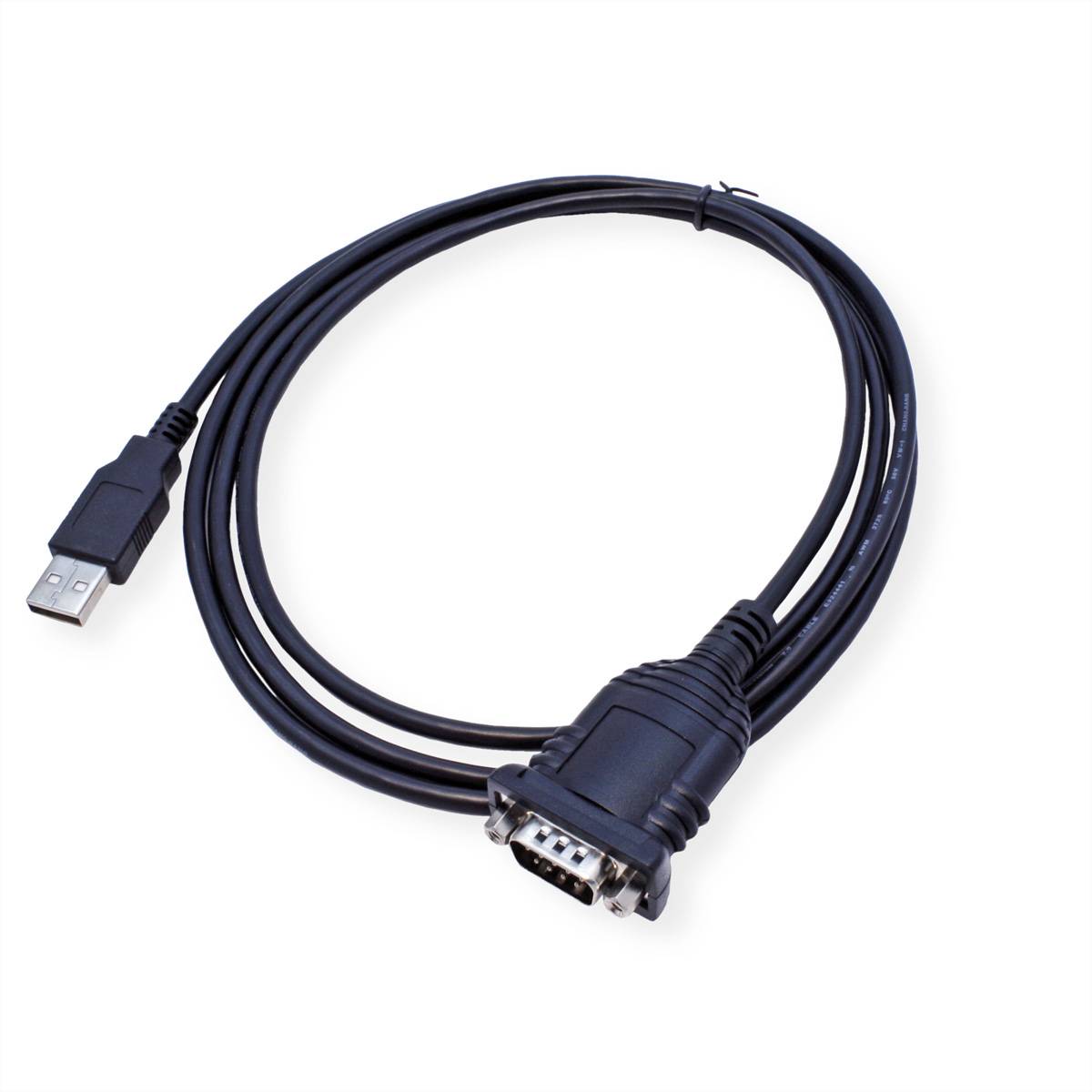

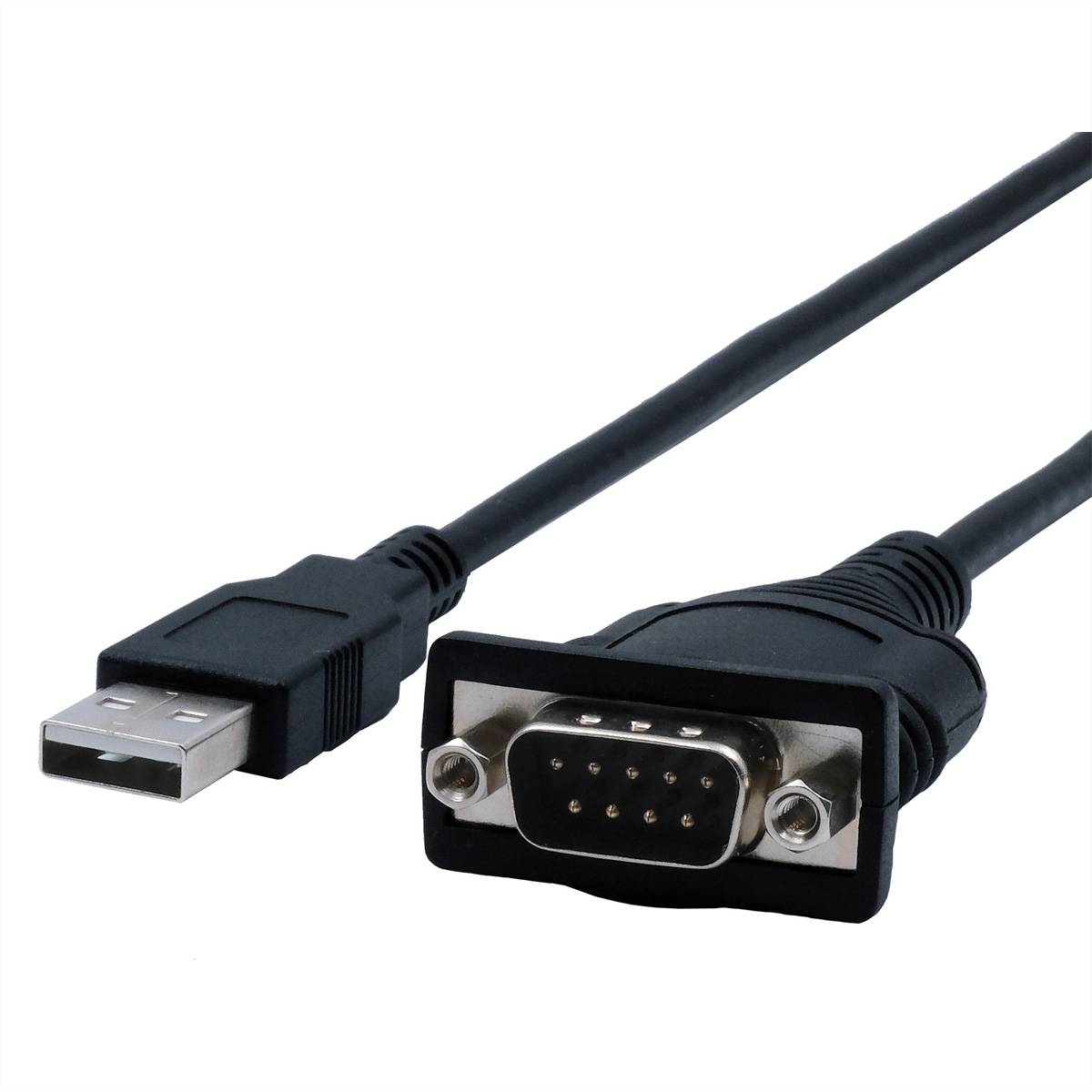

EXSYS EX-13001 series cable black 1.8 m USB type A RS-232
- 1.8 m
- USB Type-A connector straight

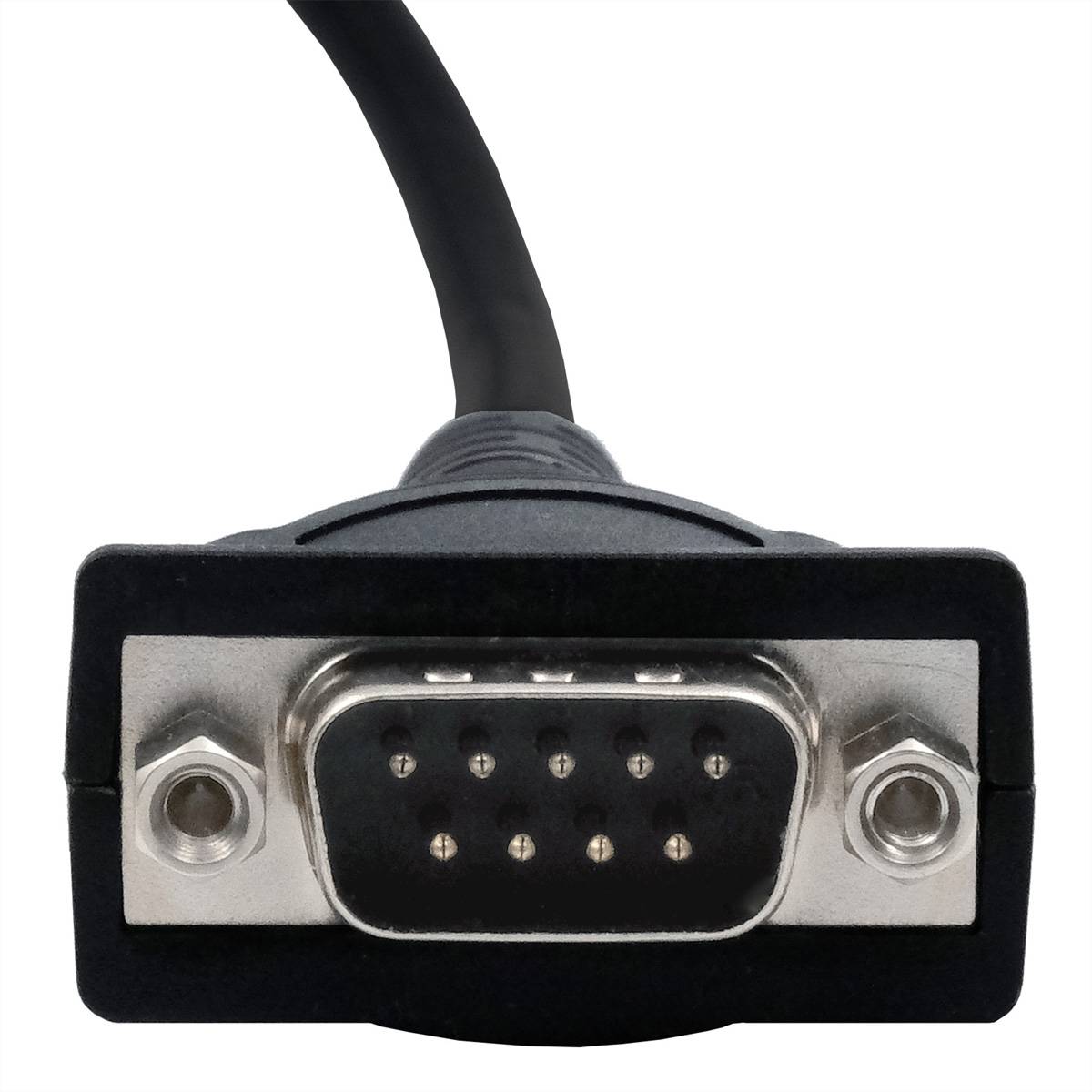

- RS-232 plug straight
- FTDI
- Data bits 7, 8
- Material plug casing: Plastic
- Black
- 1 pieces(s)
Technical specifications
- Connection 1 USB type A
- Connection 2 RS-232
- Product type
PC Adapter
- Connection type
USB 2.0
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Connector version
straight
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Weight
150 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Quantity per pack
1 Stück(e)
- Manual
yes
- Operating relative humidity (H-H)
5 - 90 %
- Storage temperature (T-T)
-40 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796926 Exsys PC Adapter Kabel-/Adapterset 1.80 m
User & Safety Instructions
User & Safety Instructions 3796926 Exsys PC Adapter Kabel-/Adapterset 1.80 m
Description

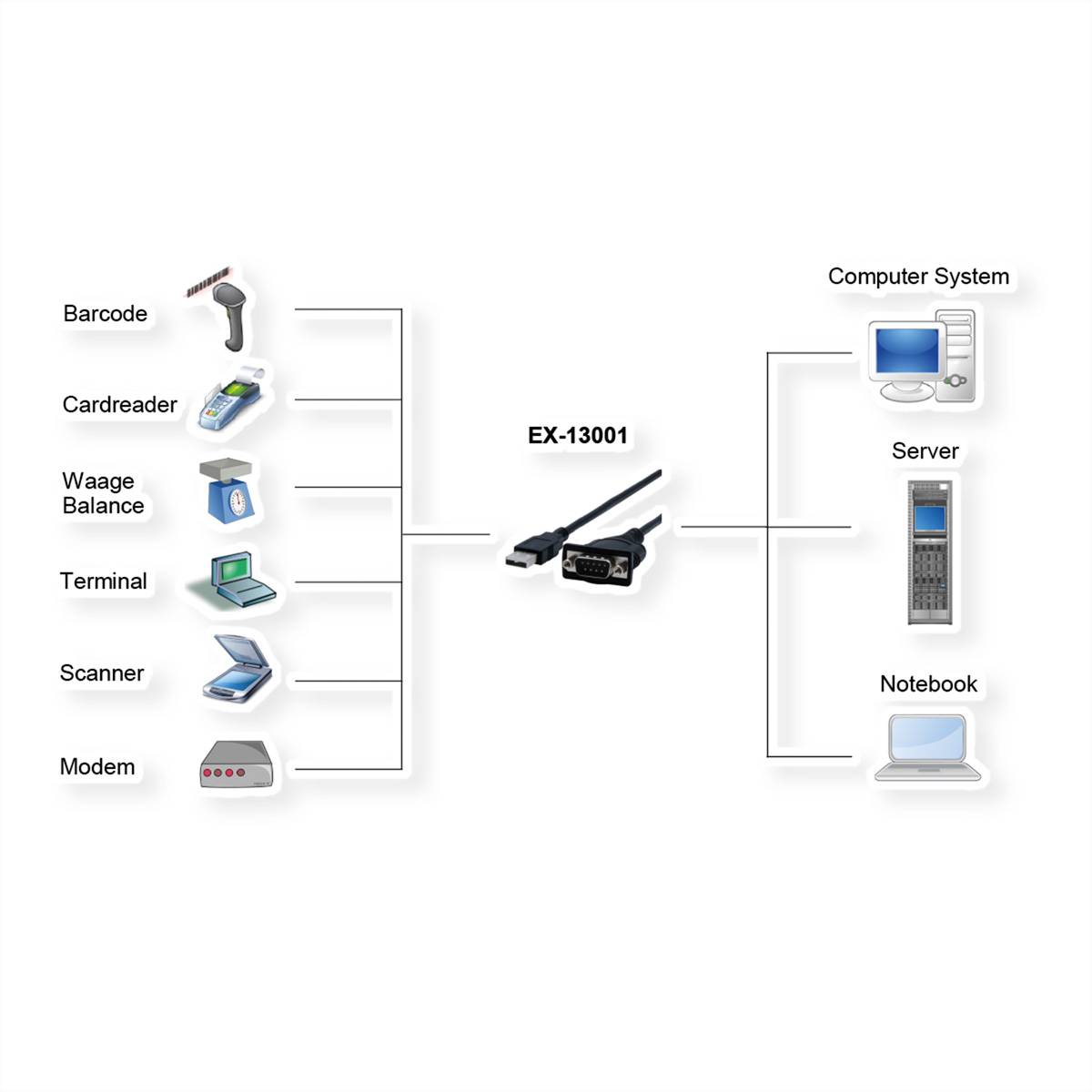

The USB to RS-232 cable with A-plug provides a serial RS-232 high-performance UART 16C550 output. It was developed to expand a further serial output for PC, workstation or server via the USB 1.1, 2.0 or 3.2 bus. Through the simple installation, the computer does not need to be opened and the EX-13001 can be installed during running operation.
This text is machine translated.
This text is machine translated.
Features
- Interface RS-232 V.24
- 16C550 FIFO buffer with 16 bytes
- I/O addresses and interrupt are assigned by the operating system
- Data bits: 7 and 8
- Stop bits 1, 1.5 and 2
- Parity: None, even, odd, space and mark
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power supply from the USB bus (bus Power)
- FTDI chipset
Scope of delivery
- EX-13001, manual
