Exsys PC Cable Exsys EX-1301-2F - Serieller Adapter - USB 2.0 1.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)

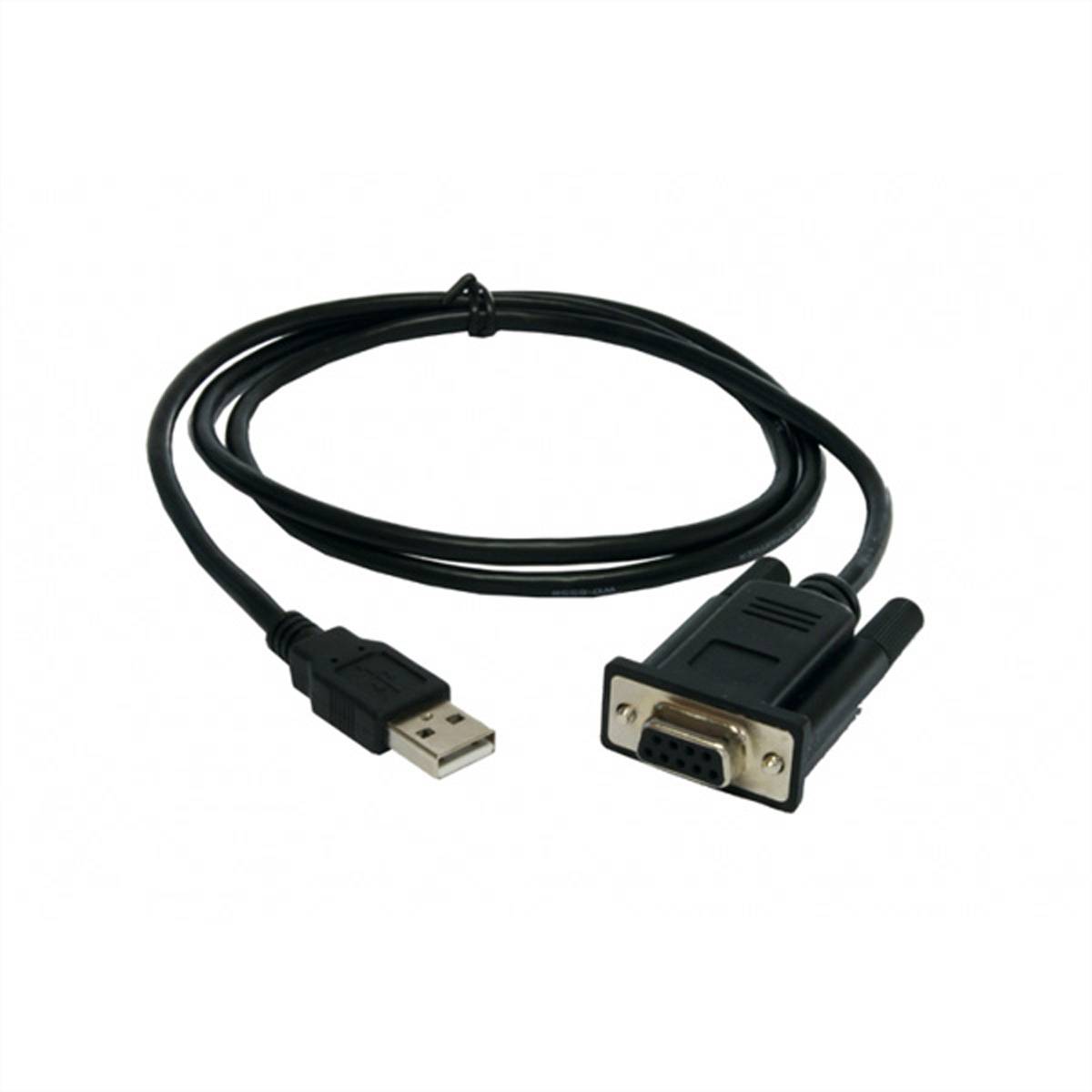

EXSYS USB - RS-232 1.8m signal cable 1.8 m black
Highlights & Details
- 1.8 m
- USB2.0 A, 9 pin RS-232 plug/socket
- Black
Technical specifications
- Product type
PC Cable
- Connection type
USB
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Cable use
PC
- Version
Cable
- Range of use
USB adapters
- Keyboard layout
German, QWERTZ
- Weight
150 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796845 Exsys PC Cable Exsys EX-1301-2F - Serieller Adapter - USB 2.0 1.80 m
User & Safety Instructions
User & Safety Instructions 3796845 Exsys PC Cable Exsys EX-1301-2F - Serieller Adapter - USB 2.0 1.80 m
Description

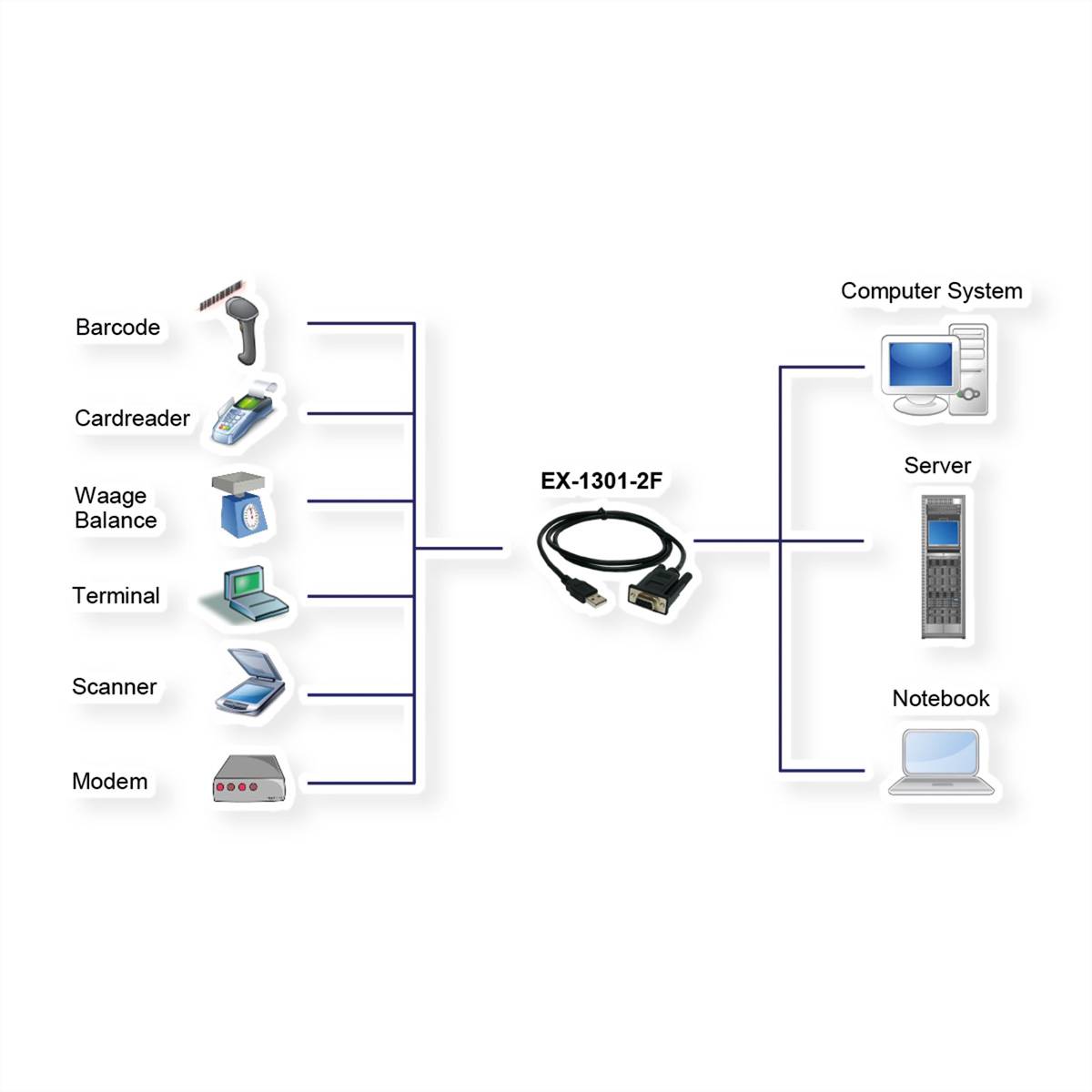

The USB 1.1 to RS-232 cable provides a serial RS-232 high-performance UART 16C550 output. It has been developed to expand a second serial output for PC, small workstation or server via the USB 1.1 or 2.0 bus. The computer does not need to be opened through the simple installation and the EX-1301-2F can be installed when the operation is ongoing. The EX-1301-2F is equipped with a 9 Pin Socket (DCE) and can be directly connected to the end-device. No more serial cable is needed.
- Interface: RS-232 V.24.
- FIFO buffer: 16C550 with 16 bytes.
- I/O addresses and interrupt: Are assigned by the operating system.
- Data bits: 5, 6, 7, 8 / Stop bits: 1, 1.5, 2 / Parity: None, even, odd, space, mark.
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power supply from the USB bus (bus Power).
This text is machine translated.
- Interface: RS-232 V.24.
- FIFO buffer: 16C550 with 16 bytes.
- I/O addresses and interrupt: Are assigned by the operating system.
- Data bits: 5, 6, 7, 8 / Stop bits: 1, 1.5, 2 / Parity: None, even, odd, space, mark.
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power supply from the USB bus (bus Power).
This text is machine translated.
Features
- Exsys EX-1301-2F - Serial adapter - USB 2.0 - RS-232/V.24
- Device Type : Serial adapter
- Form factor : External
- Interface type (bus type): USB 2.0
- Ports : RS-232/V.24
- Weight: 150 g
- Data Link Protocol : RS-232
- Product certifications : USB 1.1, USB 2.0
- System Requirements : Apple MacOS 8.0, Microsoft Windows CE, Linux, Apple MacOS 9, Apple MacOS X, Microsoft Windows 2003, Microsoft Windows 98SE/2000/ME/XP/Vista/7
Scope of delivery
- EX-1301-2F, driver CD, manual
