Highlights & Details

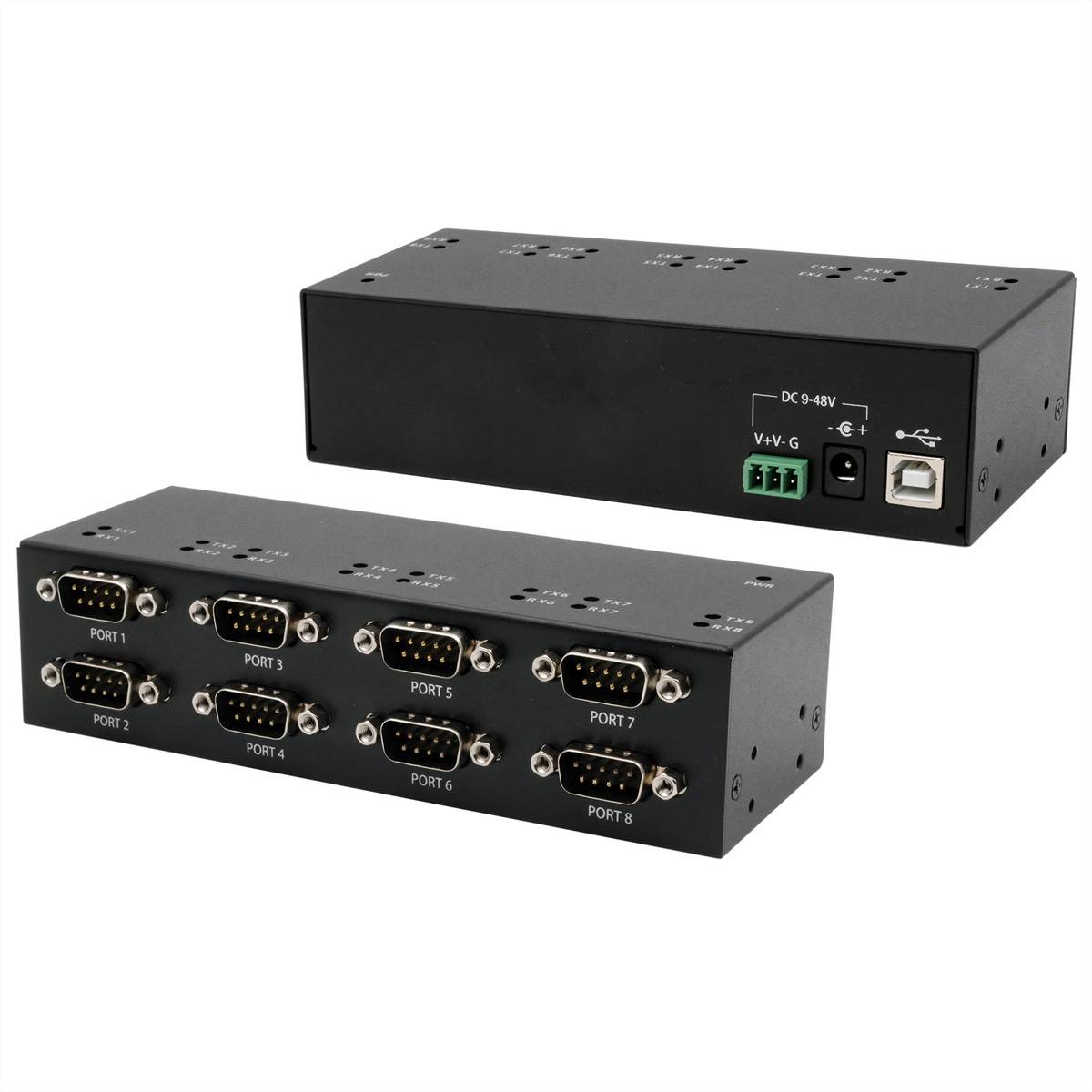

The EX-13074HM USB to serial RS-232 in a metal case, provides eight serial RS-232 High Performance UART 16C550 outputs. ...

Interface RS-232 V.24
FIFO buffer: 16C550 with 16 bytes
Simple installation with running operation
Power supply from the USB bus (bus Power)
LED for TX and RX active display

Technical specifications

Product group: Adapters, terminators, converters
Product type: USB-to-serial converter
Colour, black

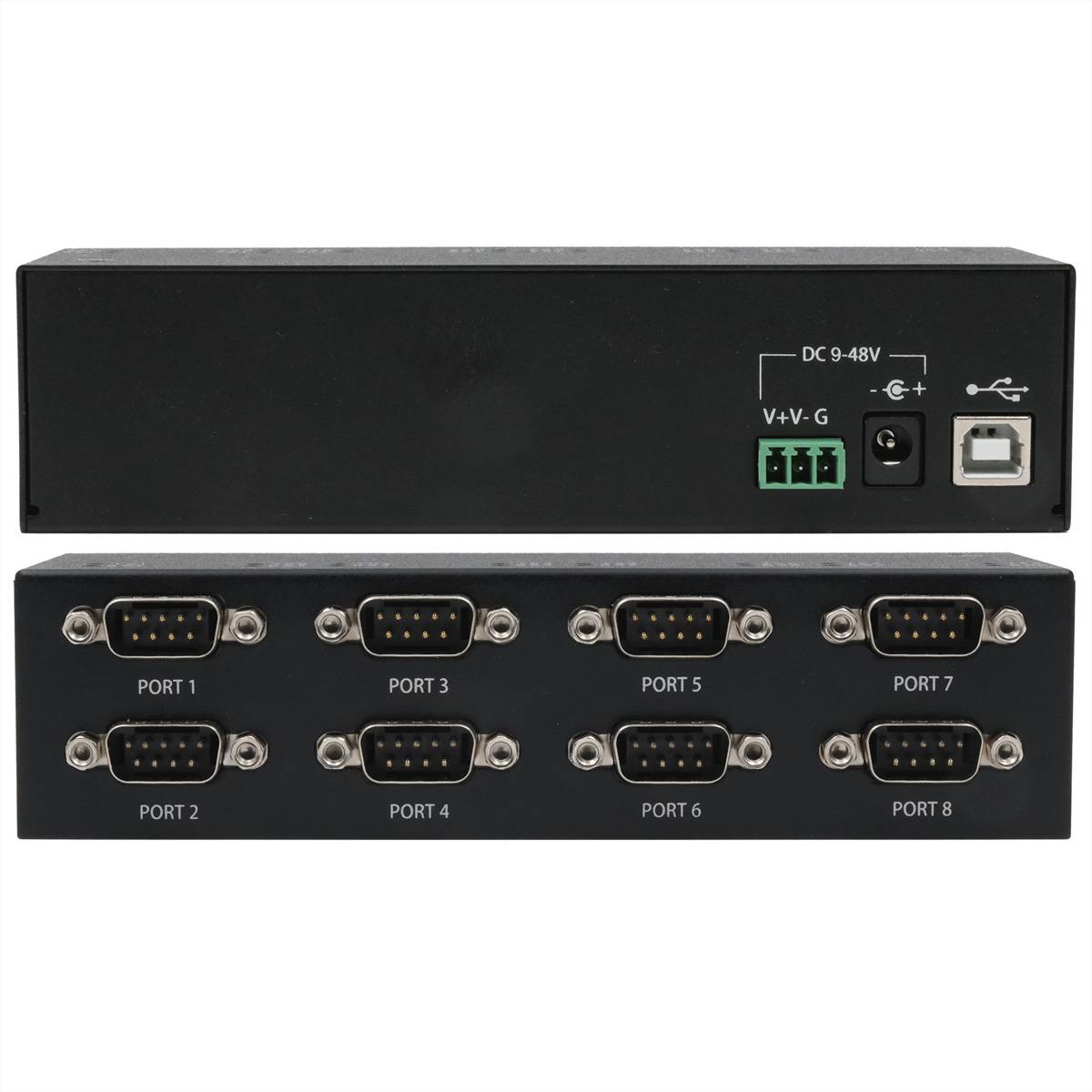

Connections page 1 (PC): USB 1x B-socket upstream
Connections side 2 (peripherals): 8 x 9-pin serial RS-232
Range of application: External
Min. Operating temperature 0 °C
Max. operating temperature: 55 °C
Height: 41 mm
Width: 59 mm
Depth: 160 mm
Weight: 670 g
Packaging height 70 mm
Package width 170 mm
Packaging depth 260 mm
Package weight: 0.65 kg
Gross weight: 0.65

Product type: PC Cable

Connection type: USB

Type A: USB 2.0 port B

Type B: USB

Cable length: 0 m

Factory colour: Black

Cable use: PC

Version: Cable

Range of use: PC

Transfer rate (max.): 480 MBit/s

Keyboard layout: German, QWERTZ

Weight: 0.65

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3796931 Exsys PC Cable Kabel-/Adapterset 0 m

User & Safety Instructions

User & Safety Instructions 3796931 Exsys PC Cable Kabel-/Adapterset 0 m

Description

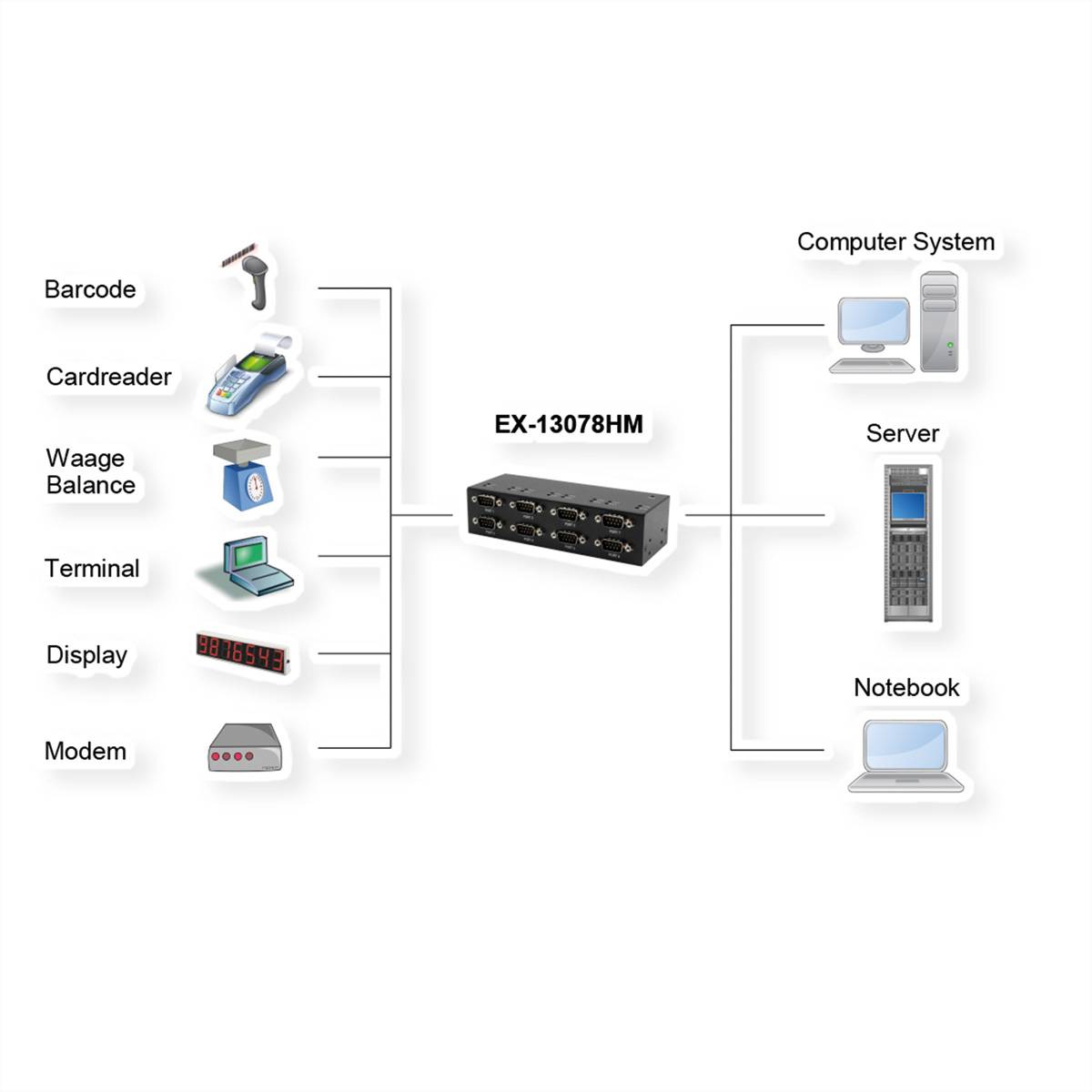

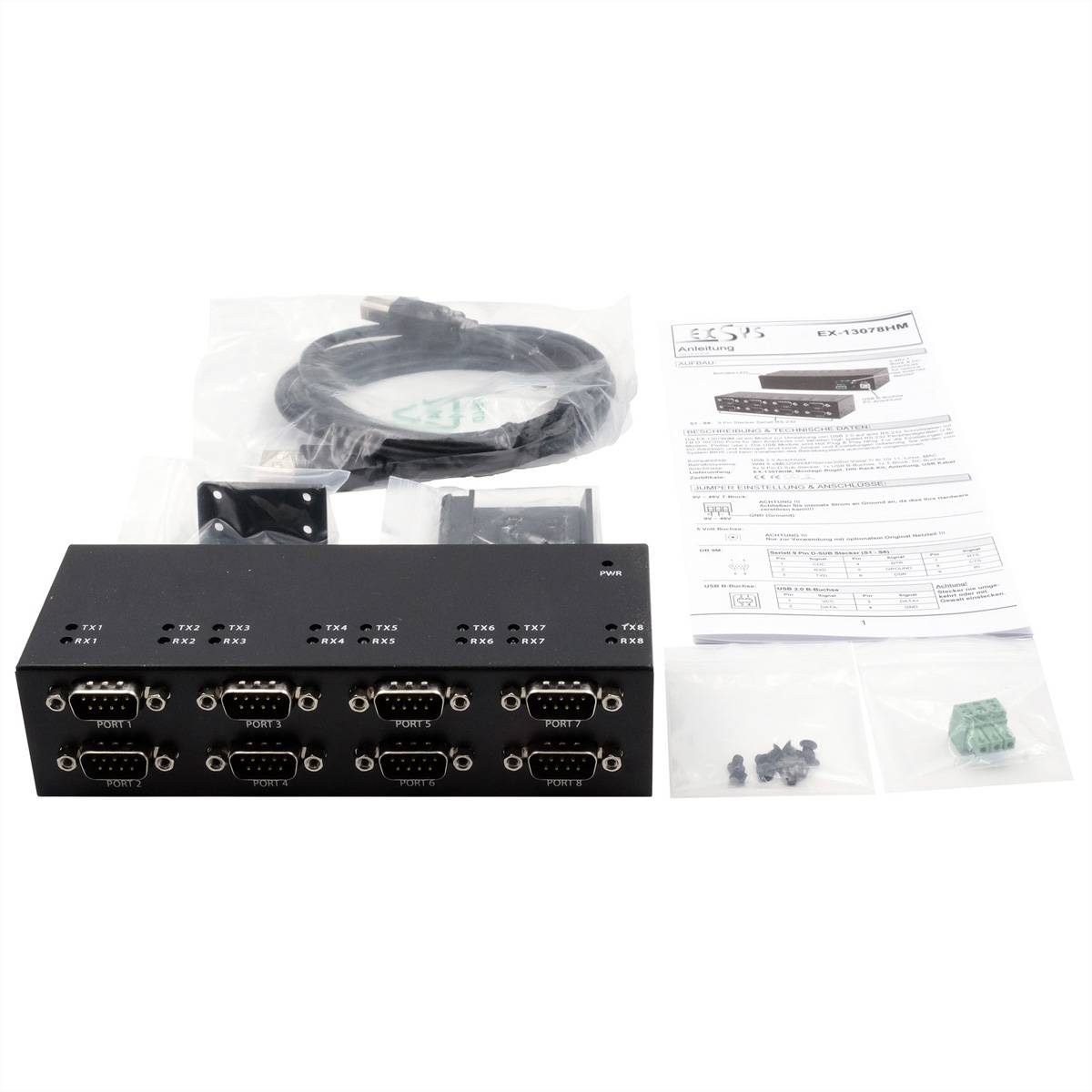

The EX-13074HM USB to serial RS-232 in a metal case, provides eight serial RS-232 High Performance UART 16C550 outputs. The EX-13078HM USB 2.0 to serial RS-232 in a metal housing provides eight serial RS-232 High Performance UART 16C550 outputs. It has been developed to expand four additional serial outputs in a robust metal housing for desktop computers or notebooks via the USB 2.0 Bus. The EX-13078HM has LED displays for data transfer at each port and is delivered with two brackets for wall mounting and a DIM-rail kit for attachment to a carrier rail in a 19" rack. . . A terminal Block and a DC-socket are available for an optional power supply.
