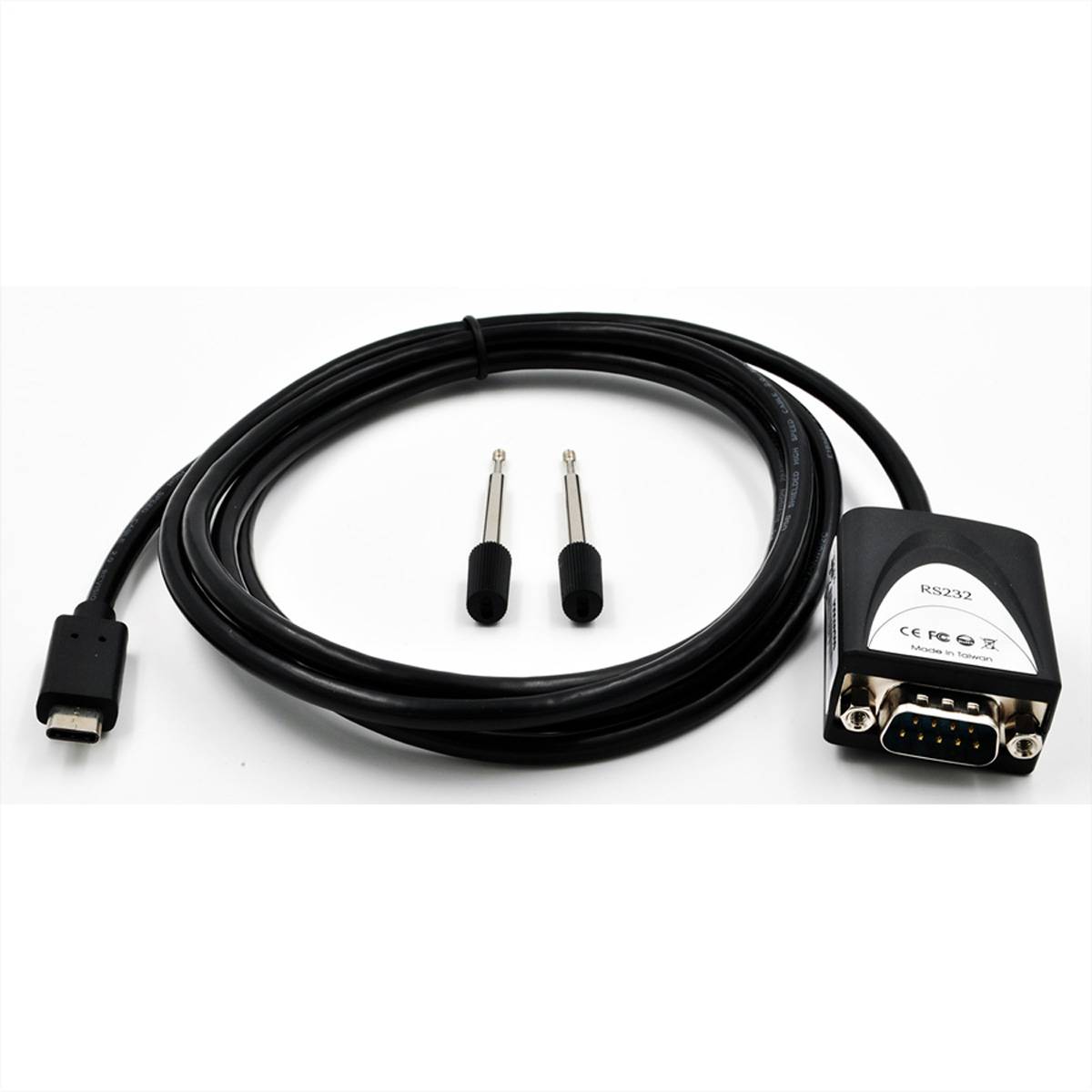

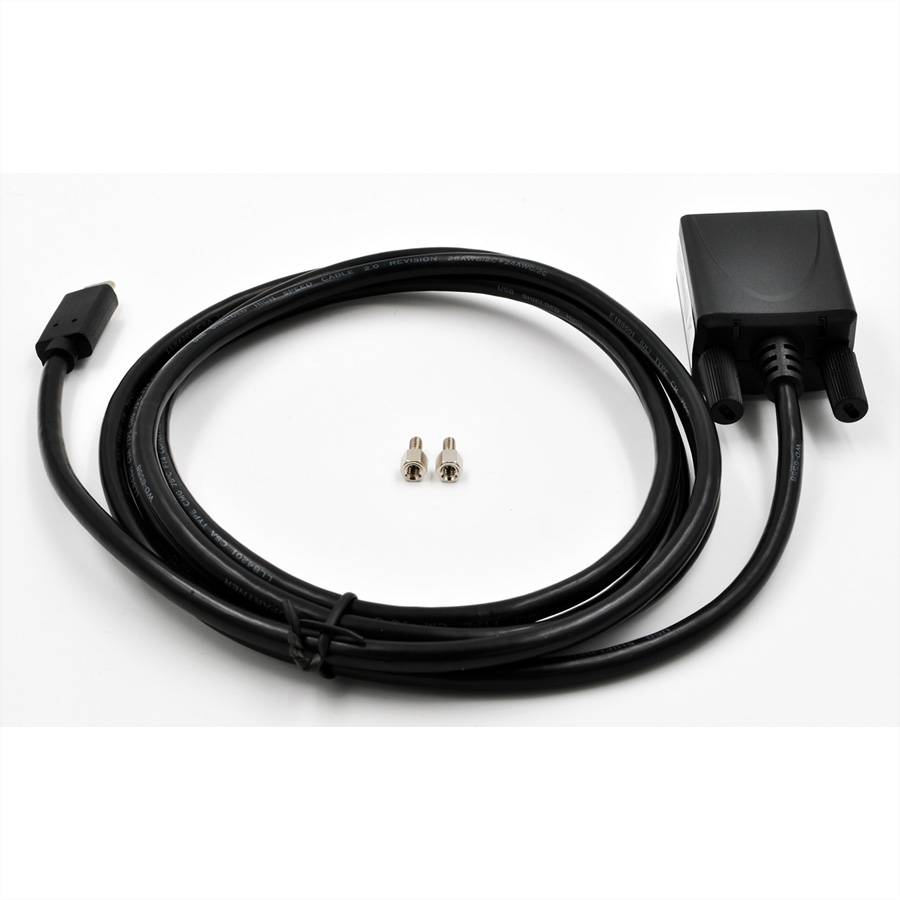

Exsys PC Cable Kabel-/Adapterset 1.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-2311-2 series cable black 1.8 m DB-9
- 1.8 m
- DB-9 plug
- Connector
- Black
Technical specifications
- Connection 1:DB-9
- Product type
PC Cable
- Connection type
USB 2.0
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Cable use
PC
- Version
Cable
- Range of use
USB adapters
- Weight
160 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796870 Exsys PC Cable Kabel-/Adapterset 1.80 m
User & Safety Instructions
User & Safety Instructions 3796870 Exsys PC Cable Kabel-/Adapterset 1.80 m
Description

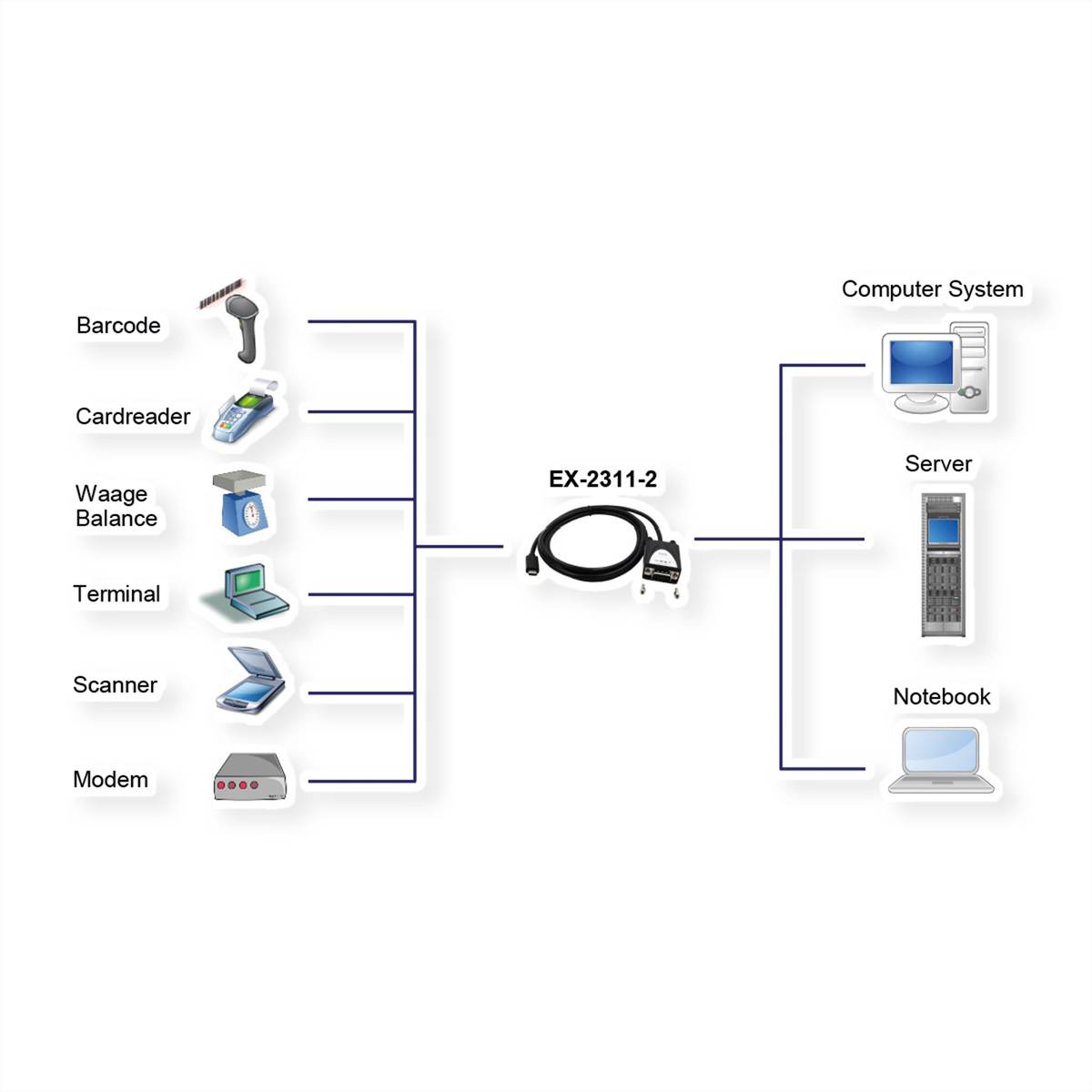

The USB 2.0 to RS-232 cable with C-plug provides a serial RS-232 high-performance UART 16C550 output. It has been developed to expand a second serial output for PC, small workstation or server via the USB 1.1 or 2.0 bus. The computer does not need to be opened through the simple installation and the EX-2311-2F can be installed when the operation is ongoing. The EX-2311-2F has a 9-pin socket (DCE) and can thus be connected directly to the terminals. Two nuts are supplied, which can be easily replaced with the knurled screws if the cable to be connected has screws.
This text is machine translated.
This text is machine translated.
Features
- Interface RS232 V.24
- FIFO buffer: 16C550 with 16 bytes
- I/O addresses and interrupt: Are assigned by the operating system
- Data bits: 7 and 8 / Stop bits: 1, 1.5, 2 / Parity: None, even, odd, space, mark
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- LED display for RX and TX
- Power supply from the USB bus (bus Power)
- Exchangeable screws and hexagonal nuts
- FTDI chip set
Scope of delivery
- EX-2311-2, driver CD, manual, 2 x hexagonal nuts
