Exsys PC Connection cable EXSYS EX-1321 USB 3.0 zu Ethernet 1Gigab 0 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1321 Network card Ethernet 1000 Mbit/s.
Highlights & Details
- Cable connected
- USB Ethernet
- 1000 Mbit/s 10/100/1000BaseT(X)
Technical specifications
- Interface: Ethernet
- Maximum data transfer rate of 1000 Mbit/s.
- Product type
PC Connection cable
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- Type A
USB
- Type B
USB
- Cable length
0 mm
- Factory colour
Multicolour
- Cable use
PC
- Version
Connection cable
- Range of use
USB adapters
- Depth
42.5 mm
- Height
20.5 mm
- Width
75 mm
- No. of USB ports
1 x
- Material (details)
Metal
- 10/100/1000 Mbps ports
1 x
- Transfer type
Corded
- Weight
300 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ethernet LAN
yes
- Relative humidity
5 - 95 %
- Internal
no
- Manual
yes
- Drivers included
yes
- Storage temperature (T-T)
-40 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796848 Exsys PC Connection cable EXSYS EX-1321 USB 3.0 zu Ethernet 1Gigab 0 mm
User & Safety Instructions
User & Safety Instructions 3796848 Exsys PC Connection cable EXSYS EX-1321 USB 3.0 zu Ethernet 1Gigab 0 mm
Description

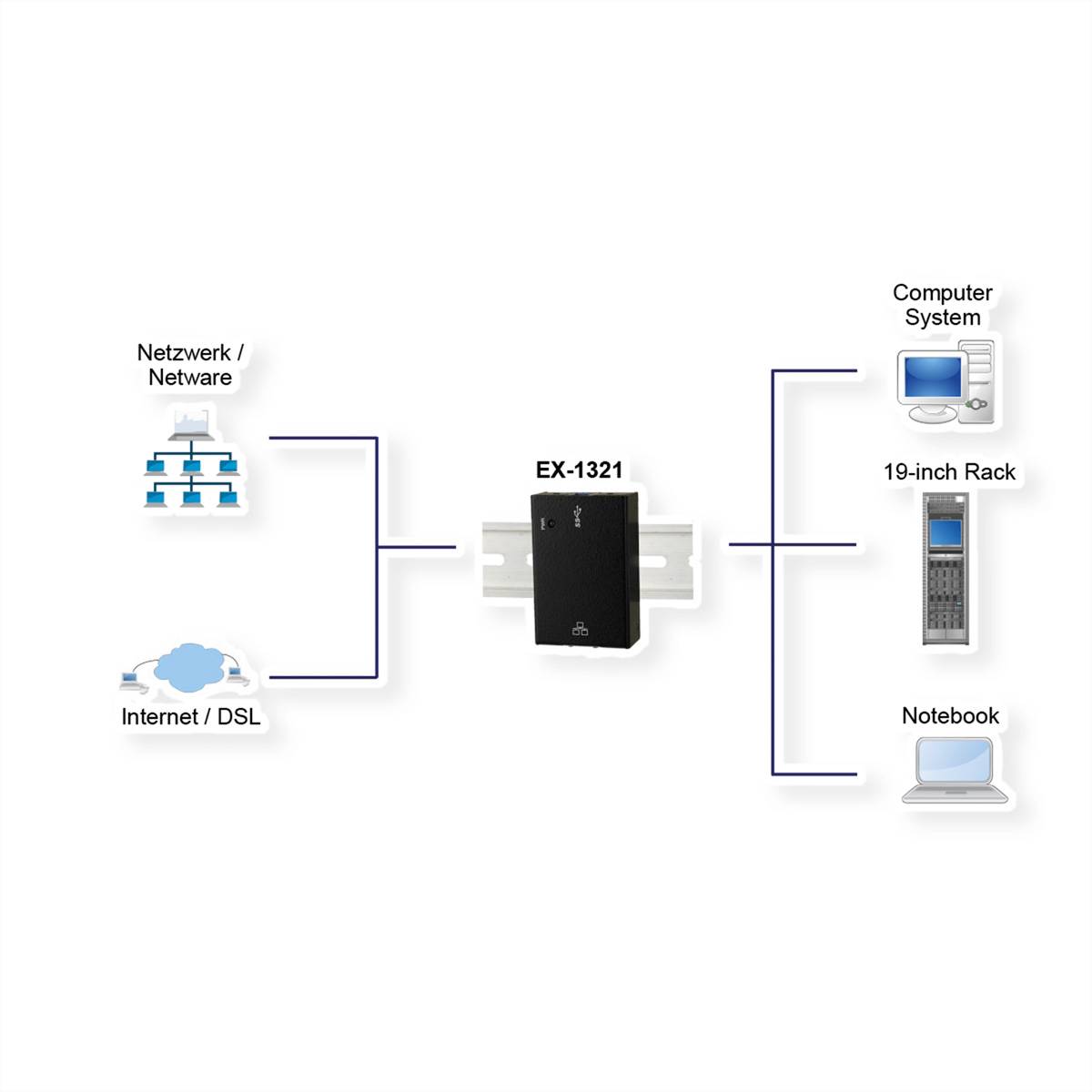

With the EX-1321 you can notebook, desktop computer or server in 19-inch
Rack via the USB 3.0 or 2.0 output in a 10/100 or 1000Mbps network
integration. The EX-1321 can simultaneously access an existing network card
system. The installation is very easy without the systems
must be opened. With the EX-1321 we supplied a DIN-rail kit for the
Installation in a 19" rack.
Conforms to universal serial bus 3.1 Gen 1
Compatible with USB 2.0 and USB 1.1 standard
It supports full duplex operation with IEEE 802.3x flow control and half duplex
Operation with return load flow control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (energy-efficient Ethernet)
Supports crossover detection and auto-correction
Power supply from the USB bus (bus Power)
Supports Wake on LAN
Screw-on USB 3.0 cable for secure installation
Metal housing with wall and DIN-rail kit for industrial applications
LED display for Power and Ethernet connection
This text is machine translated.
Rack via the USB 3.0 or 2.0 output in a 10/100 or 1000Mbps network
integration. The EX-1321 can simultaneously access an existing network card
system. The installation is very easy without the systems
must be opened. With the EX-1321 we supplied a DIN-rail kit for the
Installation in a 19" rack.
Conforms to universal serial bus 3.1 Gen 1
Compatible with USB 2.0 and USB 1.1 standard
It supports full duplex operation with IEEE 802.3x flow control and half duplex
Operation with return load flow control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (energy-efficient Ethernet)
Supports crossover detection and auto-correction
Power supply from the USB bus (bus Power)
Supports Wake on LAN
Screw-on USB 3.0 cable for secure installation
Metal housing with wall and DIN-rail kit for industrial applications
LED display for Power and Ethernet connection
This text is machine translated.
Scope of delivery

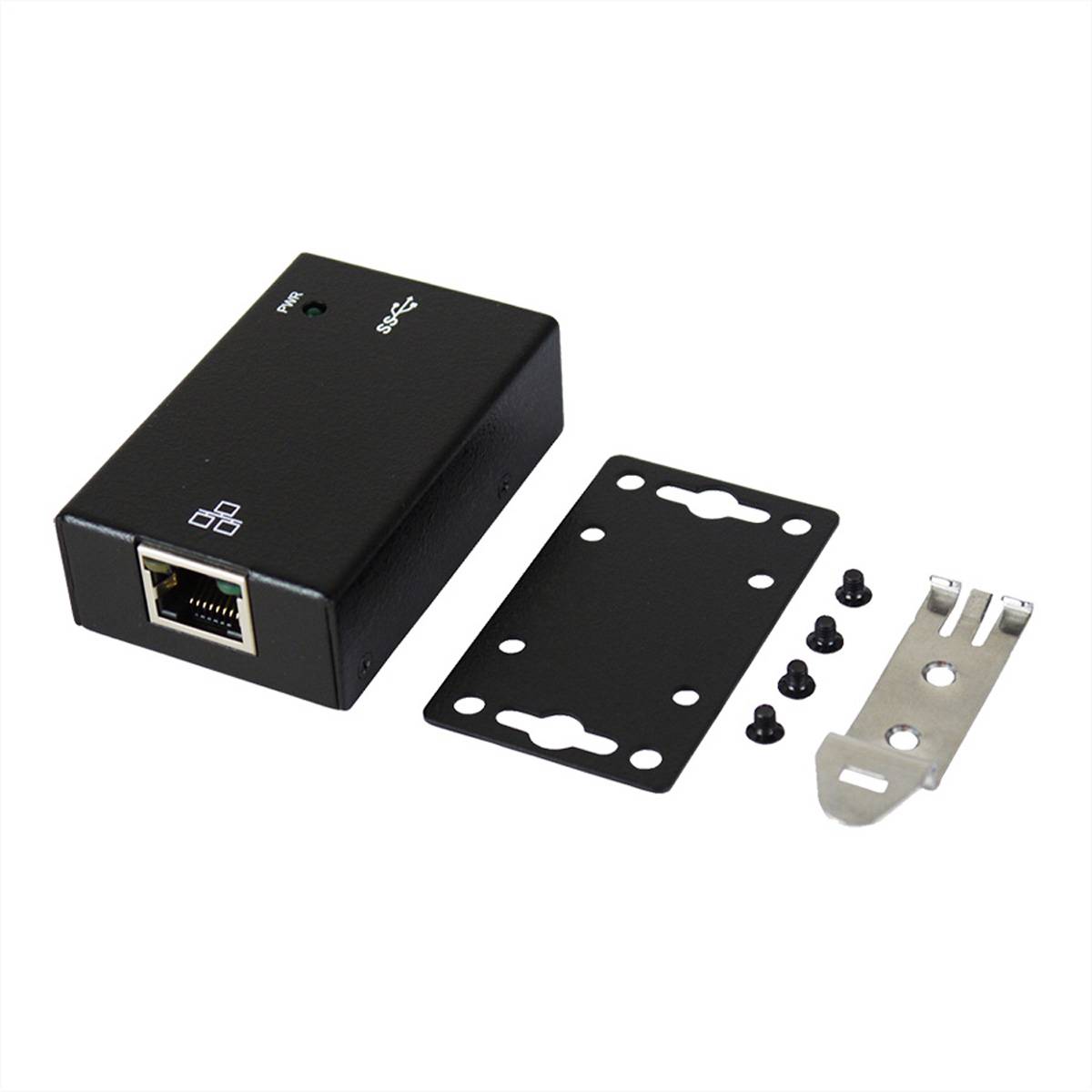

- EX-1321, USB 3.0 cable screw-able, DIN rail kit, driver CD, manual
